ADJ ENC640 Encore LP32IP RGBL LED Wash Fixture with 32x 20W in 8 Controllable Sections - IP65 Rated

ITEM #: AMDJ-ENC640 MFG #: ENC640

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$2,399.95

Our Price:

$1,719.99

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


ENC640 - Overview

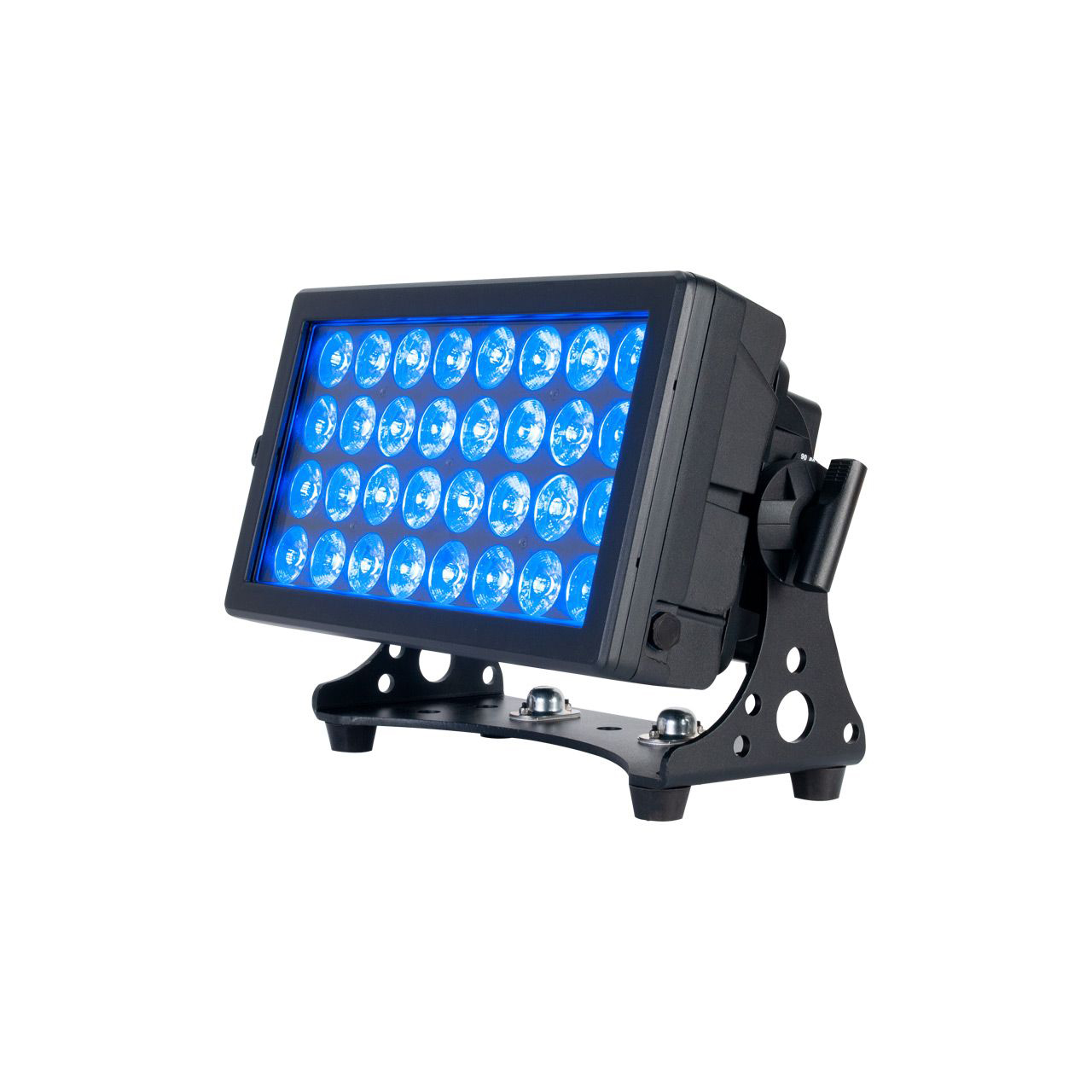

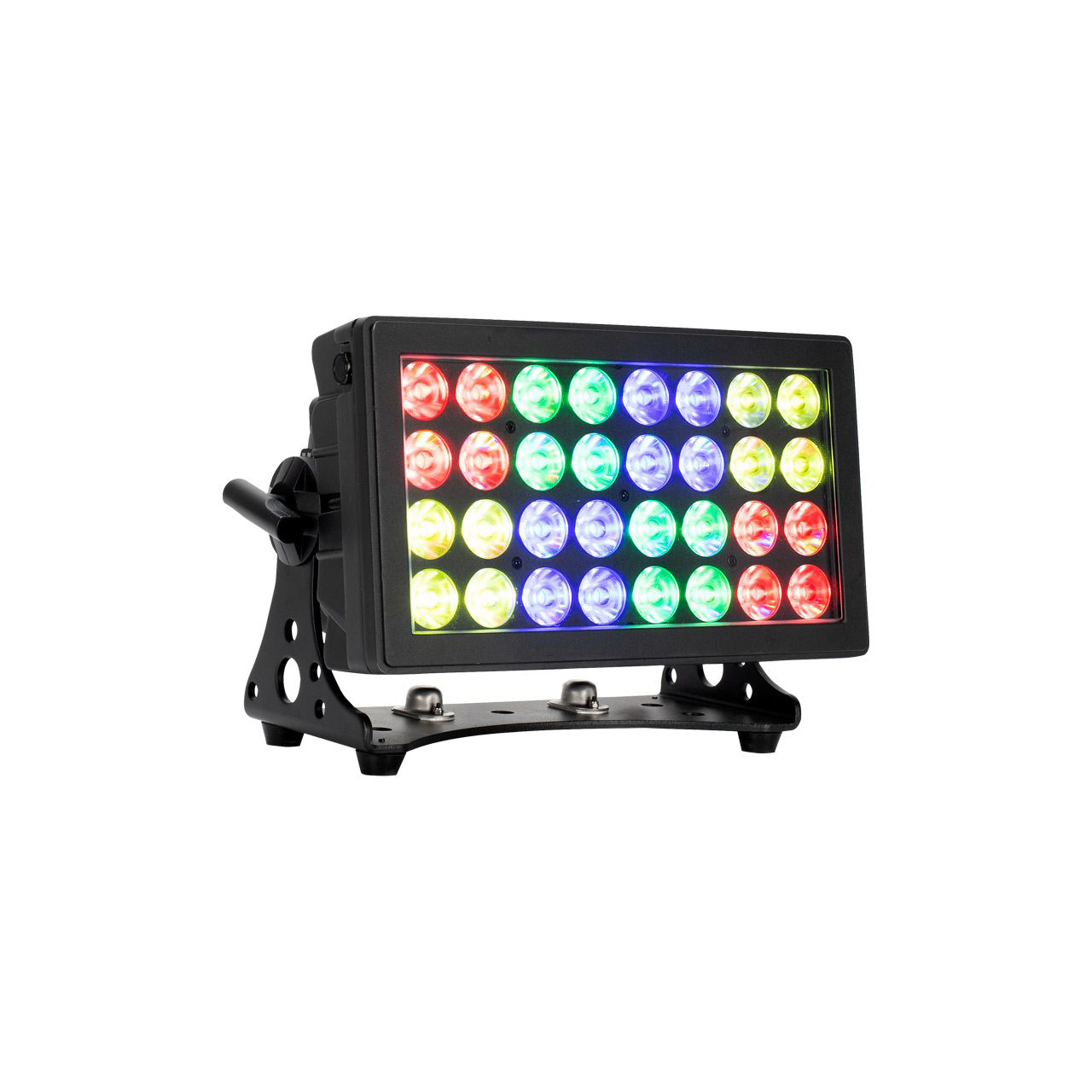

Offering an impressive light output and versatile design, the ADJ Encore LP32IP is multi-functional LED wash lighting fixture with an IP65-rated casing. It is part of ADJ's Lime Par Series of LED fixtures utilizing high output 4-in-1 color mixing LEDs that each include individually controllable red, green, blue and lime elements. Each LED is rated at 20-Watts and offers a wide variety of color options achieved through mixing the four primary colors at varying levels of intensity. These include white light with a variable color temperature of 2700K to 7000K, which can be easily selected using either linear control or preset macros. Inclusion of the Lime LED element boosts both CRI and perceived brightness as well as filling in gaps in the color spectrum.

The LP32IP's LEDs are arranged into 8 individually controllable sections, which can be used to create engaging ‘eye candy' animated patterns and pixel-mapped effects. It offers a tight native beam angle of 11-degrees, which can be easily widened to 25-degrees using the included diffusion filter and magnetic filter frame. The included heavy-duty bracket can either be used to stand the fixture directly on the floor or to mount it to truss using its integrated omega clamp receivers. The bracket's design also incorporates a sure-lock system which slots into place at 10-degree intervals, making it extremely easy to set multiple fixtures to precisely the same angle.

With a robust all metal construction and durable black powder coating, the LP32IP is designed for use in professional entertainment lighting environments. It has an IP65 rating, which means that it is sealed to prevent the ingress of liquid, snow, dust, and sand. This makes it suitable for temporary outdoor use as well as for indoor applications where the fixture may be subject to liquid spillage or come into contact with excessive dust or dirt.

  • Features:

    • IP65 rated - protects from dust, sand, water
    • All metal construction with black housing
    • Includes heavy duty floor / mounting bracket with omega clamp receivers
    • Locking bracket system (securely locks every 10°)
    • Includes magnetic removable filter frame to add a diffusion filter
    • Flicker free for film and broadcast
    • Linear variable white temperature control (2700K - 7000K)
    • Built-in antenna for WiFLY EXR Wireless DMX and Aria X2 Wireless DMX Control

  • Specifications:

      Source
    • LED: 32x 20W RGBL LEDs
    • Rated Life: 50,000 hours
    • Beam Angle: 11°, 25° with Frost Filter
    • Field Angle: 23.7°, 47° with Frost Filter
    • LUX: 157,491 @ 1M, 6,300 @ 5M (Full On); 28,363 @ 1M, 1,135 @ 5M (Full On) with Frost Filter
    • CRI: 84.9
    • CRI R9: 59.3

      Photmetric Data
    • Beam Angle: 11° (25° with diffusion filter attached)
    • CRI: 89.3
    • CRI R9: 69
    • Lumens: 5982
    • Linear Color Temperature Control (2700K - 7000K)
    • Preset Color Temperatures (2700K, 3200K, 4000K, 5600K, 6500K and 7000K)

      Control
    • WiFLY EXR Wireless DMX built-in (2500ft (700m) line of sight). Also compatible with Aria X2 Transceivers for Wireless DMX control.
    • Multiple DMX channel modes
    • 8x individually controlled sections with Pixel Zone Control
    • 0% - 100% Dimming + smooth 16-bit Dimming
    • 6x Dim Modes
    • 4x Dim Curves
    • User settable Dim Speed control
    • Control Mode: DMX512, RDM (Remote Device Management)
    • LED Refresh Rate: 900Hz - 25Khz
    • With Wired Digital Communication Network
    • Selectable Fan Modes: Silent, Auto or High

      Construction

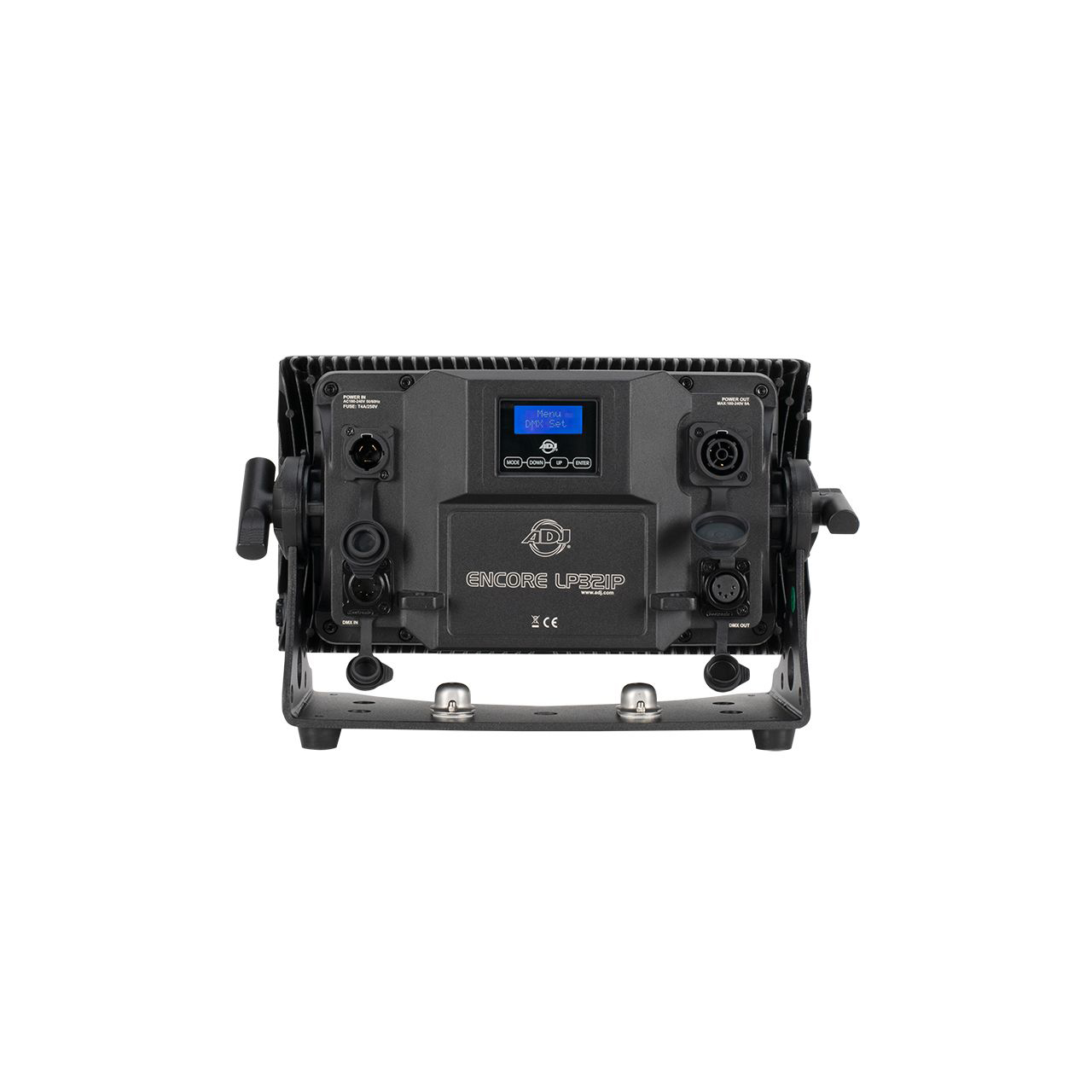

    • Display: OLED display with function buttons
    • Data In/Out: IP65 Locking 5-pin XLR, DMX In/Out (with rubber protective covers over connections)
    • Power In/Out: IP65 Locking Power In/Out (with rubber protective covers over connections)
    • All Metal Heavy-Duty Housing: Built To Last In Outdoor or Touring Applications

      Electrical
    • Multi-Voltage Operation: AC 100V - 240V, 47/63Hz
    • Daisy Chain: up to 2 fixtures max (@ 120V); 6 fixtures max (@ 240V)
    • Max Power: 334W Max
    • Min/Max Ambient Temperature: -4°F - 113°F (-20°C - 45°C)

    • Dimensions: 13.9" x 9.7" x 6.5" (353.4mm x 246.0mm x 165.5mm)
    • Weight: 24.25lbs (11kg)

      Approvals/Ratings
    • CE Certified
    • ETL (Pending)

  • Item Includes:

    • 1x ENC640 Light Fixture
    • 1x Outdoor Locking Power Cable
    • 1x 25 Degree Frost Filter with Metal Frame

  • Warranty:

    • 2 Year Warranty

  • GTIN:

    0810087370206
