Chauvet ROGUER3BEAM High-Powered Beam Fixture with 300W NSL Ushio Lamp

ITEM #: CHVT-ROGUER3BEAM MFG #: ROGUER3BEAM

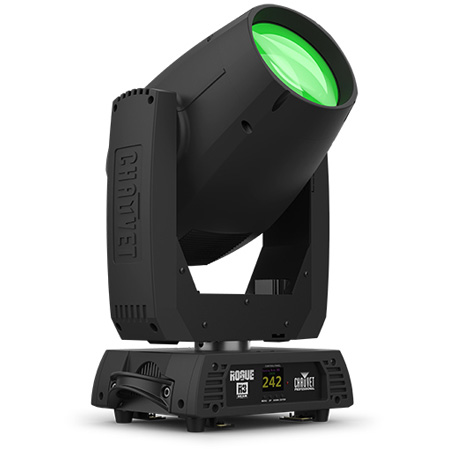

Primary Image

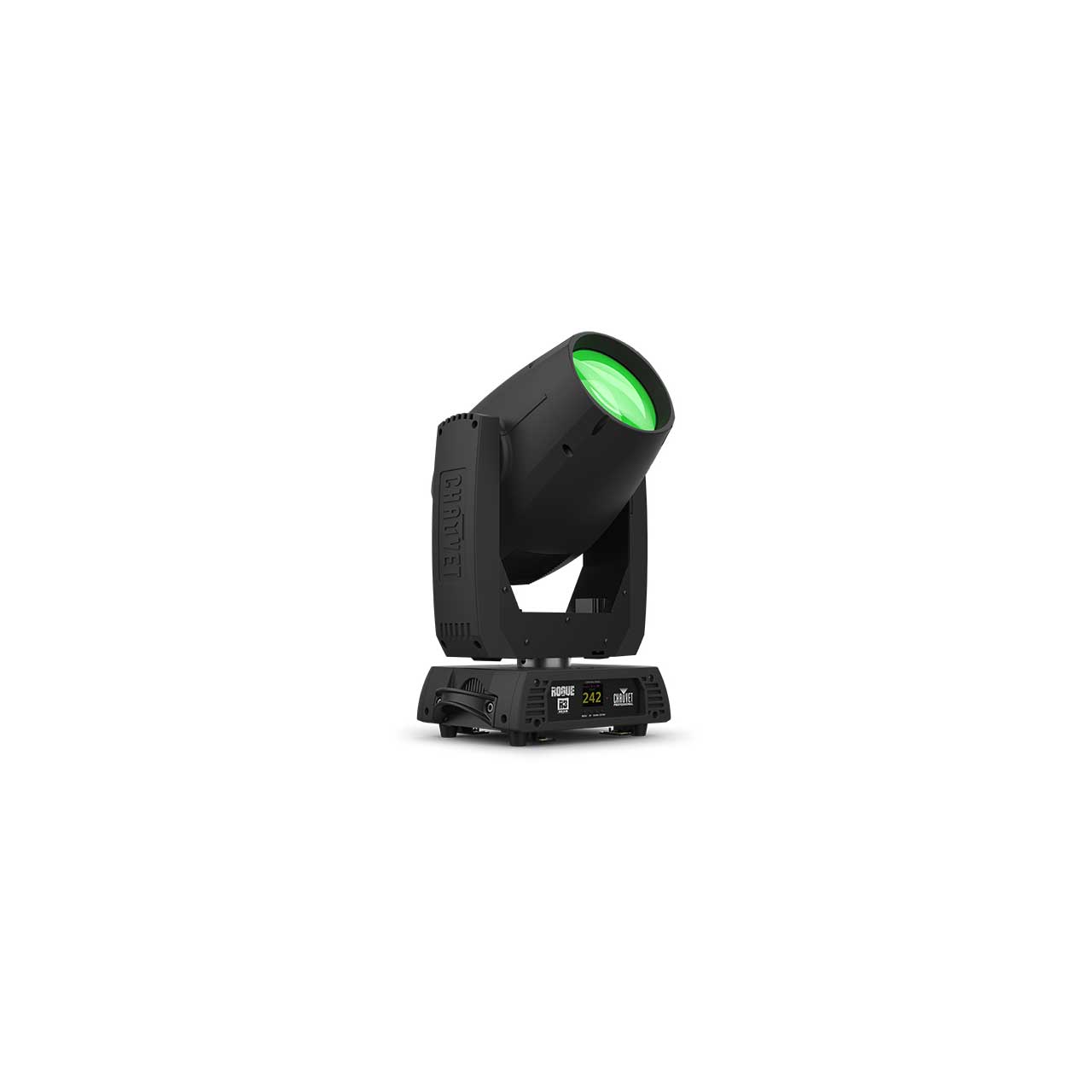

  • Product Image Thumbnail 1 of 4

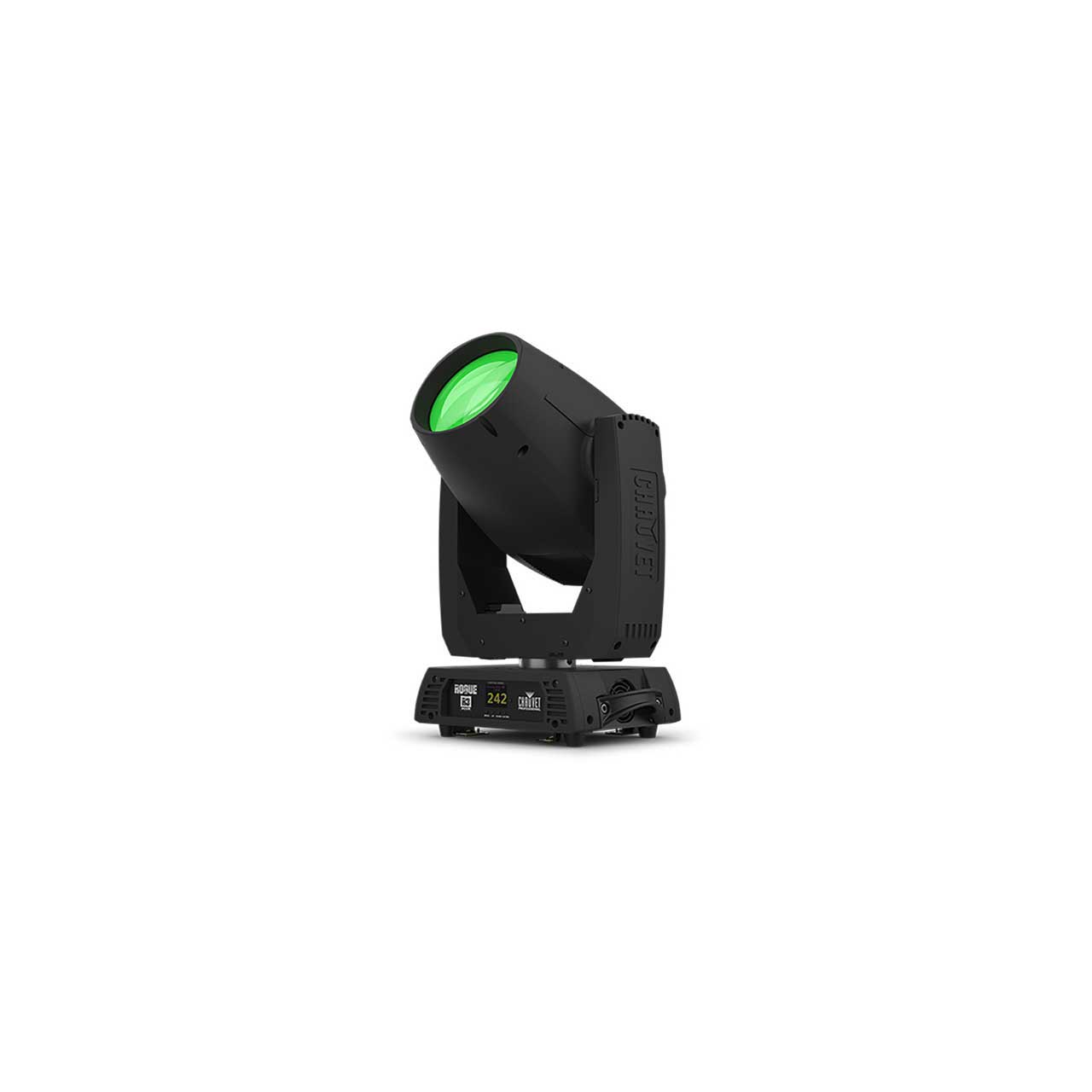

  • Product Image Thumbnail 2 of 4

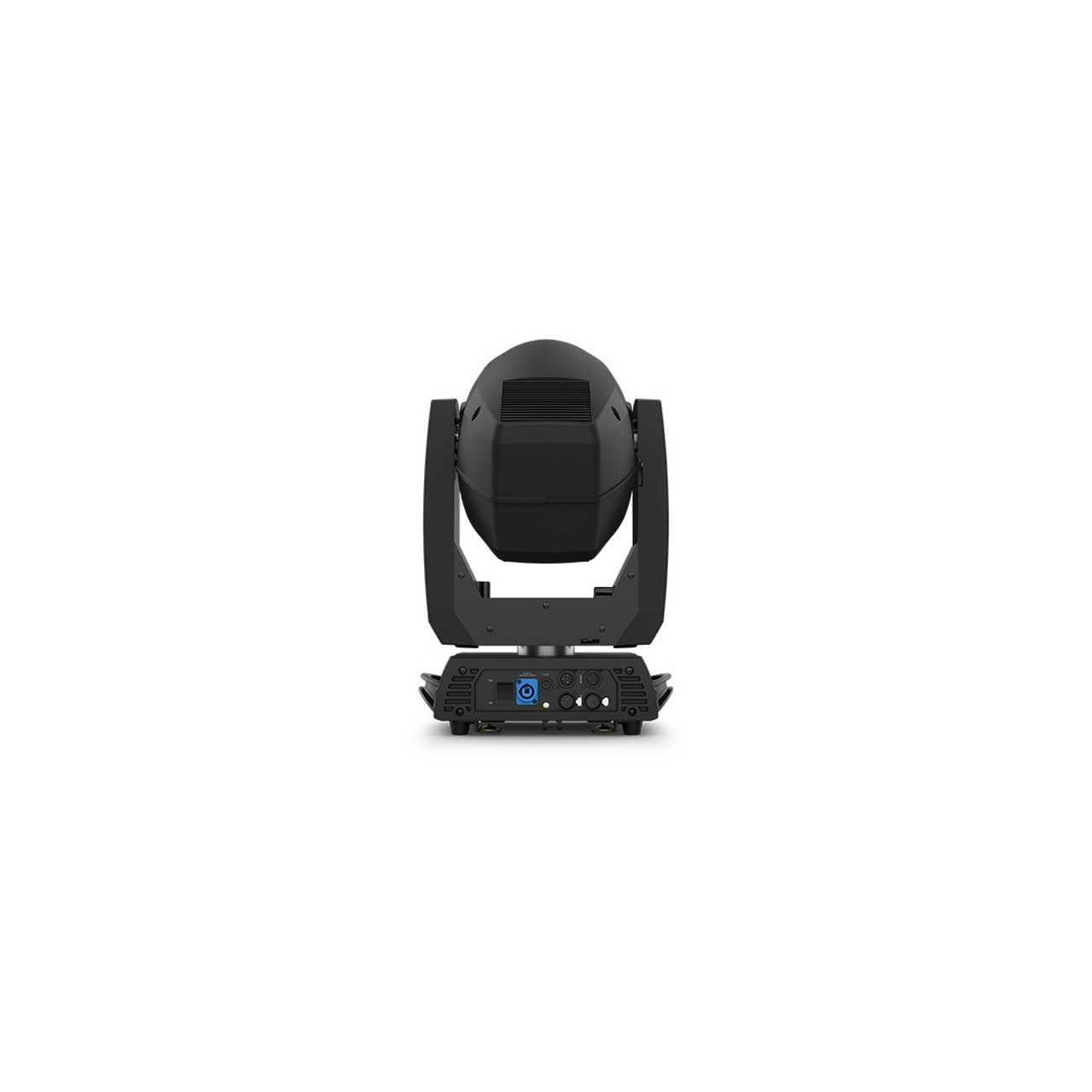

  • Product Image Thumbnail 3 of 4

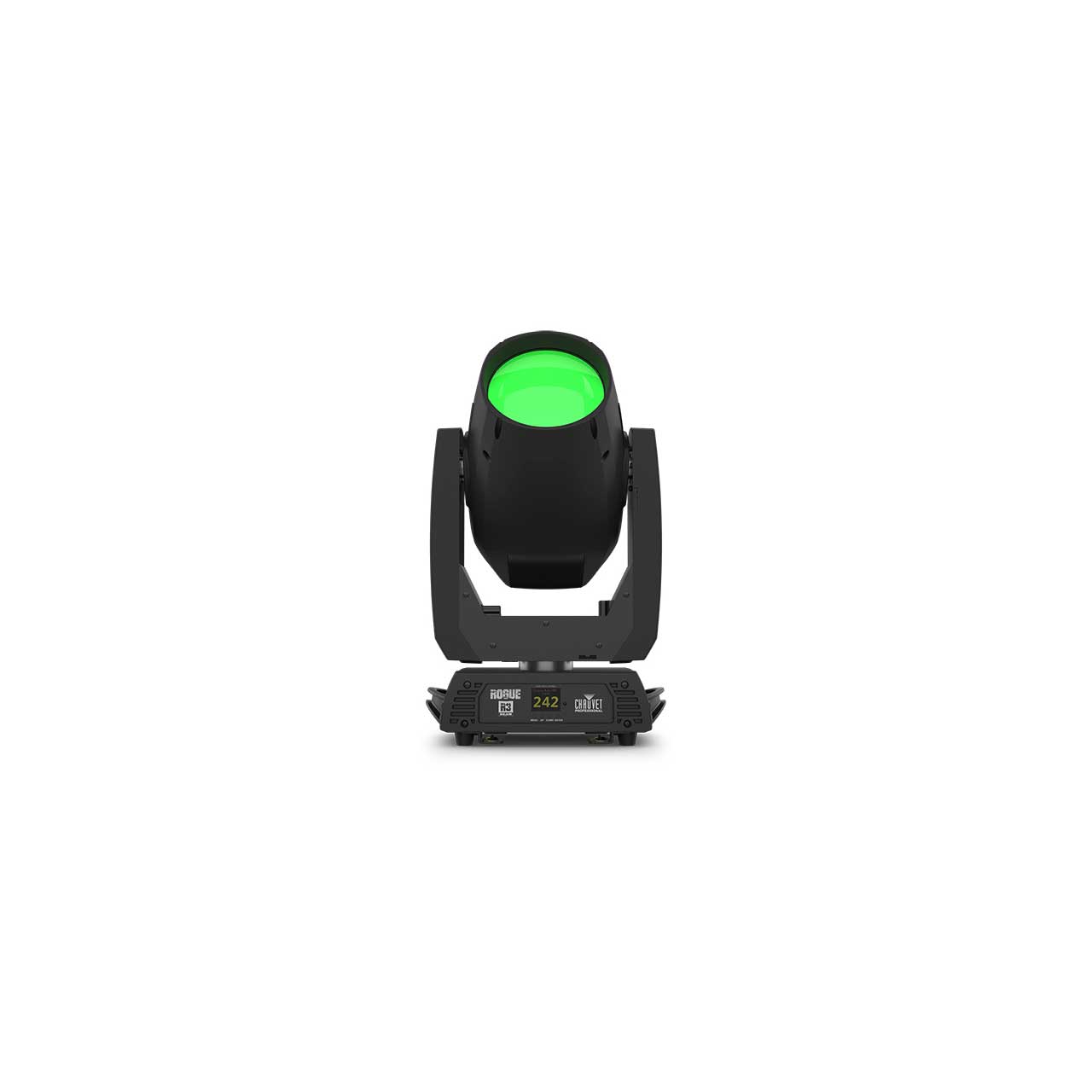

  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$2,067.67

Our Price:

$1,835.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    ROGUER3BEAM - Overview

    Rogue R3 Beam is the light cannon of the Rogue series, outputting over 208,000 lux at 15 meters from its 300 W Ushio NSL lamp. This fully-featured beam can be focused down to 0.8° degrees for extremely focused aerial effects alongside motorized frost and focus options. A color wheel equipped with 14 colors complimented by a gobo wheel with 17 gobos give you a wealth of dynamic effects, and both wheels are fully scrollable at variable speeds. Additionally, the unit features individually overlapping 8 and 24-facet prisms for an endless supply of creative beam looks. The unit is equipped with RDM and DMX protocols and features multiple control personalities.

    • Features:

      • Fully featured, high powered beam fixture with a single color wheel, single static gobo wheel, layerable prisms, and 300 W Ushio NSL lamp rated at 8,000 hours life
      • Fast and precise movement of pan and tilt functions
      • Individually controllable and layerable 8- and 24-facet prisms
      • Frost for even light distribution
      • Tight 0.8° beam for extremely focused areal effects
      • RDM enabled for remote addressing and troubleshooting
      • 17 static gobos for massive visual impact

    • Specifications:

      • Optical
      • Light Source: 300W NSL Ushio lamp, 8000 K (color temp), 8,000 hours life expectancy
      • Color Temperature (at full): 7657 K
      • CRI: 80.8
      • Front Lens Diameter: 153 mm
      • Beam Angle: 0.8°
      • Field Angle: 1.6°
      • Cutoff Angle: 2°
      • Lumens – Output: 30,878
      • Illuminance (total): 208,006 lux @ 15 m

        Dynamic Effects
      • Pan and Tilt: 540°/270°
      • Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 270° tilt
      • Colors: 14 + white, split colors, continuous scroll at variable speeds
      • Gobos : 17 + open (17 metal), continuous scroll at variable speeds
      • Dimmer: Motorized
      • Shutter/Strobe: Motorized
      • Focus: Motorized
      • Frost: Motorized
      • Prism: 8 facets, motorized, rotating
      • Prism: 24 facets, motorized, rotating
      • Strobe Rate: 0 to 15 Hz
      • Move in Black: Yes

        Construction/Physical
      • Dimensions: 12.79 x 8.66 x 21.65 in (325 x 220 x 550 mm)
      • Weight: 34.4 lb (15.6kg)
      • Exterior Color: Black
      • Housing Material: High-impact flame-retardant polymer

        Control
      • Control Protocol: DMX, RDM
      • DMX Channels: 16 or 19
      • Modes/Personalities: 2 personalities (16, 19)

        Connections
      • Power Connection: Edison (Local) plug to Neutrik
      • Power Input: Neutrik powerCON
      • Power Output: Neutrik® powerCON®
      • Data Connectors: 3- and 5-pin XLR
      • Cable Length (power): 5 ft (1.5 m)

        Electrical
      • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
      • Power and Current: 422 W, 4.20 A @ 100 V, 60 Hz
      • Power and Current: 418 W, 3.55 A @ 120 V, 60 Hz
      • Power and Current: 411 W, 1.98 A @ 208 V, 60 Hz
      • Power and Current: 411 W, 1.78 A @ 230 V, 50 Hz
      • Power and Current: 406 W, 1.68 A @ 240 V, 50 Hz

    • Item Includes:

      • 1x Rogue R3 Beam
      • 1x Neutrik powerCON power cord
      • 2x Omega brackets with mounting hardware
