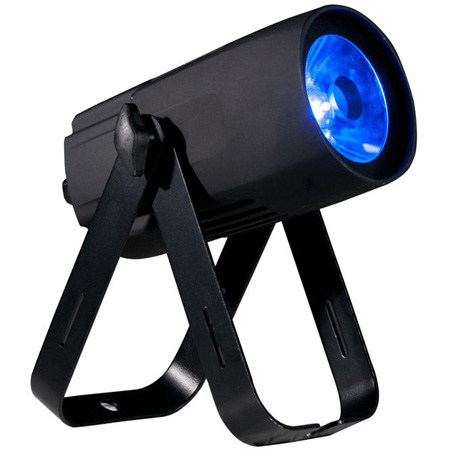

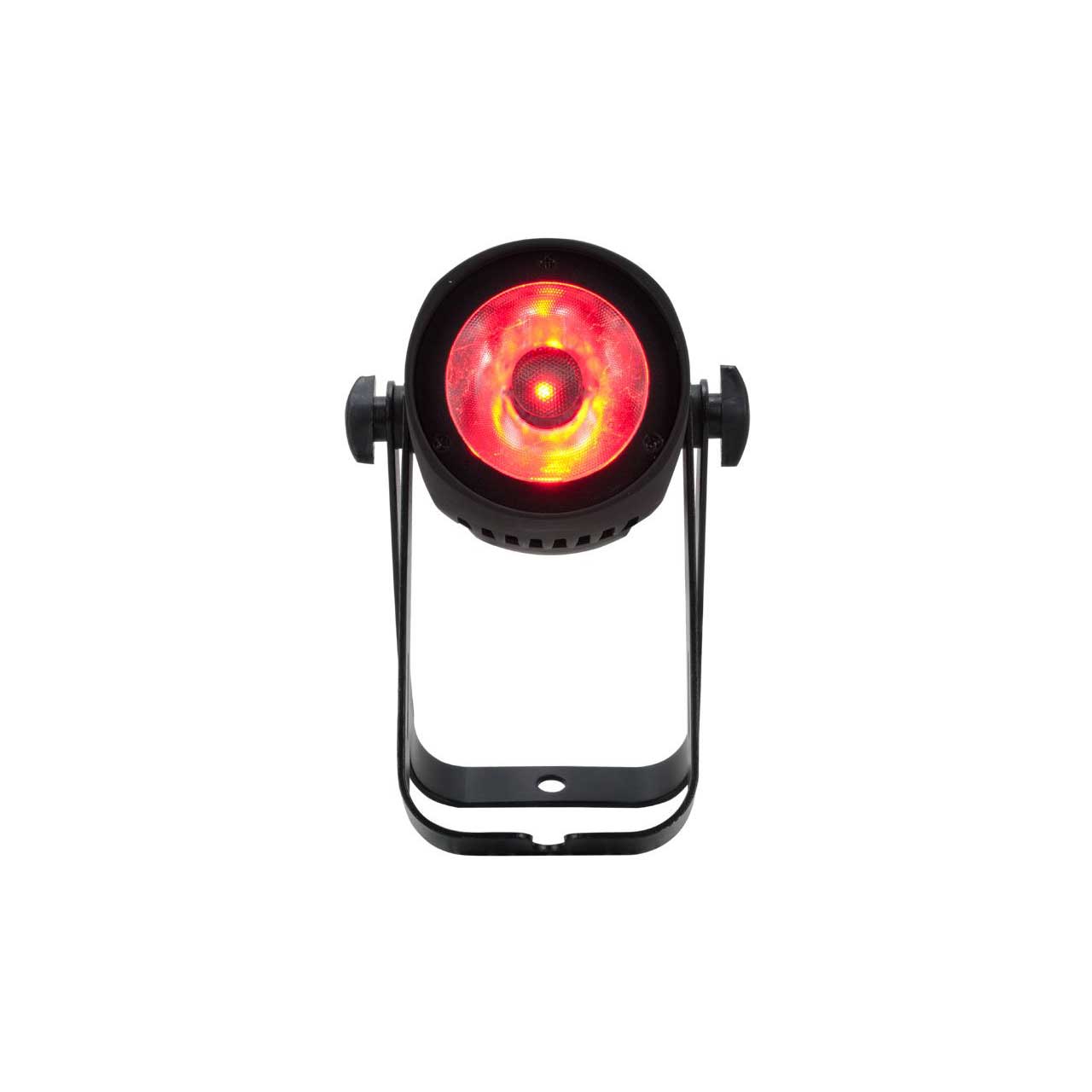

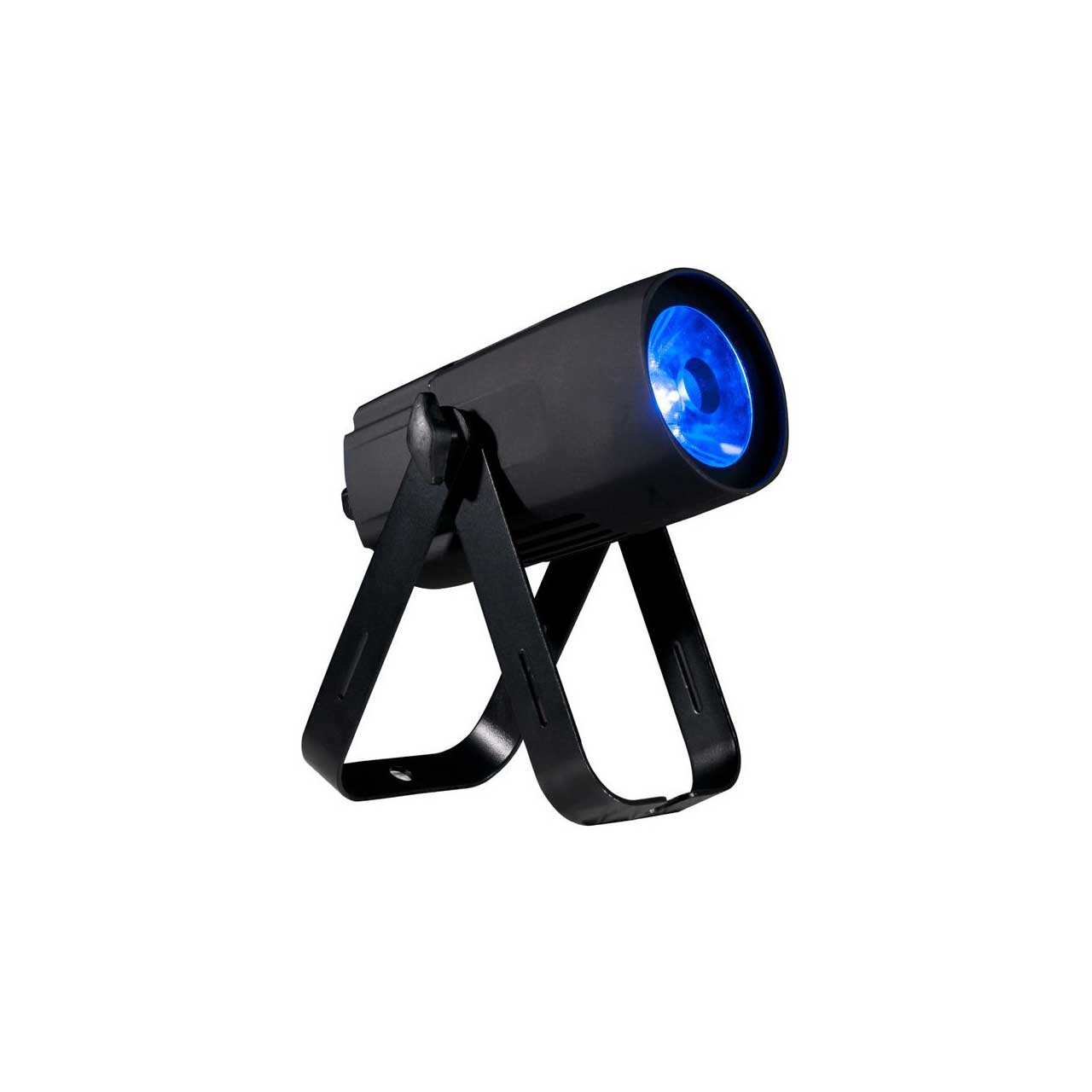

ADJ SAB686 SABER SPOT RGBW DMX-512 Compact Pinspot Light with smooth RGBW Color Mixing from 1x 15W 4-in-1 Quad LED

SAB686 - Overview

• Features:

  • 9 Built-in Color Macros
  • 6 Operational Modes: Static Color mode; Color Change Mode
  • 4-button Digital Display for easy navigation
  • Electronic Dimming 0 - 100%
  • Flicker Free
  • Includes a scissor yoke to be hung, or set on the ground


• Specifications:

  • Optical
  • Light Source: 15-Watt Quad (RGBW) LED
  • LED Life Expectancy: 10,000 Hrs
  • Beam Angle: 4-degrees
  • Includes 2 interchangeable frost filter lens (10-degree & 45-degree)
  • Refresh Rate: 3.6KHzConnections

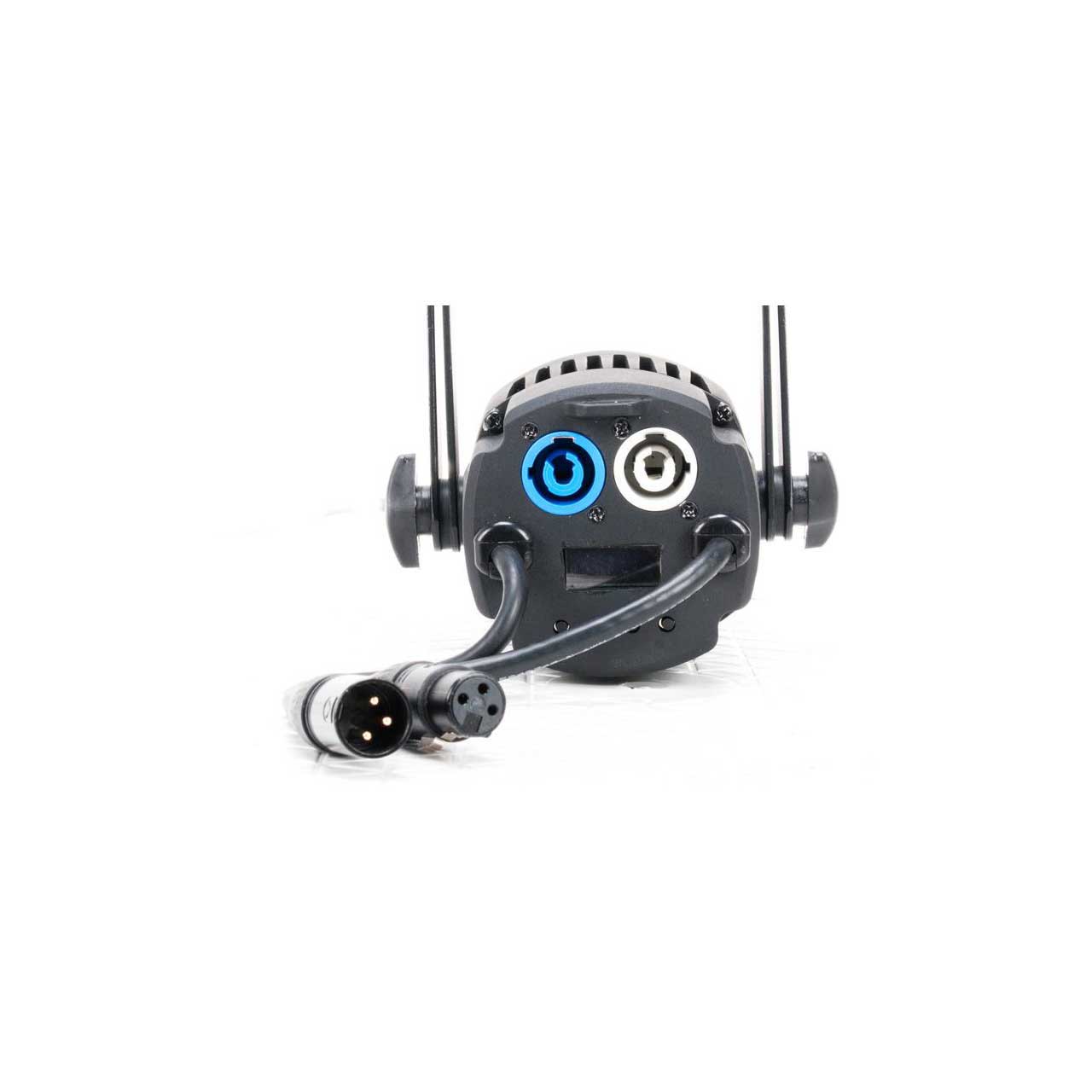

  • Power Input: powerCON
  • Power Pass through: powerCON
  • Control: 3-pin DMX In/Out pigtails
  • With Wired Digital Communication Network

    Control
  • 11 DMX Channel Modes: 3/4/4/5/6/6/7/8/8/9/11/12

    Electrical
  • Input Voltage: 100-240V 50Hz/60Hz (Auto Sensing)
  • Power draw 120V 60Hz: 14W, 0.12 Amps
  • Power draw 220V 50Hz: 14W, 0.06 Amps

    Physical
  • Dimensions (LxWxH): 3.5"x 6.75"x 3.5" / 88x 170x 87mm
  • Weight: 2.6 lbs / 1.2 kg.
  • Black Housing

    Certifications
  • ETL Approved, UL, CE
  • IP 20: Dry area, No liquids

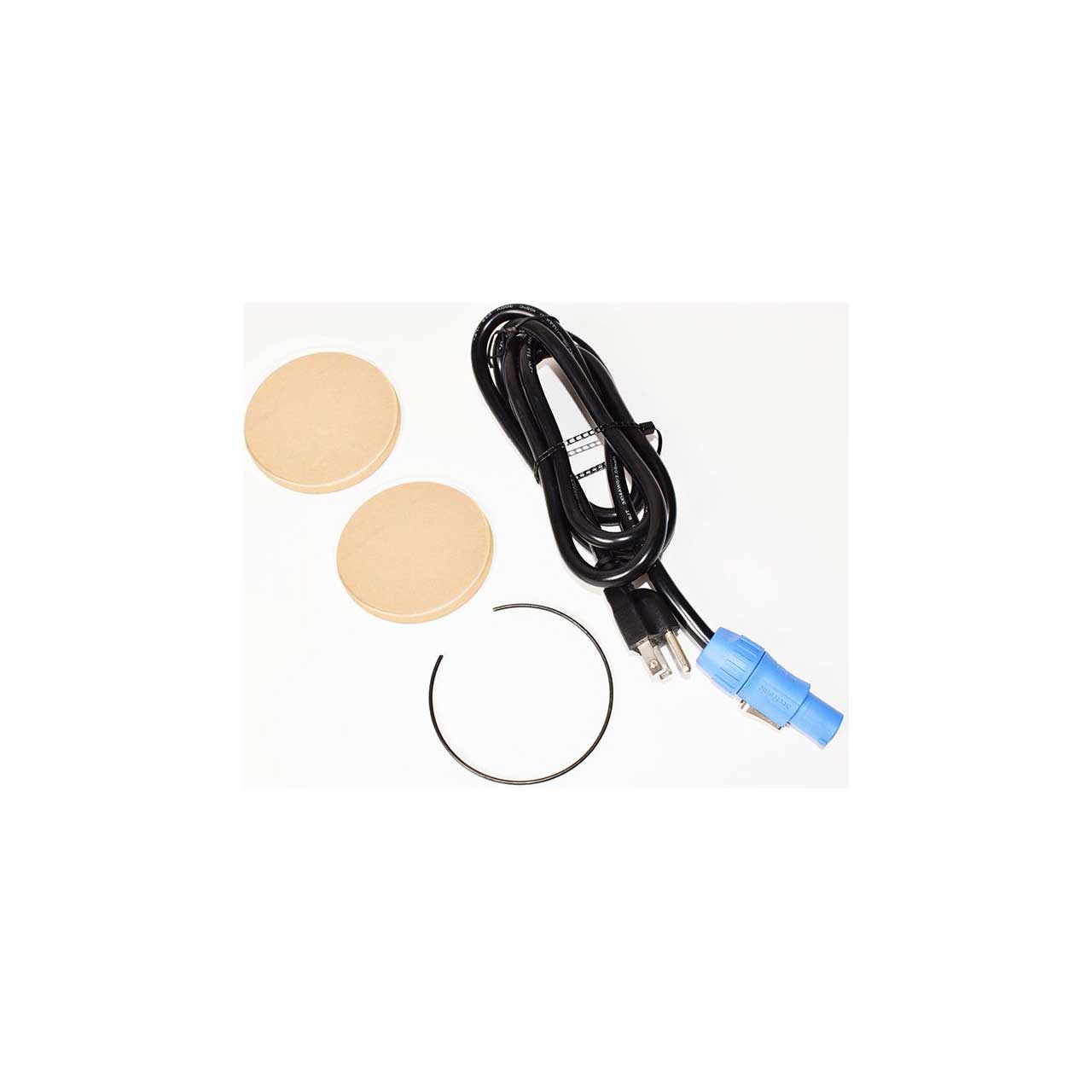

• Item Includes:

  • 1x ADJ SAB686 SABER SPOT RGBW DMX-512 Compact Pinspot Light with smooth RGBW Color Mixing from 1x 15W 4-in-1 Quad LED
  • 1x Manual
  • 1x powerCON power cord
  • 1x 2 frost filter lens (10-degree & 45-degree)
  • 1x O-ring for frost filter lens


• Warranty:

  • 2 years


• GTIN:

  0819730019738
