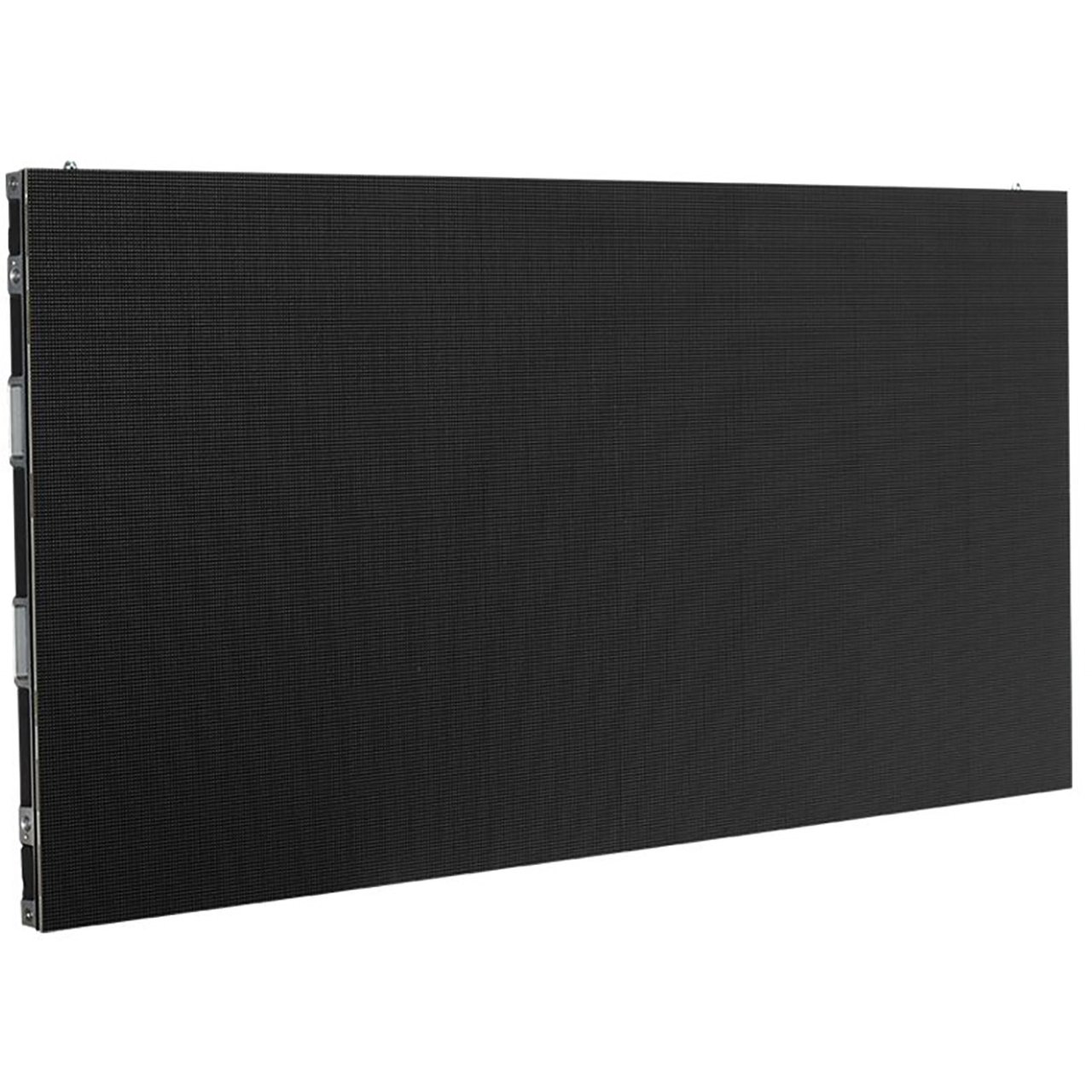

Discover the cutting-edge ADJ WMS002 WMS2 LED Video Panel - a pinnacle in high-resolution display technology designed for seamless integration into a diverse array of projects. Expanding ADJ's professional LED video panel portfolio, the WMS2 stands out as the company's highest resolution offering to date. Perfectly suited for integration applications, including shop window displays, museums, boardrooms, digital signage, and entertainment venues, this video panel is a versatile solution for immersive visual experiences. A Novastar A8s-N receiving card is built-in allowing the WMS2 to be displayed horizontally or vertically when wall mounting.
Boasting a pixel pitch of 2.6mm and a pixel density of 147,456/m2, the WMS2 guarantees exceptional definition, even at close viewing distances. The RGB SMD1515 color mixing LEDs produce a vibrant spectrum, supported by a brightness of 800 NITS. With a wide viewing angle of 160-degrees (horizontal) by 140-degrees (vertical) and a rapid refresh rate of 3840Hz, this video panel ensures a captivating and smooth visual performance.

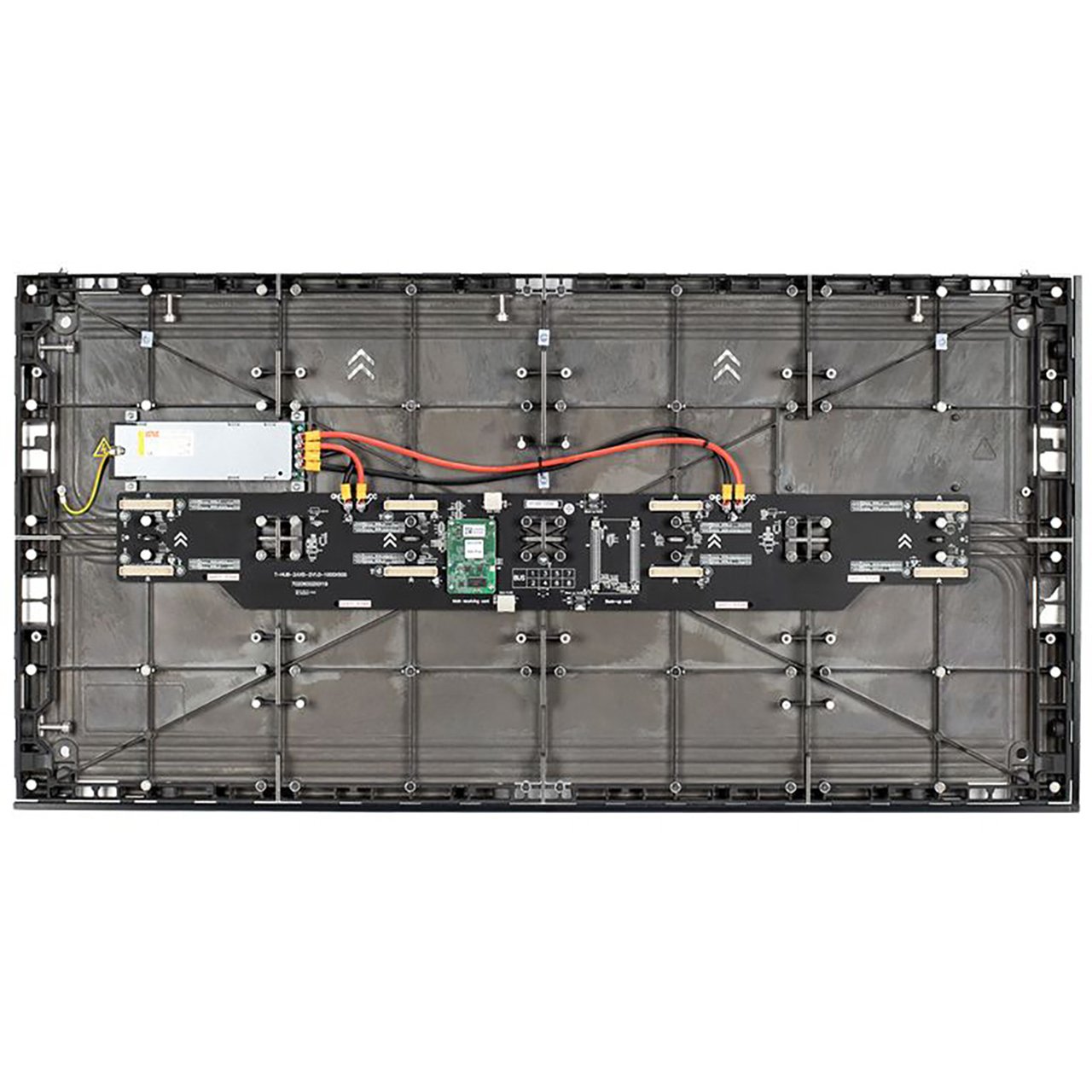

Measuring 39.3" x 19.6" (1000mm x 500mm), the WMS2 consists of eight individual modules, each with 96 x 96 pixels, offering flexibility in arrangement. Each panel's overall resolution is 384 x 192 pixels (horizontally) or 192 x 384 (vertically). The panel's frame assembly features a secure locking mechanism, allowing for the seamless joining of adjacent panels. Installation is simplified with mounting points for direct wall installation. The front-serviceable design enables easy module replacement, ensuring uninterrupted operation.
With a slim 1.3" (33mm) thickness and a weight of 21 lbs. (9.5 kgs.), the WMS2 is a lightweight and compact solution. Its versatility extends to wall-mounting, hanging, or stacking, both horizontally or vertically, catering to various installation preferences. Join the LED video panel revolution with ADJ's crystal clear, and incredibly vibrant WMS2.
