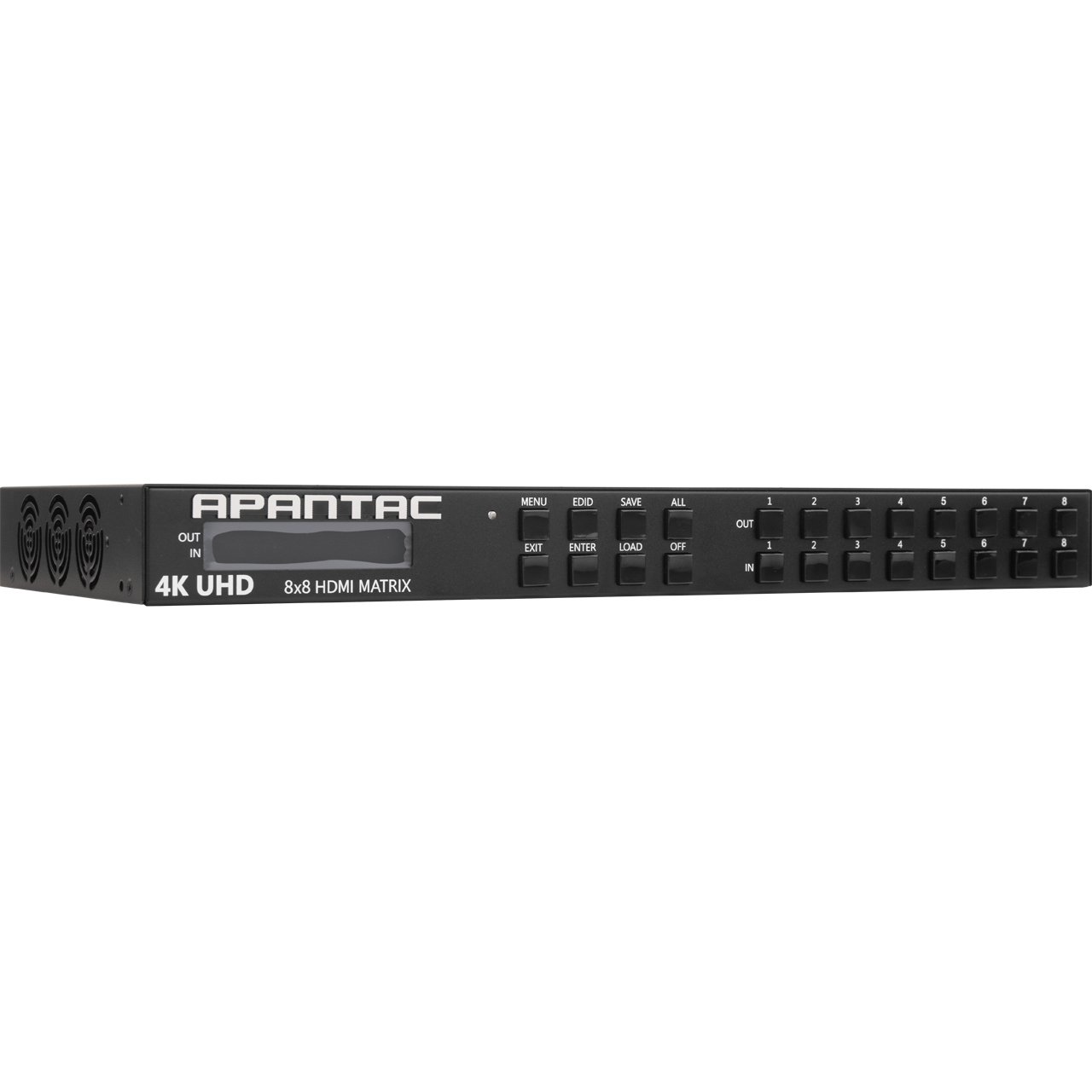

Apantac MT Hood HDM2.0-8x8-UHD-A 1RU 8x8 HDMI 2.0 UHD Matrix Switch with Audio Breakout / IR & RS-232

HDM2.0-8X8-UHD-A - Overview

• Features:

  • Supports resolution up to UHD@60Hz (4:4:4)
  • Supports pixel clock up to 600MHz
  • Supports HDCP 1.4/2.2 and HDR
  • Audio breakout
  • Supports up to 4 presets
  • Supports IR pass-through on all I/O and frequency
  • Supports IR pass -through on duplex transmission between I/O
  • Supports RS-232 control
  • Supports remote control
  • Supports firmware upgrade

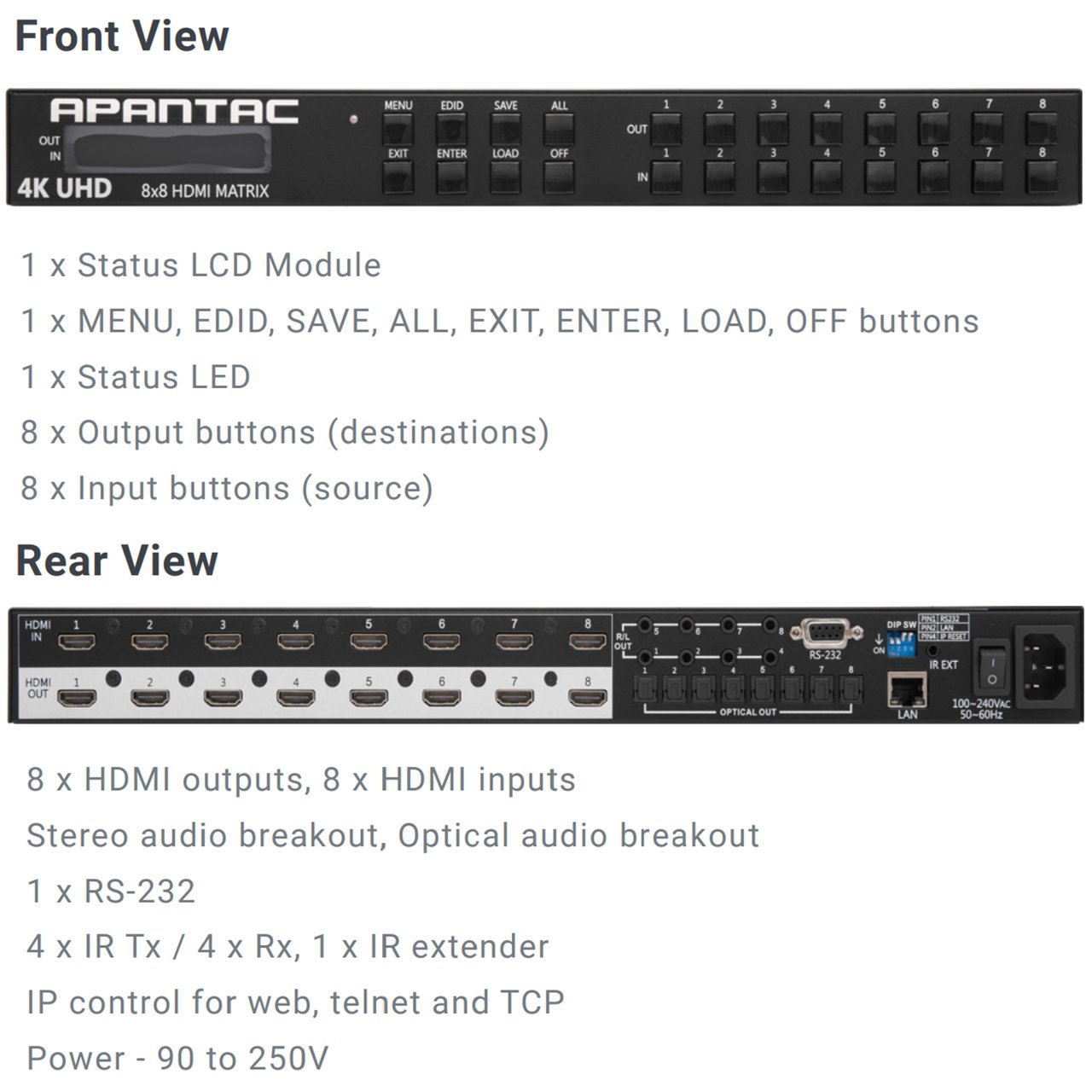

• Specifications:

  • Input: 8x HDMI 2.0
  • Max Resolution: UHD@60Hz (4:4:4 8bit, 4:2:0, 12 bit)
  • Output: 8x HDMI 2.0 HDCP
  • Compliance: HDCP 1.4/2.2
  • RS-232: 1x DB9
  • Audio Support: LPCM, Dolby TrueHD, Dolby Digital/Plus/EX, DTS, DTS-HD Master audio
  • IP Control: 1x RJ45, Telnet, TCP, web
  • Baud Rate: 115200 bps; 8 data bits, 1 stop bit, no parity
  • IR Control: 1x 3.5mm stereo jack
  • IR Matrix Output: 8x 3.5mm stereo jack
  • IR Matrix Input: 8x 3.5mm stereo jack
  • Power Supply: 0V - 250VAC
  • Dimensions: 17.32" x 7.80" x 1.70" (440mm x 198mm x 43mm)
  • Weight: 7.05lbs (3.2kg)


• Item Includes:

  • 1x Apantac HDM2.0-8x8-UHD-A MT Hood 8x8 HDMI 2.0 UHD Matrix Switch with Audio Breakout


• Warranty:

  • 3 Year Warranty
