    APB-008 FB-EX BK - Overview

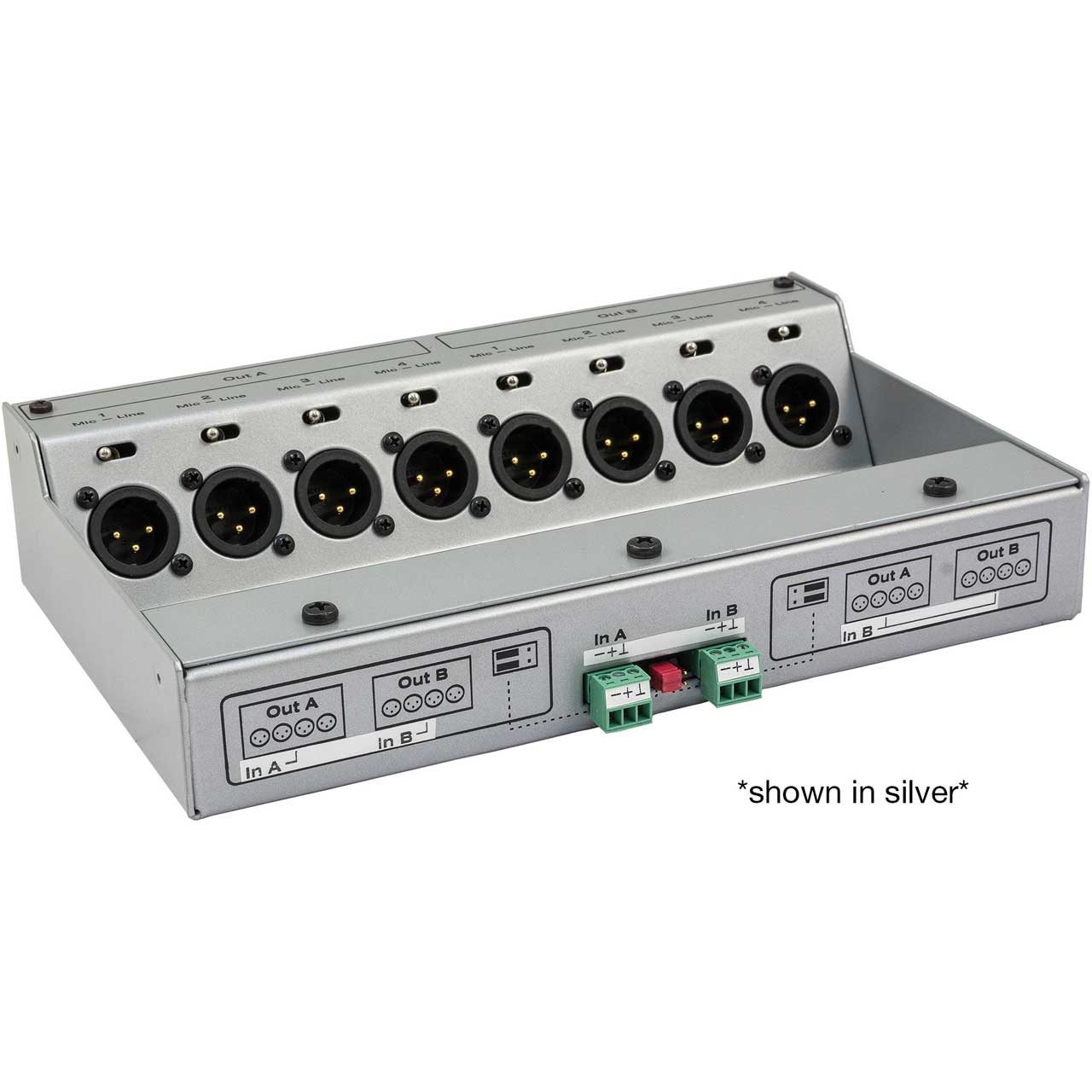

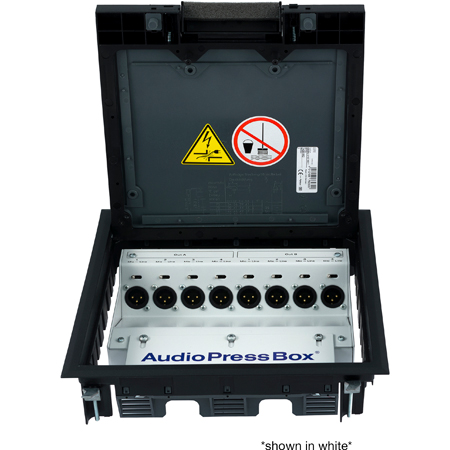

    AudioPressBox APB-008 FB-EX is a professional press box (Audio Splitter) expander featuring 8 Line/MIC outputs designed for system integrators for fixed installation. The FB stands for Floor Box as it is for installation into the floor. Outputs are divided to channel A and channel B so it can also be used for bilingual conferences. Each Output is independent transformer balanced and isolated. It has 2 inputs with 3-pin phoenix connectors, one for each Output channel.

    You can route each Input to Output Channel A or B or both via jumpers.

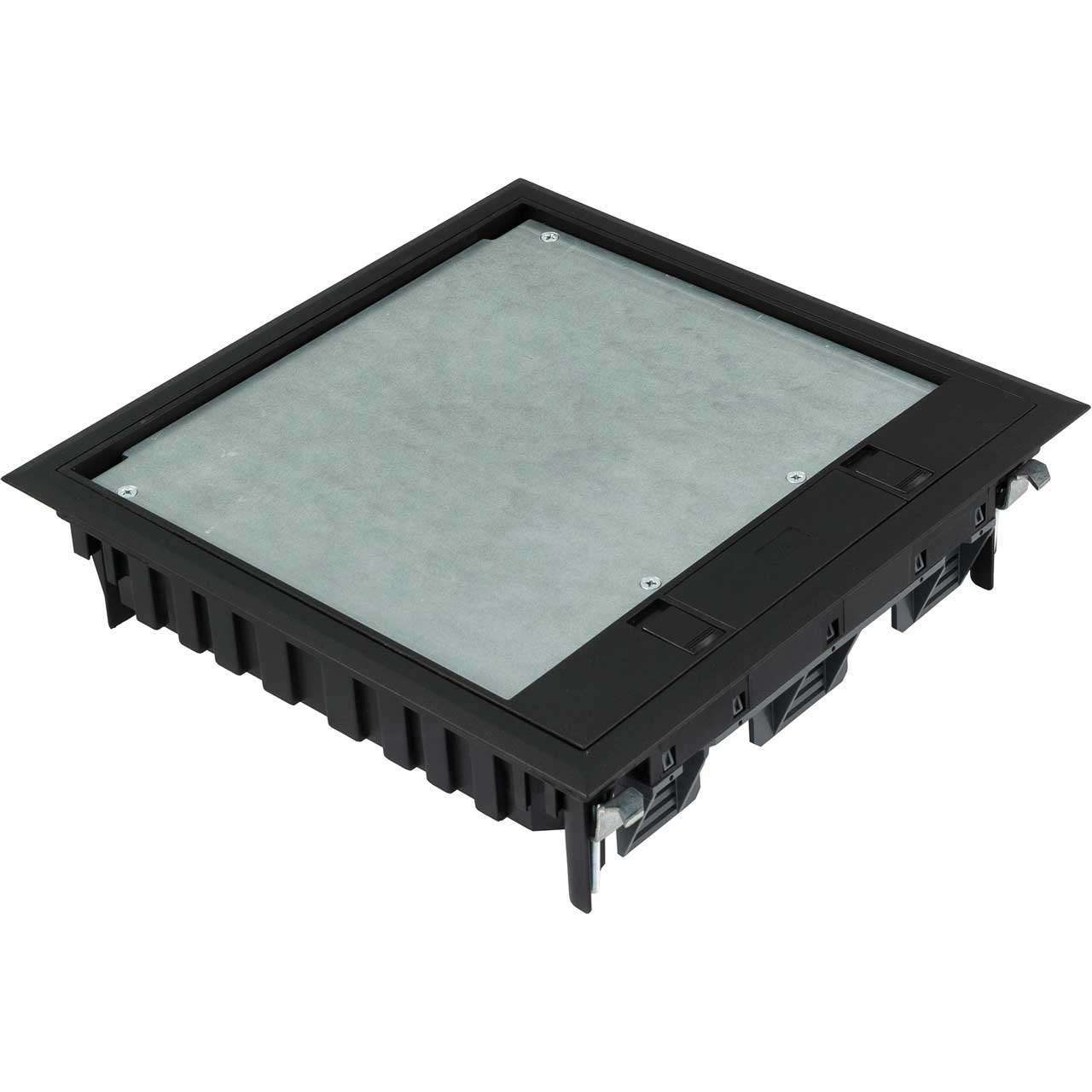

    It is compatible with floor boxes from OBO Bettermann and PUK.

    The expander must be fed with an APB-Drive unit in order to function properly.

    Please Note: Requires A Drive Unit: APB-D100, APB-D100 R, APB-D116 R-DANTE, APB-D200 R, APB-D200 R-DANTE, APB-D216 R-DANTE, APB-208 R, APB-400 R

    APB-008 FB-EX BK - Required Accessories

      APB-008 FB-EX BK - Recommended Accessories
