    APB-008 FB-EX WH - Overview

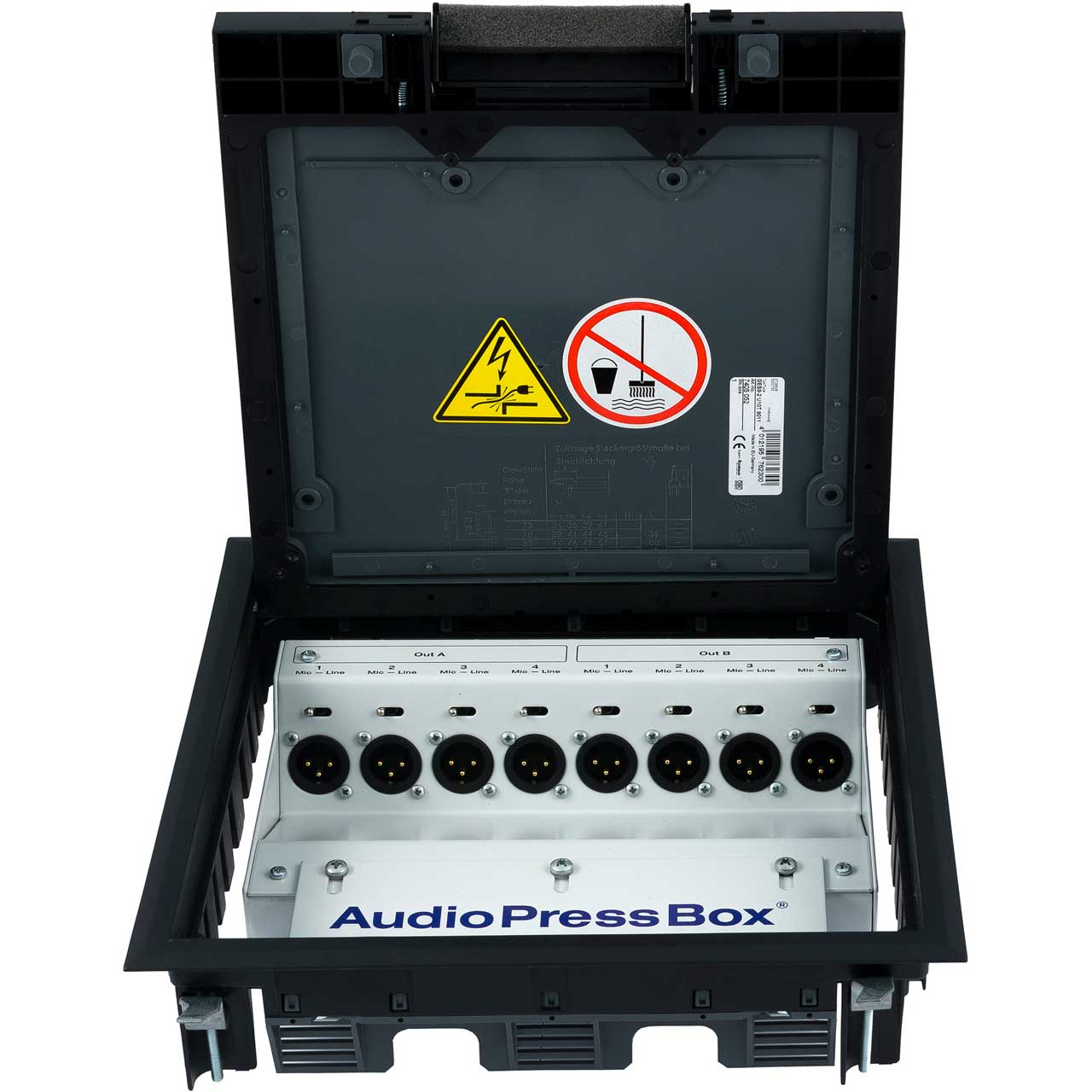

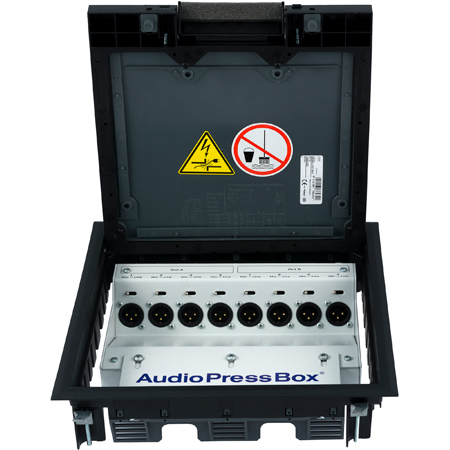

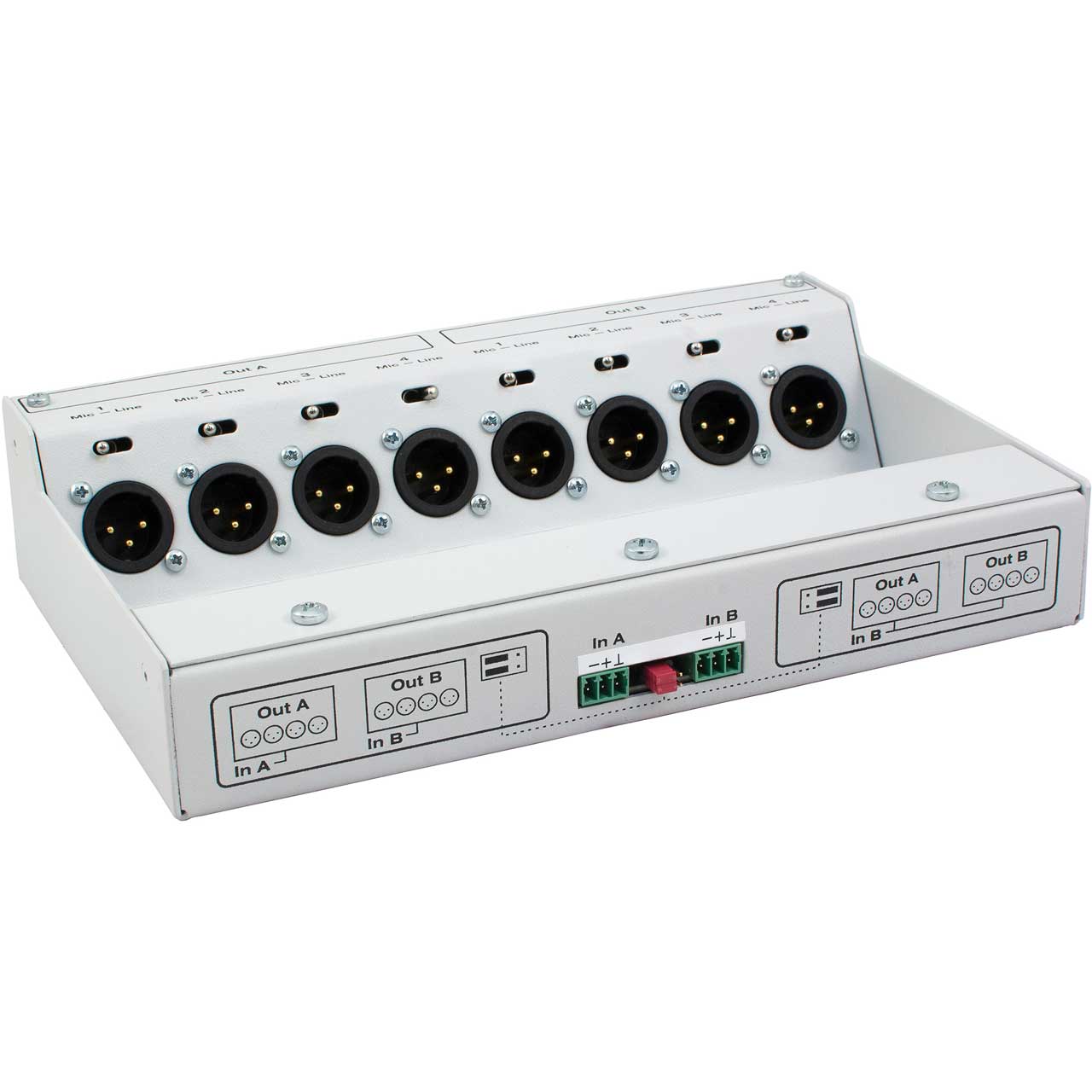

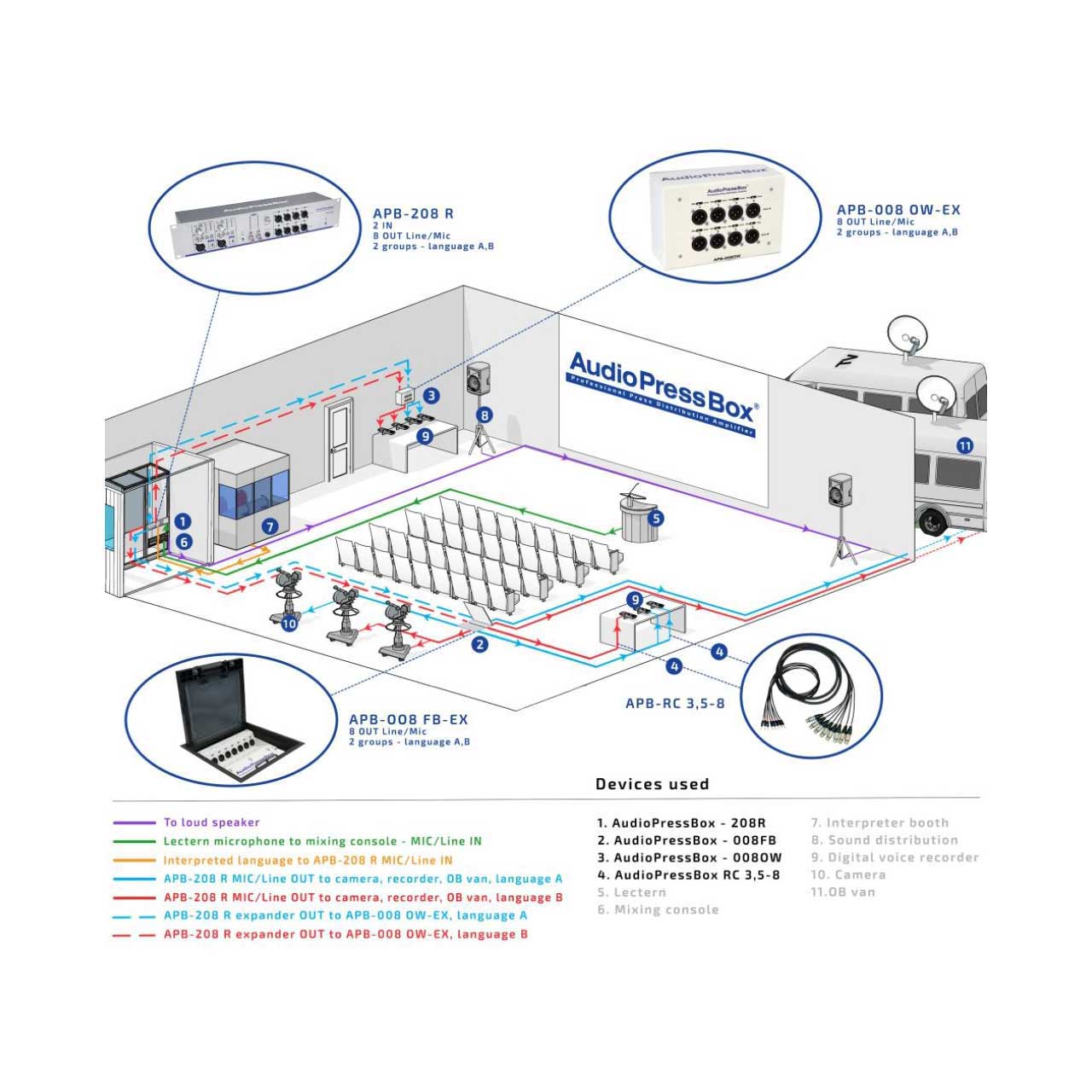

    AudioPressBox APB-008 FB-EX is a professional press box (Audio Splitter) expander featuring 8 Line/MIC outputs designed for system integrators for fixed installation. The FB stands for Floor Box as it is for installation into the floor. Outputs are divided to channel A and channel B so it can also be used for bilingual conferences. Each Output is independent transformer balanced and isolated. It has 2 inputs with 3-pin phoenix connectors, one for each Output channel.

    You can route each Input to Output Channel A or B or both via jumpers.

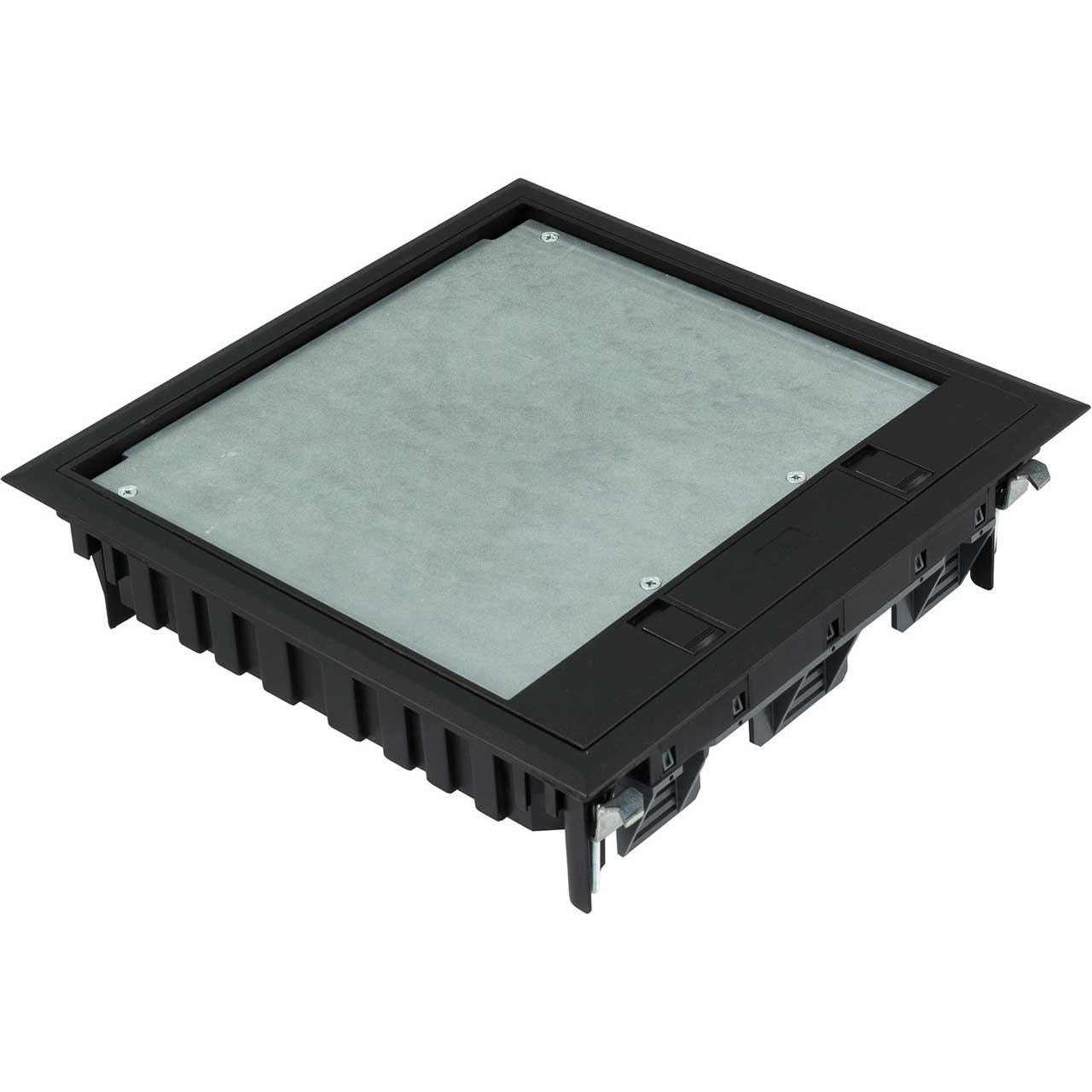

    It is compatible with floor boxes from OBO Bettermann and PUK.

    The expander must be fed with an APB-Drive unit in order to function properly.

    Please Note: Requires A Drive Unit: APB-D100, APB-D100 R, APB-D116 R-DANTE, APB-D200 R, APB-D200 R-DANTE, APB-D216 R-DANTE, APB-208 R, APB-400 R

    • Features:

      • 8 High quality balanced Outputs, each Output is independent transformer isolated
      • Each Output is switchable between LINE or MIC Output level.
      • Two groups (A,B) with for 4 Outputs per group
      • It is compatible with floor boxes from OBO Bettermann and PUK


    • Specifications:

      • Type: Expander
      • Groups: 2
      • Inputs: 1x Bus A, 1x Bus B
      • Input Connectors: ballanced, 3-pin phoenix connector
      • Ouputs: 4x Bus A, Line/MIC level, 4x Bus B, Line/MIC level
      • Output connectors: ballanced, transformer isolated, XLR-M connector
      • Transformer Isolated Outputs: Yes (each output)
      • Nominal Output level: MIC: -20dBu, LINE: +6 dBu
      • Output Impedance: MIC: 220Ω, LINE: 600Ω
      • Dimensions (WxHxD): 225x145x50mm
      • Weight: 2190g


    • Item Includes:

      • 1x AudioPressBox APB-008 FB-EX 8 Line/Mic Out Passive Floor-box AudioPressBox Extender - White


    • GTIN:

      8588007614335
