APC SMTL1500RM3UC Smart-UPS Lithium Ion - Short Depth 1500VA - 120V with SmartConnect

ITEM #: APC-SMTL1500RM3U MFG #: SMTL1500RM3U

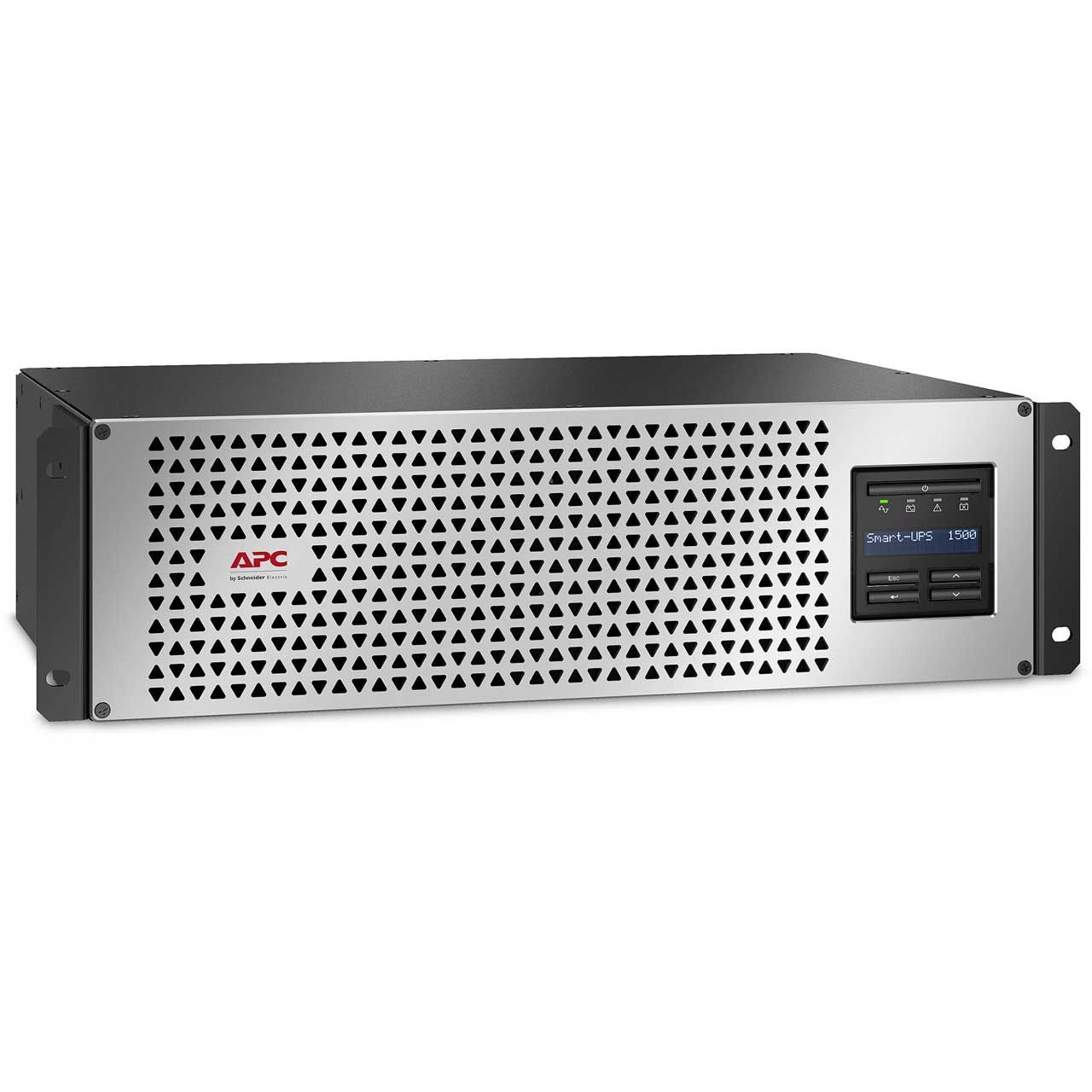

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$3,020.00

Our Price:

$2,200.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Item restricted to the Contiguous United States ground shipment only.


SMTL1500RM3U - Overview

APC SMTL1500RM3UC Smart-UPS™ with lithium-ion batteries saves up to 47% in Total Cost of Ownership (TCO) over the lifetime of the UPS. Battery life is increased 2X. Reduced maintenance cost and improved battery performance in temperatures up to 104°F. UPS management options include Powerchute™ Business Edition, APC SmartConnect, Network Management Cards and EcoStruxure IT. The additional benefit of a 12-inch short-depth chassis allows this UPS to be installed in any 4-post rack and most wall-mount racks.

  • Features:

    • Cold-start capable
    • Energy meter
    • Green mode
    • High online efficiency
    • Lithium-ion battery
    • Predictive replace battery date
    • Pure sine wave output on battery
    • Short-depth rack compatibility
    • Single switched outlet group
    • SmartConnect
    • SmartSlot
    • Temperature-compensated battery charging

  • Specifications:

    • Output
    • Max Configurable Power (Watts): 1.35kWatts / 1.44kVA
    • Output Voltage Distortion: Less than 5%
    • Output Frequency (sync to mains): 50/60Hz ±3 Hz
    • Topology: Line Interactive
    • Waveform Type: Sine wave
    • Transfer Time: 6ms typical : 10ms maximum

      Input
    • Input Frequency: 50/60 Hz ±3 Hz (auto sensing)
    • Input Voltage Range for Main Operations: 82 - 144V
    • Input Voltage Adjustable Range for Mains Operation: 75 - 154V
    • Number of Power Cords: 1

      Batteries & Runtime
    • Battery type: Lithium Ion
    • Typical recharge time: 2 hour (s)
    • Expected Battery Life (years): 5 - 10
    • Battery Charge Power (Watts): 154Watts
    • Battery Volt-Amp-Hour Capacity: 310

      Communications & Management
    • Interface Port(s): RJ-45 Serial, Smart-Slot, USB
    • Control Panel: Multi-function LCD status and control console
    • Audible Alarm: Alarm when on battery : distinctive low battery alarm: configurable delays
    • Available SmartSlot™ Interface Quantity: 1

      Surge Protection and Filtering
    • Surge energy rating: 680Joules
    • Filtering: Full time multi-pole noise filtering: 0.3% IEEE surge let-through: zero clamping response time: meets UL 1449

      Physical
    • Maximum Height: 5.14" (131mm, 13.1cm)
    • Maximum Width: 17.25" (438mm, 43.8cm)
    • Maximum Depth: 11.89" (302mm, 30.2cm)
    • Net Weight: 43Lbs (19.5kg)
    • Shipping Weight: 50Lbs (22.68kg)
    • Shipping Height: 11" (279mm, 27.9cm)
    • Shipping Width: 23" (584mm, 58.4cm)
    • Shipping Depth: 17.64" (448mm, 44.8cm)
    • Units per Pallet: 12

      Environmental
    • Operating Temperature: 32° to 104°F (0° to 40°C)
    • Operating Relative Humidity: 0 to 95% (non-condensing)
    • Operating Elevation: 0 to 10000' (0 to 3000m)
    • Storage Temperature: -10° to 40°C
    • Storage Relative Humidity: 0 to 95% (non-condensing)
    • Storage Elevation: 0 to 25000' (0 to 7500m)
    • Audible Noise at 1 meter from Surface of Unit: 45.0dBA
    • Online Thermal Dissipation: 135.0BTU/hr
    • Protection Class: IP 20

      Conformance
    • Approvals: CSA C22.2 NO. 107.3, FCC Part 15 Class A, NOM, UL 1778, UL 1973
    • Equipment Protection Policy: Lifetime: $150000
    • Standard Warranty: 5 year repair or replace

      Sustainable Offer Status
    • RoHS: Compliant
    • REACH: Contains No SVHCs
    • Battery Directive: Compliant

  • Item Includes:

    • 1x CD with software
    • 1x Documentation CD
    • 1x Installation guide
    • 1x Rack Mounting support rails
    • 1x Smart UPS signalling RS-232 cable
    • 1x USB cable

  • GTIN:

    0731304339632
