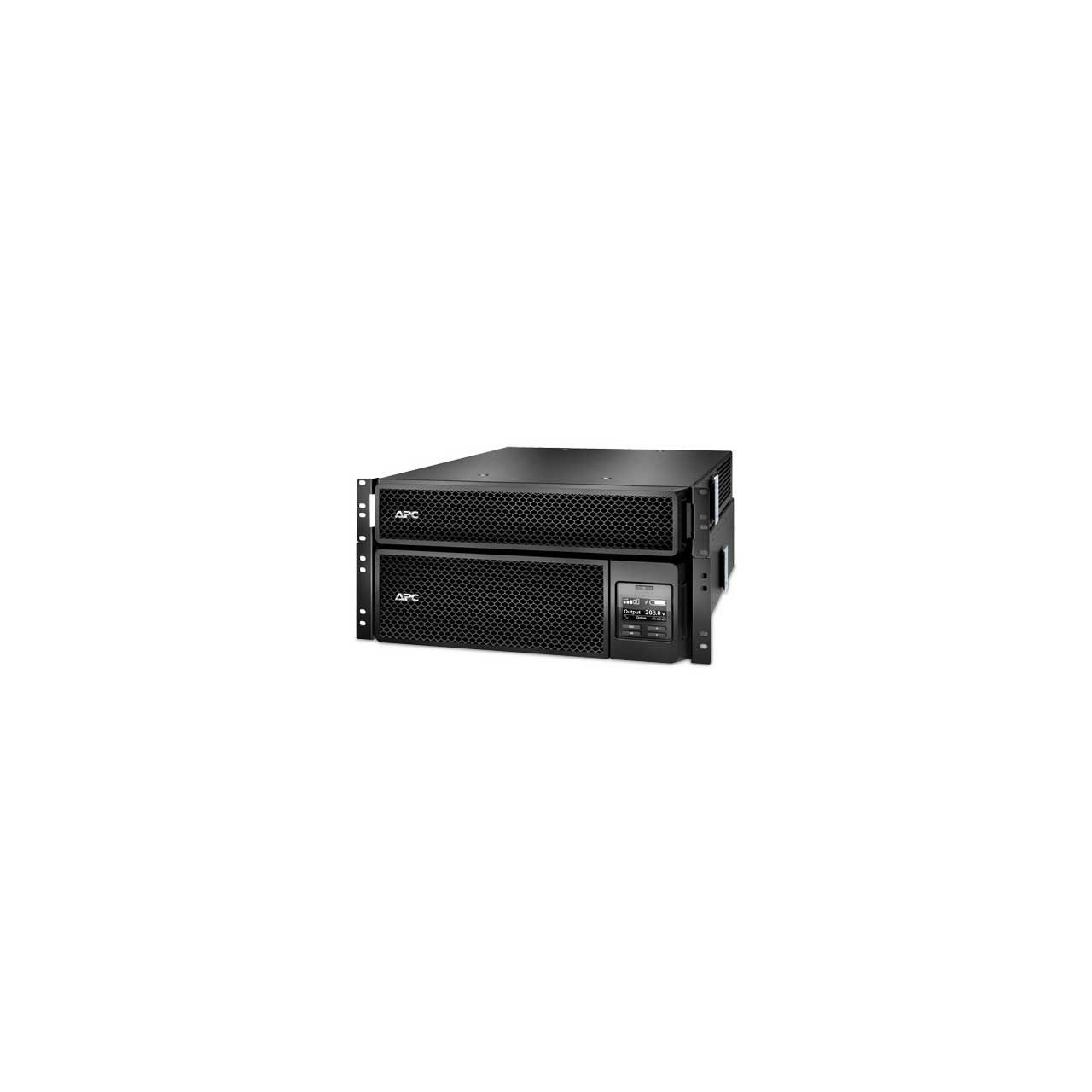

APC SRT5KRMXLT-5KTF Smart-UPS SRT 5000VA RM 208V to 120V 2U Step-Down Transformer

SRT5KRMXLT-5KTF - Overview

• Features:

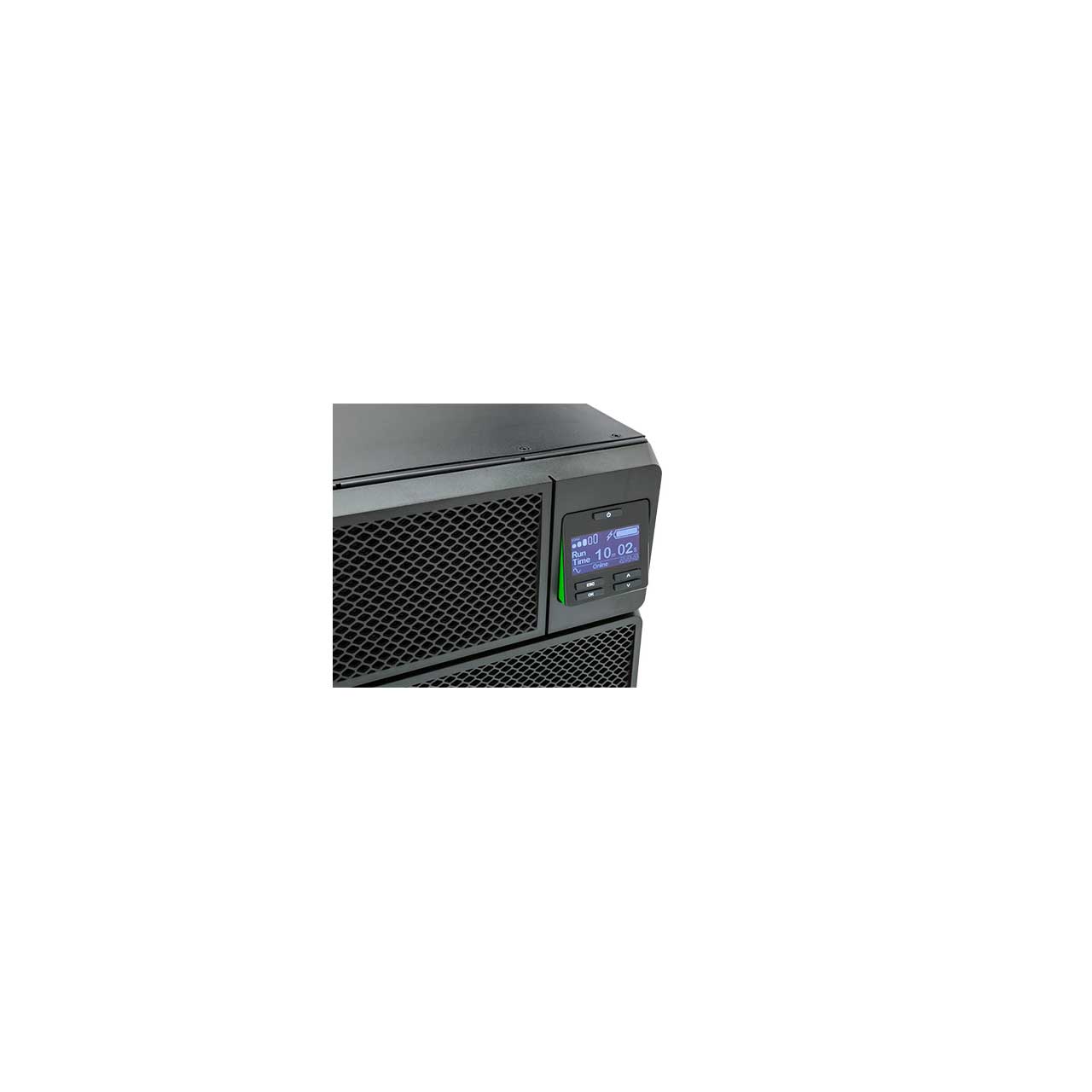

  • LCD graphics display: Text and mimic diagrams that display modes of operation, system parameters and alarms.
  • 10/100 BaseT Connection: Connect the device to a network using a 10 or 100 BaseT connection
  • Green mode: Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
  • Battery failure notification: Provides early-warning fault analysis on batteries enabling timely preventive maintenance
  • Rack/Tower convertible: Protects the initial investment in the UPS when migrating from tower to rack-mount environment.


• Specifications:

  • Output
  • Output Power Capacity: 4250 Watts / 5000 VA
  • Max Configurable Power: 4250 Watts / 5000 VA
  • Nominal Output Voltage: 120V, 208V
  • Output Voltage Distortion: Less than 2%
  • Output Frequency (sync to mains): 50/60Hz +/- 3 Hz
  • Other Output Voltages: 240
  • Crest Factor: 3 : 1
  • Topology: Double Conversion Online
  • Waveform Type: Sine wave

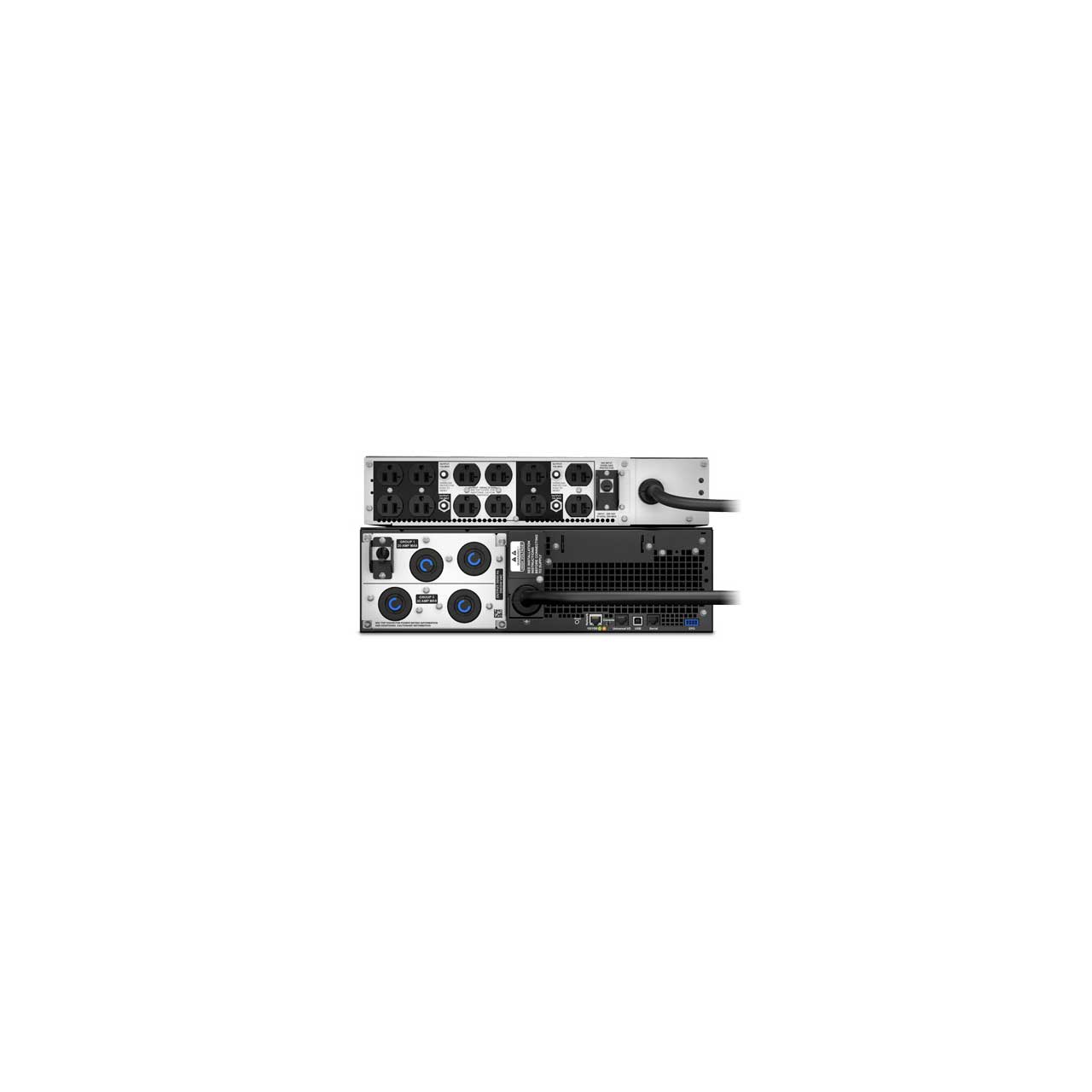

  • Output Connections:
  • (12) NEMA 5-20R NEMA 5-20R
  • (2) NEMA L6-20R NEMA L6-20R
  • (1) NEMA L6-30R NEMA L6-30R
  • Bypass: Internal Bypass (Automatic and Manual)

    Input
  • Nominal Input Voltage: 208V
  • Input Frequency: 40 - 70 Hz (auto sensing)
  • Input Connections: NEMA L6-30P NEMA L6-30P
  • Cord Length: 10 feet (3.05 meters)
  • Input voltage range for main operations: 160 - 275V
  • Input voltage adjustable range for mains operation: 100 - 275 (half load)V
  • Other Input Voltages: 240


• Item Includes:

  • Documentation CD, Rack Mounting brackets, Rack mounting hardware, Rack Mounting support rails, USB cable, User Manual, Warranty card, Web/SNMP Management Card


• Warranty:

  • 3 years repair or replace (excluding battery) and 2 years for battery
