LEN LAMR01 AES MADI ASI Relay

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

    LEN LAMR01 AES MADI ASI Relay

    Manufacturer: LEN Limited

    Item #: LEN-LAMR01   •   MFG #: LAMR01



    List Price:$179.99
    Our Price:$157.00

    free ship


    Availability: Usually ships in 3-10 business days
    i
    This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.




      Share!

      California Residents:
      8pt-triangleWARNING:
      Cancer and Reproductive Harm - www.P65Warnings.ca.gov

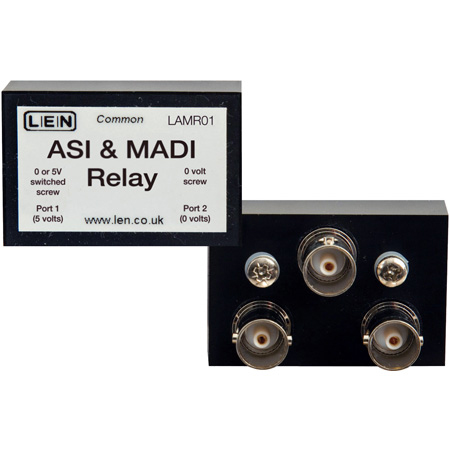

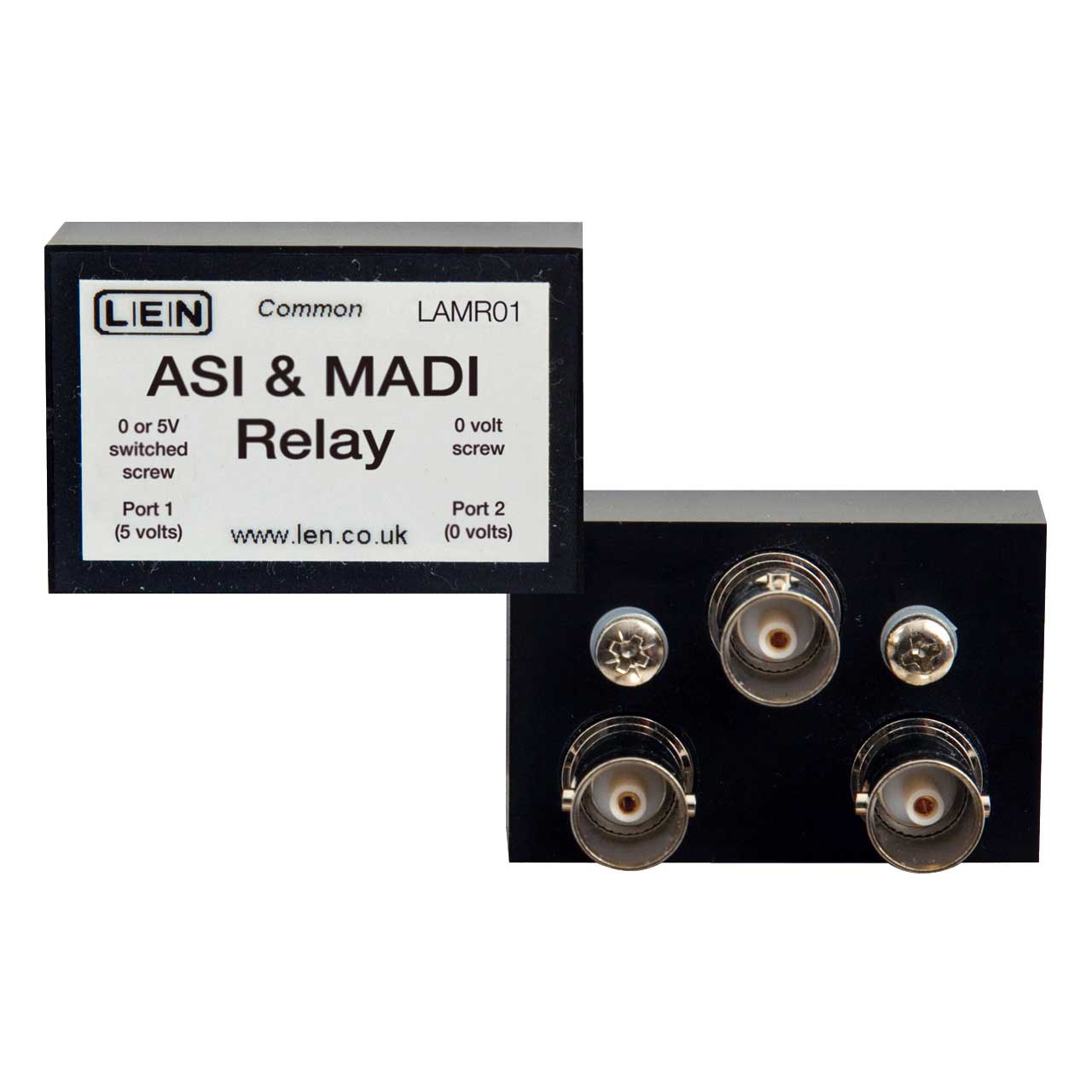

      The LAMR01 AES / MADI / ASI Relay is a miniature single-circuit, change-over relay, providing full broadcast quality switching, for data rates up to 360 Mb/s. It is suitable for applications such as power-failure switching and source selection. It can be used to choose between two inputs or to have a single input and choose between two outputs, controlled by a 5V DC applied to the coil.

      It is built in an ABS enclosure fitted with three female BNC connectors, with mounting screws, which are also used to connect to the coil, on the same face of the relay as the connectors.


      • Specifications

        • Input and output impedance: 75 ohms
        • Return loss: 15dB, 0.1-360 MHz
        • Amplitude roll-off, 0.1 - 360 MHz: -0.3 dB
        • Insertion loss: 0.4 dB
        • Dimensions (L x W x H): 1.8" x 1.2" x 0.6" (45 x 30 x 15 mm)
        • Weight: 35g
