LEN LAMS01 AES MADI ASI Splitter

ITEM #: LEN-LAMS01 MFG #: LAMS01

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$191.00

Our Price:

$181.00

Availability: In Stock
iAvailability Description Popup


    LAMS01 - Overview

    The LEN LAMS01 AES / MADI / ASI Splitter is a miniature, lightweight passive design, requiring no power, L E N digital signal splitters are a direct equivalent to the use of a Distribution Amplifier to create additional AES, MADI or ASI signals, for most applications.

    LEN AES / MADI / ASI Splitters are also ideal for such applications as additional feeds say in remote locations, and in situations where size and weight are critical factors. Offering a broadcast-quality signal, they are useful in both permanent and temporary installations. They may be used freestanding and have fixing screws for mounting through panels. An accessory panel is also available to mount eight splitters in 1U of rack space.

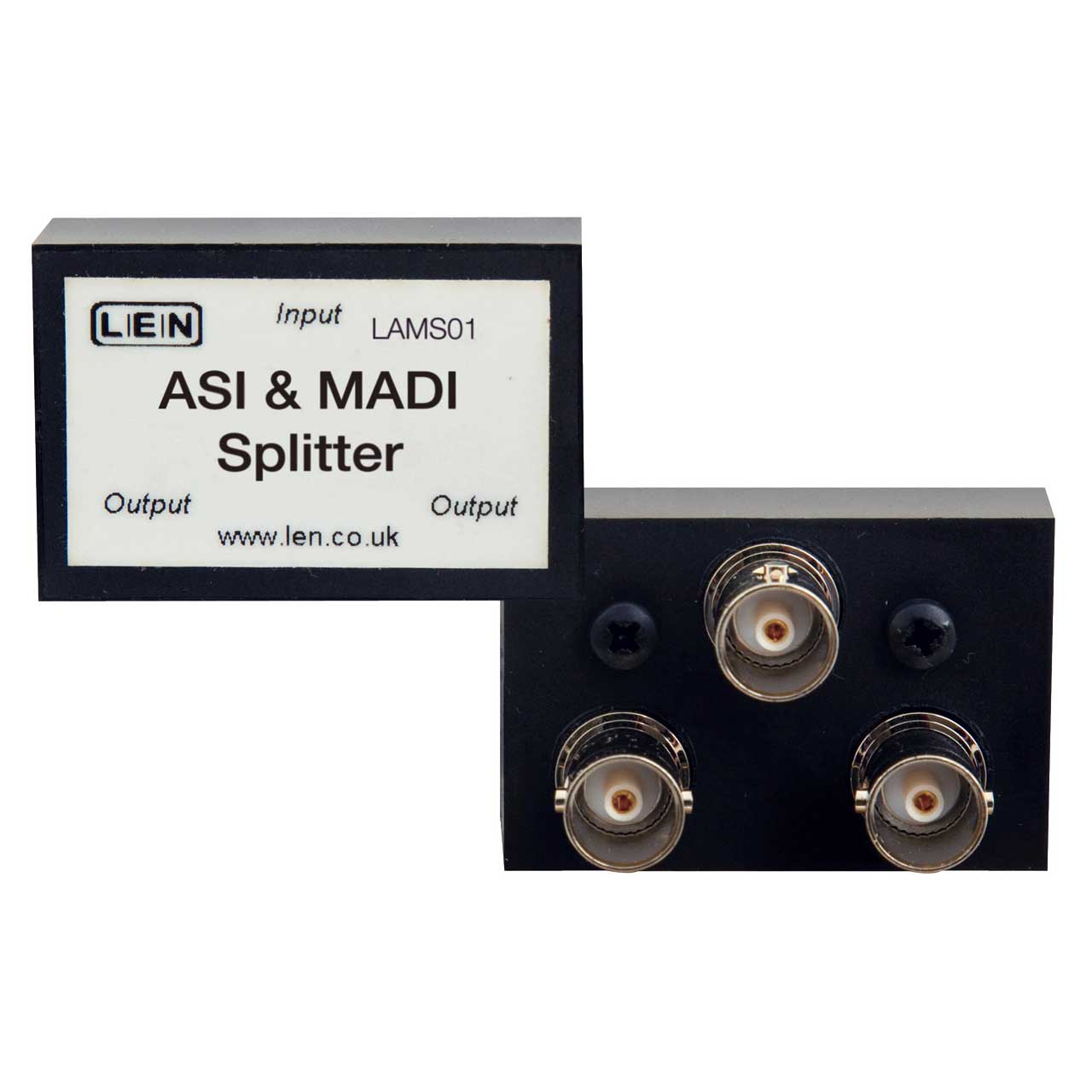

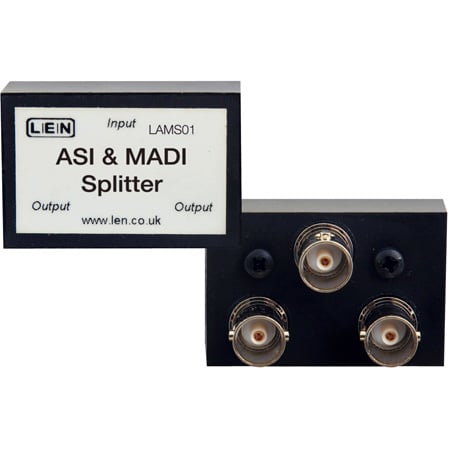

    The LAMS01 is for use with the AES, MADI and ASI standards. It is built in an ABS enclosure fitted with three female BNC connectors. Two M3 mounting screws are provided on the same face as the connectors, so that the splitter can be mounted flat to a panel, with the connectors protruding through it.

    Two or more splitters can be used in series to provide up to eight individual feeds over shorter distances. Actual distance is dependant on original signal strength and cable quality.

    Please Note: To achieve the specified performance the input should be fed with a source impedance of 75 ohms and both outputs must be terminated with 75 ohms. Therefore, if an output cable is not present, a 75 ohm termination should be fitted. This should be specified to operate over the full bandwidth in use.

    • Features:

      • Two or more splitters can be used in series to provide up to eight individual feeds over shorter distances
      • Actual distance is dependant on original signal strength and cable quality

    • Specifications:

      • Input and Output Impedance: 75 ohms
      • Return Loss: 5 to 270 MHz - 15dB
      • Amplitude Roll-off, 360 MHz: - 0.2dB
      • Insertion Loss: 3.4dB
      • Isolation, 270 MHz: 35dB
      • Drive Capability, Typical: 90 Meters (295 Feet)
      • Dimensions (L x W x H): 1.8" x 1.2" x 0.6" (45 x 30 x 15 mm)
      • Weight: 30g

    • Item Includes:

      • 1x LEN LAMS01 AES MADI ASI Splitter
