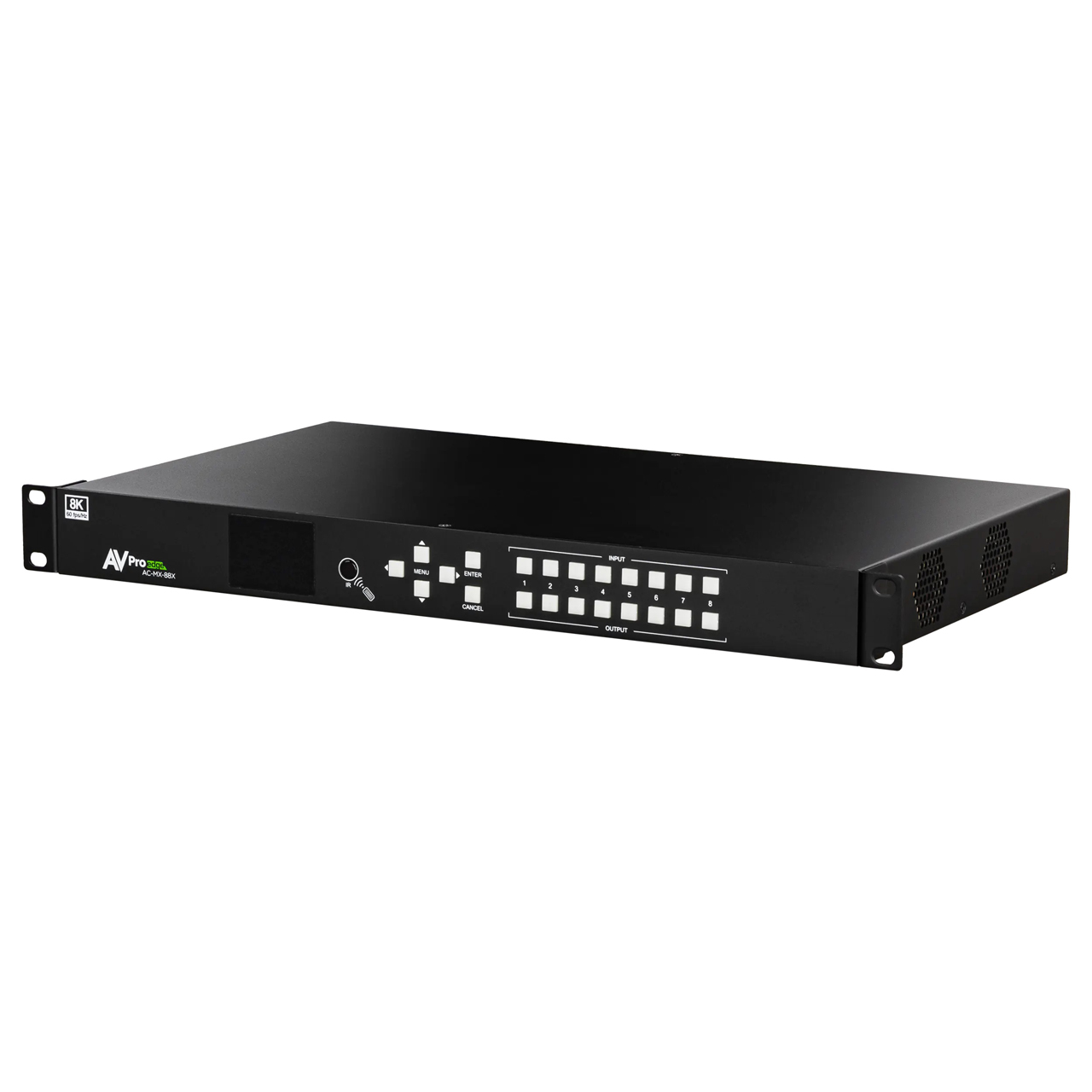

AVPro Edge AC-MX-88X 40Gbps 8K 8x8 HDMI Matrix Switcher - Up to 8K60Hz 4:2:0 / 8K30Hz 4:4:4 & 4K120Hz

ITEM #: APR-AC-MX-88X MFG #: AC-MX-88X

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$10,073.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


AC-MX-88X - Overview

Multiple inputs for multiple consoles!

Simply stated, the AVPro Edge AC-MX-88X is a classic transformed into an icon. Engineers focused on reimagining the venerable AC-MX-88, boosting bandwidth to an ultrawide 40Gbps with 8K input and output stages, for a world-first, Next-Gen 8 input/8 output matrix switching platform providing a foundation for all possibilities that follow. "X " marks the spot for high performance that is unmistakably AVPro Edge, as they once again redefine the face of the HDMI switching era. Gaming enthusiasts, rejoice - multiple inputs for multiple consoles! Select Xbox Series X, PlayStation 5, or your Alienware Aurora Ryzen by control system or from the supplied IR remote and leave the cable juggling to Cirque du Soleil.

The AC-MX-88X, designed with the needs of Next-Gen users in mind, prepares your clients for tomorrow's over-the-near-horizon signals, while ultrawide bandwidth supplies sure-footed dynamic headroom for hiccup-free performance with HDMI 2.1a devices. With the unmatched pedigree of AVPro Edge behind it tradition never fails, as the AC-MX-88X lets you break convention and seek perfection

  • Specifications:

    • Video Resolutions: Up to 8k 60Hz 4:2:0/8K 30Hz 4:4:4/4k 120Hz
    • HDR Formats/Resolutions: 4:2:0, 4:2:2, 4:4:4 (10- and 12-Bit Deep Color) HDR10, HDR10+, Dolby Vision, HLG
    • Color Space: YUV (Component), RGB, (CSC: Rec. 601, Rec. 709, BT. 2020, DCI-P3 D65)
    • Chroma Subsampling: 4:4:4, 4:2:2, & 4:2:0 Supported
    • Deep Color: Up to 16-bit (1080p), up to 12-bit (4K), up to 10-bit (8K)
    • Resolution Scaling (Available on all Outputs): 8K to 4K or 8K/4K to 1080p
    • Additional HDMI 2.1 Features: ALLM, VRR, QMS, QFT, HFR
    • HDMI Bitstream: LPCM up to 7.1, 192 kHz 24-Bit, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos (All Formats), Dolby AC-4, DTS-Digital Surround, DTS-ES Discrete, DTS-HD High Res Audio, DTS-HD Master Audio, DTS:X
    • Extracted Audio (SPDIF TOSLINK): LPCM up to 5.1, 96kHz 24-Bit, Dolby Digital 5.1, DTS-HD High Res Audio
    • Extracted Audio (Stereo RCA): PCM 2 CH
    • Extracted Audio Modes: Bind to INPUT, Bind to OUTPUT or MATRIX (Independent)
    • Audio Delay (per output, extracted): Up to 630ms
    • HDMI 2.0 Distance:
      - Passive HDMI IN/OUT: Up to 32.8ft (10m)
      - AOC HDMI IN/OUT: Up to 328ft (100m)
    • HDMI 2.1 Distance:
      - Passive HDMI IN/OUT: Up to 13.1ft (4m)
      - AOC HDMI IN/OUT: Up to 328ft (100m)

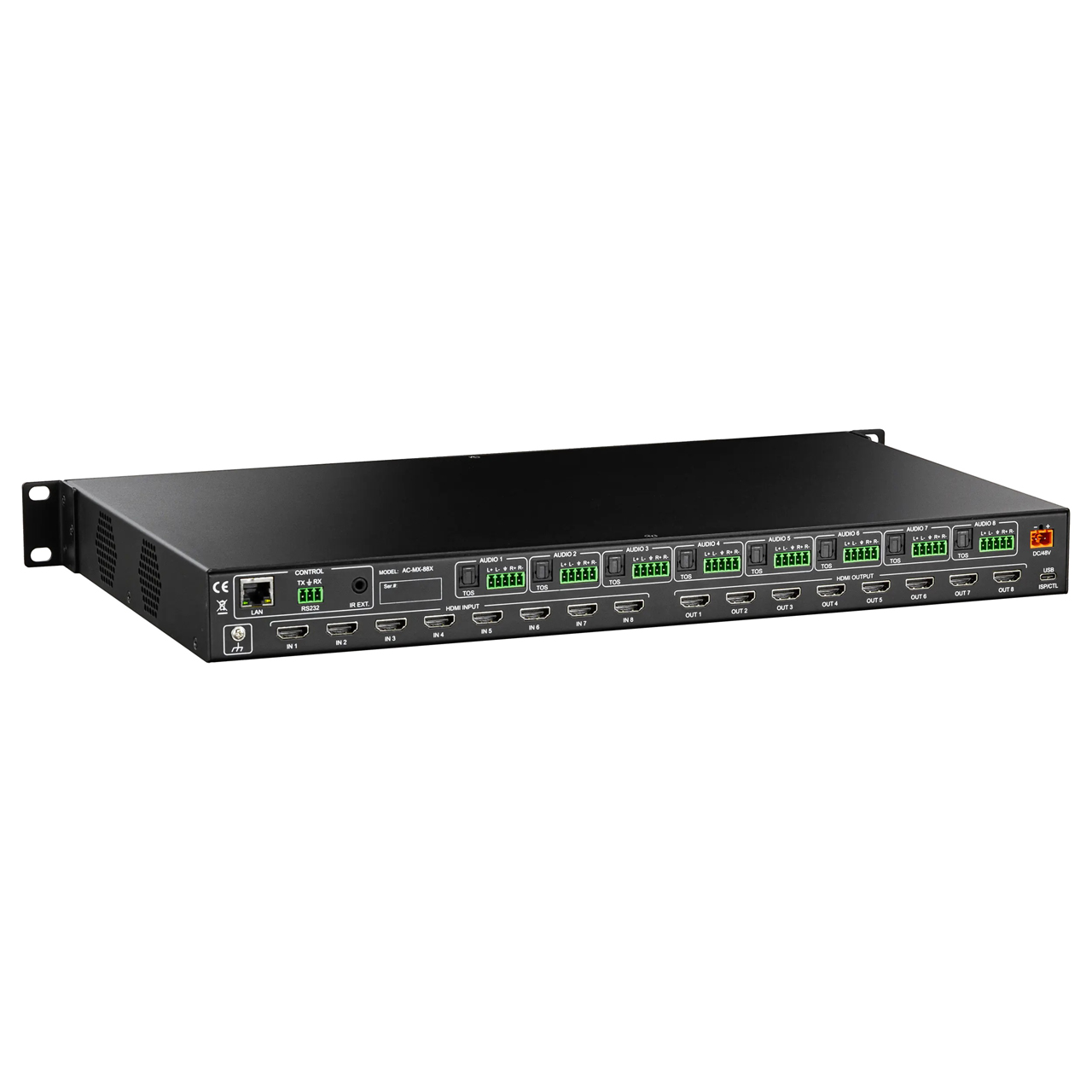

    • Ports: HDMI Type A
    • LAN: RJ45 with Web Interface/Control
    • Audio (Extracted Digital): Toslink
    • Audio (Extracted Analog): L/R Audio
    • IR RX: Window Only (Remote Included)
    • RS232: 3-Pin Terminal Block
    • Operating Temperature: 23°F - 125°F (-5°C - 51°C)
    • Storage Temperature: -4°F - 140°F (-20°C - 60°C)
    • Humidity Range: 5% - 90% RH (No Condensation)
    • Power Consumption (Total): 90W Max
    • Matrix Power Supply:
      - Input: AC 100V - 240V ~ 50/60Hz
      - Output: DC 48V 3.75A

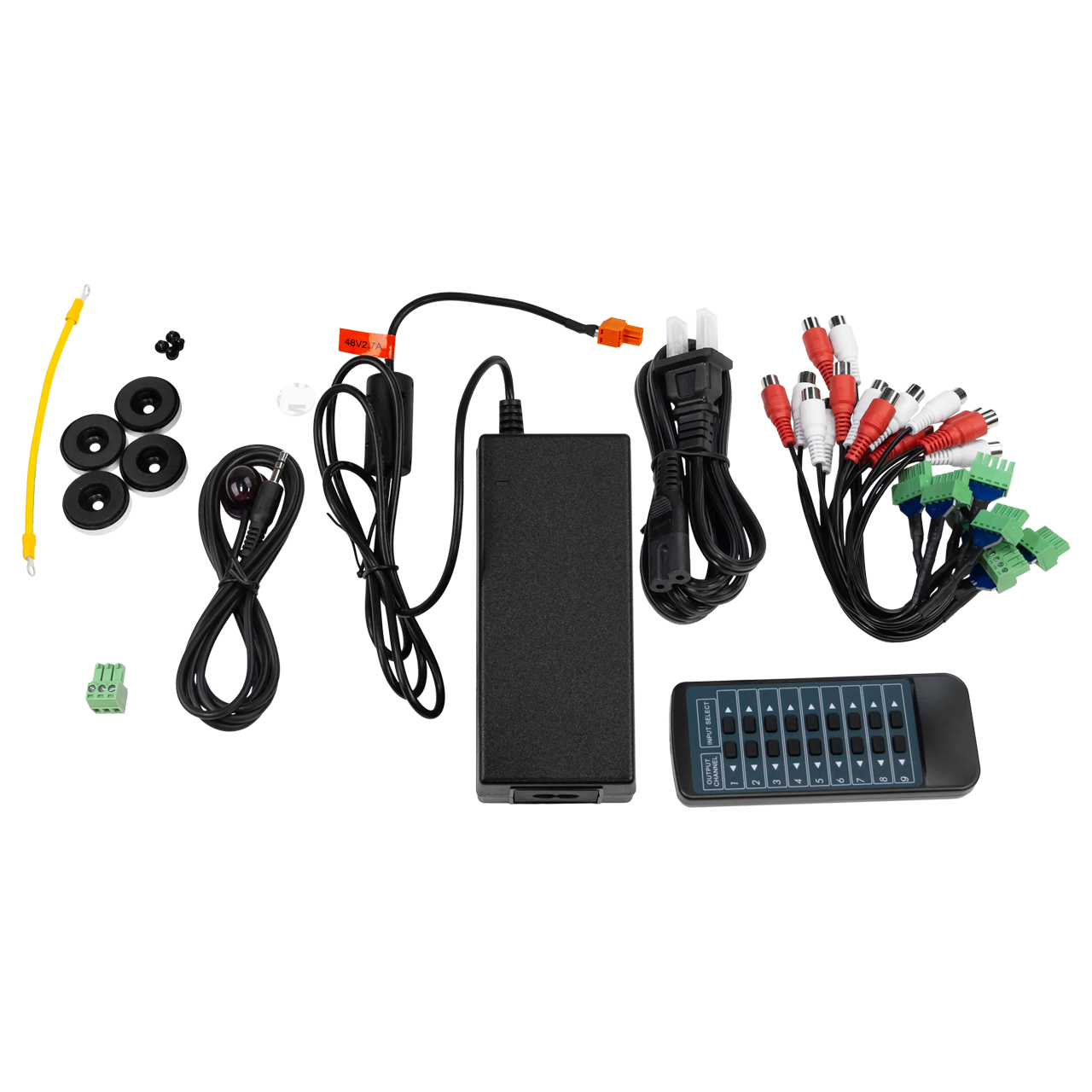

  • Item Includes:

    • 1x AC-MX-88X (Matrix Switch)
    • 1x 48V/2.7A Power Supply
    • 1x IR Remote Control
    • 1x IR Extension Cable
    • 2x Mounting Brackets & Screws (preinstalled)
    • 4x Rubber Feet & Screws
    • 8x 5-Pin to 2ch Audio Extraction Cable
    • 1x 3-Pin Terminal Block
    • 1x Grounding Cable
