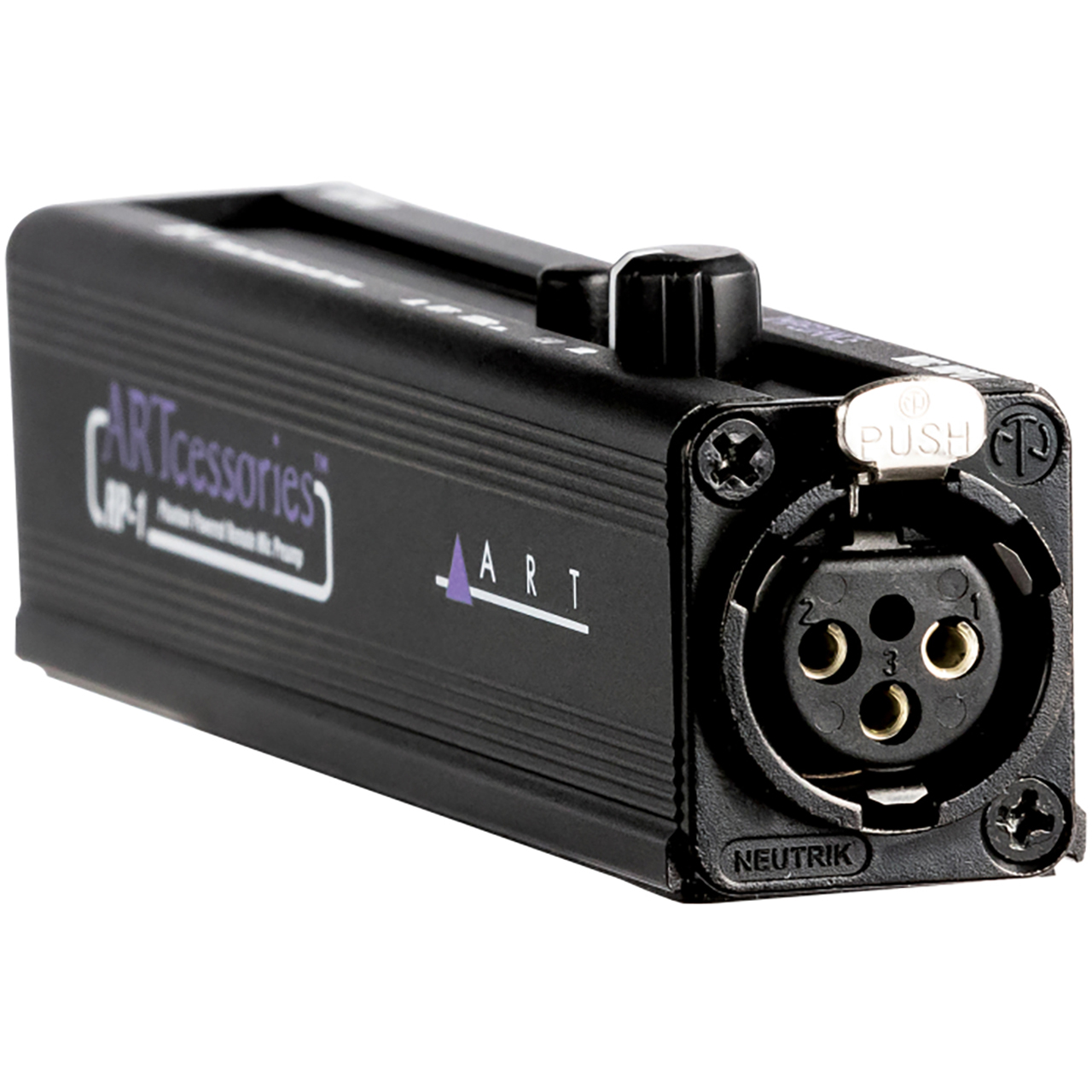

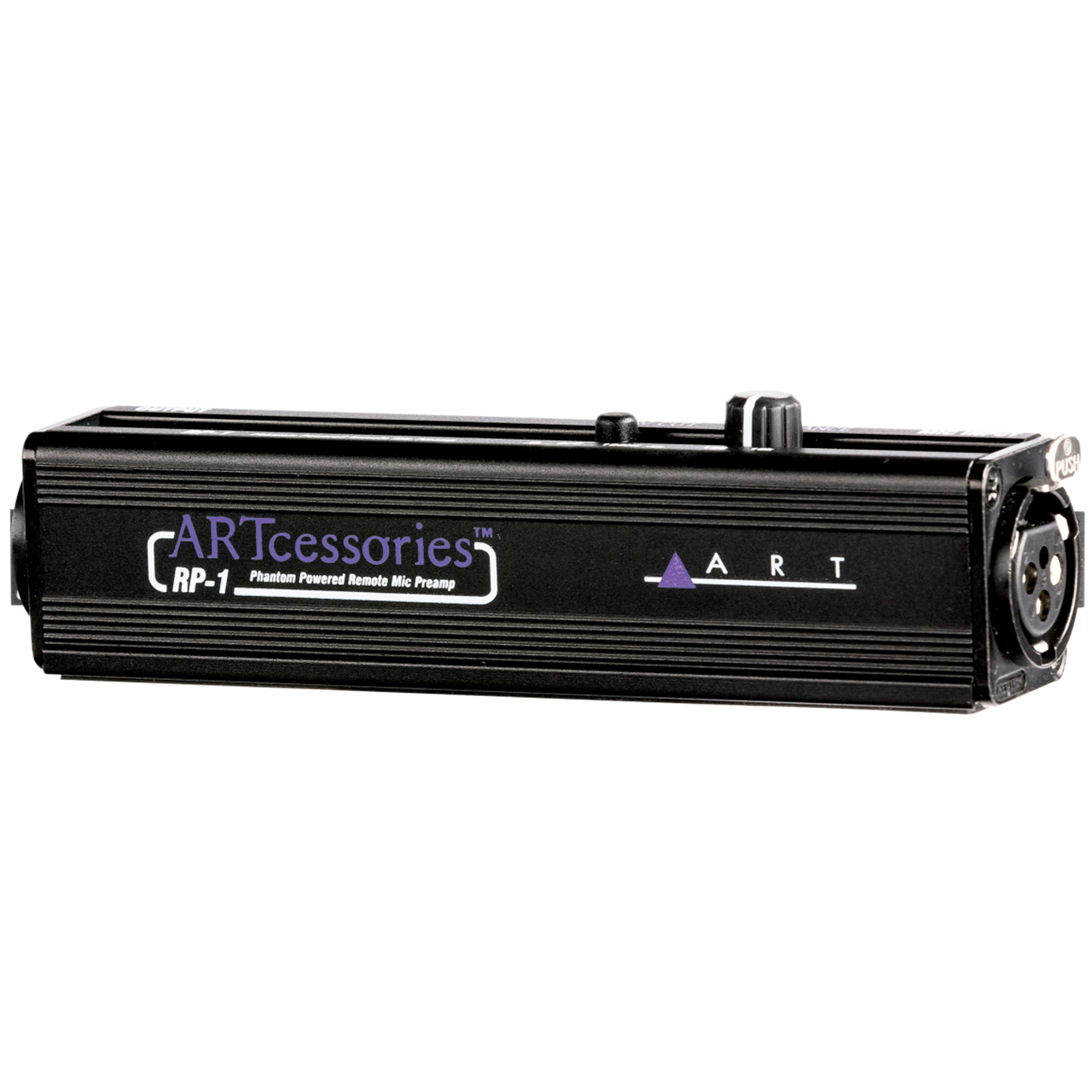

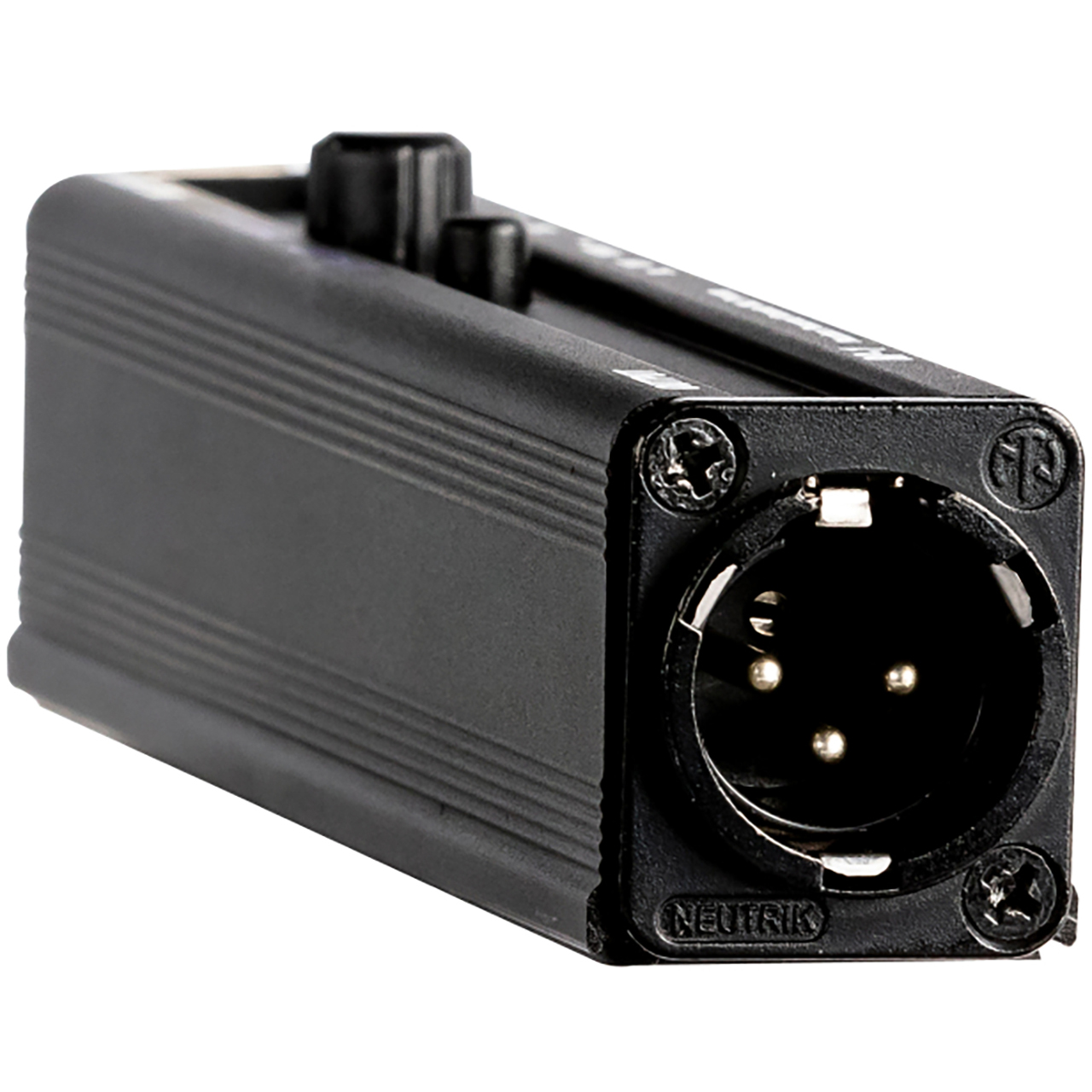

ART RP-1 Remote Preamp/ Mic Boost Designed for Ribbon and Dynamic Mics

ITEM #: ART-RP-1 MFG #: RP-1

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$120.99

Our Price:

$84.99

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


RP-1 - Overview

The RP-1 is a remote preamp designed for dynamic and ribbon microphones.

It has three main advantages. Firstly, it adds up to 28 dB of clean, low-noise gain, so its an ideal solution for low-output mics.

Secondly, it offers variable impedance so you can tailor the preamp response to your microphone for additional tonal flexibility.

Thirdly, it shortens the distance between the mic and preamp. This lets you minimize interference and signal loss by sending a balanced signal over a long cable run to your mixer or interface.

The Dual RP runs on phantom power but does not pass it, so its safe to use with delicate ribbon mics. It also features a switchable high-pass filter that cuts low frequencies to remove rumble and tighten bass.

  • Features:

    • Switchable low cut filter
    • 100 Hz low cut filter
    • Variable impedance control (150 ohms - 10k ohms)
    • Adds low-noise, clean gain (28dB @ 10k ohms, 20dB @ 600 ohms)
    • Runs off +48V Phantom power supply
    • Low THD discrete circuitry (<0.002% @ 1kHz typ.)
    • Balanced outputs

  • Specifications:

    • Inputs 1x XLR
    • Outputs 1x XLR
    • Input Impedance 150 O to 10 k O, variable
    • Maximum Input Level -18 dBu
    • Maximum Output Level +9 dBu
    • Maximum Gain +27 dB
    • Total Harmonic Distortion < .002% @1 kHz typ.
    • CMRR >60 dB 20-20 kHz
    • Power Requirements External Power requirements Standard 48V Phantom power supply, 8ma
    • Dimensions (HWD) 1.26" x 1.12" x 5.18" (3.2 cm x 2.84 cm x 1.32 cm)
    • Weight 0.31 lbs / 0.14 kg

  • Item Includes:

    • 1x ART RP-1 Single Channel Preamp for Ribbon and Dynaimic Mics

  • GTIN:

    0840402047421
