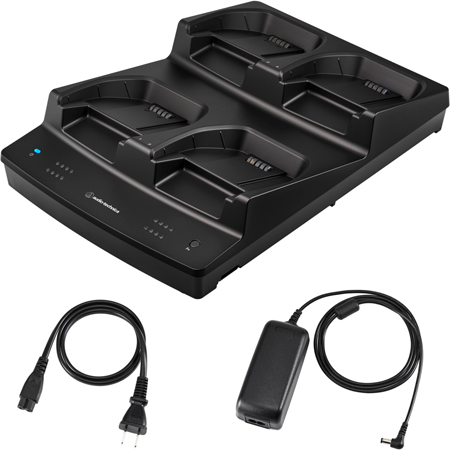

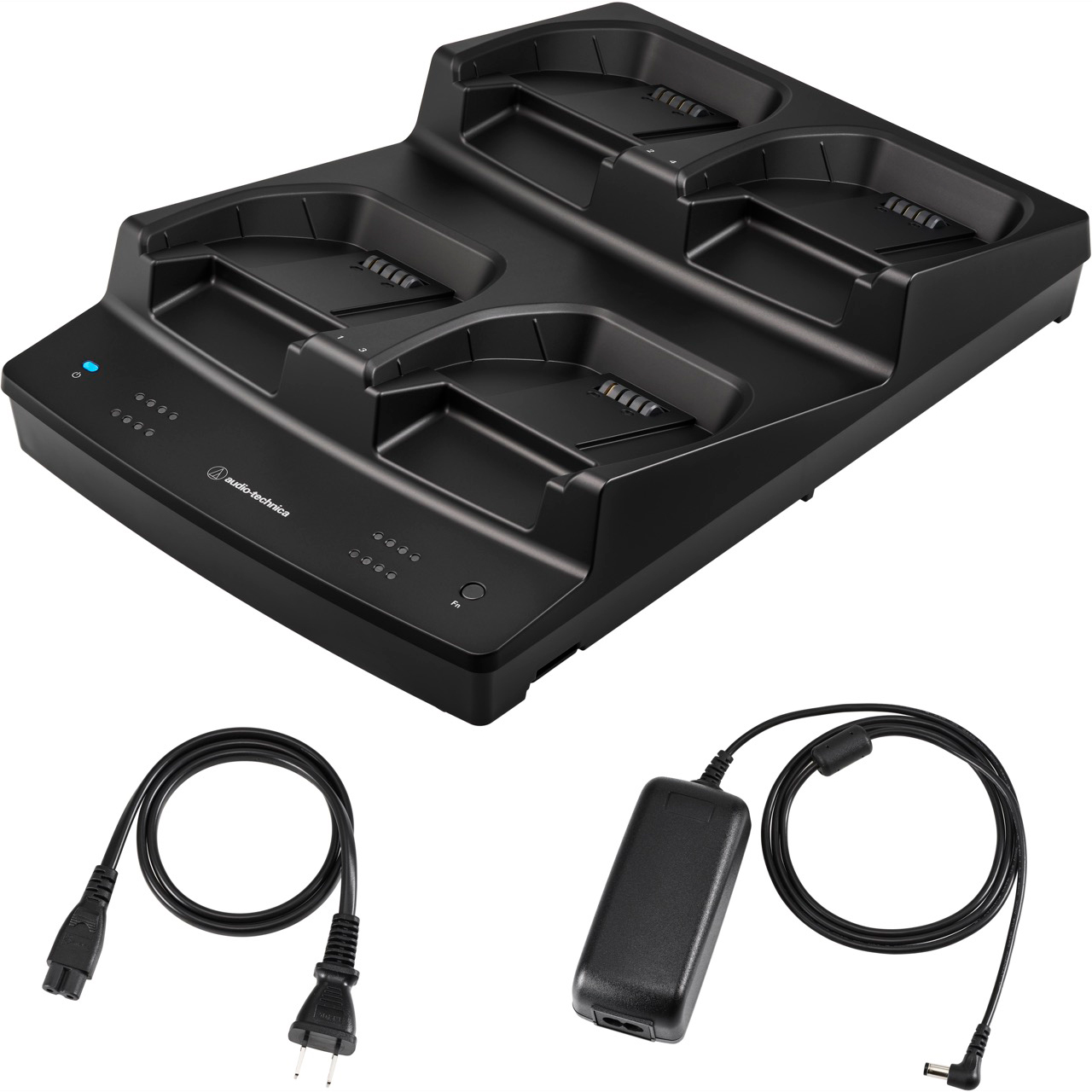

Audio-Technica ATW-CHG7AD Four-Bay Desk Stand Transmitter Station with Power Supply for D50 UHF Wireless System

ATW-CHG7AD - Overview

• Features:

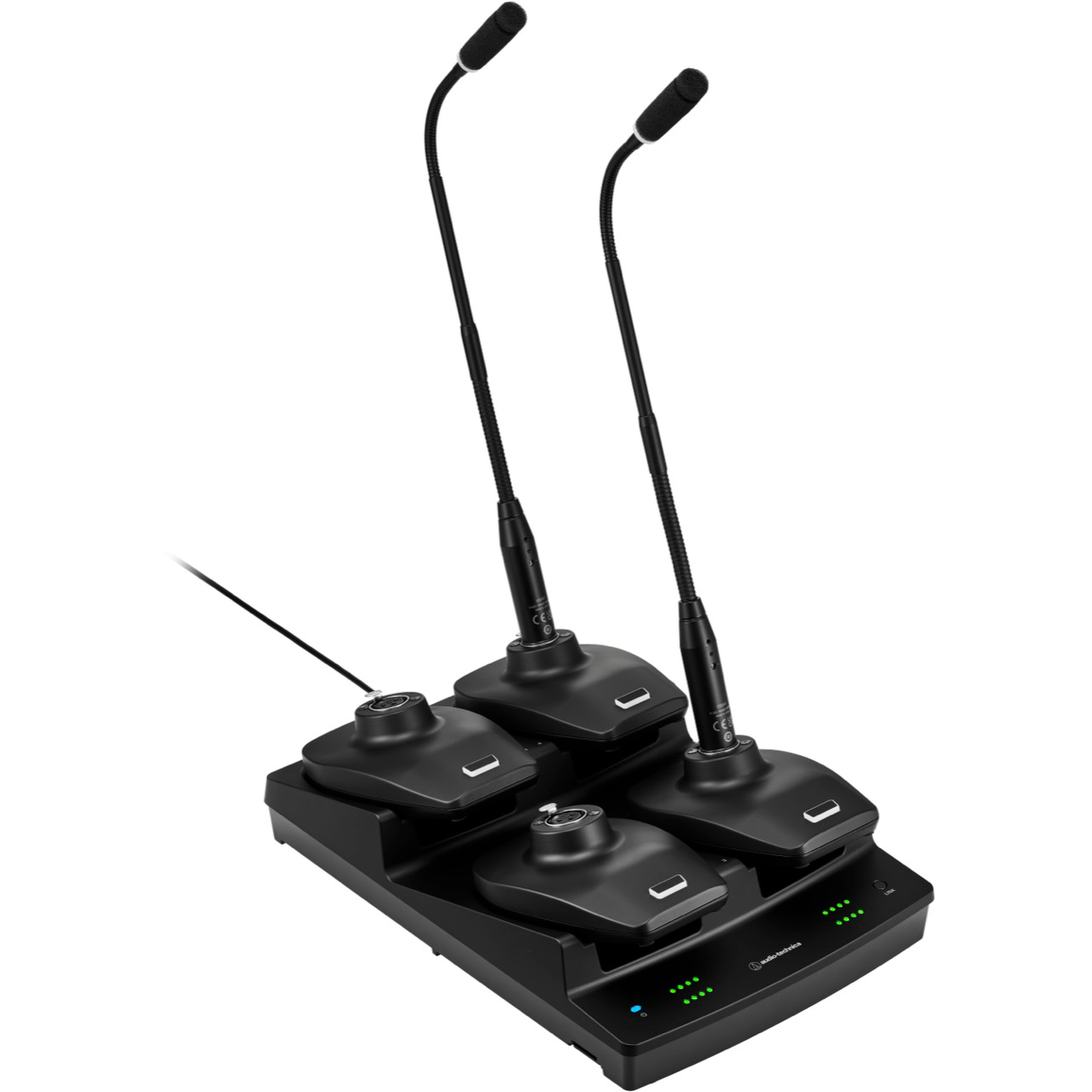

  • Four-bay charging station for charging D50 wireless system desk stand transmitters.
  • Rapid recharge in as little as two hours.
  • Two ATW-CHG7 stations can be linked with Cat5e cable and powered by a single AC adapter (cannot be linked with ATW-CHG6 stations).
  • Charging status and battery level can be monitored via the station’s LED indicators or in Audio-Technica’s Wireless Manager software.
  • Transmitter firmware can be updated while transmitters are docked in the charging station.


• Specifications:

  • Power Supply: 12V DC, 3.0A
  • Charging Output:
  • - When charging one to four transmitters: 4.2V DC 1.5A
    - When charging five or six transmitters: 4.2V DC 1.1A
    - When charging seven or eight transmitters: 4.2V DC 0.7A
  • Maximum Power Consumption: When charging four transmitters: 30.6W
  • Charging Time:
    - When charging one to four transmitters: Approx. 2 hours
    - When charging five or six transmitters: Approx. 2 hours 50 minutes
    - When charging seven or eight transmitters: Approx. 3 hours 40 minutes
    - Energy-saving mode: Approx. 3 hours 40 minutes

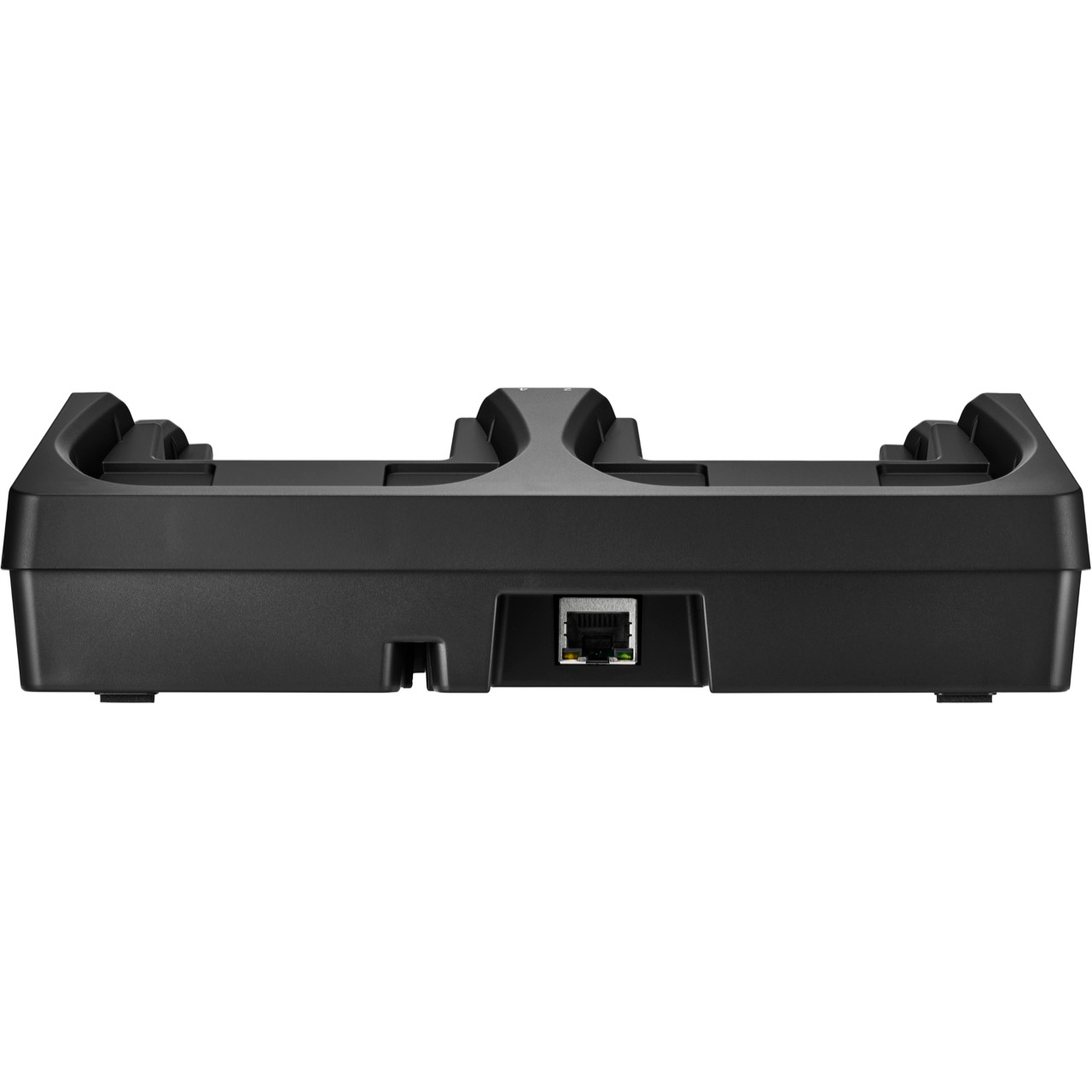

  • Network: 100 Mbps
  • Operating Temperature Range: 32°F - 104°F (0°C - 40°C)
  • Storage Temperature Range: -4°F - 131°F (-20°C - 55°C)
  • Dimensions (LxWxH): 9.06" x 15.55" x 3.70" (230.1mm x 395mm x 94mm)
  • Weight: 3.749lbs (1.7kg)

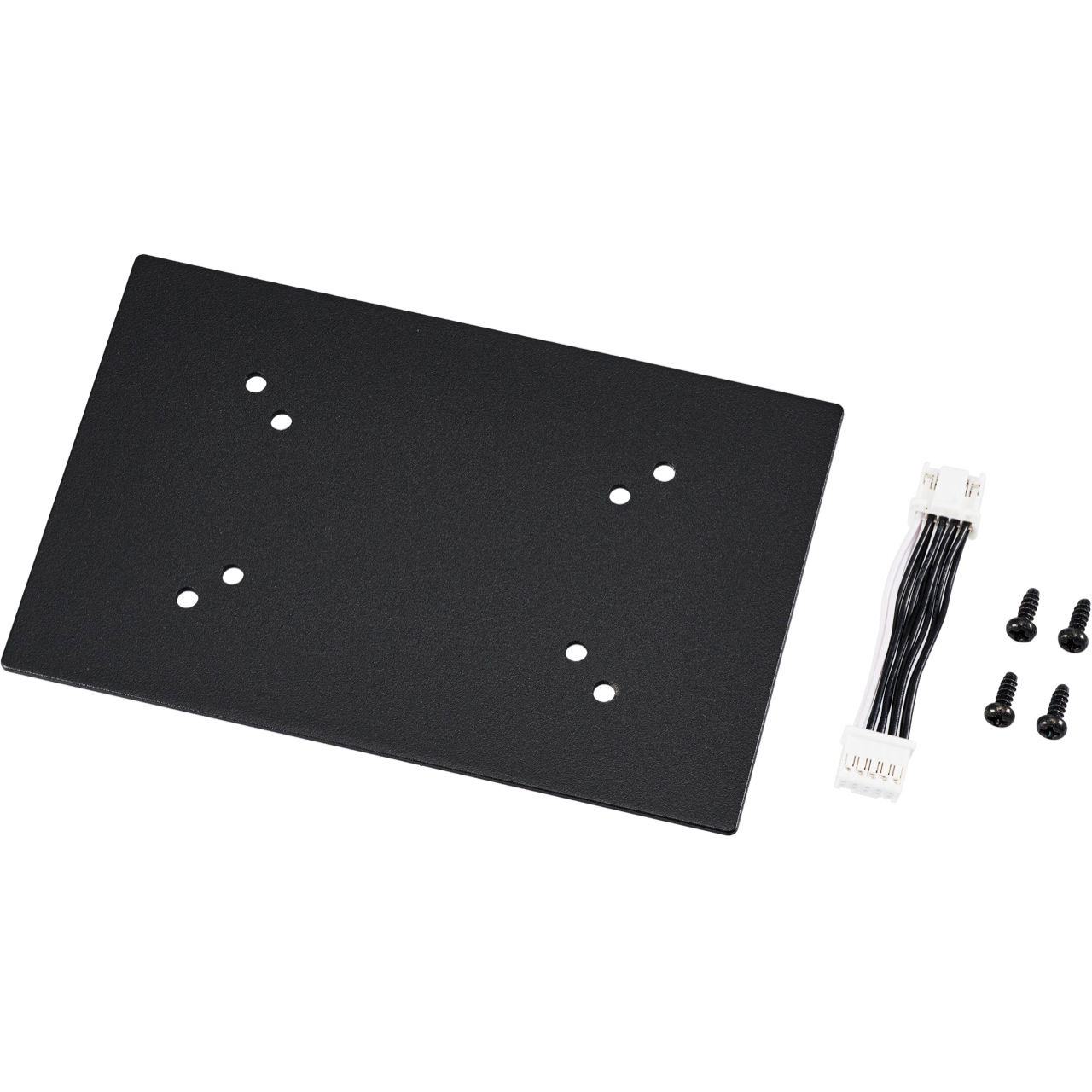

• Item Includes:

  • 1x Link cable
  • 1x Link plate
  • 1x Link plate screws


• Warranty:

  • 1 Year Limited Warranty
