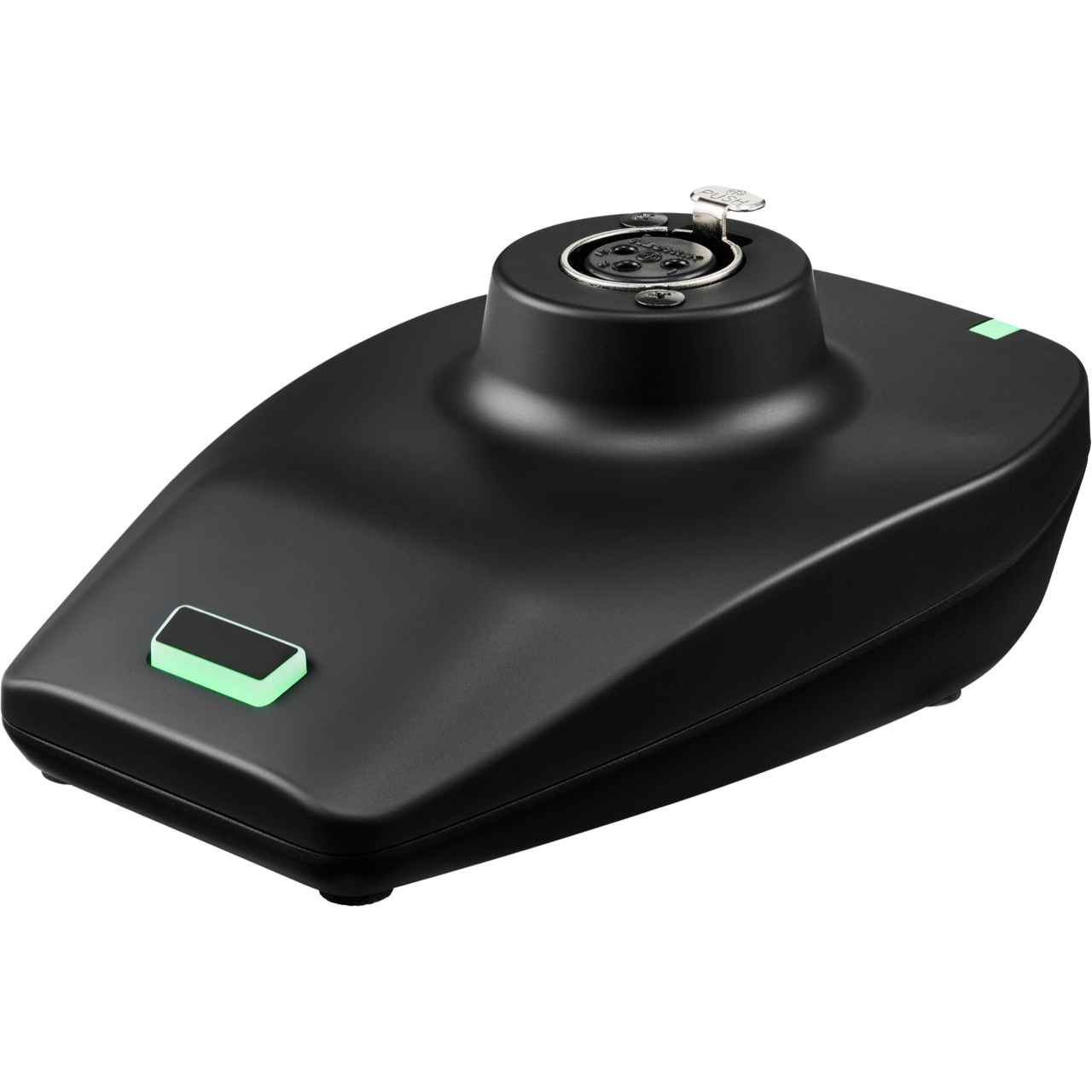

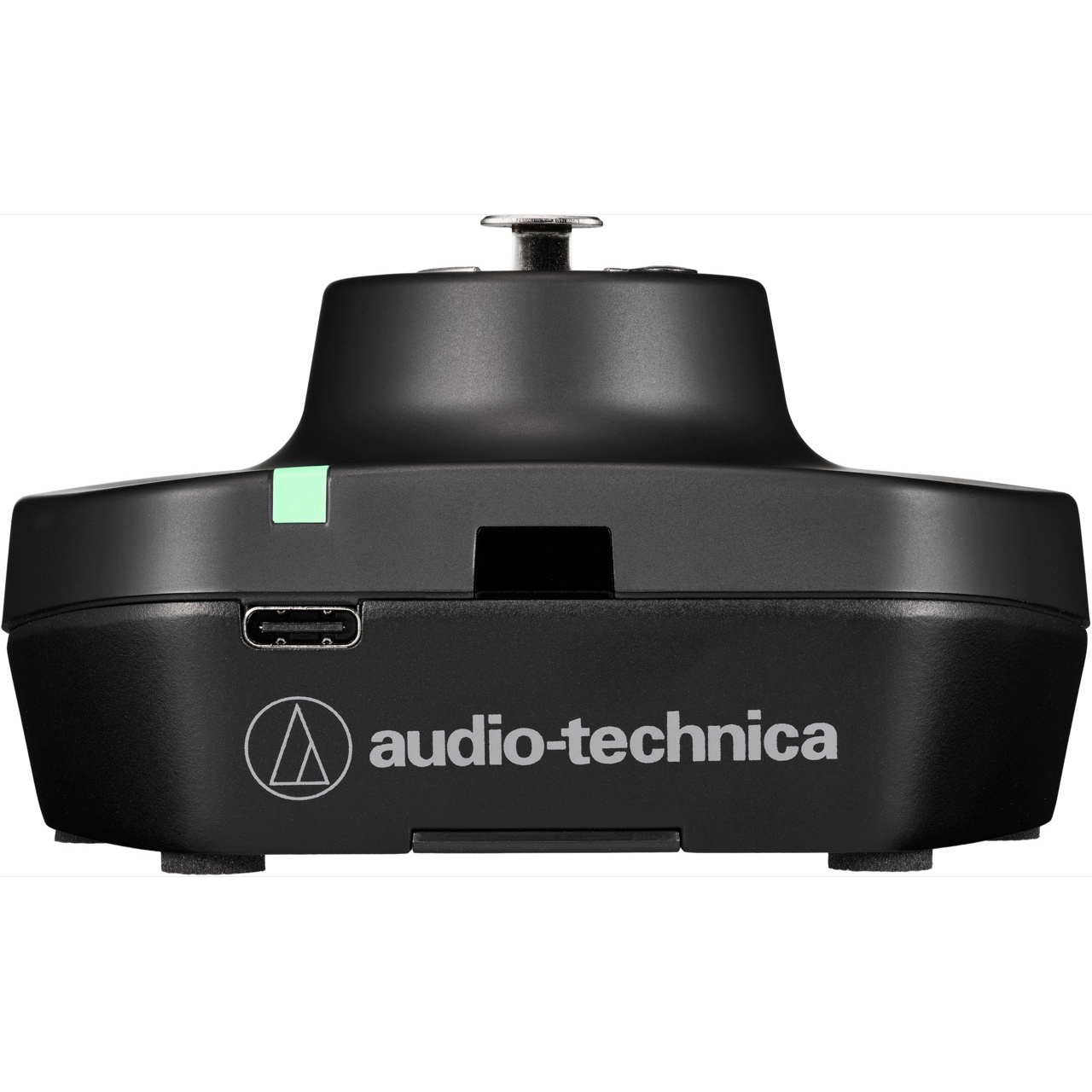

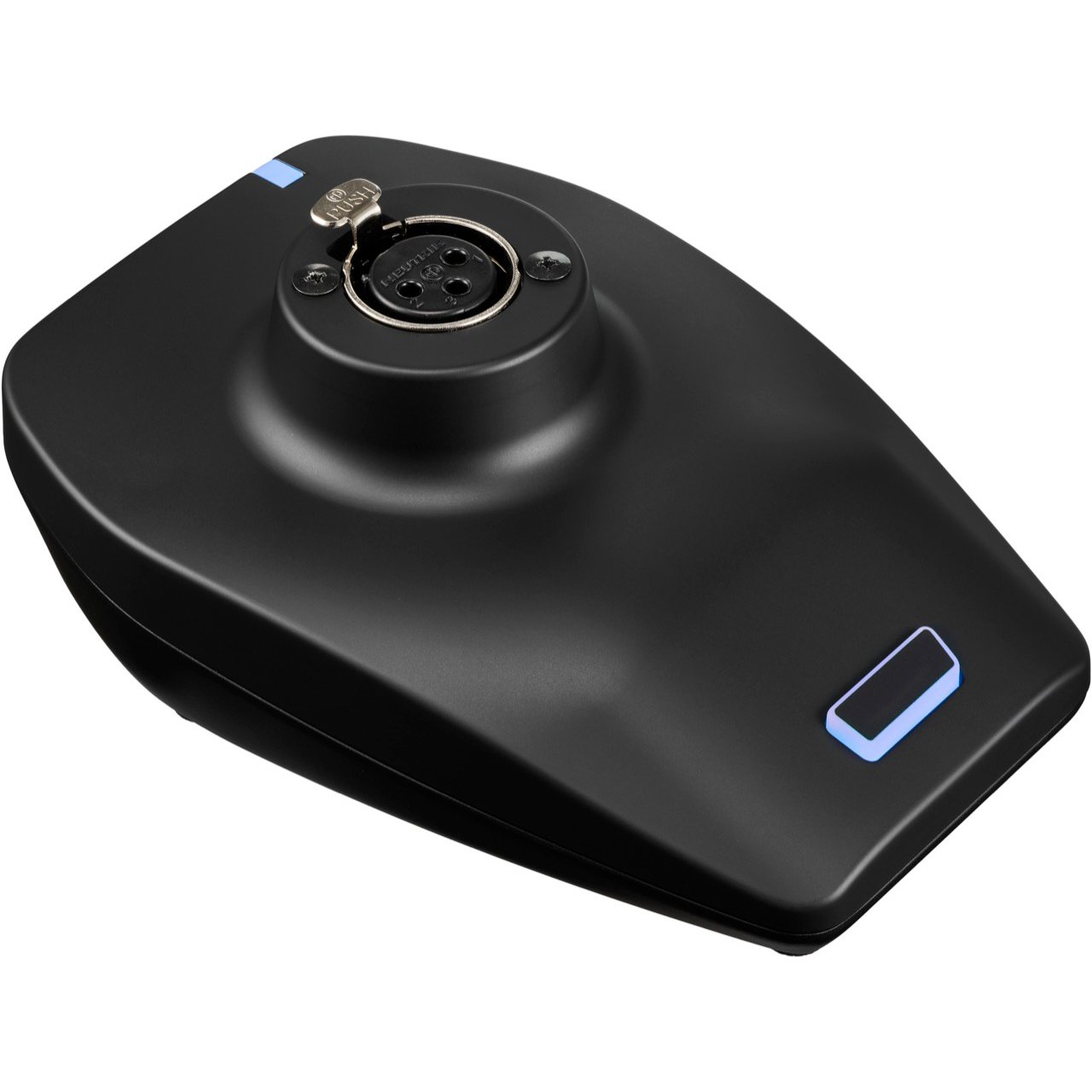

Audio-Technica ATW-DT3207DF2 Desk Stand Transmitter for Use with D50 Digital UHF Wireless System

ATW-DT3207DF2 - Overview

• Features:

  • Desk stand transmitter for the D50 digital UHF wireless system
  • Equipped with a 3-pin XLR-F connector that provides 24V phantom power to compatible quick-mount gooseneck microphones, such as the family of ES925XLR mics (sold separately)
  • Talk button can be set to three different operation modes (toggle mute on/off, press to mute, press to talk)
  • Two LEDs on the transmitter can be set to illuminate in seven different colors and three different patterns (standard mode and two conference modes)
  • Seven different color rings can be attached to the base of a microphone to color code each channel
  • Powered by a custom-designed lithium-ion battery for best-in-class battery life and convenient charging in the ATW-CHG7 four-bay charging station (sold separately) or via USB-C connection


• Specifications:

  • RF Output Power:
    - Standard: 20mW, 10mW, 1mW
    - HD Mode: 1mW
  • Microphone: Gooseneck microphone supported
  • High-Pass Filter: 120Hz, 12dB/octave
  • Battery: Lithium-ion battery LI-220 (included)
  • Battery Life:
    - When Using a Gooseneck Microphone with No LED: Approx. 9.5 hours (10mW)
    - When Using a Gooseneck Microphone with an LED: Approx. 7.5 hours (10mW)
  • Operating Temperature Range: 23°F - 113°F (-5°C - 45°C)
  • Storage Temperature Range: -4°F - 131°F (-20°C - 55°C)
  • USB Charging Connector: USB Type-C (USB 2.0)
  • Dimensions (LxWxH): 4.53" x 6.36" x 3.07" (115mm x 161.5mm x 78mm)
  • Weight: 1.41lbs (0.64kg)


• Item Includes:

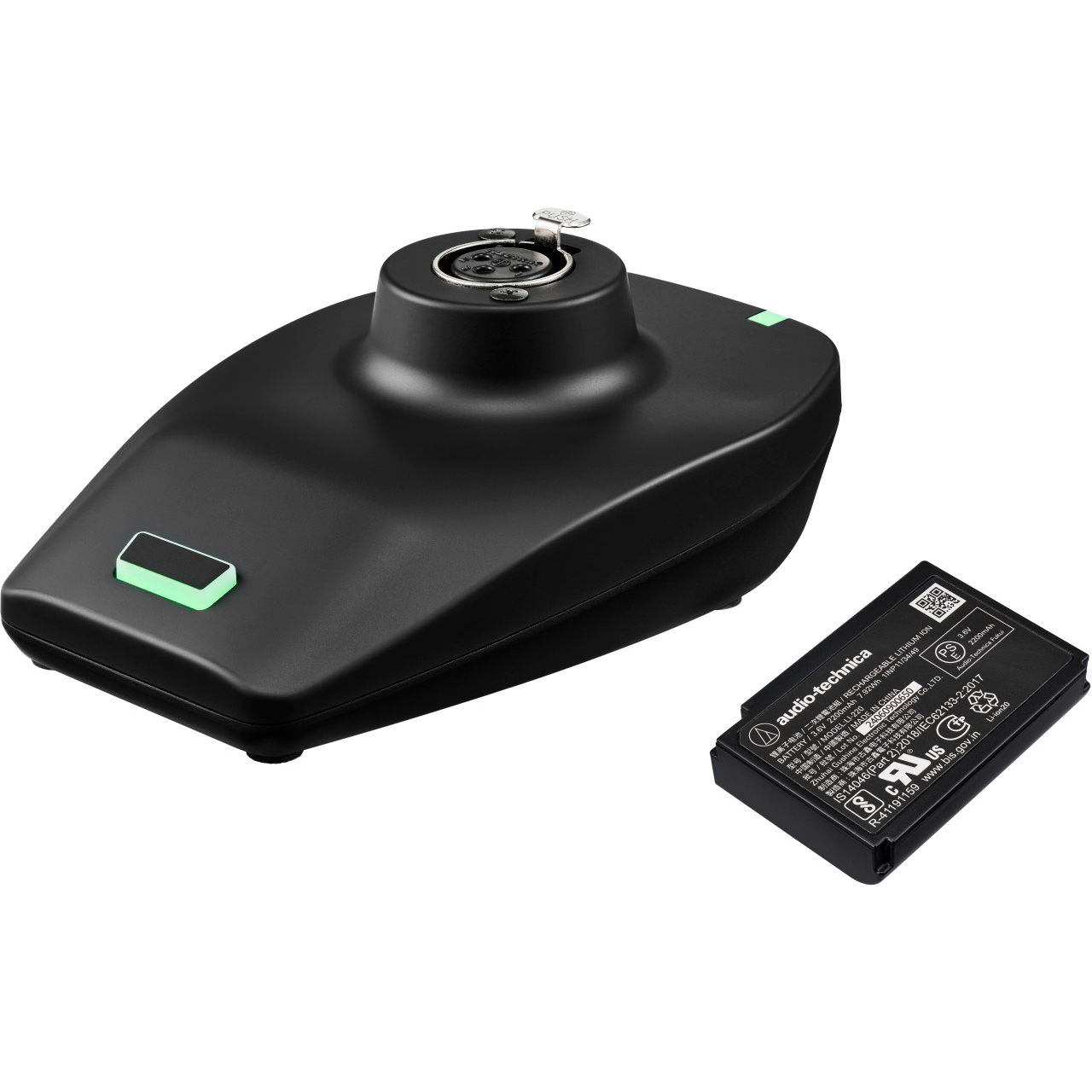

  • 1x ATW-DT3207 desk stand transmitter
  • 1x LI-220 rechargeable lithium-ion battery
  • 1x ATW-TI70 color ring indicator kit


• Warranty:

  • 1 Year Limited Warranty
