Atlona AT-HDR-EX-70C-TX 4K HDR HDBaseT Transmitter with Control - 1080p up to 230ft over Category 6/6A - TAA

AT-HDR-EX-70C-TX - Overview

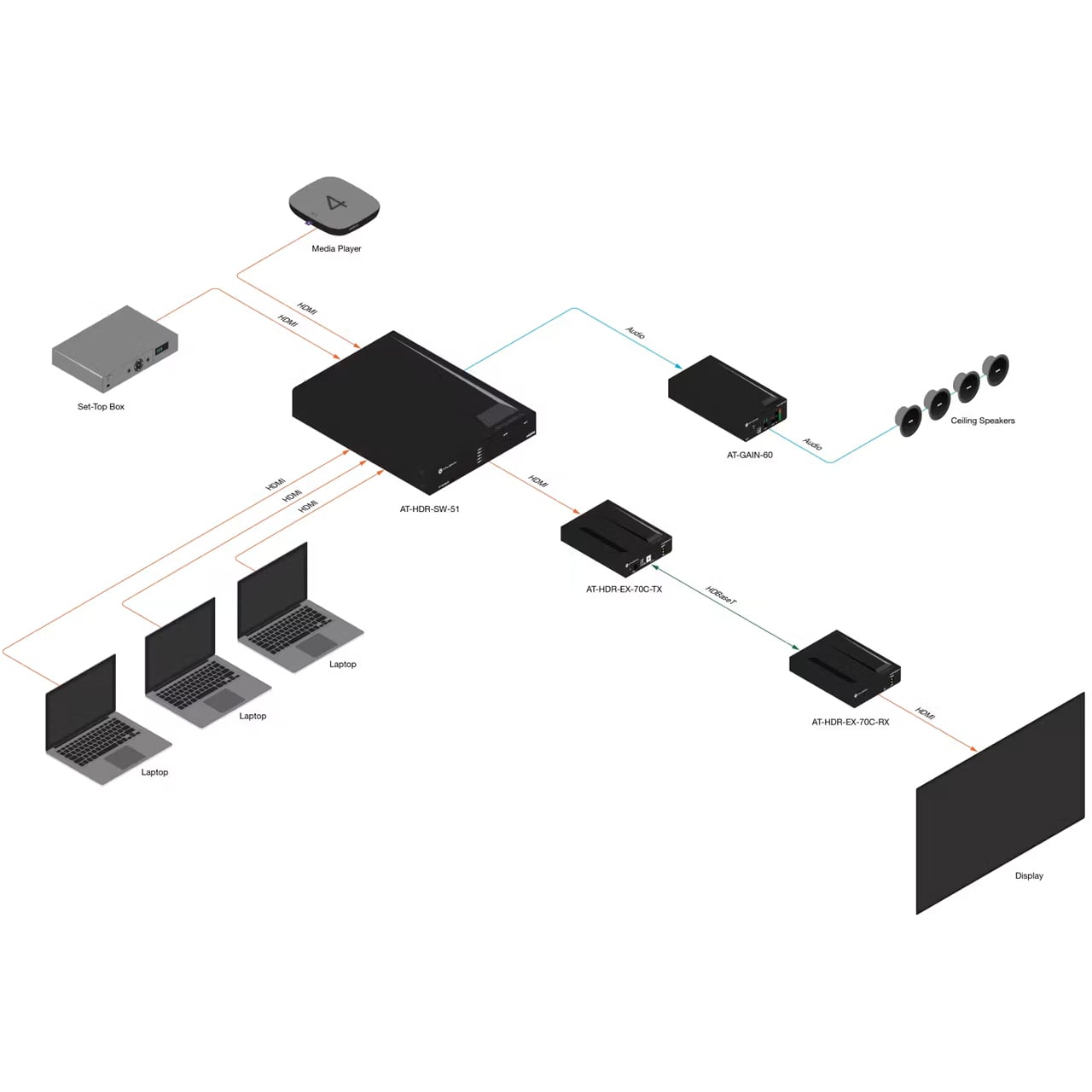

A high-performance HDBaseT transmitter designed for modern AV installations!

• Features:

  • HDBaseT transmitter for use with the AT-HDR-EX-70C-RX receiver
  • 4K/UHD capability @ 60Hz with 4:4:4 chroma sampling
  • Supports HDR10, HLG, and Dolbyr VisionT HDR formats
  • Features visually lossless compression with no latency to enable HDR and 4K/60 4:4:4 video signal extension over HDBaseT
  • HDBaseT output transmits AV, control signals, and power up to 130ft (40m) for 4K HDR or 230ft (70m) for 1080p with Category 6/6A
  • Extends bidirectional RS-232 and IR control signals over HDBaseT
  • Provides remote power over HDBaseT to compatible receivers such as the AT-HDR-EX-70C-RX
  • Compliant with HDCP 2.2, the latest specification for passing protected content between devices
  • Multi-channel audio pass-through
  • HDBaseT link status testing allows verification of cable, termination, and link quality for more reliable installations
  • Front panel Power and Link status LEDs
  • Front panel USB port for firmware updates
  • Rear panel connections simplify wire management and save installation time
  • Compact enclosure can be mounted in furniture, a lectern, or an equipment rack
  • Compatible with AT-UHD-SW-5000ED switchers for transmission of 4K/UHD @ 60 Hz 4:2:0 signals
  • Included accessories - power supply, surface mount hardware, and captive screw connectors


• Specifications:

  Video
  • Signal: Input - HDMI Output - HDBaseT
  • Copy Protection: HDCP 2.2
  • Pixel Clock: 600MHz
  • UHD/HD/SD: 4096x2160 @ 24/25/30/50/60Hz 3840x2160 @ 24/25/30/50/60Hz 1920x1080p @ 23.98/24/25/29.97/30/50/59.9/60Hz 1920x1080i @ 25/29.97/30Hz 720p @ 50/59.94/60Hz 576p @ 50Hz 576i @ 25Hz 480p @ 59.96/60Hz 480i @ 30Hz
  • VESA All Resolutions are 60Hz: 2560x2048 2560x1600 2048x1536 1920x1200 1680x1050 1600x1200 1440x900 1400x1050 1280x1024 1280x800 1366x768 1360x768 1152x864 1024x768 800x600 640x480
  • VESA 21:9(1): 2560x1080 @ 30 Hz 4:4:4 2560x1080 @ 60 Hz 4:4:4 3440x1440 @ 30 Hz 4:4:4 3440x1440 @ 50 Hz 4:4:4 3840x1600 @ 30 Hz 4:4:4
  • Color Space: YUV, RGB
  • Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0
  • Color Depth: 8-bit, 10-bit, 12-bit
  • HDR: Up to 4K HDR10 @ 60Hz, 4K Hybrid-Log Gamma (HLG) @ 60Hz, and 4K Dolby Vision @ 60Hz(2)

    Audio
  • HDMI/HDBaseT Pass-Through Formats: PCM 2.0 LPCM 5.1 LPCM 7.1 Dolby Digital Dolby Digital Plus Dolby TrueHD Dolby Atmos DTS Digital Surround DTS-HD Master Audio DTS:X
  • Bit Depth: Up to 24 bits
  • Sample Rate: 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz

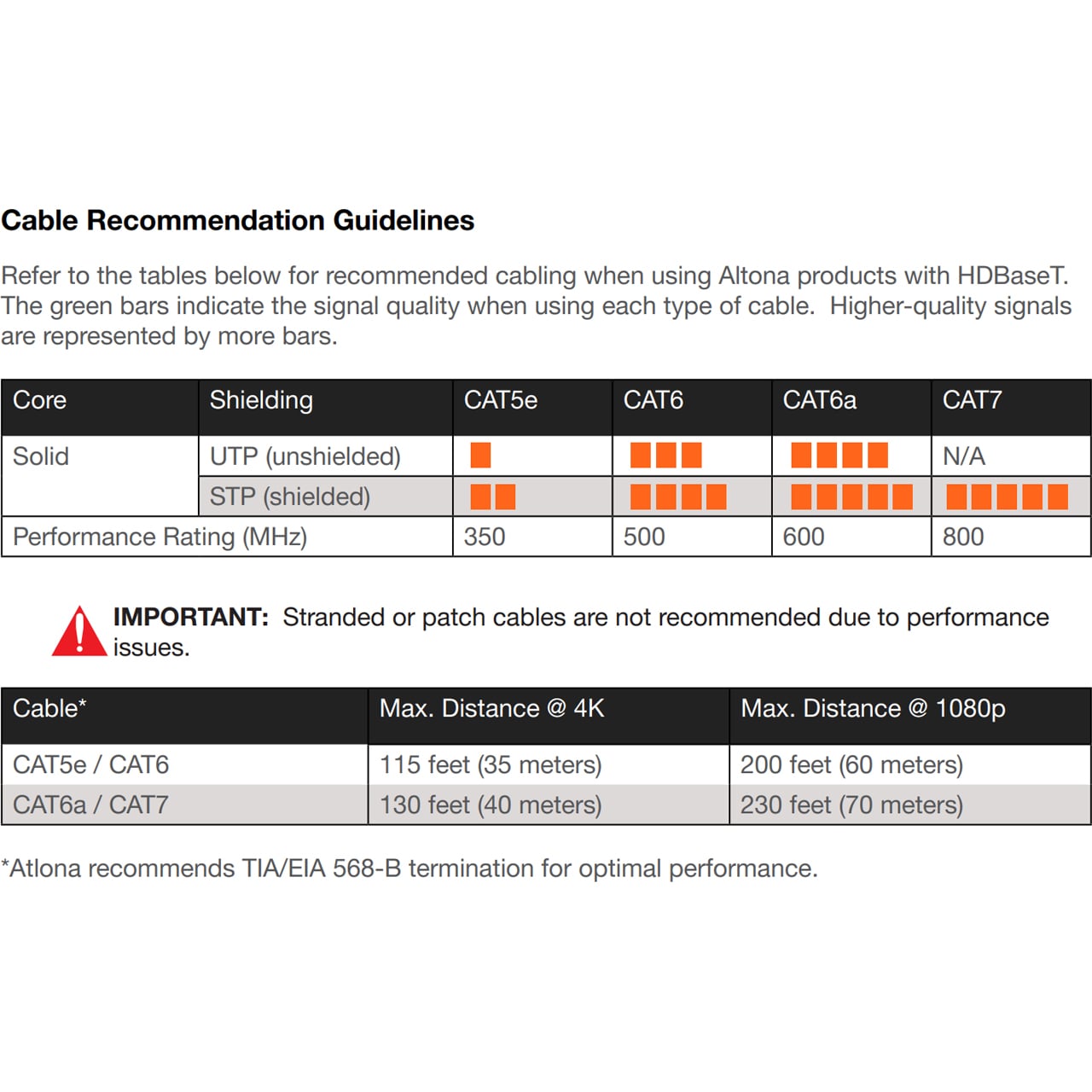

    Resolution/Distance
  • HDMI IN/OUT:
    - 15ft (4K/UHD)
    - 30ft (1080p)
  • CAT5e:
    - 115ft (4K/UHD)
    - 200ft (1080p)
  • CAT6/6a/7:
    - 130ft (4K/UHD)
    - 230ft (1080p)

    Control
  • RS-232: Pass through, up to 115200 baud
  • IR: Pass through, 30kHz - 60kHz

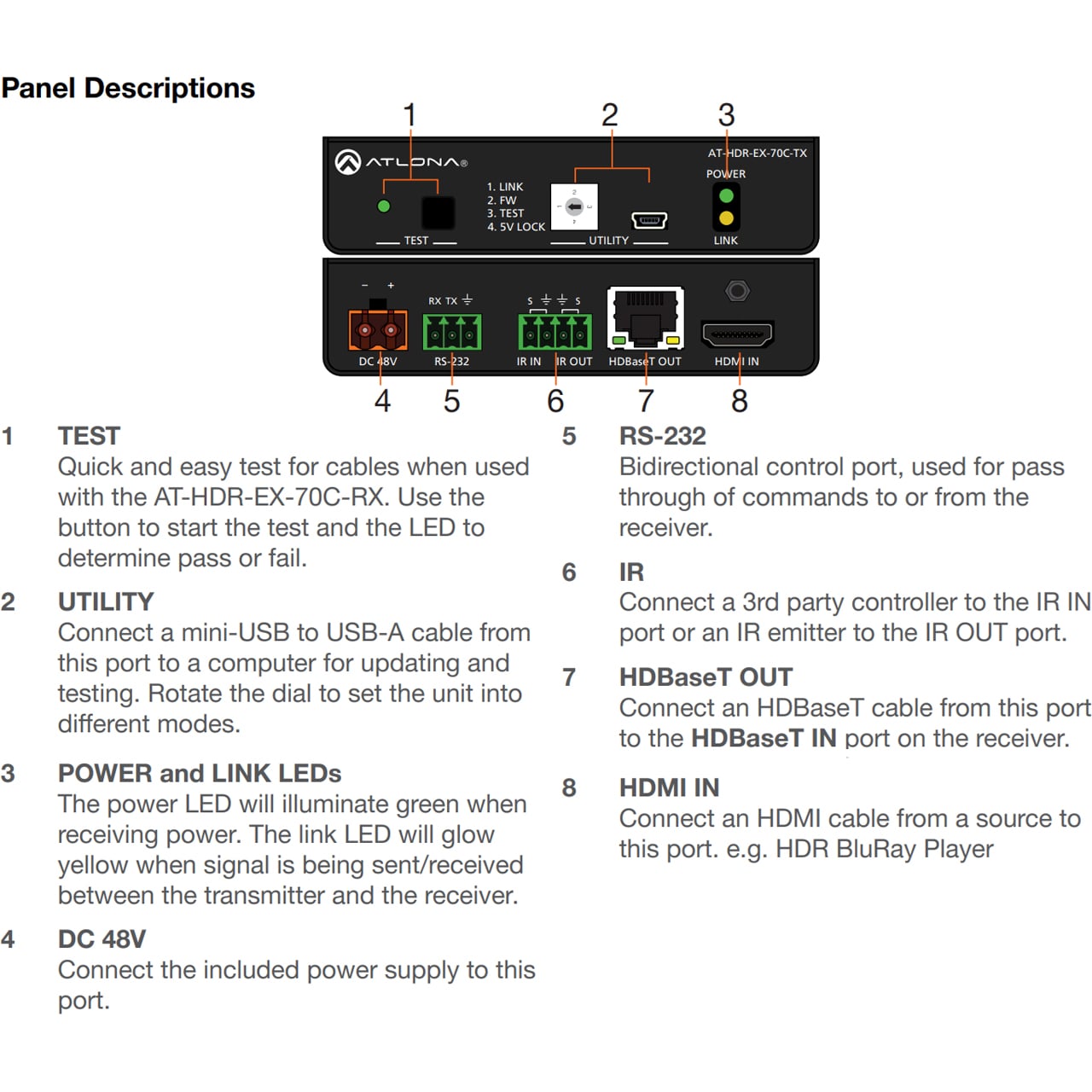

    Buttons and Indicators
  • Buttons: 1x momentary, tact-type
  • Indicators:
    - 1x LED, green
    - 1x (power) LED, yellow
    - 1x (link) LED, multi-colored (test)

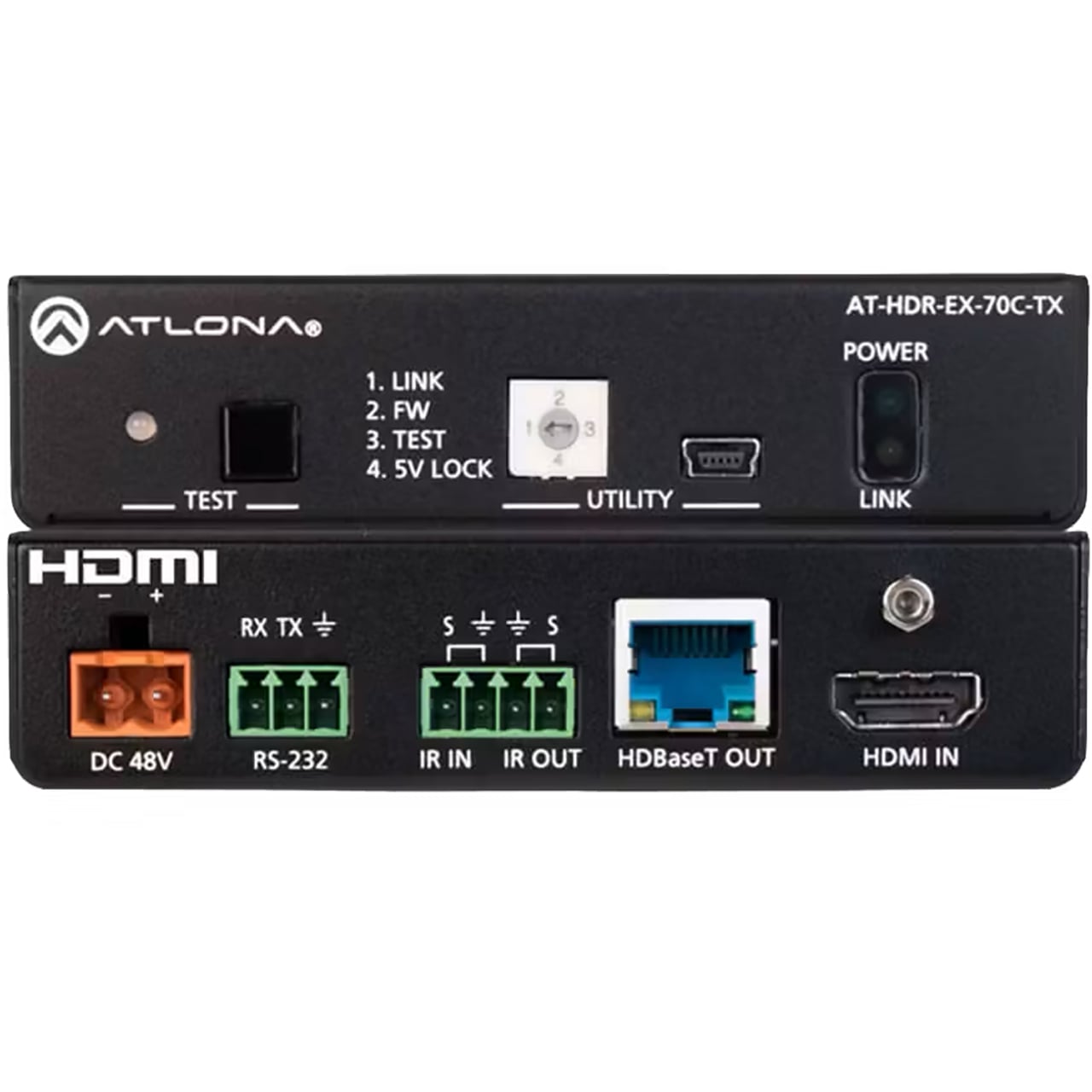

    Connectors
  • HDMI IN: 1x Type A, 19-pin female
  • HDBaseT OUT: 1x RJ45, female
  • FW - Firmware: 1x Micro-A USB
  • PWR: 1x 2-pin 48V captive screw connector
  • RS-232: 1x 3-pin captive screw connector
  • IR: 1x 4-pin captive screw connector

    Power
  • Consumption: 6.07W
  • BTU/h: 20.7
  • Input: 100V - 240V AC, 50/60Hz
  • Supply: 48V DC, 0.83A

    Physical
  • Dimensions (HxWxD): 1.02" x 4.29" x 5.00"
  • Power Supply (AT-PS-48083-C): 1.42" x 1.81" x 4.41"
  • Weight: 0.85lbs
  • Temperature:
    - Operating: 32°F - 122°F
    - Storage: -4°F - 140°F
  • Humidity (RH): 20% - 90%, non-condensing

    Certification
  • Device: CE, FCC
  • Power Supply: CE, FCC, cULus, RoHS, CCC, RCM

    Compliance
  • NDAA-899: Yes
  • TAA: Yes


• Item Includes:

  • 1x AT-HDR-EX-70C-TX
  • 2x Mounting brackets
  • 4x Mounting screws
  • 1x 48V DC power supply
  • 1x 2-pin captive screw connector
  • 1x 3-pin captive screw connector
  • 1x 4-pin captive screw connector


• GTIN:

  0084635200575
