Attero Tech UNDAES-O 2/4 Channel Dante to AES3 Bridge - PoE or 24VDC

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

    Attero Tech UNDAES-O 2/4 Channel Dante to AES3 Bridge - PoE or 24VDC

    Manufacturer: Attero Tech, LLC

    Item #: ATEC-UNDAES-O   •   MFG #: UNDAES-O



    List Price:$749.00
    Our Price:$599.00

    free ship


    Availability: Usually ships in 3-10 business days
    i
    This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.




      Share!

      California Residents:
      8pt-triangleWARNING:
      Cancer and Reproductive Harm - www.P65Warnings.ca.gov

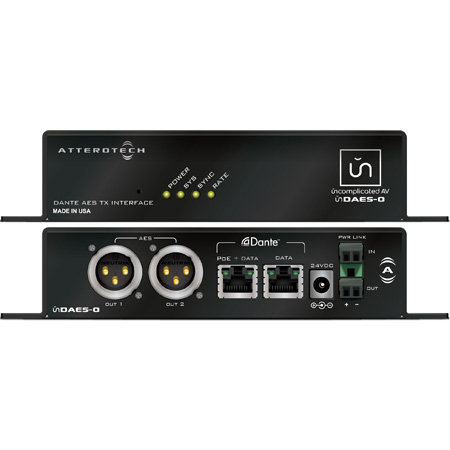

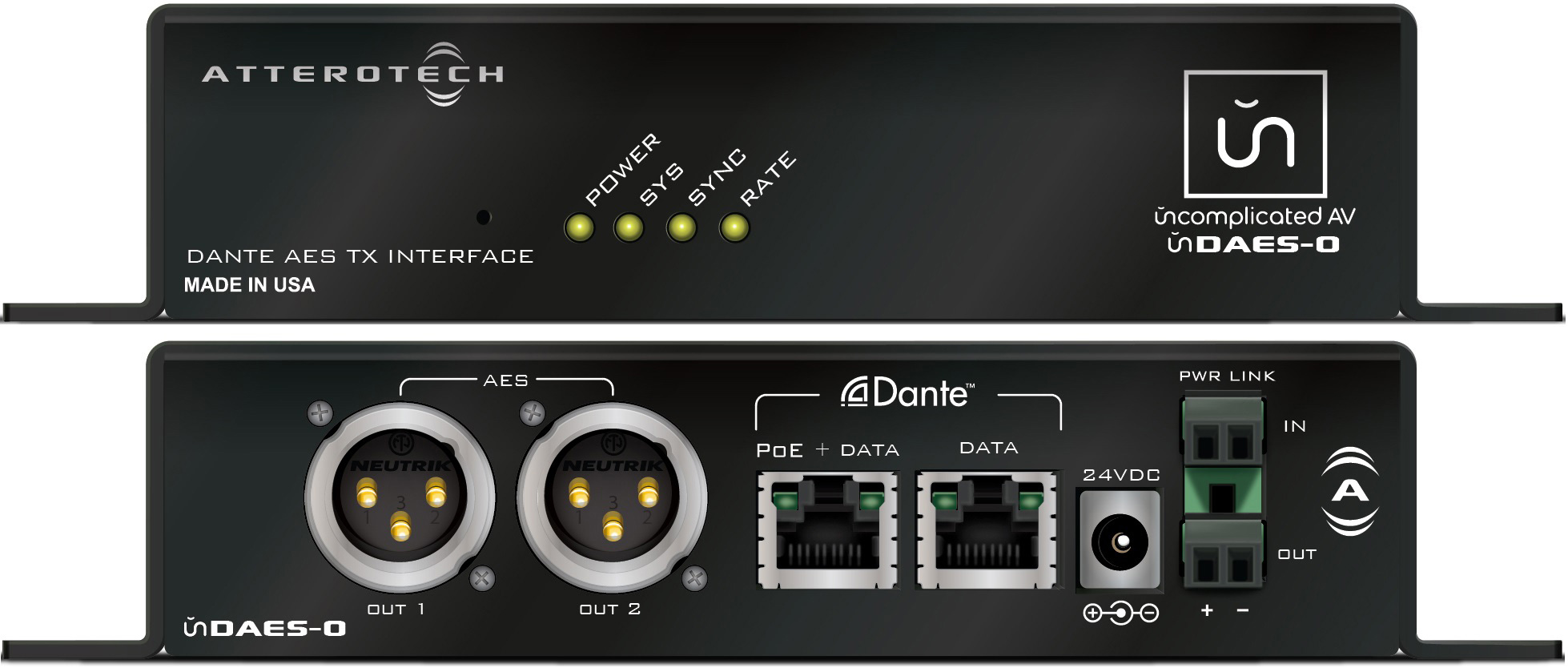

      The Attero Tech unDAES-O is a small, cost-effective interface that bridges a Dante™ network directly to AES3 digital audio outputs, keeping the audio signals in the digital domain. The unDAES-O supports four AES3 output channels at a 44.1/48/88.2/96kHz sampling rate. The unDAES-O has two network connections to allow Dante™ Daisy Chaining. Dante™ Daisy Chaining further simplifies system infrastructure wiring by allowing multiple unDAES-Os to use a single CAT-5 home run connection to a network switch. Power can also be daisy chained. The unDAES-O is powered by either external +24VDC, and PoE network switch, or from the Power Link Output connector of other Attero Tech devices that support Power Link.


      • Features

        • 2 balanced XLR AES3 outputs supporting four AES3 output channels @ 44.1kHz/48kHz/88.2kHz/96kHz
        • Daisy chaining for both audio data and power
        • Powered by either IEEE 802.3af PoE, +24VDC from an external supply, or through Power Link
        • Front panel power and system status indicators
        • Supports Dante and AES67

      • Specifications

        • AES3: (IEC 60958)
        • Connector(s): Two (2) 3-Pin XLR Male
        • AES3 Status Format: Professional

          Audio Performance
        • Audio Channels Four Dante network audio channels to AES3 digital Outputs
        • Sample Rates 44.1kHz, 48 kHz, 88.2kHz, 96kHz
        • Bit Depth: 24-bit
        • THD: < 0.001%

          Dante Network
        • Physical Level: Ethernet
        • Connector: Single RJ-45
        • Cable Quality: CAT-5e or better
        • Transmission Speed: 1Gbps
        • Power Requirements: Class 0 802.3af PoE PD compliant
        • Power Consumption: < 3 W

          Weights & Dimensions
        • Dimensions: 6.45" W x 1.06" H x 3.45" D
        • Weight: 0.74 lbs

          Compliance
        • FCC Part 15 Class A, CE (EN 55022 Class A)

      • Warranty

        • 5 Year
