ATEN CL5708N 8-Port Slideaway 19-Inch Single Rail LCD KVM Console

ITEM #: ATEN-CL5708N MFG #: CL5708N

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$1,692.00

Our Price:

$1,369.42

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


CL5708N - Overview

The ATEN CL5708N LCD KVM Switch is a control unit that allows access to multiple computers from a single PS/2 or USB KVM (keyboard, video, and mouse) console. A single CL5708N can control up to 8 computers. As many as 31 additional KVM switches can be daisy-chained to the CL5708, so that up to 256 computers can all be controlled from a single KVM console.

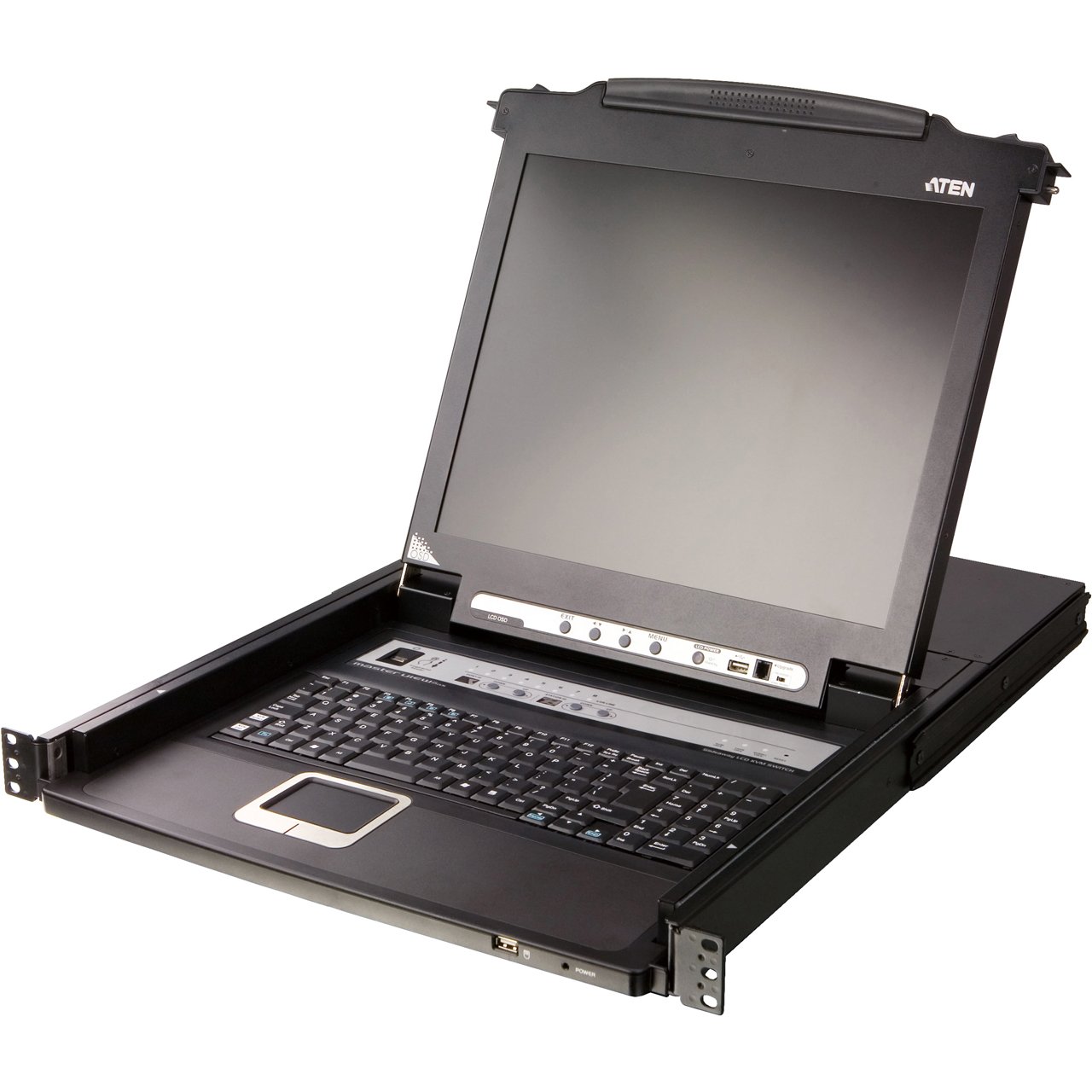

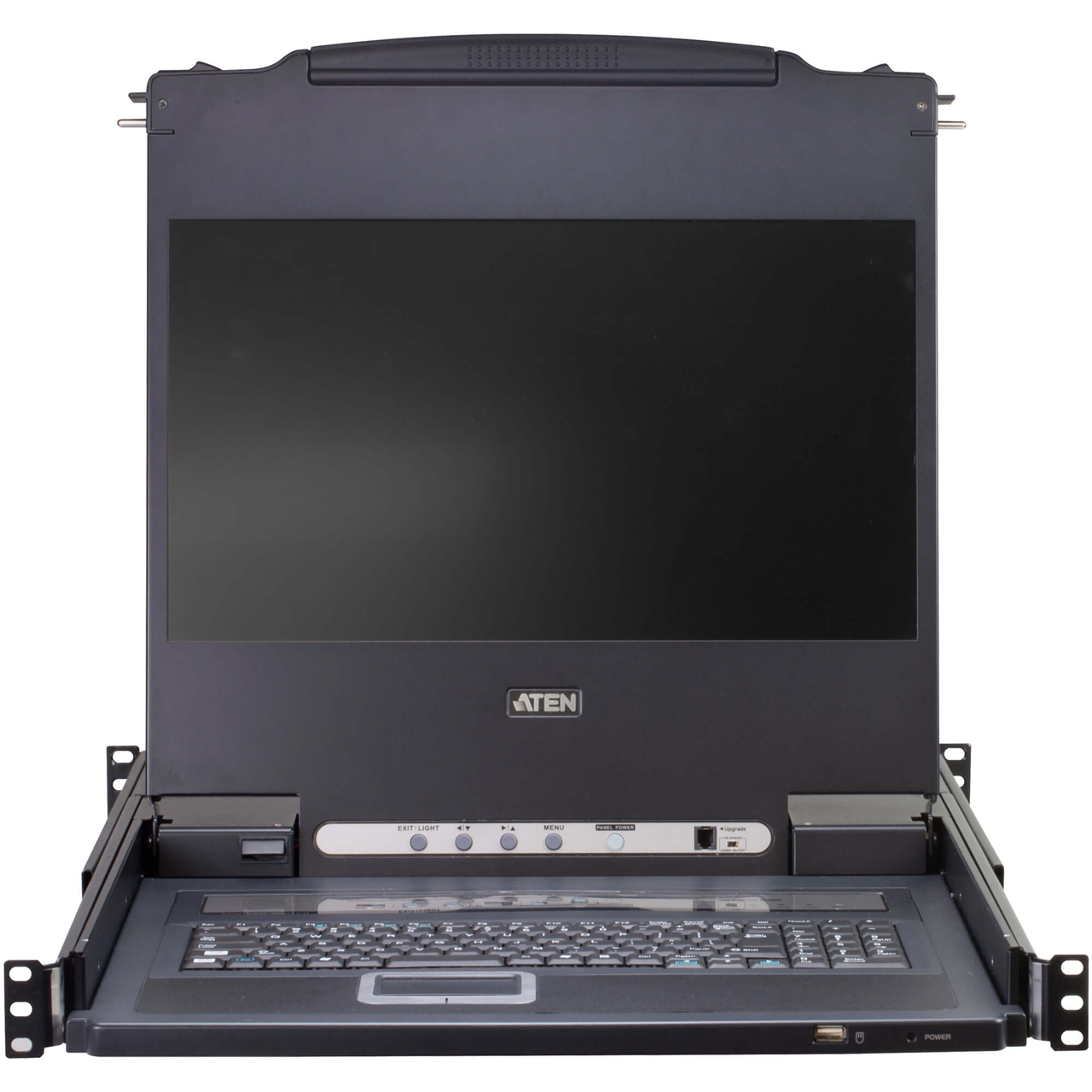

The CL5708N offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, 19" LED-backlit LCD monitor, and touchpad in a 1U rack-mountable sliding housing. The 19" LCD monitor offers Full HD superior video quality for enhanced visibility and clarity. To enhance security, the CL5708N offers the option to use a fingerprint identification system for controlling access to both the CL5708N itself and the servers it commands.

The CL5708N is built on a modular design. The KVM section can be detached from the switch section for convenient maintenance and repair.

  • Features:

    • Exclusive LED illumination light
    • Integrated KVM console with 19" LED-backlit LCD monitor in a slideaway housing
    • Control up to 8
    • Daisy-chain up to 31 additional units
    • Supports computers and console with PS/2 or USB keyboards and mice
    • LCD module rotates up to 120° for a more comfortable viewing angle
    • Multiplatform support
    • Supports multimedia USB devices
    • Auto PS/2 and USB interface detection
    • Keyboard and mouse emulation (PS/2 and USB) for smooth switching
    • Additional hot-pluggable USB mouse port on front panel (also functions as a USB peripheral port)
    • Supports resolutions of up to 1280x1024 @ 75Hz
    • No software required
    • Auto-senses station's position on daisy-chained installations
    • Port names automatically reconfigured when station sequence is changed
    • Two level password security
    • Supports one administrator and four user accounts with separate profiles
    • Auto Scan mode enables continuous monitoring of user-selected computers
    • Hot pluggable
    • Beeper on/off via hotkey and OSD
    • Firmware upgrades to all the chained KVM switches at the same time via the daisy-chain cable
    • Optional rack mount kits available including easy installation options

  • Specifications:

      Computer Connections
    • Direct: 8
    • Maximum: 256 (via Daisy-chain)
    • Port Selection:
      - OSD
      - Hotkey
      - Pushbutton

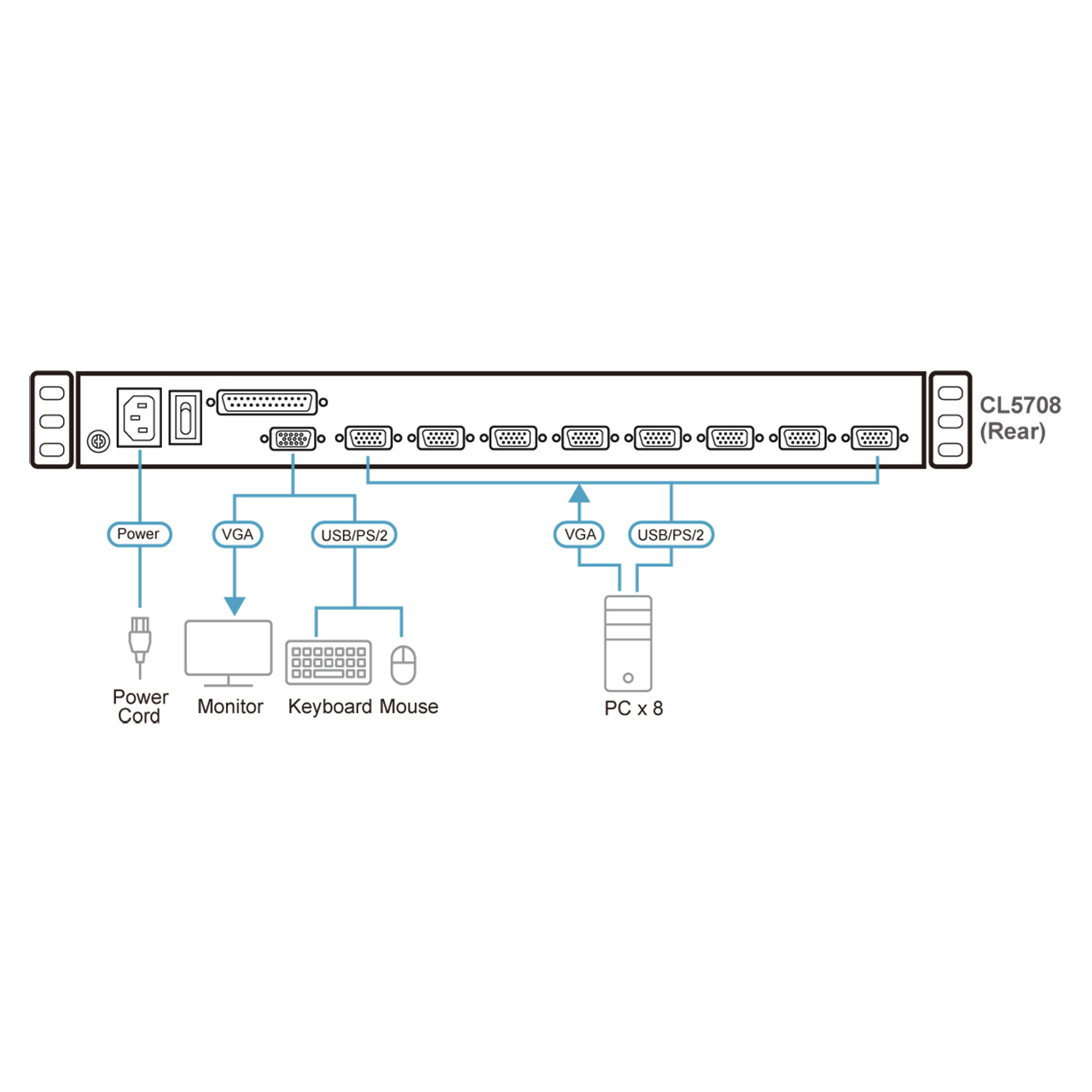

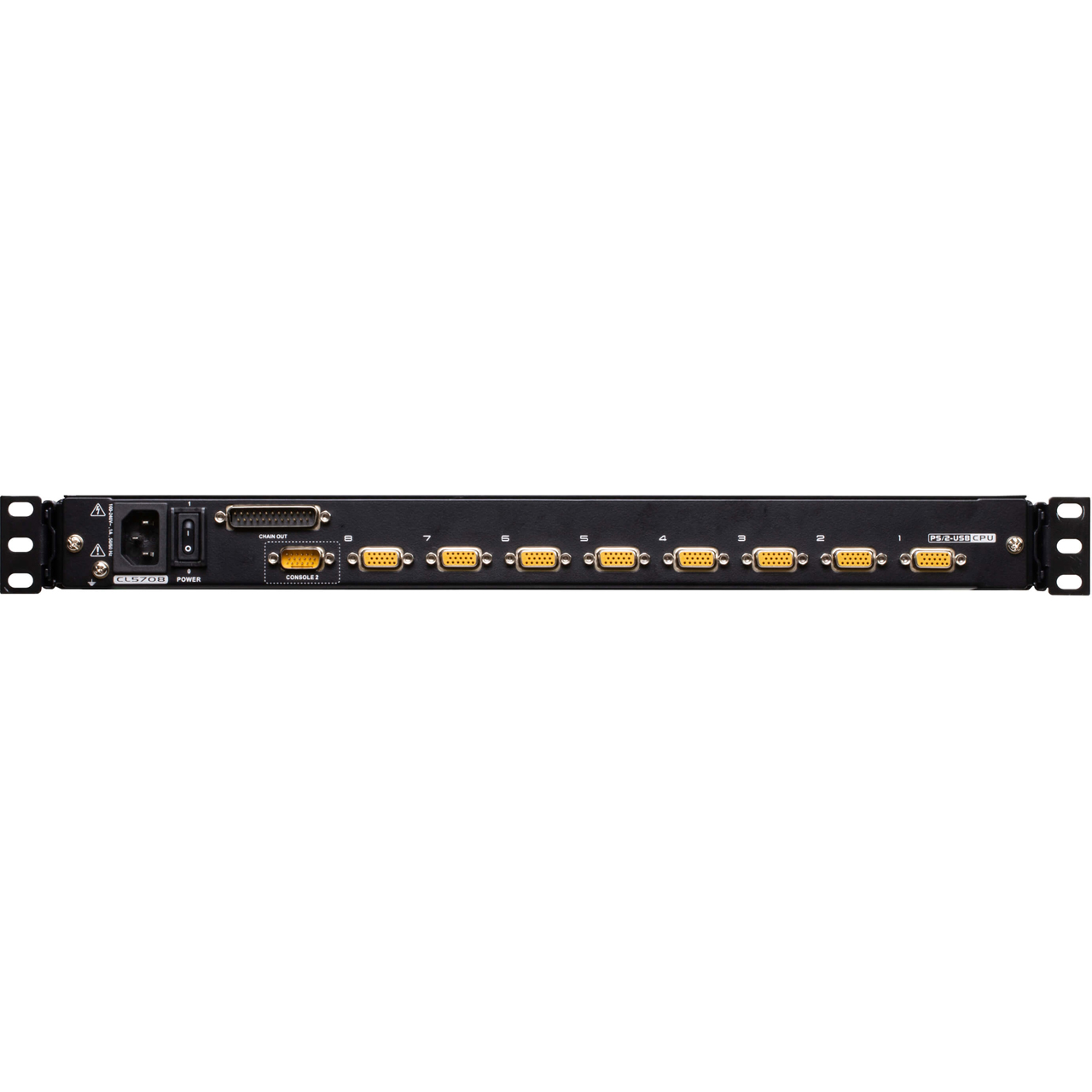

      Connectors
    • KVM Ports: 8x SPHD Female (Yellow)
    • Daisy Chain Ports: 1x DB-25 Male
    • Firmware Upgrade: 1x RJ-11 Female
    • Power: 1x IEC 60320/C14
    • External Console Ports: 1x SPHD Male (Yellow)
    • External Mouse Port: 1x USB Type A Female (Front)
    • USB Port: 1x USB Type A Female

      Switches
    • Port Selection: 2x Pushbutton
    • Station Selection: 2x Pushbutton
    • Reset: 1x Semi-recessed Pushbutton
    • Firmware Upgrade: 1x Slide Switch
    • Power: 1x Rocker Switch
    • LCD Control: 4x Pushbutton
    • LCD Power: 1x LED Pushbutton

      LEDs
    • Online: 8 (Orange)
    • Port ID: 2x 7-segment LED Display (Orange)
    • Station ID: 2x 7-segment LED Display (Orange)
    • Power: 1 (Dark Green)
    • Lock:
      - 1x Num Lock (Green)
      - 1x Caps Lock (Green)
      - 1x Scroll Lock (Green)
    • LED Illumination Light: 1x LED Illumination Light

      Panel Spec
    • LCD Module: 19" TFT-LCD
    • Resolution: 1280x1024 @ 75Hz
    • Response Time: 5ms
    • Viewing Angle:
      - 170° (H)
      - 160° (V)
    • Pixel Pitch: 0.294mm x 0.294mm
    • Support Color: 16.77M colors
    • Contrast Ratio: 1000:1
    • Luminance: 250 cd/m2
    • Input Video Resolution:
      - Up to 1920x1200 @ 60Hz
      - 1280x1024 @ 75 Hz, DDC2B
    • Scan Interval: 1-255 seconds
    • Keyboard/Mouse: PS/2, USB
    • Maximum Input Power Rating: 100V - 240V AC, 50/60Hz, 1A
    • Power Consumption:
      - AC110V:26.1W:135BTU/h
      - AC220V:27.2W:140BTU/h
    • The measurement in Watts indicates the typical power consumption of the device with no external loading.
    • The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

      Physical Properties
    • Dimensions: 18.9" x 27.13" x 1.73" (48cm x 68.92cm x 4.40cm)
    • Weight: 29.49lbs (13.39kg)
    • Rail Type: Single Rail
    • Housing: Metal + Plastic

  • Item Includes:

    • 1x CL5708 LCD KVM Switch with standard Rack Mount Kit
    • 2x Custom KVM Cable
    • 1x Custom Console Cable
    • 1x Firmware Upgrade Cable
    • 1x Power Cord
    • 1x User Instructions

  • Warranty:

    • 1 Year Limited Warranty
