ATEN CS1184DP 4-Port USB DisplayPort Secure KVM Switch (PSS PP v3.0 Compliant) - TAA Compliant

ITEM #: ATEN-CS1184DP MFG #: CS1184DP

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$495.85

Our Price:

$446.26

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    CS1184DP - Overview

    ATEN PSS PP v3.0 Secure KVM Switch (CS1184DP) is specifically designed to meet the stringent security requirement of secure defense and intelligence installations. ATEN PSS PP v3.0 Secure KVM Switch (CS1184DP) is compliant with PSS PP v3.0 (Protection Profile for Peripheral Sharing Switch, Version 3.0) standard certified by the National Information Assurance Partnership (NIAP).

    ATEN PSS PP v3.0 Secure KVM Switch (CS1184DP) provides isolation between computer sources and peripherals while sharing a single keyboard, mouse, monitor, speaker set, and Common Access Card (CAC) reader between connected computers of various security classifications. Compliance with PSS PP v3.0 ensures peripheral sharing capabilities provide maximum user data security when switching port focus, preventing unauthorized data flows or leakage between connected sources. Key protections include isolation and unidirectional data flow, restricted peripheral connectivity and filtering, user data protection, configurable device filtering and management, and always-on tamper-proof design, keeping sensitive assets isolated and providing advanced security and a user friendly design for instantly secure deployment.

    With multi-layered security, ATEN PSS PP v3.0 Secure KVM Switch (CS1184DP) ensures high-level desktop security and data safekeeping for applications such as government agencies, finance, and other organizations that often handle sensitive or confidential data on separate networks

    • Features:

      • Compliant with PSS PP v3.0 (Protection Profile for Peripheral Sharing Switch, Version 3.0) security requirements
      • Always-on Chassis Intrusion Detection - renders the ATEN PSS PP v3.0 Secure KVM Switches inoperable when physical tampering is detected
      • Configurable Device Filtering - USB CAC Port can be configured to allow/reject whitelisted / blacklisted devices via Admin logon function or Windows-based application
      • Superior video quality - up to 4K (3840 x 2160 @ 30 Hz)
      • TAA Compliant

    • Specifications:

      • Connectors: 2 x USB Type-A Female (Black), 1 x 6-pin Mini-DIN Female (Purple), 1 x 6-pin Mini-DIN Female (Green), 1 x HDMI Female (Black), 1 x Mini Stereo Jack Female (Green; front panel).

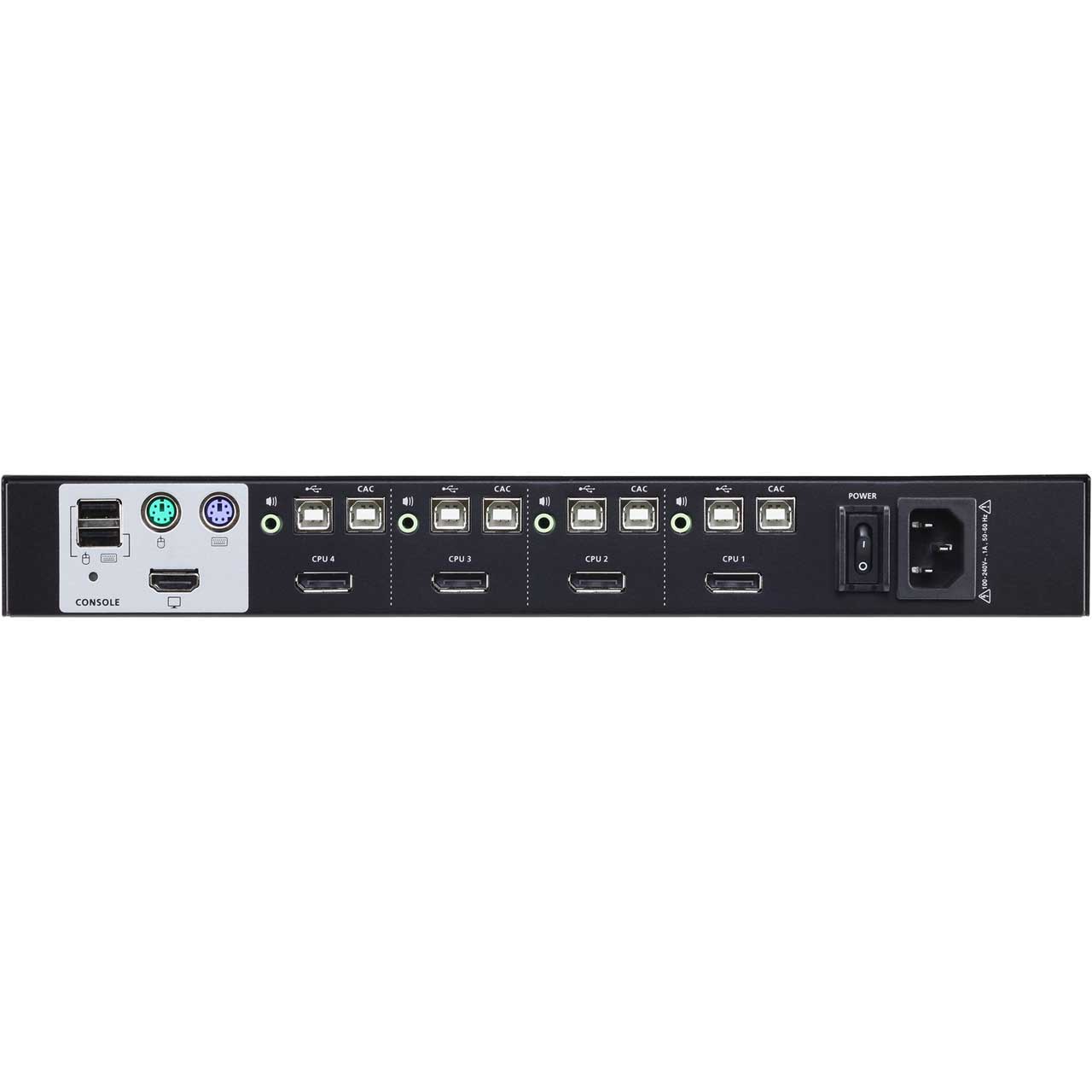

      • KVM Ports: 8 x USB Type-B Female (White), 4 x DisplayPort Female (Black), 4 x Mini Stereo Jack Female (Green).
      • Power: 1 x 3-prong AC Socket.
      • USB CAC Port: 1 x USB Type-A Female (White; front panel).
      • Port Selection: 4 x Pushbuttons
      • Reset: 1 x Semi-recessed Pushbutton
      • Power: 1 x Rocker
      • LEDS: Power (Blue), Online / Selected (KVM Port) 4 (Orange), Online / Selected (CAC Port) 4 (Green), Video1 (Green), Key Lock 3 (Green).
      • Keyboard / Mouse: USB
      • Maximum Input Power Rating 100-240V~; 50-60 Hz; 1A.
      • Power Consumption: AC110V:5W:44BTU, AC220V:4.7W:42BTU.
      • Dimensions: (L x W x H) 13.19 x 6.47 x 1.73 in.
      • Weight: 3.99 lbs.

    • Item Includes:

      • 1x CS1184DP 4-Port USB DisplayPort Secure KVM Switch
      • 1x Power Cord
      • 1x User Instructions
