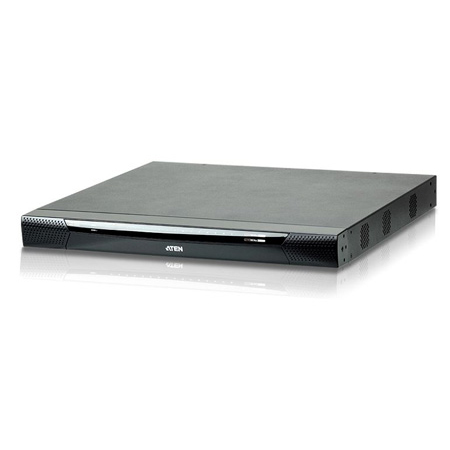

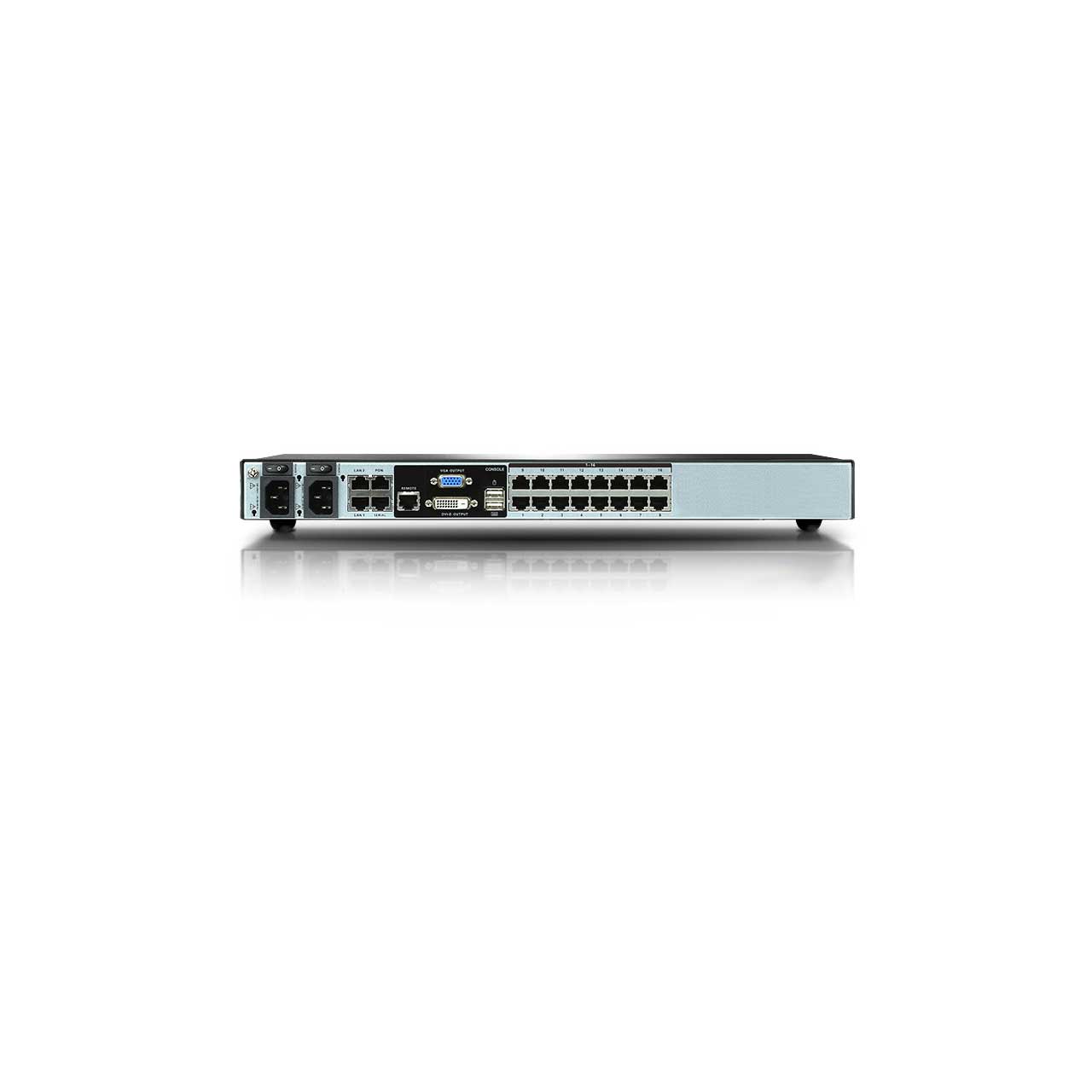

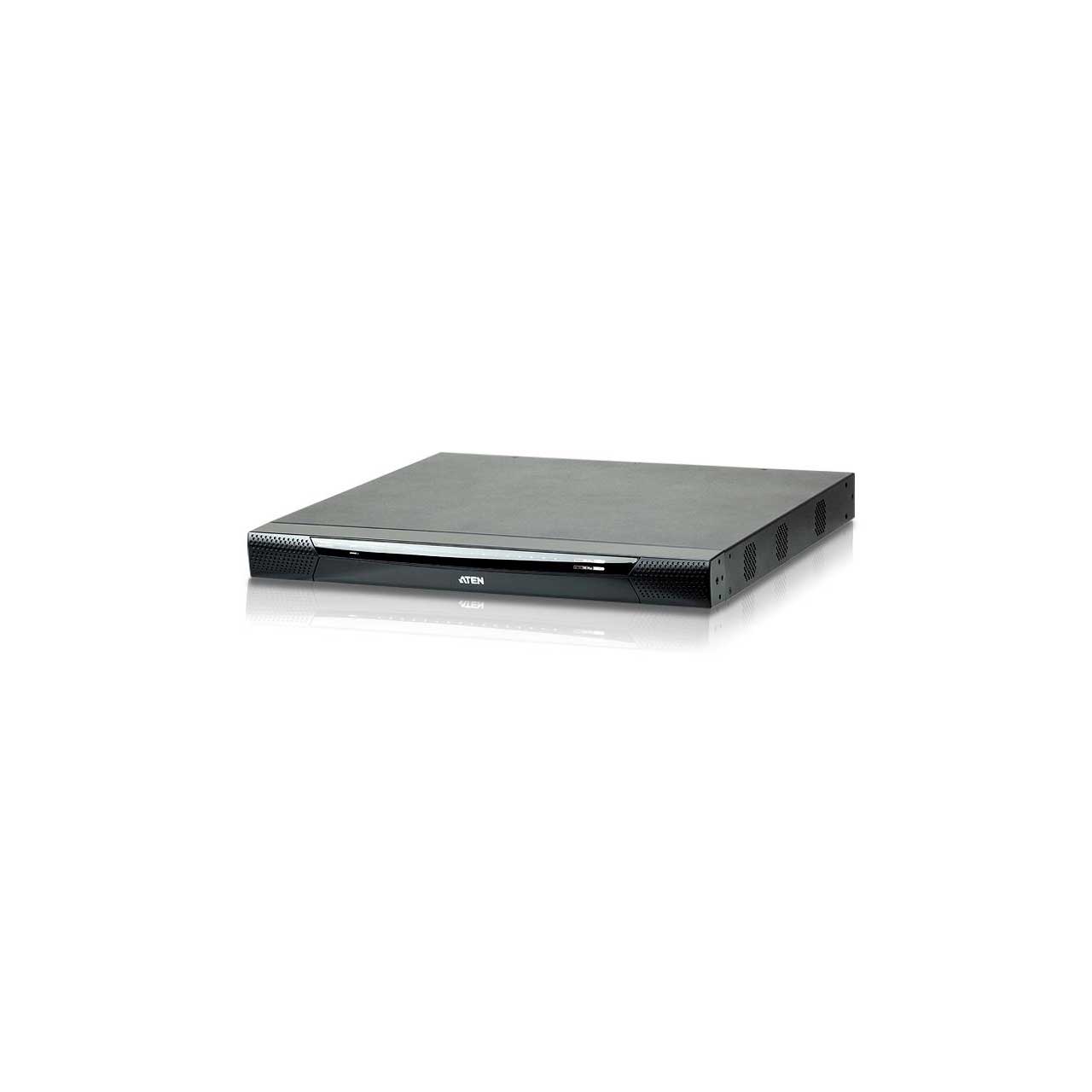

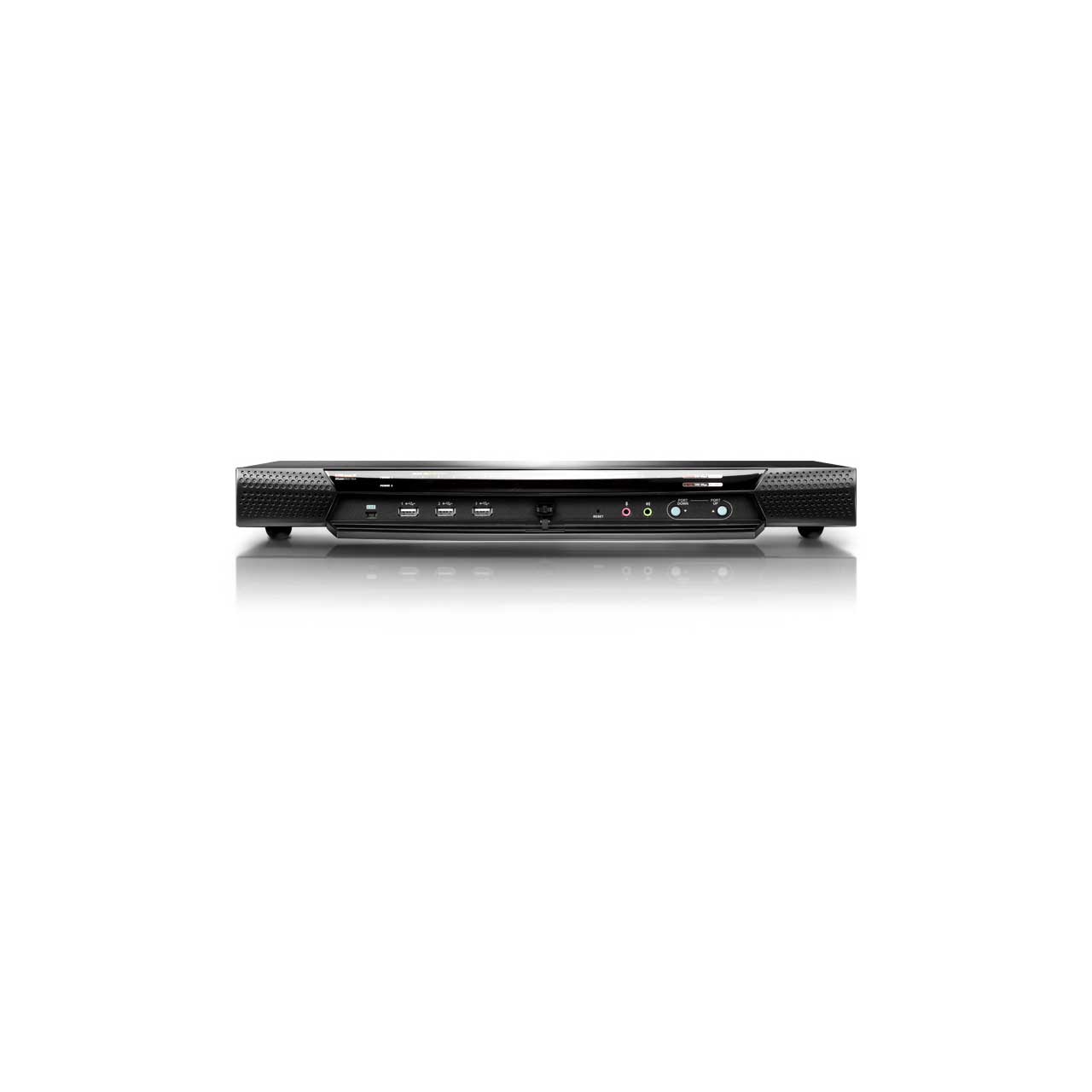

ATEN KN2116VA 2 Remote & 1 Local Simultaneous Users - 16 Port Cat5E HD IP KVM with Virtual Media and Dual Power Supply

Manufacturer: ATEN

Item #: ATEN-KN2116VA   •   MFG #: KN2116VA



List Price:$4,200.00
Our Price:$3,598.50

free ship


Availability: Usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.




    Share!





    ATEN's 4th generation of KVM over IP switches exceed expectations. The KN2116VA features superior video quality (HD resolution of 1920 x 1200), FIPS 140-2 with level 1 security standards and virtual media transmissions at twice the speed. The KN series provides local console and remote over IP access for users to monitor and access their entire data center over a network. In addition, it offers out-of-band access with external modem support for BIOSlevel troubleshooting when the network is down.

    New KN Series Exclusive:
    High grade security – supports FIPS 140-2 level 1 security standards
    Extreme virtual media speed – 2 x faster virtual media transmission speed
    Advanced FPGA graphics processor – with an HD resolutions of 1920 x 1200

    With dual on-board NICs and dual power supplies, the KN series are built for reliability, to ensure 24/7 availability of remote access to all servers.

    KN series devices can be integrated into the CC2000 Management Software. The CC2000 puts administrators in complete control of remote data centers and branch offices no matter where they are in the world – allowing IT administrators to remotely monitor and control all devices on a network, including blade servers and virtual machines.

    To help you manage and control an entire data center, ATEN KVM over IP switches support blade servers and chassis. With powerful features such as Power Association – KVM ports can be associated with ATEN PDU power outlets for power management of servers from the KVM over IP switches' user interface.

    Additional exclusive features of ATEN KVM over IP switches include: a Message Board, Panel Array Mode, Mouse DynaSync and the Adapter ID.

    ATEN KVM over IP switches save you time and money by allowing administrators to manage their data centers from practically anywhere – minimizing travel and MTTR (Mean Time to Repair) costs, ensuring the highest availability for data center services possible.


    • Features

      • High grade security – supports FIPS 140-2 level 1 security standards
      • Extreme virtual media speed – 2 x faster virtual media transmission speed
      • High port density – RJ-45 connectors and Cat 5e/6 cable for up to16 ports in a 1U housing
      • Laptop USB Console (LUC) – A dedicated USB port directly connects to a laptop for easy Console operation
      • Up to 64 user accounts – up to 32 users simultaneously share the control
      • Out-of-Band Access-Modem dial-in/dial out/dial back support
      • Adapter ID Function: Stores port information allowing administrators to relocate the servers to different ports, without having to re-configure the adapters and switches
      • ATEN Exclusive Panel Array Mode simultaneously monitoring for both local console operators and remote access users
      • Local Console, browser-based, and AP GUIs offer a unified Multilanguage interface to minimize the user training time and increase productivity
      • Remote authentication support: RADIUS, LDAP, LDAPS, and MS Active Directory
      • Supports SSL 128-bit data encryption and RSA 2048-bit certificates to secure users log in from browser
      • Virtual media enables file applications, OS patching, software installation and diagnostic testing
      • Works with USB enabled servers in operating system and BIOS level
      • Video quality can be adjusted to optimize data transfer speed; monochrome color depth setting, threshold and noise settings for compression of the data bandwidth in low bandwidth situations
      • Full screen video display or scalable video display

    • Specifications

      • Computer Connections
      • Maximum: 256 (via Cascade KVM Switches)
      • Direct: 16
        Console Connections
      • Remote: 2
      • Local: 1
        Port Selection: Pushbuttons, Hotkeys, GUI
        Connectors
      • Console Ports: 2 x USB Female (Black) / 1 x DVI-D Female (White) / 1 x VGA HDB-15 (Blue) / 1 x RJ-45 Female (Black)
      • KVM Ports: 16 x RJ-45 Female (Black)
      • USB Port: 3 x USB Female (Black)
      • Audio: 2 x Audio Jack Female (Pink; Green)
      • Laptop USB Console (LUC) Port: 1 x Mini-USB Female (Black)
      • PON: 1 x RJ-45 Female (Black)
      • Serial: 1 x RJ-45 Female (Black)
      • LAN Ports: 2 x RJ-45 Female (Black)
      • Power: 2 x IEC 60320/C14
        Switches
      • Power: 2 x Rocker Switches
      • Port Selection: 2 x Pushbuttons
      • Reset: 1 x Semi-recessed Pushbutton
        LEDs
      • Online / Selected: 16 (Green/Orange)
      • Power: 2 (Blue)
      • Link 10 / 100 / 1000 Mbps: 2 (Red/Orange/Green)
        Emulation
      • Keyboard / Mouse: PS/2; USB
        Video
      • Local: 1920 x 1200 @ 60Hz
      • Remote: 1920 x 1200 @ 60Hz
        Maximum Input Power Rating: 100–240V~ ; 50-60Hz; 1A
        Power Consumption
      • Single Power: 110V/34.54W; 220V/34.76W
      • Dual Power: 110V/17.67W; 220V/17.93W (per input)
        Scan Interval: 1 – 255 Sec
        Environmental
      • Operating Temperature: 0 - 40°C
      • Storage Temperature: -20 - 60°C
      • Humidity: 0 - 80% RH, Non-condensing
        Physical Properties
      • Housing: Metal
      • Weight: 12.25 lb
      • Dimensions (L x W x H): 17.07 x 16.22 x 1.73 in.

    • Item Includes

      • 1x KN2116VA KVM over IP Switch
      • 2x SA0142 Serial Adapters (RJ45-F to DB9-M; DTE to DCE)
      • 2x Power Cords
      • 1x Mounting Kit
      • 2x Lok-U-Plugs
      • 1x Lok-U-Plug Installation Tool
      • 1x Foot Pad Set (4 pcs.)
      • 1x User Instructions
