    XD150FX-SM-US - Overview

    Resolutions up to 2560 x 1600 @60Hz at extension distances of up to 4km (2.5miles) with single-mode fiber

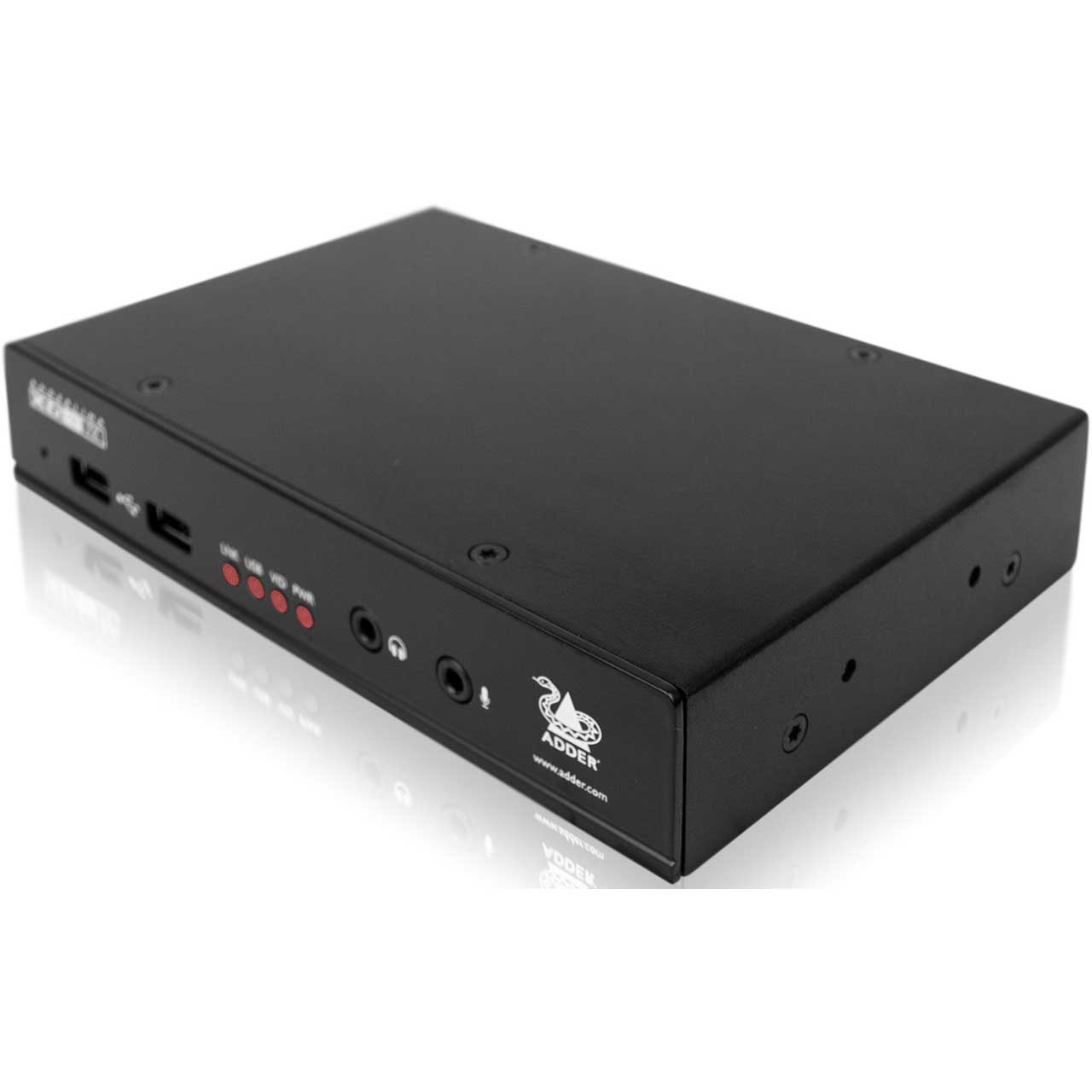

    The ADDERLink XD150FX high-performance KVM (Keyboard, Video, Mouse) TX/RX pair transmits high resolution video, USB 2.0 and audio signals up to 4km (2.5 miles). Your critical computer hardware can be held in a secure, temperature-controlled environment and the XD150FX delivers the same desktop experience through real-time, lossless extension to the user workstation including support for a wide range of USB devices.

    • Features:

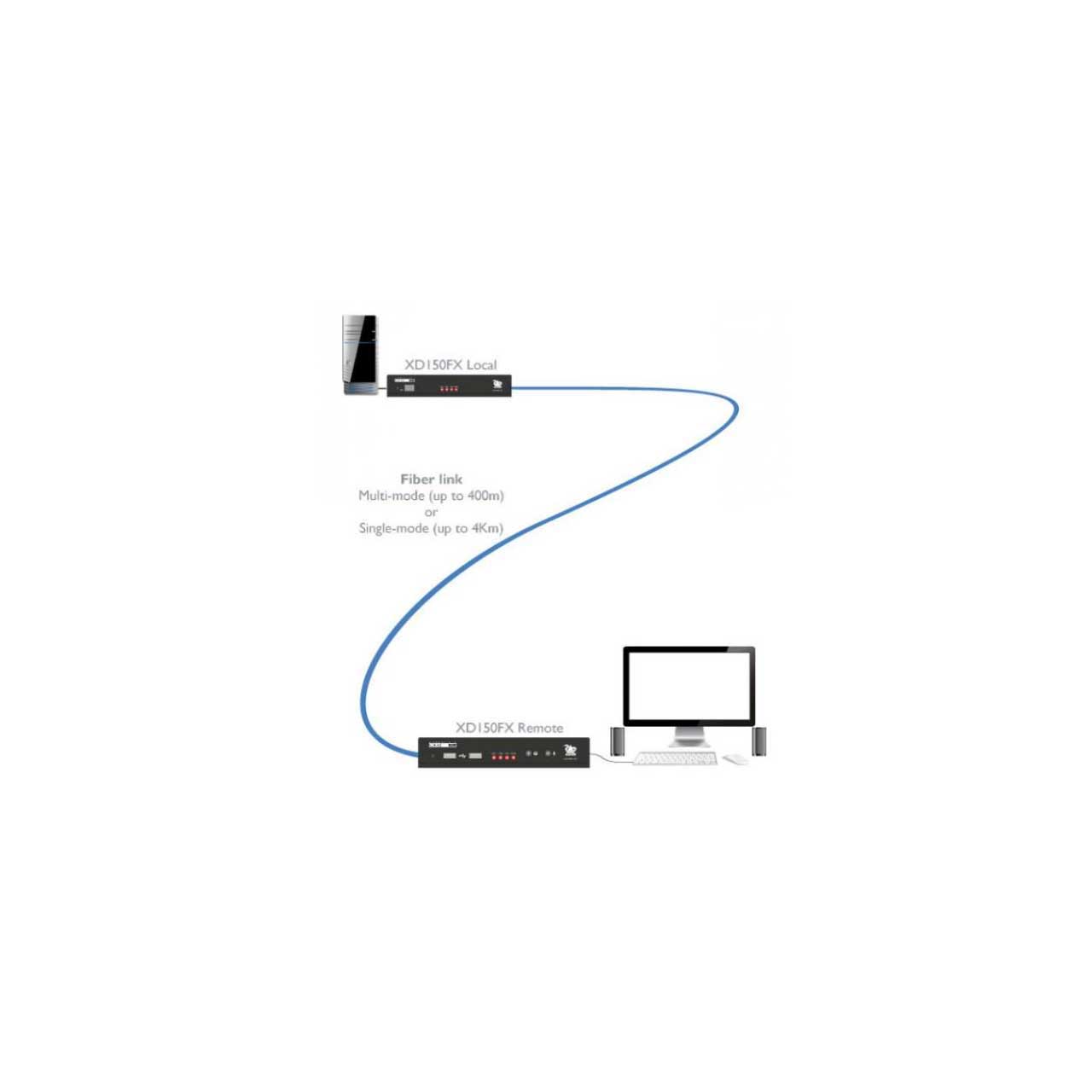

      • Extension Distances: flexible resolution versus extension distance options, with resolutions up to 2560 x 1600 @60Hz at extension distances of up to 150m (500ft) for OM2 multi-mode fiber, increasing to 4km (2.5miles) with single-mode fiber
      • Transparent USB 2.0 (Low, Full, High Speed): for a whole range of USB devices including keyboards, mice, tablets, touch screens and mass storage devices, connected via the built-in 4-port USB hub
      • Bidirectional Analog Audio: line in/out with microphone and headphone support. The unit delivers CD-quality stereo audio (24bit sampling at 96kHz) is available to transfer audio between local and remote
      • RS232 support: with RTS/CTS flow control. RS232 can be passed between the units to a maximum baud rate 115K2 via the options port. Adder's Remote Key Switch (RC4) is also supported
      • Perfect digital video, real time control: uncompressed video extension with every pixel of every frame transferred with zero loss and in real-time

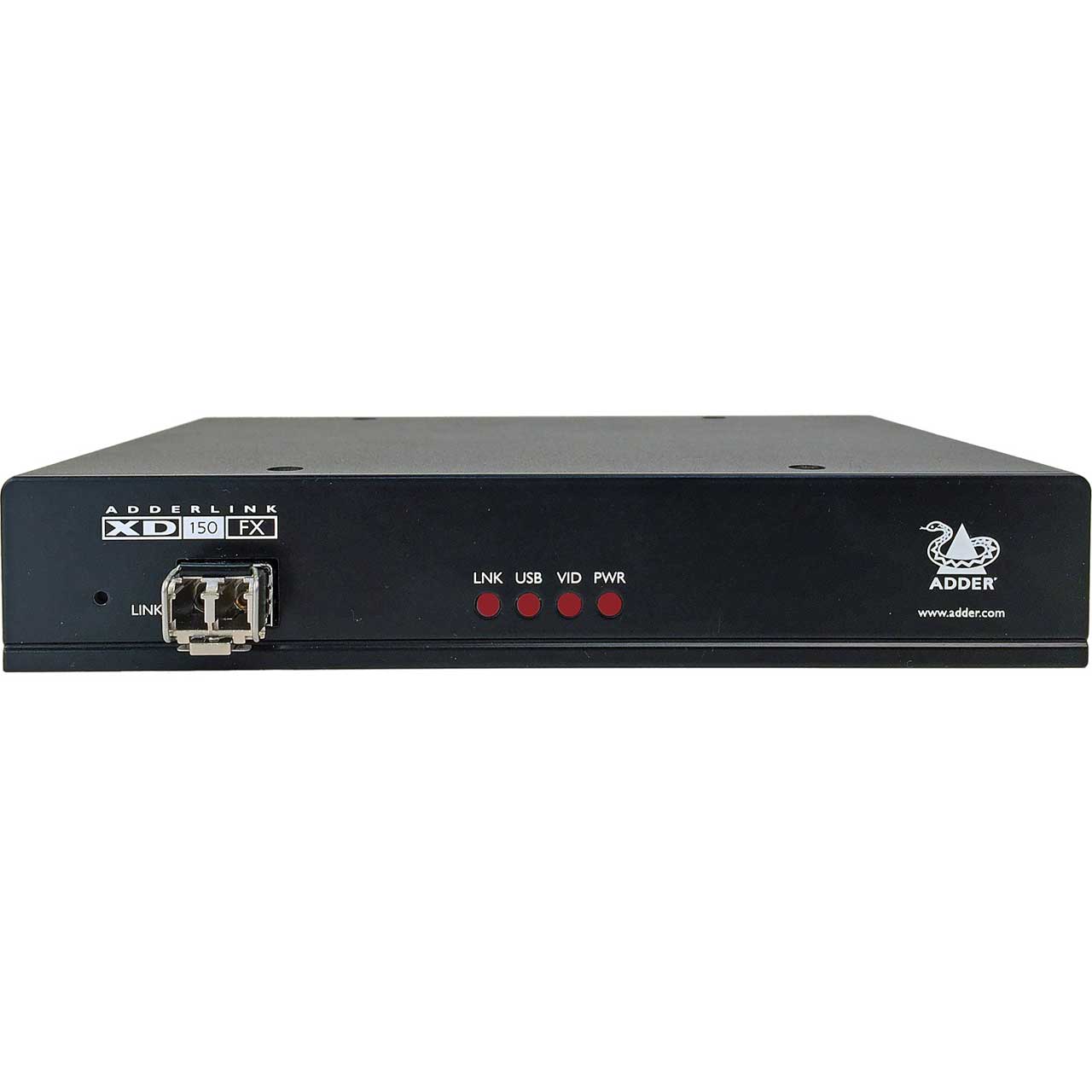

      • Fiber Extension: SFP cages allow for flexible use of fiber types
      • Plug and Play: straightforward installation with no need for extra drivers or software
      • Locking power connectors: locking 3 Pin DC jack with 2 power adaptors included
      • CD quality analog audio: stereo channel 16bit sampled at 44.1kHz is available to transfer stereo audio from local to remote for Line Out
      • Intelligent operation, compatibility and future-proofing: EDID (Extended Display Identification Data) allows the true characteristics of the monitor to be passed back to the computer; KVM switch mode for optimal KVM device compatibility; complete system is flash upgradeable from the computer end.
      • Space-saving rackmount kit: easy-access 19" rack mounting kit with two units per 1U of rack space
      • REST API Support: REST (Representational State Transfer) API with all functionality allowing interaction from authorized 3rd party control systems
      • Web interface control: temperature and status are viewable and each function can be individually controlled. Web interface security is by HTTP digest authentication (RFC 2617) with username and password as requested information
    • Specifications:

      • Hardware compatibility
      • All computers with DVI, USB and audio.

      • DVI Interface
      • The system supports resolutions to a maximum of 2560x1600@60Hz.

      • USB 2.0
      • Supports USB2.0 devices (low, full and high speed). Isochronous devices are supported.

      • Software compatibility
      • All known operating systems.

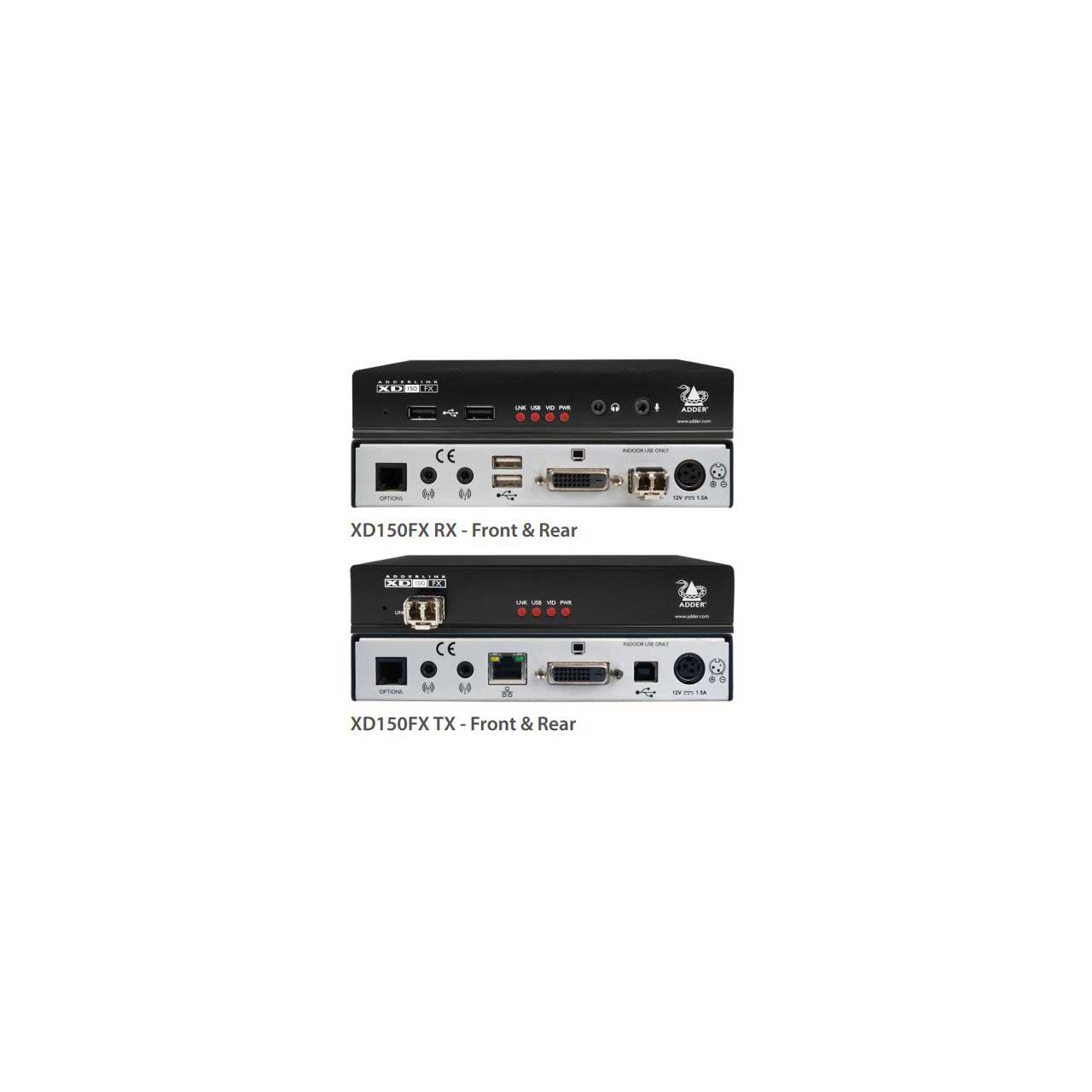

      • Connections

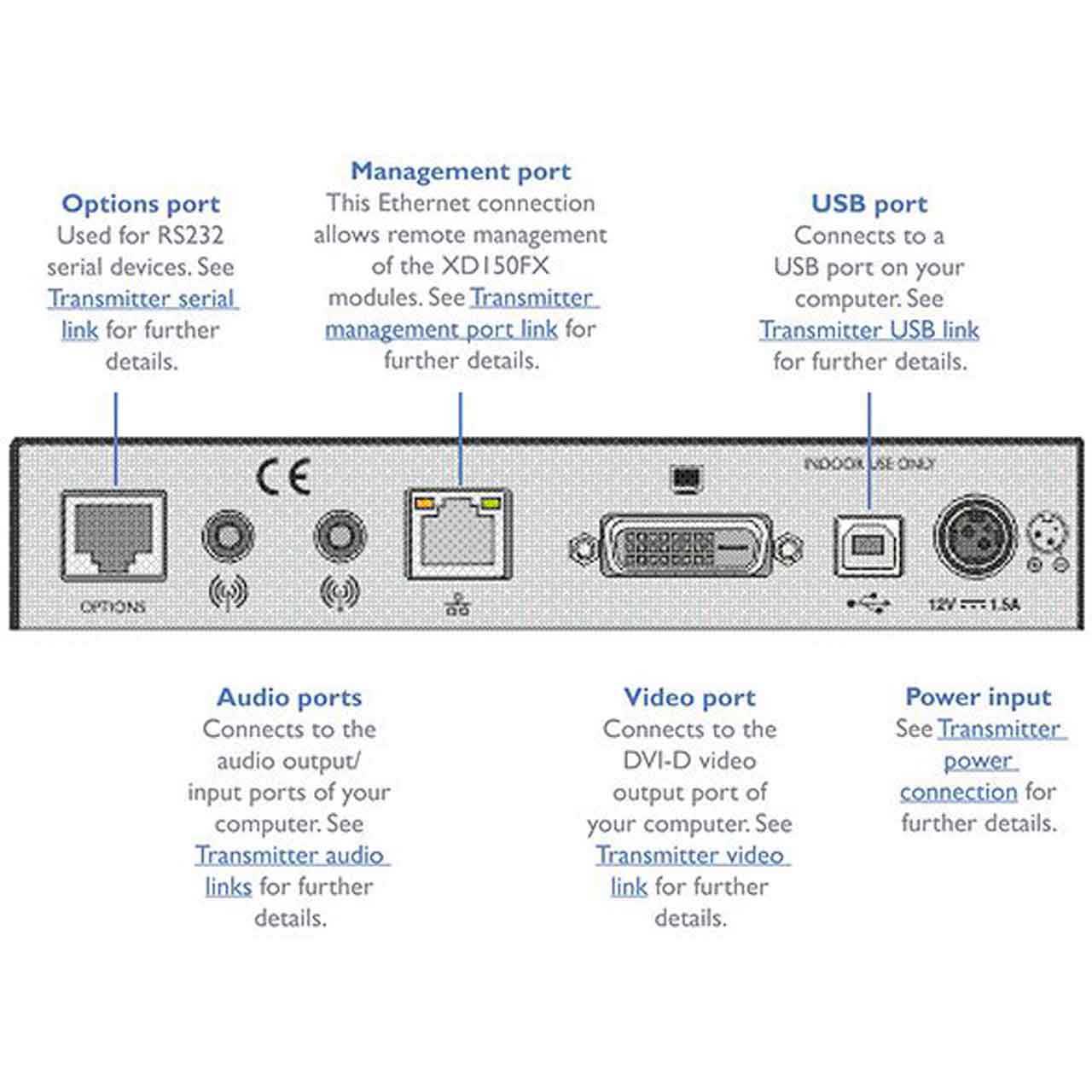

      • Transmitter (TX)
      • DVI, Audio 3.5mm x 2, USB type-B, Options port (6p6c), Ethernet port (8p8c), Peripheral connections.
      • Receiver (RX)
      • DVI, Audio 3.5mm (line in and out), Audio 3.5mm (mic in and headphones), USB type-A x 4, Options port (6p6c)

      • Physical design
      • Case: Compact
      • Material: Robust Metal Construction
      • Dimensions: 6.65 x 1.22 x 4.8" (169 x 31 x 120mm)
      • Weight: 0.6kg/1.3lbs

      • Power
      • 3 Pin Locking DC jack (2 x power adapter included),100-240VAC 50/60Hz
      • 0.7A, input to power adapter
      • 12VDC 18W output from power adapter

      • Operating temperature
      • 0° to 40°C / 32° to 104°F

      • Approvals
      • CE, FCC

      • Mean Time Between Failure (MTBF)
      • 400,000 hours, calculated to Telecordia Standard SR-332 issue 4 March 2016 @55°C/ 131°F
    • Item Includes:

      • 1x XD150FX Local TX and Remote RX pair with PSUs
      • 2x SFP modules x2
      • 2x 3m/6.5ft Audio cable
      • 1x 1.8m/5.9ft DVI-D dual link cable
      • 1x Quick start guide
    • Warranty:

      • 2 Year Limited
    • GTIN:
