    ALIF4001T-US - Overview

    Fully compatible with the existing ADDERLink INFINITY (ALIF) range

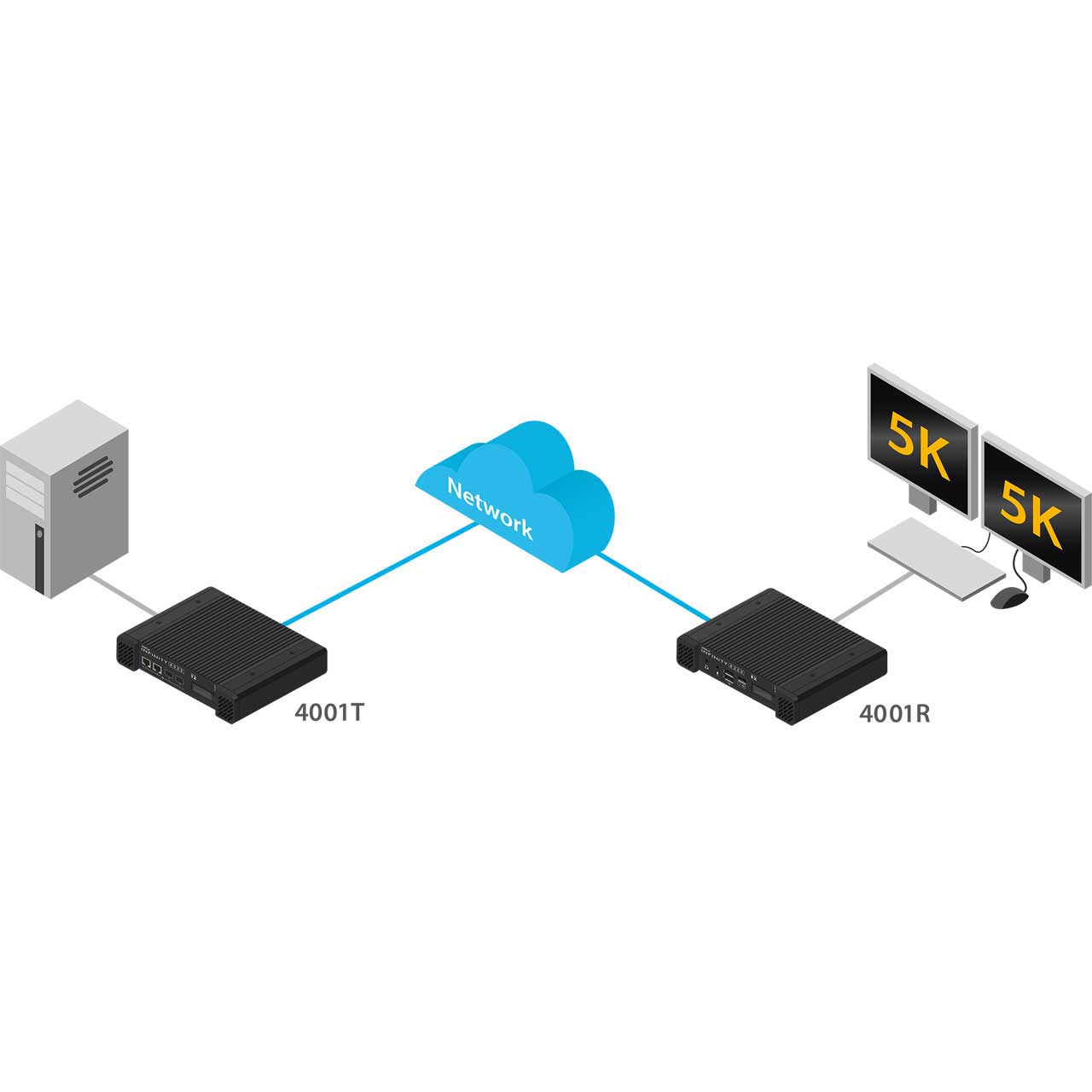

    The ADDERLink INFINITY 4000 Series ALIF4001T transmitter is the world's first dual-head, 5K high performance IP KVM matrix over a single fiber. Fully compatible with the existing ADDERLink INFINITY (ALIF) range, and supported by the ADDERLink INFINITY Manager (AIM), the ALIF4001 can be used as a point-to-point extender or easily integrated into a wider matrix system.

    Dual-head 5K screens over a single link
    The ADDERLink INFINITY 4001 (ALIF4001) can deliver two 5K screens over a single link.

    10-bit per color and HDR10
    Allows greater color depth, supports both SDR10 and HDR10.

    Multigigabit Ethernet support
    Multirate (1/2.5/5/10) GbE support enables premium video performance over standard CAT6 cable up to 100m.

    Enhanced resiliency
    Dual-multirate ports can be teamed together for enhanced resiliency or improved video capability.

    Support for 5K resolutions
    5K video resolutions supported for high resolution and ultra-wide video applications (5120x1440 @60Hz or 5120x2880 @30Hz).

    High frame rate support
    Refresh rates up to 240Hz supported for HD video resolutions.

    High speed USB2.0
    Supports transparent USB communication up to 480Mbps for those using mass storage devices, mouse and keyboard, graphics tablets, jog shuttles, joysticks and 3D explorers.

    Perfect digital video
    Using the same encoding system as the other products in the ADDERLink INFINITY (ALIF) range, the digital video is spatially lossless, with 1:1 pixel mapping, ensuring that the digital video you receive is the same as the one leaving your remote computer.

    Backwards compatibility
    The ALIF4001 can integrate seamlessly into your existing ADDERLink INFINITY setup, replacing or working in conjunction with your existing ALIF endpoints.

    Isochronous Communication
    Plug and play support for USB devices and third-party tools, such as Blackmagic® Design DaVinci Resolve® Color Grading Panels.

    Audio capability
    Multi-channel digital audio, via DisplayPort™, provides a high-quality immersive sound experience.

    Please note: The ALIF4001T transmitter requires a receiver like the ALIF4001R to operate.
