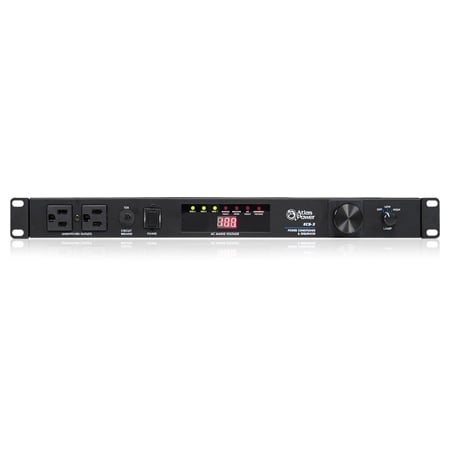

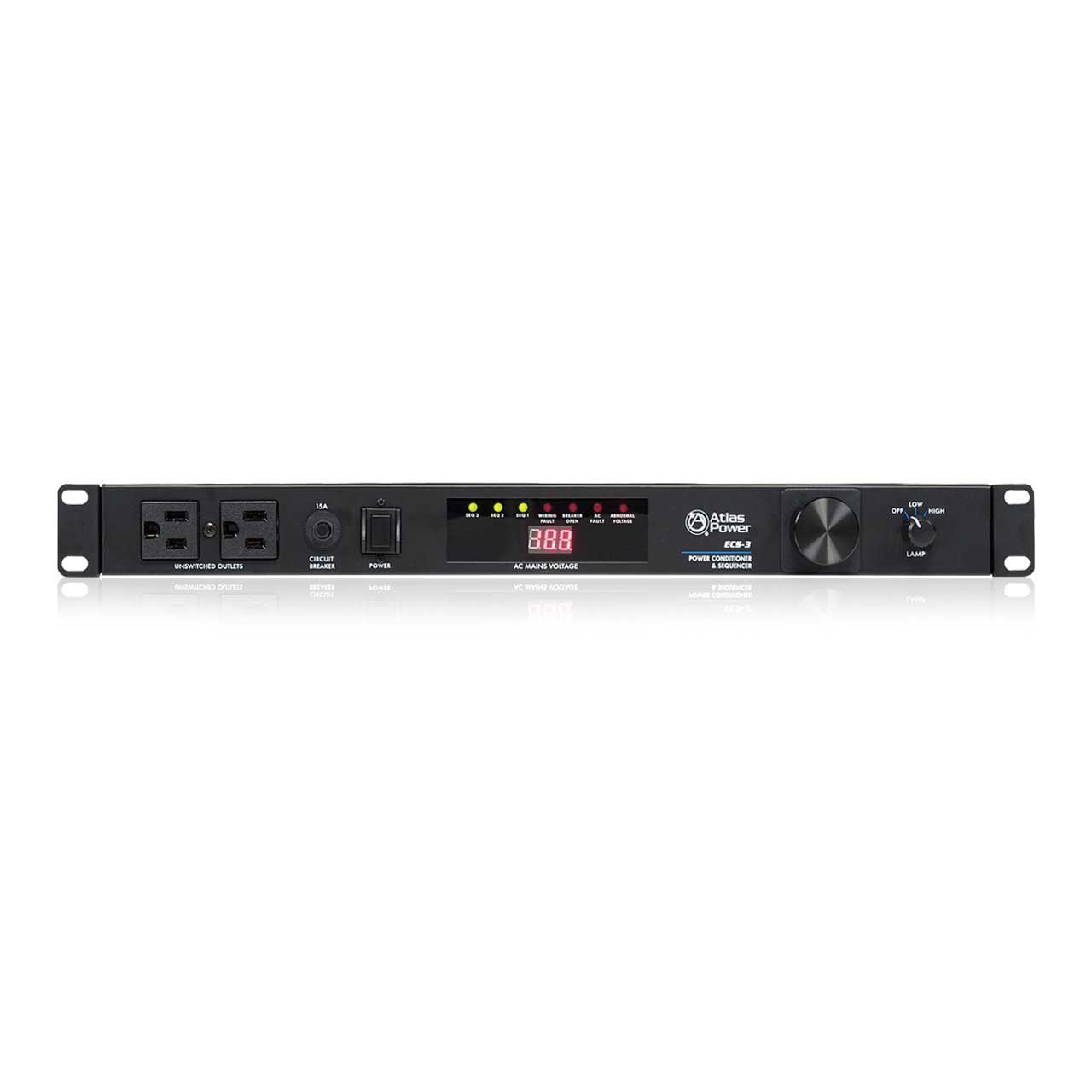

Atlas ECS-3 15A Power Sequencer and Conditioner
  • Atlas ECS-3 15A Power Sequencer and Conditioner
  • Atlas ECS-3 15A Power Sequencer and Conditioner

Questions? Ask a Markertek Expert:
800-522-2025 Email

Atlas ECS-3 15A Power Sequencer and Conditioner

Manufacturer: Atlas Sound

Item #: ATL-ECS-3   •   MFG #: ECS-3



List Price:$624.99
Our Price:$500.99

free ship


Availability: Direct Ship From Manufacturer
i
Item ships directly from the manufacturer and is subject to manufacturer availability. We will contact you with expected availability. You can also email [email protected], chat or call customer service (800)-522-2025 for expedited delivery options.




    Share!

    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov





    The ECS-3 has been designed to meet most installation requirements for AC power distribution and equipment power protection. The 15A compact 1 RU unit features three sequential timing sections that can be activated via the unit, or remotely. Front panel activation is via a momentary switch, while rear activation is via a momentary contact closure, or by 5-24VDC trigger feed.

    AC Mains Voltage can be monitored via the front panel from the precision Digital Volt Meter. To light your rack, the ECS-3 has incorporated a front panel pull-out dimmable LED tube light. The rear of the rack can be illuminated by the optional 16" gooseneck LED lamp connected via an XLR style socket. LED lamps are far superior in longevity along with heat reduction when compared to traditional incandescent lamps and the XLR base mounts are also superior to the commonly used BNC type base. If a 15A AC Mains power source is not enough to meet the amperage demand of your system, the ECS-3 provides a sequenced 24VDC output that can be used to trigger other devices such as the AtlasIED ECM-20SH 20A stand alone AC power module.


    • Features

      • 9 Total Outlets

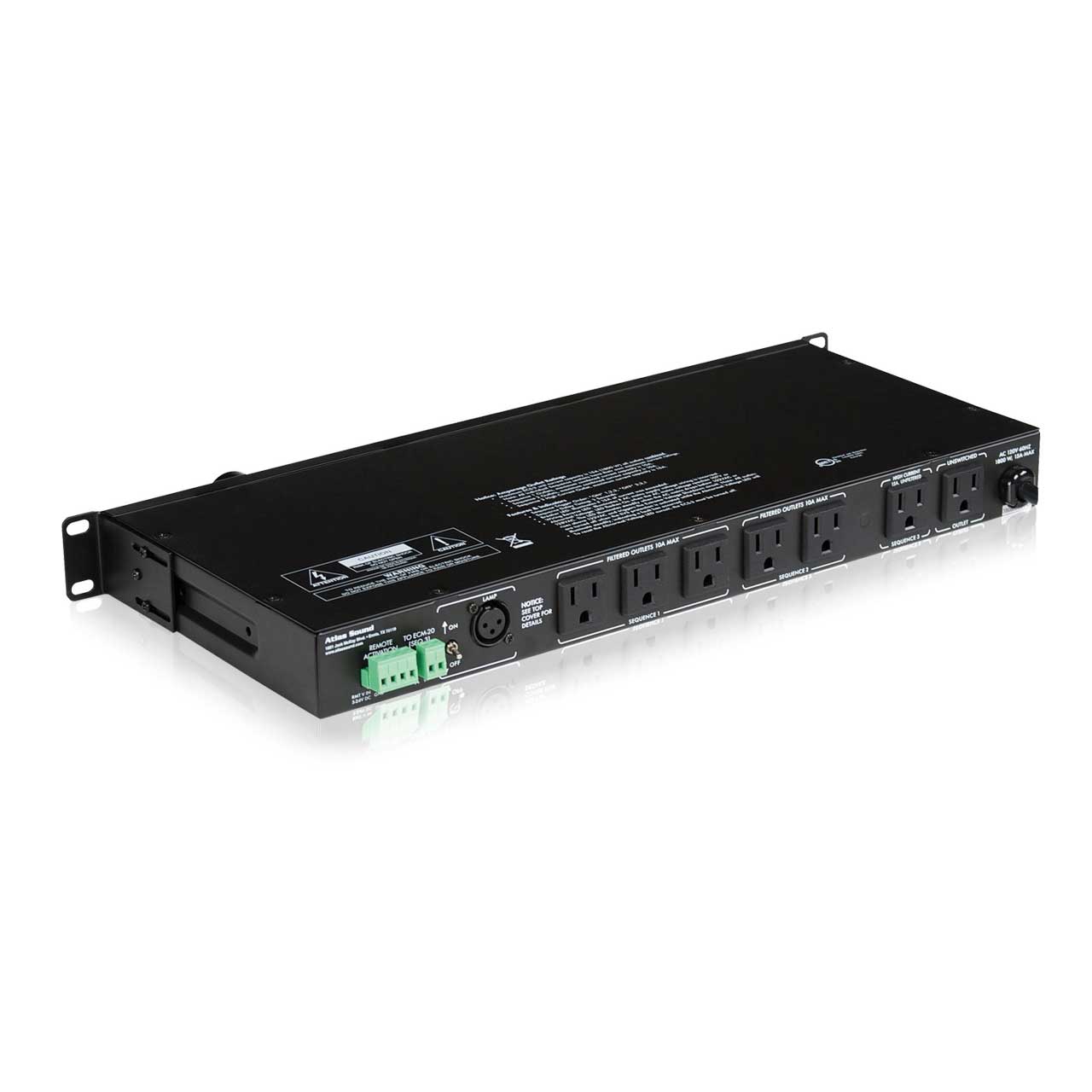

      • 6 Rear Panel Outlets are Sequenced in Three Stages
      • 2 Front Panel and 1 Rear Panel Unswitched Convenience Outlets
      • Radio Frequency and Electromagnetic Interference Filters
      • Dual Clamping Spike & Surge Suppression, DCS Circuitry
      • Front Panel Digital AC Mains Voltmeter
      • Extreme Voltage Shutdown (EVS) Below 102V or Above 132V AC Line
      • Front Mounted Pull-Out LED Light with 2 Position Dimmer
      • External Switch Sequence Trigger Activation
      • External DCV Sequence Trigger Activation 5-24VDC
      • Circuit Breaker Protection @ 15 Amps Indicated By "Breaker Open" Indicator
      • Optional Key Lock Remote Wall Plate, WPD-KSWM, Sold Separately.

    • Specifications

      • Current Rating: 15 Amps
      • Certified to Safety Listing: ETL (UL 1449)
      • Operating Voltage: 102-132VAC
      • Minimum Spike Clamping Voltage: 460 VRMS @ 3000A
      • Maximum Spike Clamping Voltage: 6000V
      • Power Consumption: 12 Watts
      • Low Voltage Protection: Trigger at 101VAC, 1ms Typically
      • Voltmeter Accuracy: ±1.5VAC
      • Spike Protection Modes: DCS (Dual Clamping Suppression) Circuitry on Incoming AC Mains and Each Sequential Section Output
      • Min. Spike Clamping Voltage: 460 VRMS @ 3,000A
      • Max. Spike Clamping Voltage: 6kV
      • Max. Spike Clamping Resp. Time: 1 nanosecond
      • Spike Clamping Voltage @ 100A: 1250Vp for 20?s
      • Maximum Surge Current: 6,500A
      • Energy Rating @ 2ms: 2000 Joules
      • Noise Attenuation EMI/RFI Seq. Section 1 & 2: 10dB @ 10 kHz, 40dB @ 100 kHz, 100dB @ 10 MHz
      • Temperature Range: 5° to 35° C
      • Humidity Range: 5% to 95% R.H.
        Mechanical
      • Chassis Finish: Black
      • Mounting: Rack Mount, 19" 1 RU
      • Weight 7.6 lbs
      • Height: 1.75"
      • Width: 19"
      • Depth: 8.5"

    • GTIN:

      0612079186303
