AtlasIED FC-6T IsoFlare 6-Inch Wide Bandwidth/High Sensitivity 320 Watt Ceiling Loudspeaker - Blind Mount

ITEM #: ATL-FC-6T MFG #: FC-6T

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$498.99

Our Price:

$398.99

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


FC-6T - Overview

The AtlasIED IsoFlare FC-6T is a wide bandwidth, high sensitivity ceiling loudspeaker designed for the ultimate in fidelity, coverage, and aesthetics.

The IsoFlare FC range is the new benchmark in point source technology for prestigious commercial environments. Decades of experience from acoustic and mechanical engineers specializing in this technology have honed existing skills complemented with the very latest in design & engineering techniques to bring IsoFlare to the premium commercial space in an integrated package.

Unlike most ‘coax’ offerings, the IsoFlare driver exhibits excellent harmonic alignment between HF and LF sources, the effect of which is to deliver accurate and natural reproduction with superb tonal balance.

Propagating a spherical wavefront, homogeneously aligned on all axes, the IsoFlare point source driver yields an even response throughout the listening area; a constant time delay over the entire frequency spectrum providing exceptional off-axis performance.

The FC-6T is designed for applications requiring a combination of premium sonic quality for music and speech reinforcement with exceptional reliability, in an architect/designer/installer friendly solution.

  • Features:

    • Patented toolless high travel secure-clamp mechanism for fast and trouble-free installation.
    • Bezel-less grille - magnetically secured - removable logo. Allows for a single step painting process if necessary. No requirement for adaptors to accommodate optional square grilles.
    • Ferrofluid cooled titanium HF with neodymium magnet system.
    • Weather treated multi fiber cone; stiffness combined with controlled top end roll off, for an accurate midrange.
    • Fluted Surround Technology - Conventional driver surround profiles can reflect energy back down the cone causing coloration. Optimized smooth transition baffle (no sharp edges which cause diffraction).
    • Full bandwidth exceptionally low insertion loss 60W 70/100V transformer.
    • High-current premium crossover components (Air Core Inductors & Polypropylene Capacitors).
    • Easy Access Tap Rotary Selector Switch.
    • Enhanced voicing presets available via AtlasIED Atmosphere platform.

  • Specifications:

    • General Specifications
    • Type: Two-Way, Full Range, Ceiling Loudspeaker (Blind Mount)
    • Frequency Range (-10dB): 50Hz - 20kHz
    • Frequency Response (+/- 3dB): 62Hz - 19kHz
    • System Sensitivity (1W @ 1m): 91dB
    • Nominal Coverage Angle (-6dB): 100°
    • Directivity Index (DB): 5.6

      Power Handling
    • Average: 80W
    • Programme: 160W
    • Peak: 320W
    • Recommended Amplifier Power: 160W @ 8 Ohms
    • Nominal Impedance: 8 Ohms
    • Transformer Taps - Via Rotary Selector Switch: 60W, 30W, 15W, 7.5W (3.8W70V) & Low Z operation

      Rated Maximum SPL
    • Average: 110dB
    • Peak: 116dB
    • With Max. Transformer Tap - Average: 109dB

  • Item Includes:

    • 1x AtlasIED FC-6T 6-Inch Premium Ceiling Speaker - Blind Mount
    • 1x C-Ring

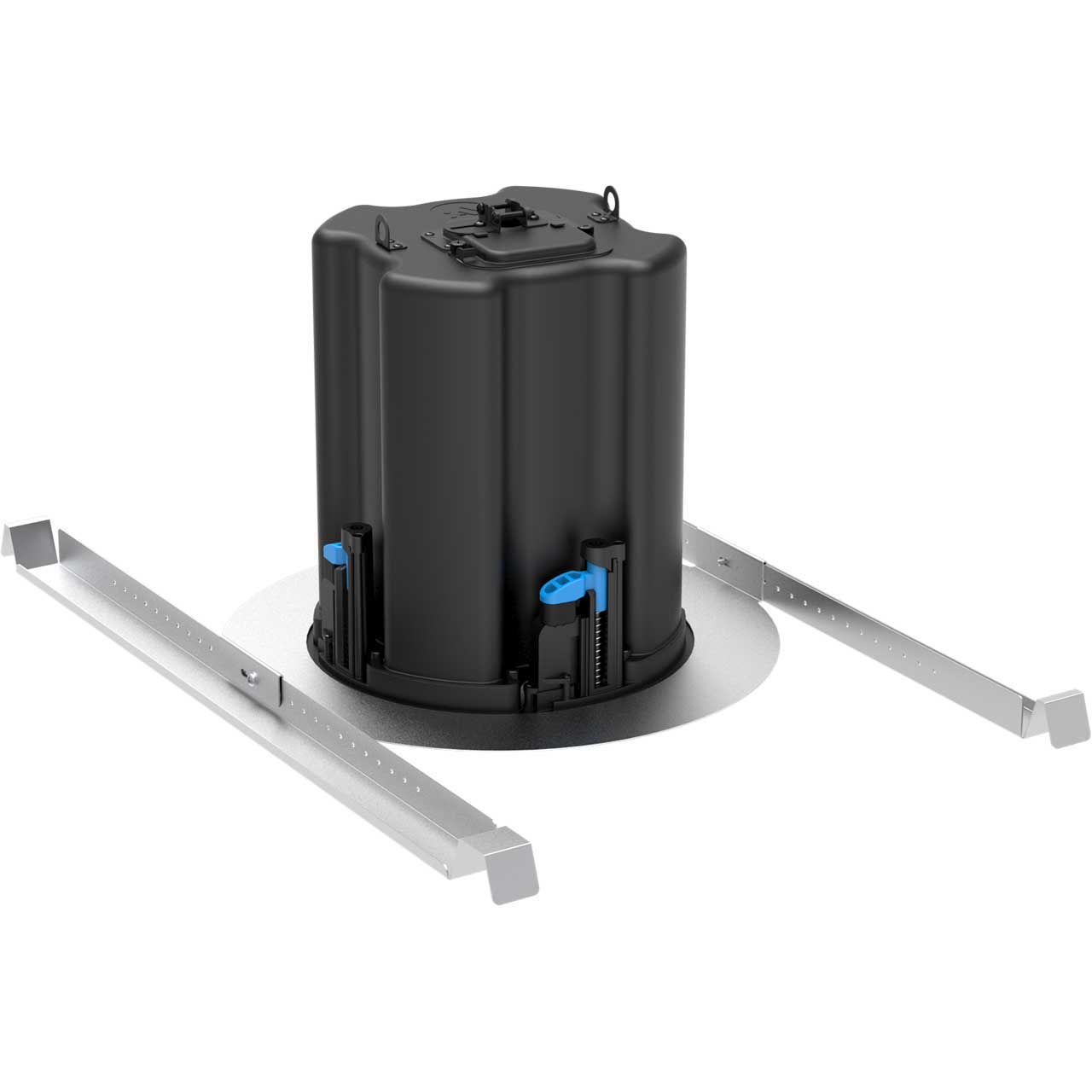

    • 1x Tile-bridge kit
    • 1x Paint mask
    • 1x Cut-out template

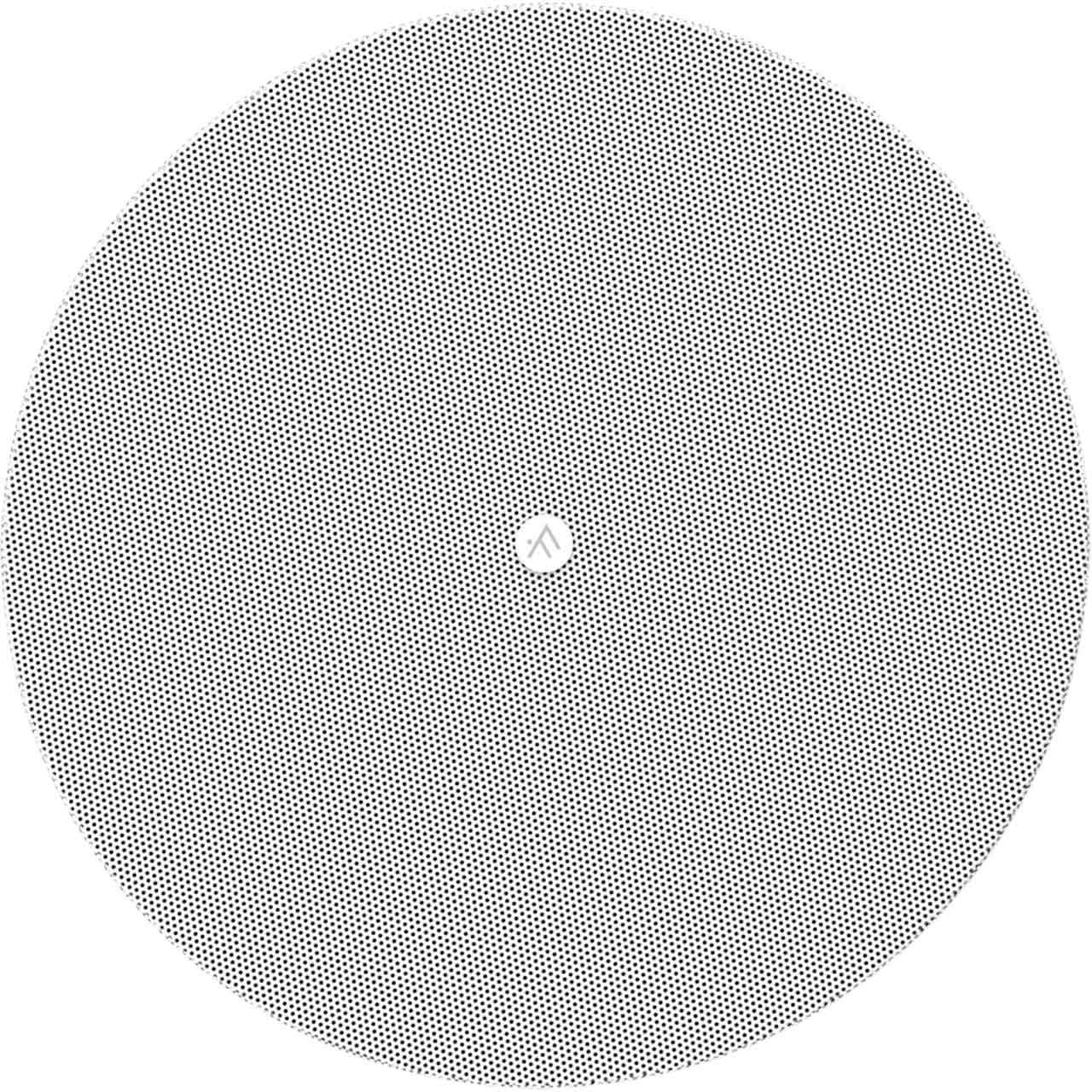

    • 1x Round white grille

  • Warranty:

    • 5-Year Limited Warranty
