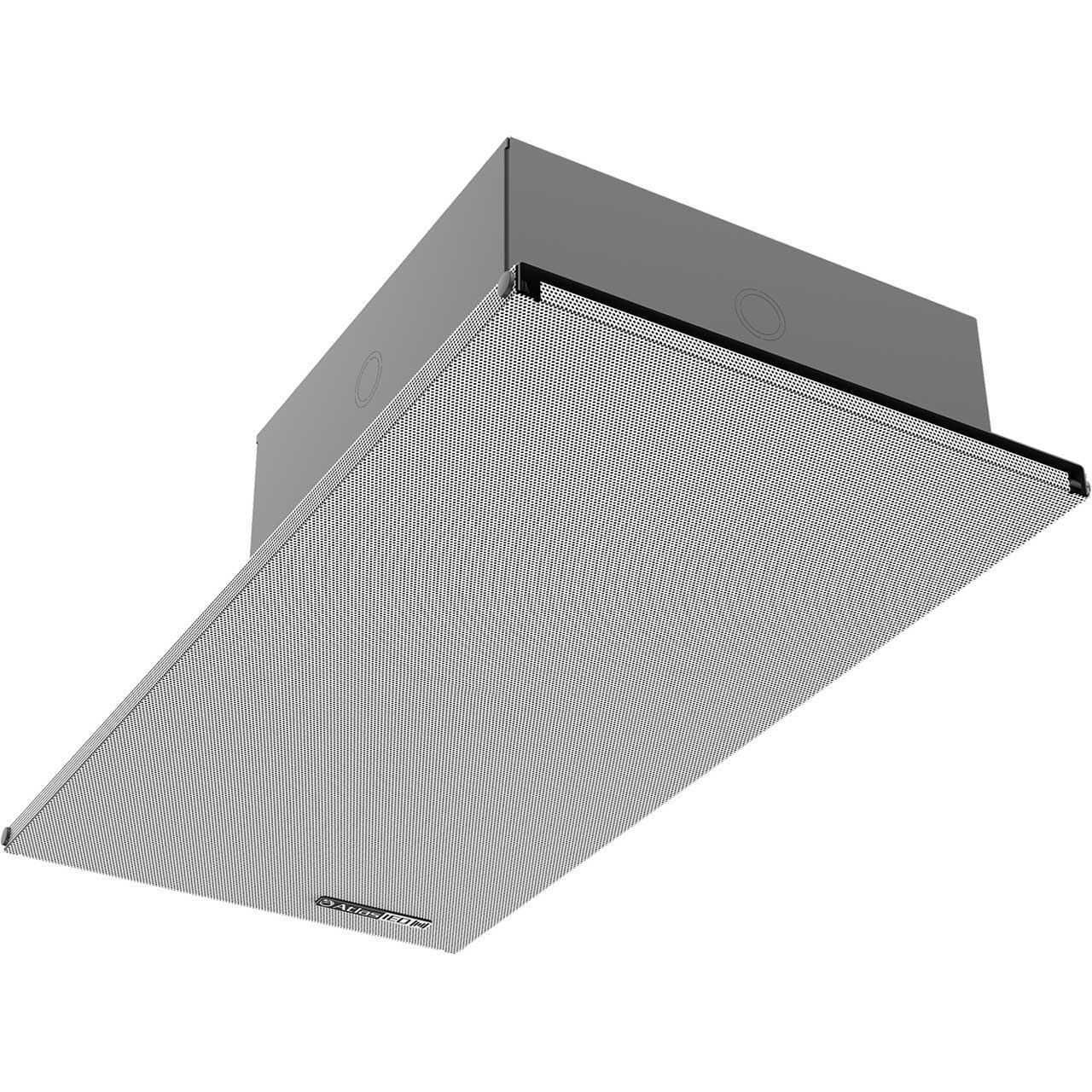

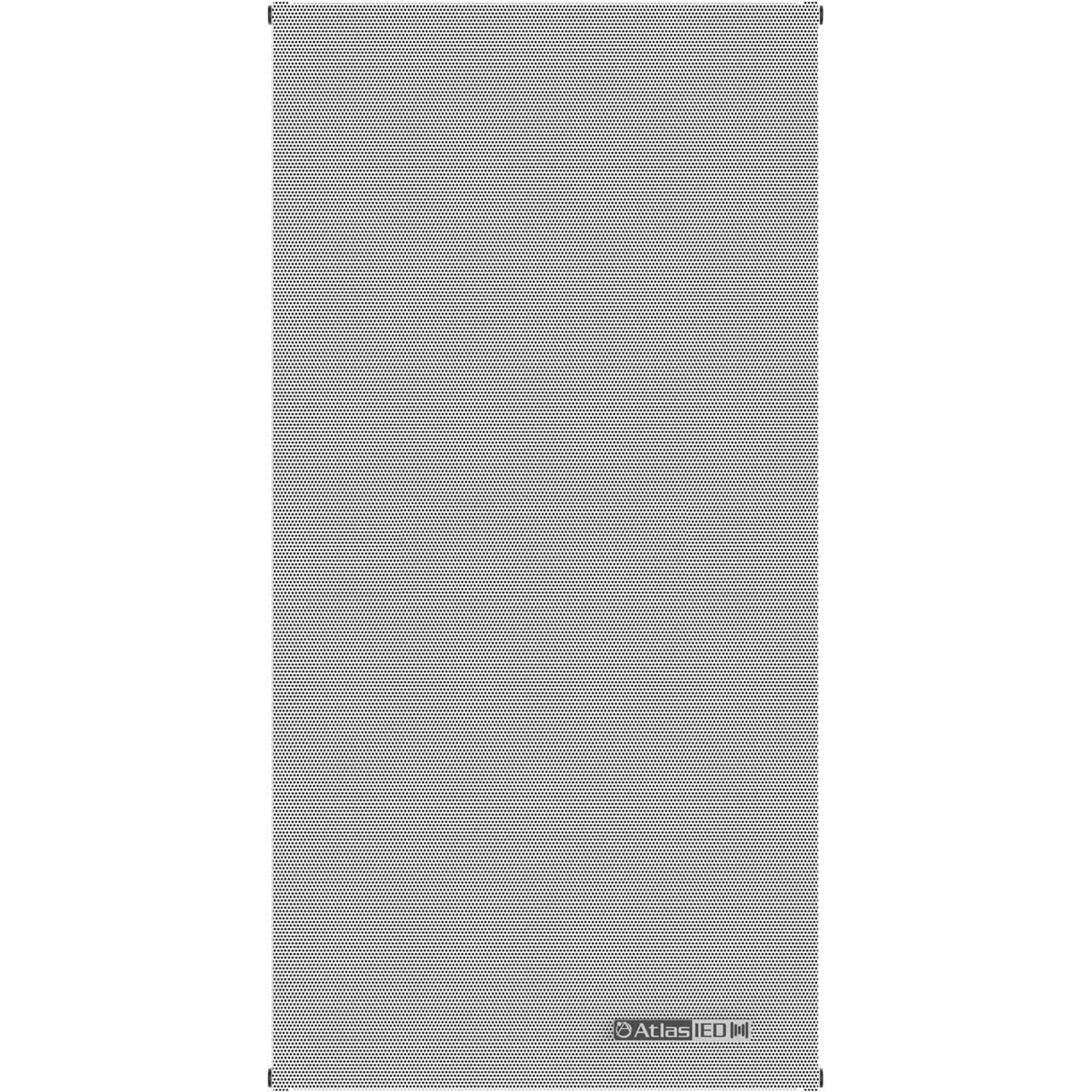

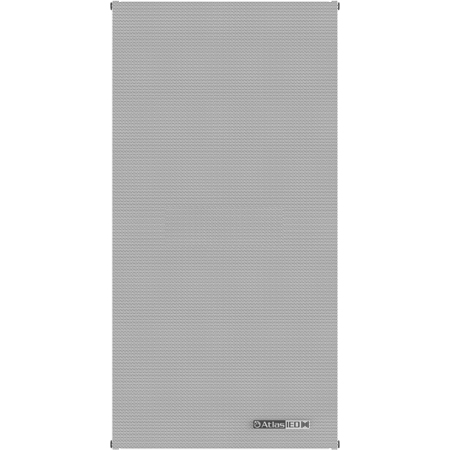

AtlasIED IP-12SYSM PoE+ Indoor 1ft x 2ft Suspended Ceiling Mount IP Speaker with Talkback Microphone

ITEM #: ATL-IP-12SYSM MFG #: IP-12SYSM

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$1,050.99

Our Price:

$842.99

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    IP-12SYSM - Overview

    AtlasIED IP-12SYSM 1' x 2' suspended ceiling mount IP speakers with talkback leverage the VoIP Communication solution to extend tele-presence with enhanced audio for those environments where network-wide communication is desired and that require large speakers with high output to overcome high ambient noise areas or large spaces.

    AtlasIED IP-12SYSM registers as a communication endpoint directly within InformaCast, and Revolution Advanced Notification applications, supporting audio broadcast to enhance physical security while improving day-to-day communications through advanced alerting, bell schedules, pre-recorded, scheduled announcements, & intercom, while leveraging the WAN/LAN Network Architecture.

    When used within a Cisco Environment, these same IP speakers from AtlasIED can join Cisco's Unified Survivable Remote Site Telephony (SRST) as a supported device within SRST endpoint Architecture. Cisco's SRST provides remote location call-processing redundancy when access to the centralized Cisco Unified Communications Manager is interrupted because of a WAN outage. The ability of LAN communication between any combination of phones and speakers is particularly critical during an emergency (which may be the actual cause of the WAN outage).

    Where 3rd party notification applications are not required, the IP-12SYSM speakers can register as SIP devices directly to a SIP server or VoIP Communications Manager for critical alerts /public address applications and two-way communication.

    Ideal for Corporate Applications, Education Institutions, Entertainment Complexes, Industrial Facilities, Government Buildings, Healthcare Facilities, Houses of Worship, Transportation Hubs - anywhere critical alerts / public address needs exist, and prefer using a single enterprise-class communications platform.

    • Features:

      • Dynamic or Static IP Address
      • IEEE802.3 10/100Base-T Ethernet
      • IEEE 802.1q Tagging
      • IEEE 802.11AT Compliant
      • VoIP Standard Audio: G.711 u-law/a-law (64 kbit/s) or G.722 Wideband Audio (64 kbit/s)
      • Auto Registration: SLP for Singlewire Applications, DHCP Option 72 for Syn-Apps' Applications or IEDNet+ for AtlasIED Applications
      • Static Registration: HTTP GUI for Static Configuration
      • Integrated Amplifier 15-Watt Total Power: Primary Speaker Output 8 ohm
      • Aux Audio Line-In Balanced (2.8Vpp 10K)
      • Aux Audio Line-Out Balanced (2.8Vpp 10K)
      • 2 General Purpose Inputs
      • 1 General Purpose Output (2A @ 30 VDC)
      • Phone/Night Loud Ringer
      • External Power Supply Option

    • Specifications:

      • Speaker Type: Coaxial
      • Speaker Size: 8" LF, 1" HF
      • Frequency Response: 86Hz - 15.5kHz
      • Dispersion: 105° (2kHz Octave Band, -6dB Points)
      • Sensitivity: 98dB SPL Average
      • Power Rating: 12-Watts Max (802.3AF) / 25-Watts Max (802.3AT)
      • THD: <0.2%
      • Connector Type: RJ-45
      • Height: 4.89" (124mm)
      • Width: 23.67" (601mm)
      • Depth: 11.94" (303mm)
      • Shipping Weight: 13.21 lbs (5.99 kgs)
      • Safety Listed: 62368-1, CSA C22.2 #62368-1, 2043, IEC 62368-1 CB Scheme and FCC; UL2043

        Microphone
      • Sensitivity Minus 35 (±4dB) / (0db = 1V/pa, 1kHz)
      • Impedance Less than 2.2kO
      • Directivity Omnidirectional
      • Frequency Range 20Hz - 20kHz
      • Standard Operation Voltage 2V
      • Max. Operation Voltage 10V
      • Current Consumption Max. 0.5 mA
      • Sensitivity Reduction Within Minus 3dB @ 1.5V
      • S/N Ratio More than 62dB

        Audio Inputs and Outputs:
      • Input: Analog Audio Type(s) One Balanced Line Level
      • Input: Analog Connectivity Secured Screw Terminal Block
      • Input: Network Audio Type(s) G.711 U-Law / A-Law and G.722 Capable
      • Input: Network Connectivity RJ-45 Female
      • Output: Analog Audio Type(s) One Balanced Line Level
      • Output: Analog Connectivity Secured Screw Terminal Block
      • Output: Digital Audio Type(s) G.711 U-Law / A-Law and G.722 Capable (Multicast)
      • Output: Digital Connectivity N/A
      • Output: Speaker Level 8O, 12W (802.3AF), 25W (802.3AT)
      • Output: Speaker Connectivity Primary and Slave Secured Screw Terminal Block

    • Warranty:

      • 1 Year
