Atlona 4K-HDVS-EXT HDVS-200TX with AT-UHD-EX-100CE-RX-PSE Kit with Three-Input Switcher-Ethernet-Control and PoE
  • Atlona 4K-HDVS-EXT HDVS-200TX with AT-UHD-EX-100CE-RX-PSE Kit with Three-Input Switcher-Ethernet-Control and PoE
  • Atlona 4K-HDVS-EXT HDVS-200TX with AT-UHD-EX-100CE-RX-PSE Kit with Three-Input Switcher-Ethernet-Control and PoE

Questions? Ask a Markertek Expert:
800-522-2025 Email

Atlona 4K-HDVS-EXT HDVS-200TX with AT-UHD-EX-100CE-RX-PSE Kit with Three-Input Switcher-Ethernet-Control and PoE

Manufacturer: Atlona Technologies

Item #: ATNO-4K-HDVS-EXT   •   MFG #: 4K-HDVS-EXT




Our Price:$975.00

free ship


Availability: Usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.


  • Special Order Item: non-cancelable, non-returnable, non-refundable.

California Residents:
8pt-triangleWARNING:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov

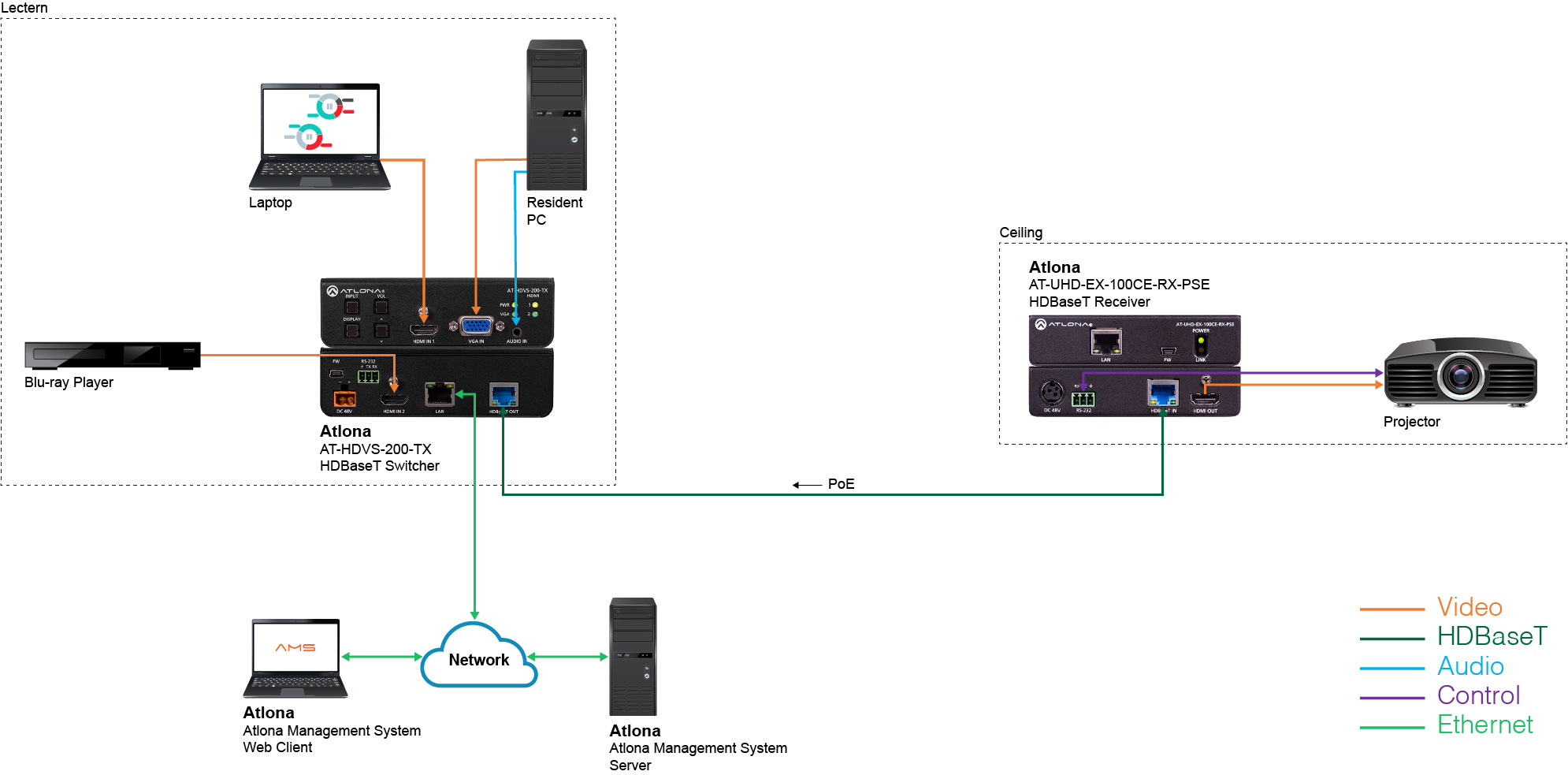

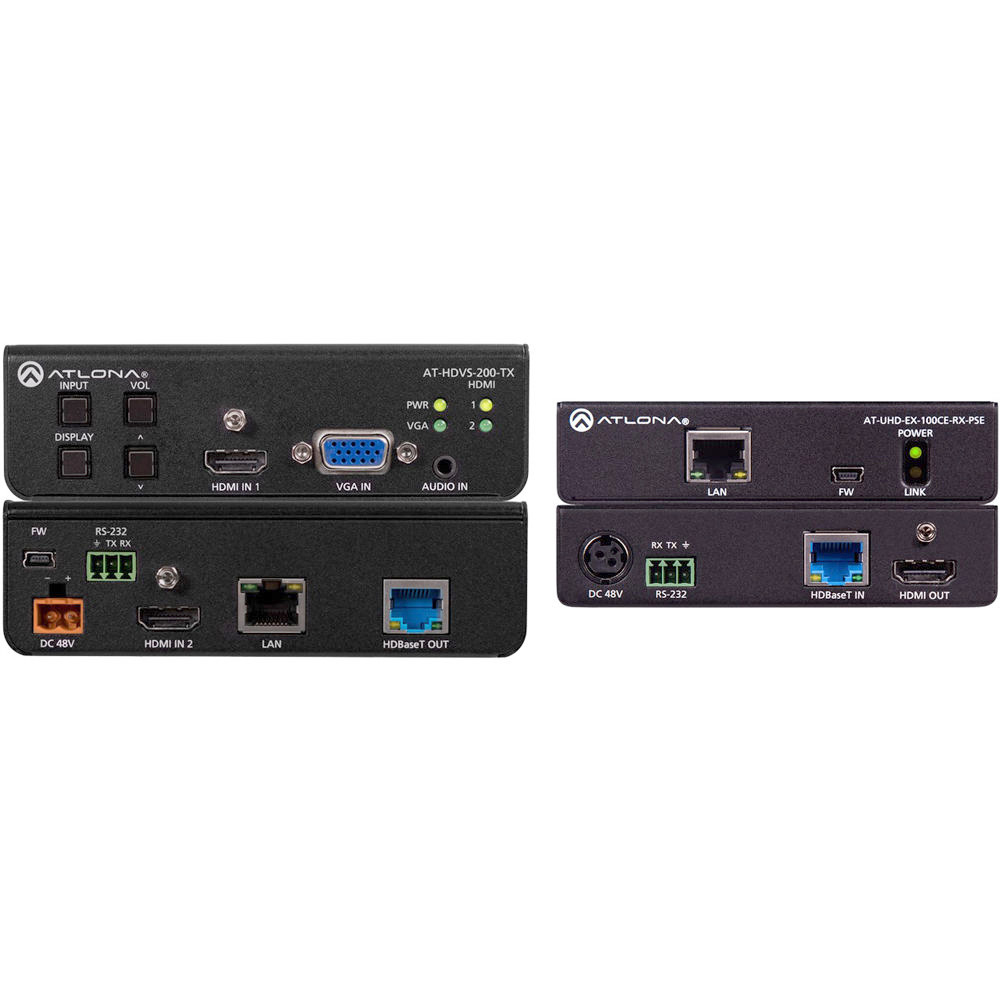

The Atlona 4K-HDVS-EXT is an HDBaseT transmitter and receiver combination that delivers a complete integration solution with 4K/UHD extension, automatic HDMI and VGA input switching, and automatic display control. It includes the AT-HDVS-200-TX three-input HDBaseT switcher and AT-UHD-EX-100CE-RX-PSE HDBaseT receiver. The 4K-HDVS-EXT extends HDMI up to 330 feet (100 meters) over category cable with Ethernet pass-through and control.

This HDBaseT extender solution supports video signals up to 4K/UHD @ 60 Hz with 4:2:0 chroma subsampling, plus embedded multi-channel audio. The transmitter is remotely powered by the receiver via Power over Ethernet. This makes the 4K-HDVS-EXT ideal for applications in which the transmitter needs to be installed in a location where local AC power may not be available, such as a lectern or conference room table.


  • Features

    • 4K/UHD capability @ 60 Hz with 4:2:0 chroma subsampling
    • HDCP 1.4 compliant
    • 3x1 HDBaseT switcher and extender kit for AV, Ethernet, power, and control up to 330 feet (100 meters)
    • Two HDMI inputs and one VGA input
    • Transmitter powered by receiver via PoE (Power over Ethernet)
    • Automatic input selection and automatic display control
    • Front panel input selection, display on/off, and volume control
    • TCP/IP and RS-232 control

  • Specifications

    • Resolution
    • Video: [email protected]/25/30/50/60Hz, [email protected]/25/30/50/60Hz (UHD), 2048x1080p, [email protected]/24/25/29.97/30/50/59.94/60Hz, [email protected]/59.94/60Hz, [email protected]/59.94/60Hz, 576p, 576i, 480p, 480i
    • VESA: 2560+2048, 2560+1600, 2048+1536, 1920+1200, 1680+1050, 1600+1200, 1600+900, 1440+900, 1400+1050, 1366+768, 1360+768, 1280+1024, 1280+800, 1280+768, 1152+864, 1024+768, 800+600, 640+480 (VGA input limited to a max of 1920+1200)
    • Color Space: YUV, RGB
    • Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0
    • Color Depth: 8-bit, 10-bit, 12-bit

      Audio
    • Analog IN: PCM 2Ch
    • HDMI IN / HDBaseT OUT: PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos
    • Sample Rate: 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
    • Bit Rate: up to 24-bit

      Distance
    • CAT5e/6 @ 4K: up to 230ft
    • CAT5e/6 @ 1080p: up to 330ft
    • CAT6a/7 @ 4K: up to 330ft

      Signal
    • Bandwidth: 10.2 Gbps
    • CEC: Yes
    • HDCP: 1.4 Compliant

      Temperature
    • Operating: 32°F to 122°F
    • Storage: -4°F to 140°F
    • Humidity: 20 to 90% non-condensing

      Physical
    • Dimension (H x W x D): (HDVS-200-TX) - 1.5" x 5" x 4.02"; (100CE-RX-PSE) - 0.98" x 4.29" x 5.00"
    • Unit Weight: (HDVS-200-TX) - 0.64 lbs; (100CE-RX-PSE) - 0.86 lbs
    • Power Consumption: 17.8W
    • Power Supply (100CE-RX-PSE): Input: AC100~240V 50/60Hz; Output: DC48V 0.83A
