Atlona AT-OMNI-111 OmniStream Single-Channel Networked AV Encoder - Supports [email protected] and HDR Formats

ITEM #: ATNO-AT-OMNI-111 MFG #: AT-OMNI-111

  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
free ship

We are an authorized dealer for this series; however, the manufacturer does not permit online sales. Please contact a sales engineer at 1-800-522-2025 to complete your purchase.

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup


    AT-OMNI-111 - Overview

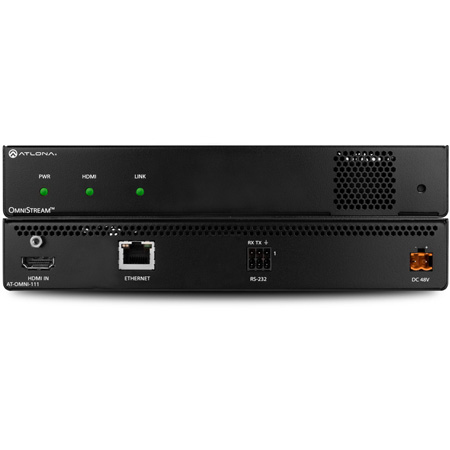

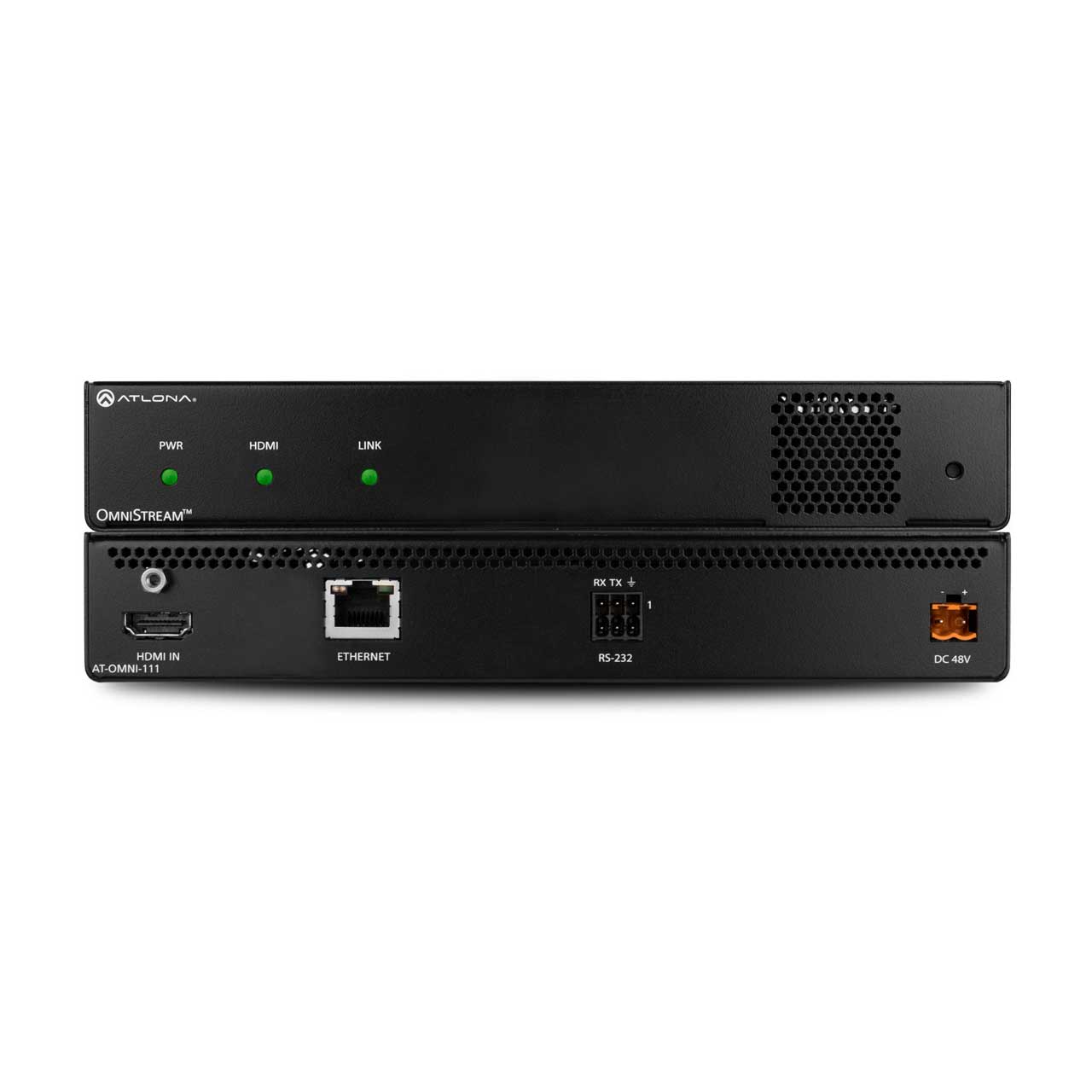

    The Atlona OmniStream™ 111 (AT-OMNI-111) is a networked AV encoder for one HDMI source up to UHD @ 60 Hz and HDR, plus embedded audio and RS-232 or IR control pass-through. It is part of the OmniStream Pro Series, designed for high performance, scalable distribution of AV over Gigabit Ethernet in commercial applications. The OmniStream 111 is HDCP 2.2 compliant and ideal for the latest as well as emerging UHD and HDR sources. It features visually lossless compression for critical-quality video and graphics applications, with extremely low, sub-frame latency from encode to decode. The OmniStream 111 also includes selectable AES-128 encryption, and SMPTE 2042 forward error correction for robust AV distribution spanning multiple networks. This encoder is housed in a half-rack width enclosure. The OmniStream 111 can conveniently be powered over the network through Power over Ethernet (PoE), as well as from local AC power.

    Easy to Configure, Simple to Manage

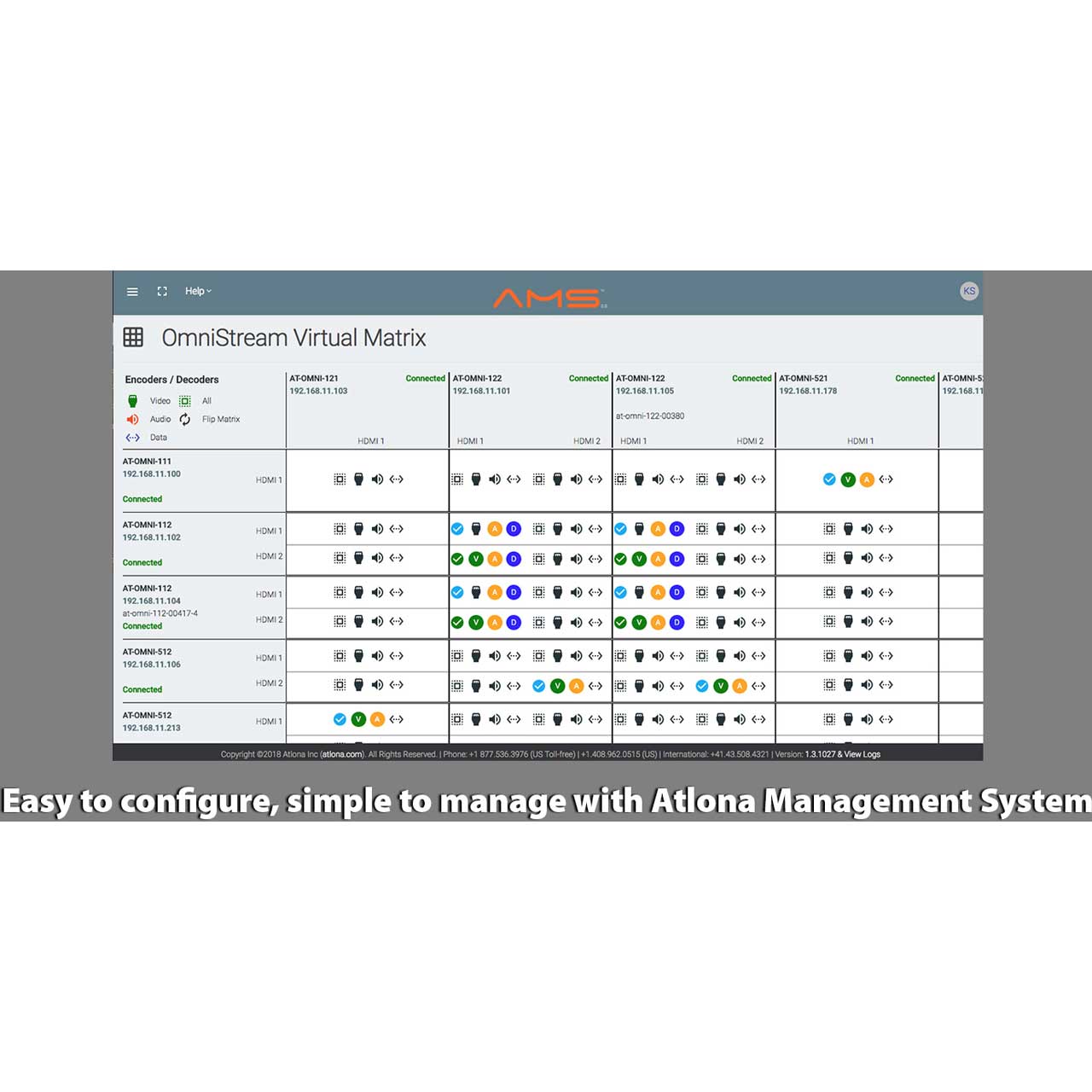

    OmniStream AV over IP systems are remarkably easy to set up and manage - whether for a meeting room, residence, divisible room, or an entire university campus. Atlona Management System (AMS) 2.0 features automatic network device discovery, plus an intuitive web-based GUI that lets you configure virtual routing for AV, control, and data over the network - just as easily as you would with conventional AV matrix switching. AMS also streamlines and simplifies management of OmniStream systems through continuous system monitoring, notifications and alerts, event logging, multi-device configuration and backup, automated firmware updates, remote device control, and more.

    Product Compatibility
    The OmniStream 111 is compatible with the OmniStream 121 and OmniStream 122 decoders.

    Applications:

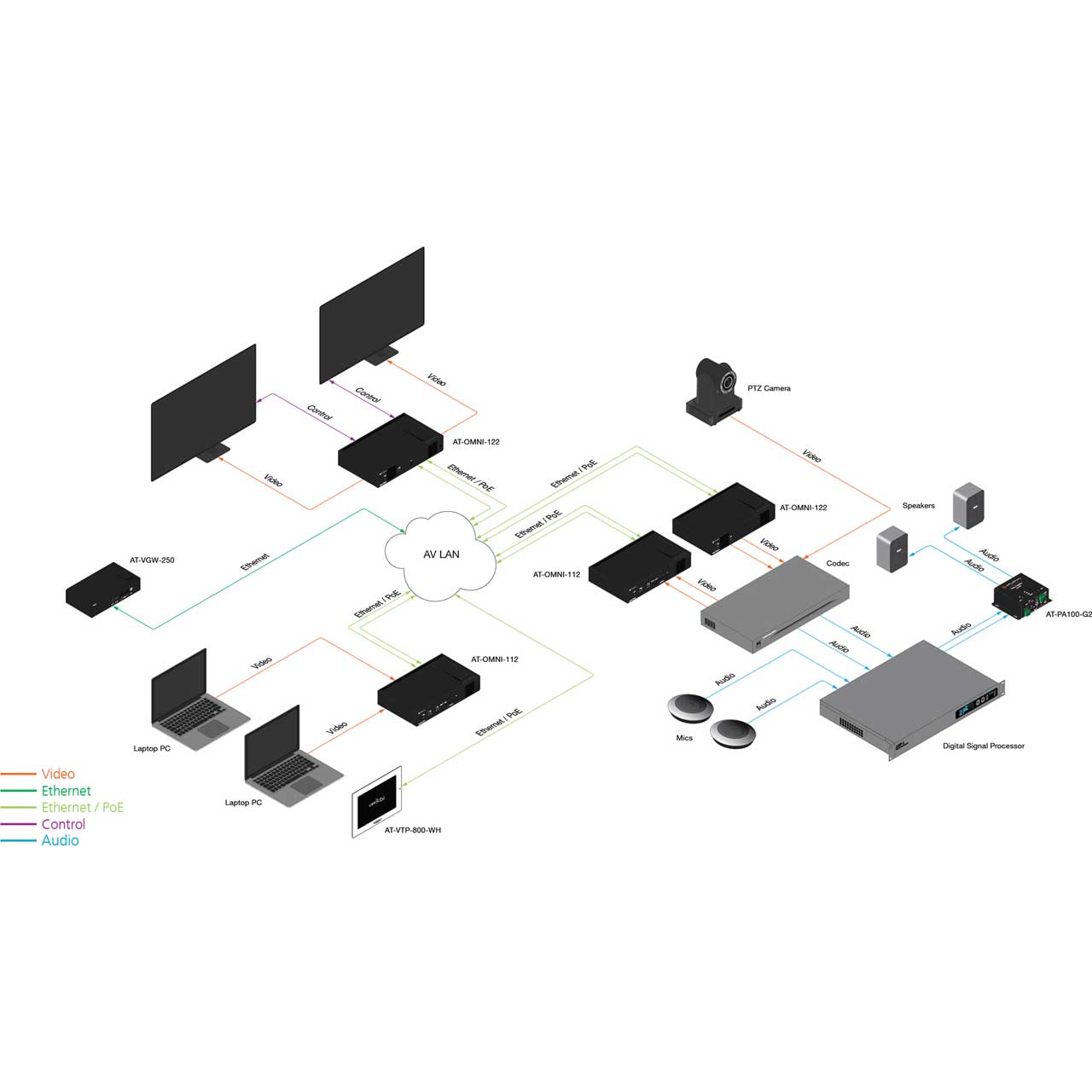

  • Enterprises and other large organizations - Maximize AV application flexibility by enabling content sharing within single meeting rooms, or corporate-wide broadcasting to every connected screen. (See this featured application as an example.

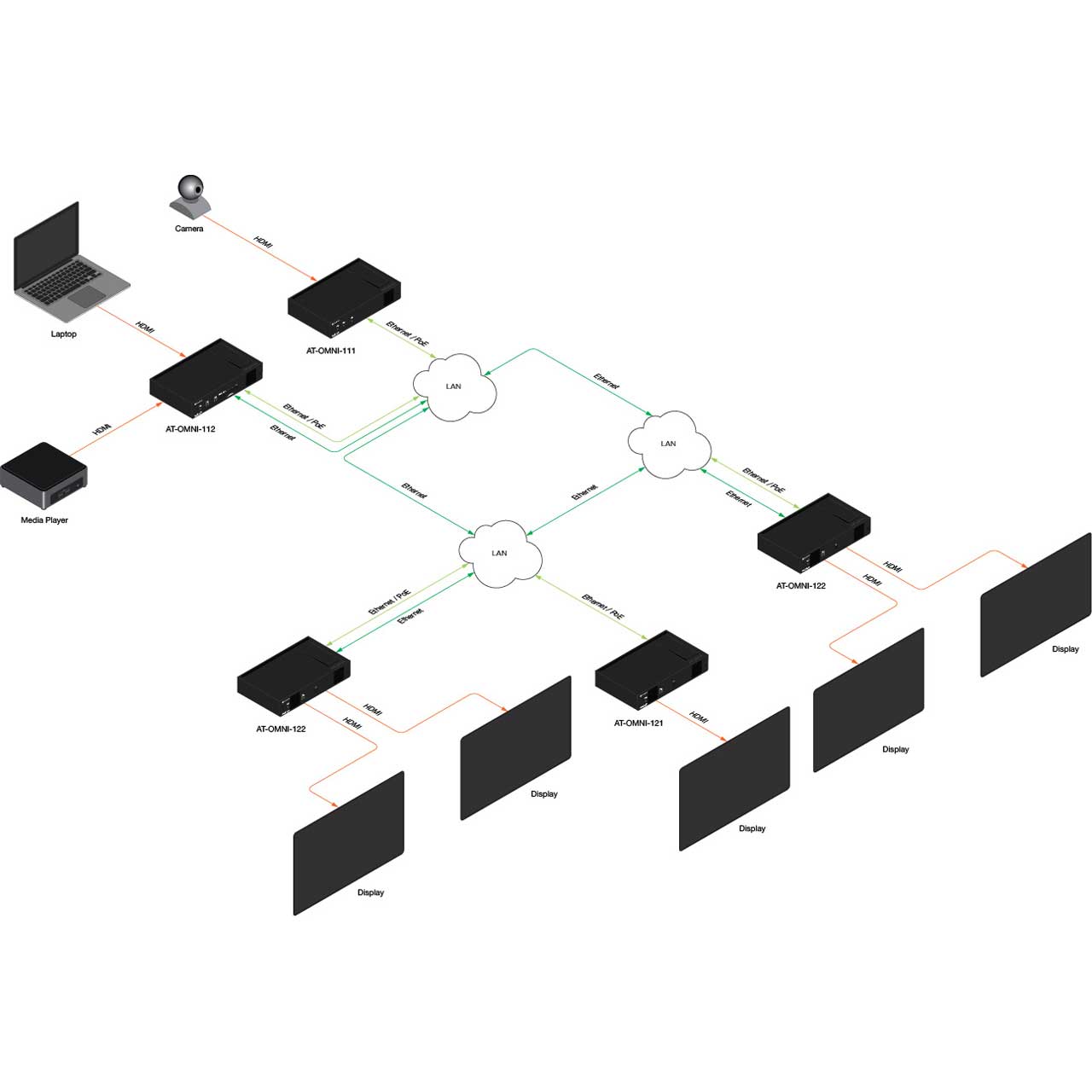

  • Corporate and university campuses with the need to distribute AV between buildings - OmniStream allows virtually unlimited AV system scope and scale. For very large, expansive LANs, SMPTE-standard FEC (forward error correction) ensures robust, reliable image presentation at every endpoint. (See this featured application as an example.)
  • Applications in which any AV content or resource can be shared anywhere in the system - AV over IP technology removes the restrictions associated with interconnecting sources and displays through standard matrix switching architecture.
    • Features:

      • Best-in-class AV over IP performance and reliability over Gigabit Ethernet
      • Single-channel AV decoder for HDMIr up to 4K/UHD, plus embedded audio and RS-232 or IR control pass-through
      • Supports UHD @ 60 Hz plus HDR formats
      • Pristine-quality downscaling and upscaling
      • Simplify integration with plug-and-play network switch compatibility
      • Audio embedding and de-embedding plus multi-channel audio downmixing
      • Local or PoE (Power over Ethernet) powering

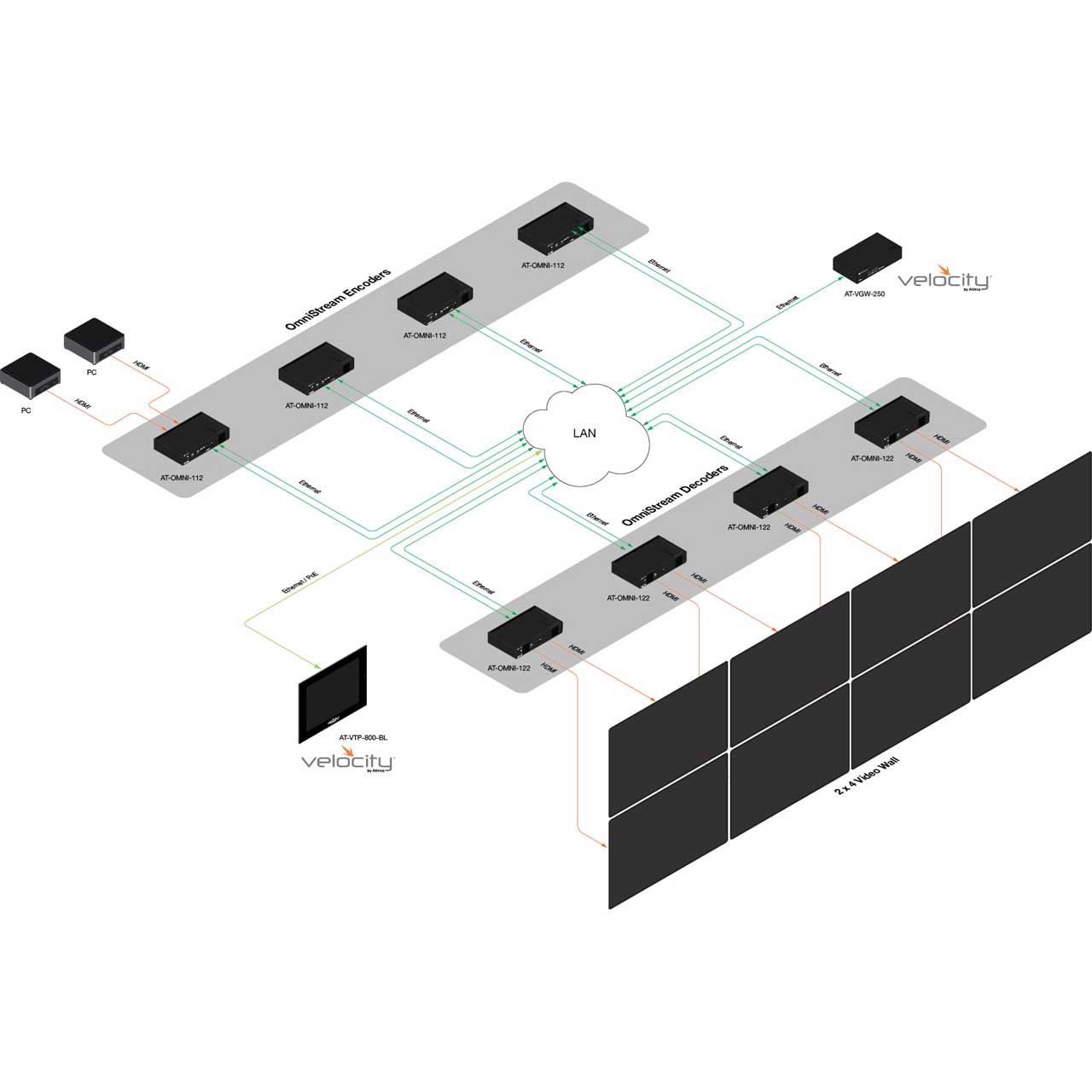

      • Enhance AV presentations with visual enhancements and video wall processing
      • Industry-standard, network security features including IEEE 802.1x

    • Specifications:

      • Video
      • HDMI Specification: HDMI 2.0, HDCP 1.4 / 2.2
      • UHD/HD: 4096x2160 (DCI) @60/30/24 Hz, 3840x2160(UHD)@60/50/24/25/30 Hz, [email protected]/24/25/29.97/30/50/59.94/60 Hz, 1080i*@25/29.97/30 Hz, [email protected]/50/59.94/60 Hz
      • VESA: 1920x1200, 1680x1050, 1600x1200, 1600x900, 1440x900, 1400x1050, 1366x768, 1360x768, 1280x1024, 1280x800, 1280x768, 1152x768, 1024x768
      • Color Space: YUV, RGB

        Decoding
      • Density: One decoding engine
      • Decoding Format: VC-2 (SMPTE-2042)
      • Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0
      • Video Quality Optimization: User-selectable: Computer Graphics or Motion Video
      • Color Depth: 8-bit, 10-bit, 12-bit
      • HDR: HDR10, HLG
      • Bit Rate: Supports bit rates up to 900 Mbps
      • Latency: 0.5 frame (e.g. 1080p @ 60 Hz latency is < 8 ms between encoder and decoder)
      • Note: Unusual network configurations may increase overall latency

        Audio
      • Pass-through: LPCM 2.0, LPCM 5.1, LPCM 7.1, Dolbyr Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmosr, DTSr, DTS-HD Master AudioT
      • Down-mixing: Multichannel LPCM to two-channel LPCM
      • Sample Rate: 32 kHz, 44.1k Hz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
      • Bit Depth: Up to 24-bit
      • Analog audio+: Balanced output: +4 dBu nominal gain, +20 dB headroom
      • Frequency response: 20 Hz to 20 kHz, ± 0.5 dB
      • Output impedance: 150 O
      • Stereo channel separation: > 90 dB
      • THD+N: < 0.03% at 20 Hz to 20 kHz
      • SNR: > 90 dB at 1 kHz, zero clipping @ 0 dBFS, unweighted

        Protocols
      • Audio Video Streaming: RTP
      • Audio Transport: AES67
      • Addressing: DHCP, static
      • Decryption: AES-128
      • Management: HTTPS, SSH, SCP, and WebSockets with TLS
      • Authentication: IEEE 802.1x: PEAP/MSCHAPv2 or EAP-TLS

        Graphics Features
      • Text Insertion: Adjustable height/width, scrolling (speed, direction, or static), iterations (up to infinite), positioning, and
      • adjustable color and alpha (transparency) channels.
      • Slate / Logo Insertion: PNG file format, adjustable aspect ratio (keep or stretch), horizontal/vertical size, screen position; slate
      • mode can be set to off, manual (image always displayed, superimposed on the source signal, and will
      • remain if source signal is lost), auto (image will only be displayed when source signal is lost).

        Connectors
      • HDMI: 1 - Type A, 19-pin, female, locking
      • ETHERNET+: 1 - RJ45, 10/100/1000 Mbps
      • RS-232 / IR: 1 - Euroblock, 6-pin (2 ports); RS-232 on port 1 and 2, IR on port 2 only
      • AUDIO: 1 - Euroblock 10-pin; AUDIO IN/OUT; accepts balanced or unbalanced line
      • Power: 1 - Euroblock, 2-pin

        Power
      • PoE: IEEE 802.3af
      • Consumption: Up to 12 W (w/o analog audio), up to 25 W (w/ analog audio)
      • External Power Supply (optional): Part number: AT-PS-48083-C
      • Input: 110 - 220 V AC, 50/60 Hz
      • Output: 48 V DC, 0.83 A
      • Safety: CE, FCC, cULus, RoHS, RCM

        Environmental
      • Operating Temperature: +14 to +122 °F (-10 to +50 °C)
      • Storage Temperature: -14 to +140 °F (-10 to +60 °C)
      • Operating Humidity (RH): 20% to 95%, non-condensing

        Chassis
      • Dimensions (H x W x D): 1.34 in x 8.19 in x 4.41 in
      • 34 mm x 208 mm x 112 mm
      • Weight: 1.5 lbs / 0.7 kg
      • Safety: CE, RoHS, FCC

    • GTIN:

      0846352005016
