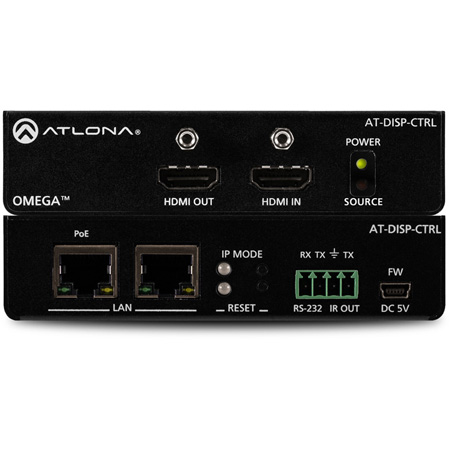

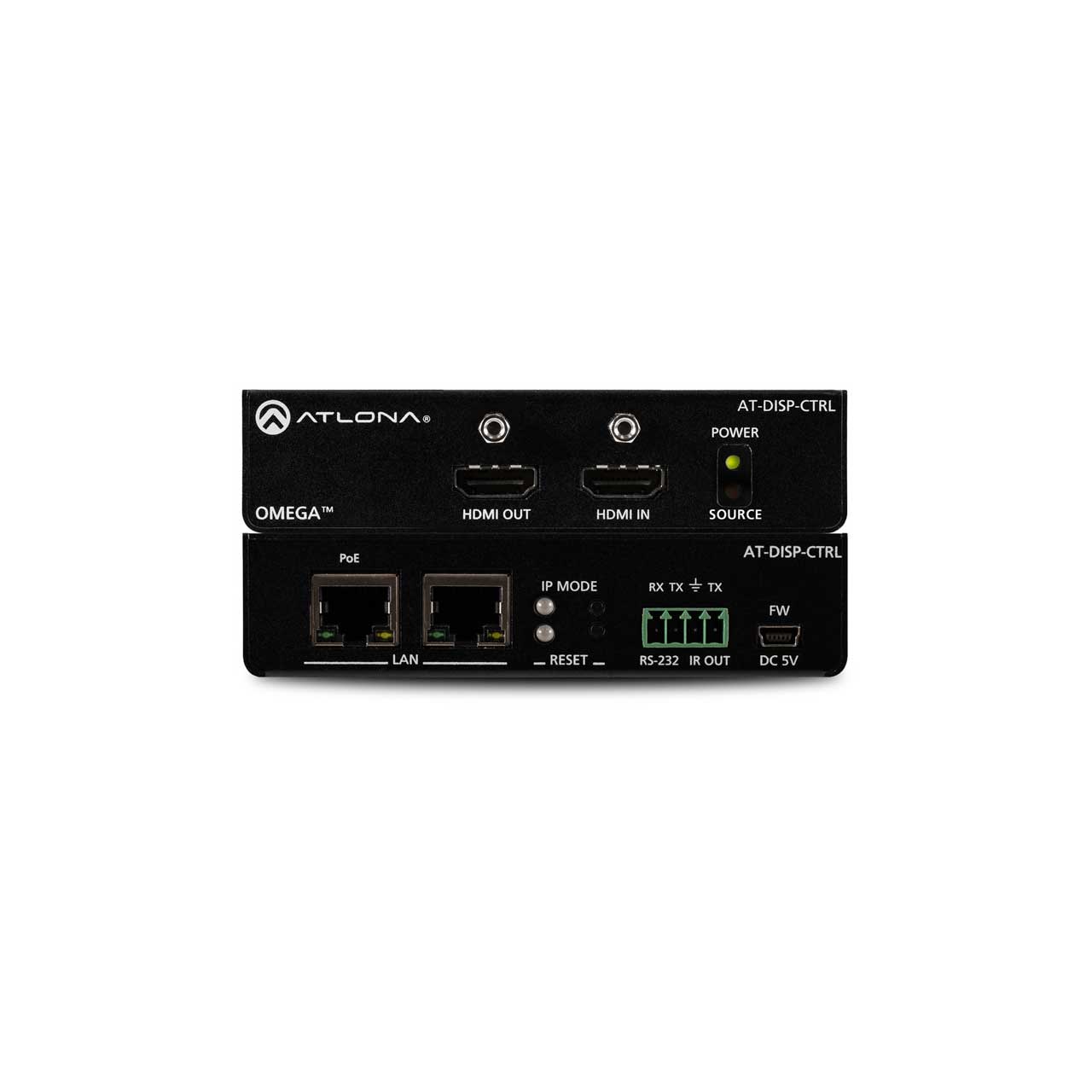

Atlona AT-DISP-CTRL 4K/UHD HDMI Display Controller

ITEM #: ATNO-AT-DISPCTRL MFG #: AT-DISPCTRL

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Our Price:

$535.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    AT-DISPCTRL - Overview

    The Atlona AT-DISP-CTRL is a compact display controller, designed for small meeting spaces and huddle rooms. The DISP-CTRL detects connection of a source device with an active signal, and then automatically sends a control command to power up a display. Similarly, when the device is disconnected, the DISP-CTRL delivers a command to power down the display. The DISP-CTRL can be configured to deliver pre-stored or user-programmed display control commands through TCP/IP, RS-232, IR, or CEC. Additionally, this controller includes EDID and HDCP management features, and can be powered locally or through Power over Ethernet (PoE). The DISP-CTRL is HDCP 2.2 compliant and supports 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling, as well as HDMI data rates up to 18 Gbps.

    The DISP-CTRL enables simple plug-and-play operation for a presenter - while eliminating the need to rely on a handheld remote control that is often misplaced or non-functional (dead batteries). The DISP-CTRL can be used on its own, or in conjunction with an HDMI switcher such as the JunoX™ 451 (AT-JUNO-451). The AT-IR-CS-TX emitter cable is available for controlling a display through IR. For additional integration convenience, the DISP-CTRL features adjustable standby and lamp cool down timer modes, TCP/IP and RS-232 control, and remote management with Atlona Management System (AMS). A comprehensive selection of display drivers from the Velocity™ Control System driver database is available for setting IR, RS-232, or IP control commands.

    Applications:
    Huddle rooms and Open Meeting Spaces
    AV System Upgrades
    Control Systems

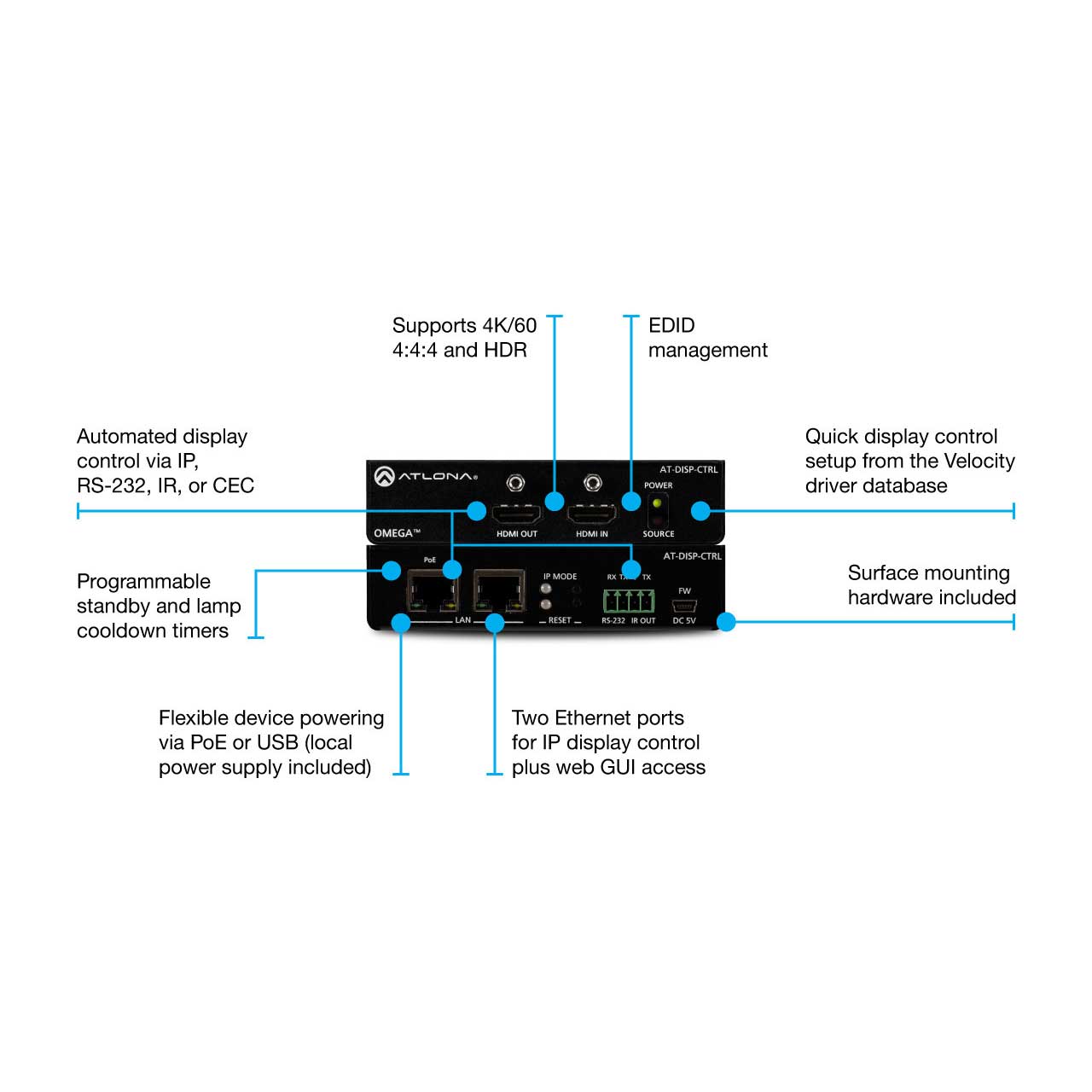

    • Features:

      • Simple, automated display control via IP, RS-232, IR, or CEC
      • Programmable display control modes
      • 4K/UHD capability @ 60 Hz with 4:4:4 chroma sampling, plus support for HDR formats
      • Local or PoE (Power over Ethernet) powering
      • Comprehensive display driver selection from the VelocityTM Control System database
      • Dual Ethernet ports and integrated network switch

    • Specifications:

      • Video
      • HDMI Specification: HDMI 2.0¹, HDCP 2.2
      • UHD/HD/SD: 4096x2160 @60²/30/25/24Hz, 3840x2160 @60²/30/25/24Hz, 1080p @ 60/59.9/50/30/29.97/25/24/23.98Hz, 1080i @60/59.94/50Hz, 720p @60/59.94/50Hz, 576p @50Hz, 576i @50Hz, 480p @60/59.96Hz, 480i @60Hz
      • VESA: 2560x1600, 2048x1536, 1920x1200, 1680x1050, 1600x1200, 1440x900, 1400x1050, 1280x1024, 1280x800, 1366x768, 1360x768, 1152x864, 1024x768, 800x600, 640x480
      • Color Space: YUV, RGB
      • Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0
      • Color Depth: 8bit, 10bit, 12bit
      • HDR: HDR10, Hybrid-Log Gamma (HLG), and Dolby® Vision™ @60Hz

        Audio
      • Pass-Through Formats: PCM, Dolby® Digital, Dolby Digital Plus™, Dolby TrueHD, Dolby Atmos®, DTS® Digital Surround™, DTS-HD Master Audio™, and DTS:X®
      • Sample Rate: 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
      • Bit Rate: 24 Mbits/s max

        Protocols
      • Supported HTTP, Telnet
      • Addressing DHCP, static

        Control
      • RS-232: Device control and configuration; Supports Baud Rates from 2400 to 115200
      • IP/IR/CEC: Device control and configuration

        Connectors
      • HDMI IN 1: Type A, 19-pin female
      • HDMI OUT 1: Type A, 19-pin female
      • LAN³ 2: RJ45, 10/100/1000 Mbps
      • RS-232 1: 3-pin captive screw (bidirectional)
      • IR OUT 1: 3.5 mm, unbalanced 2-channel
      • DC 5V 1: mini USB

        Controls and Indicators
      • IP MODE, RESET 2: momentary, tact-type
      • PWR indicator 1: LED, green
      • LINK indicator 1: LED, yellow

        Resolution/Distance (4K/UHD):
      • HDMI IN/OUT: 15' (5m)
        Resolution/Distance (1080p):
      • HDMI IN/OUT: 30' (10m)

        Signal
      • Maximum TMDS Clock: 600 MHz

      • General
      • PoE: IEEE 802.3af
      • Total Power Consumption: 5.3W
      • External Power (Optional): 5V, 500mA (USB)
      • Operating Temperature: 32 to 122°F (0 to 50°C)
      • Storage Temperature: -4 to 140°F (-20 to 60°C)
      • Operating Humidity (RH): 20% to 95%, non-condensing
      • Dimensions (HxWxD): 1.02 x 4.29 x 3.50" (26 x 109 x 89mm)
      • Weight: 0.65 lbs (0.30kg)
      • Safety: CE, FCC, RoHS
      • Notes: ¹UHDp60 only supports 4:2:0. ²18 Gbps supported for HDMI 2.0 output. ³Maximum distance per hop 330ft (100m), depending upon network configuration.

    • Item Includes:

      • 1 x Installation Guide
      • 1 x Surface Mounting Hardware
      • 1 x External Universal Power Supply

    • Warranty:

      • 10 Year Limited Product Warranty

    • GTIN:

      0846352006310
