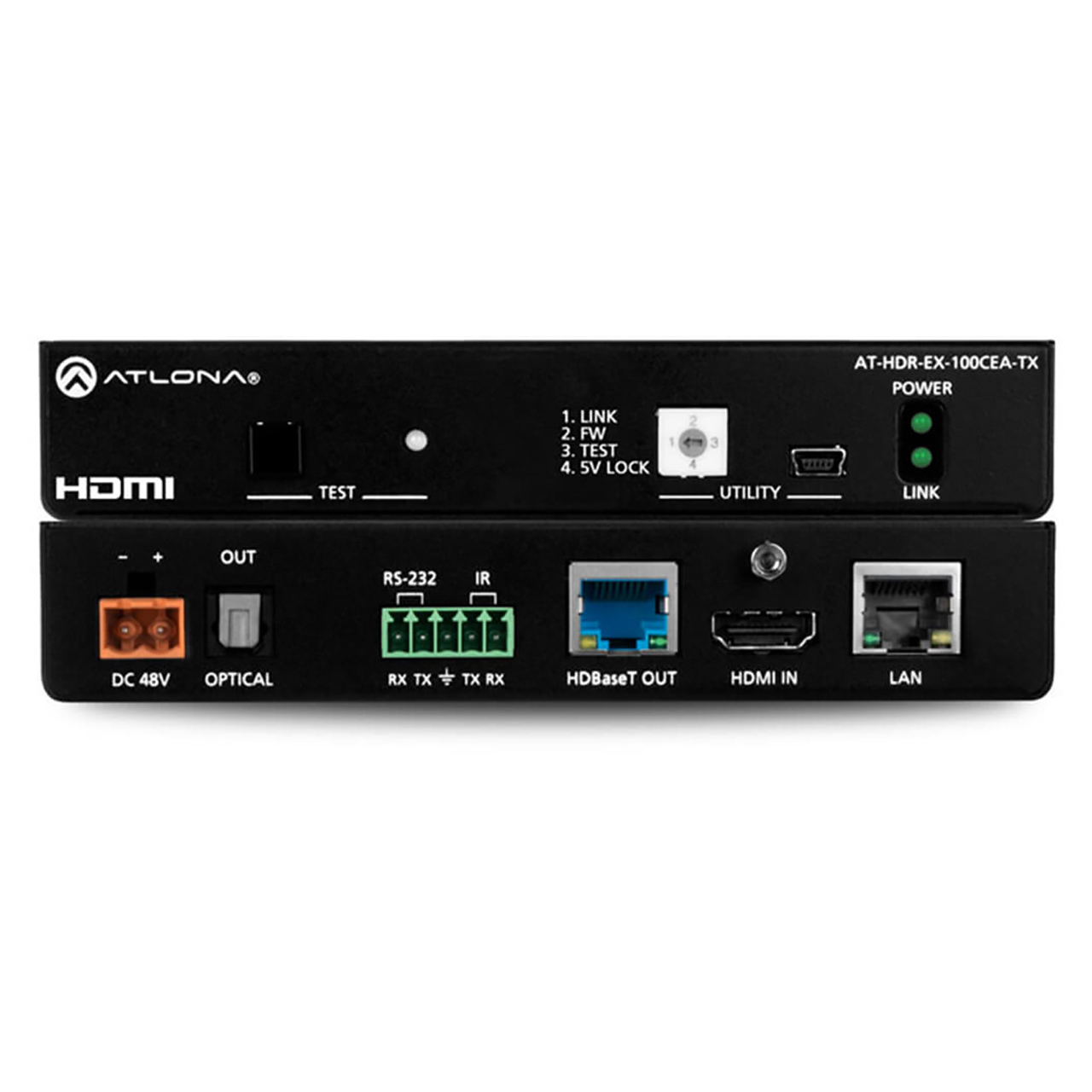

Atlona AT-HDR-EX-100CEA-TX 4K HDR HDBaseT Transmitter with Control and Ethernet

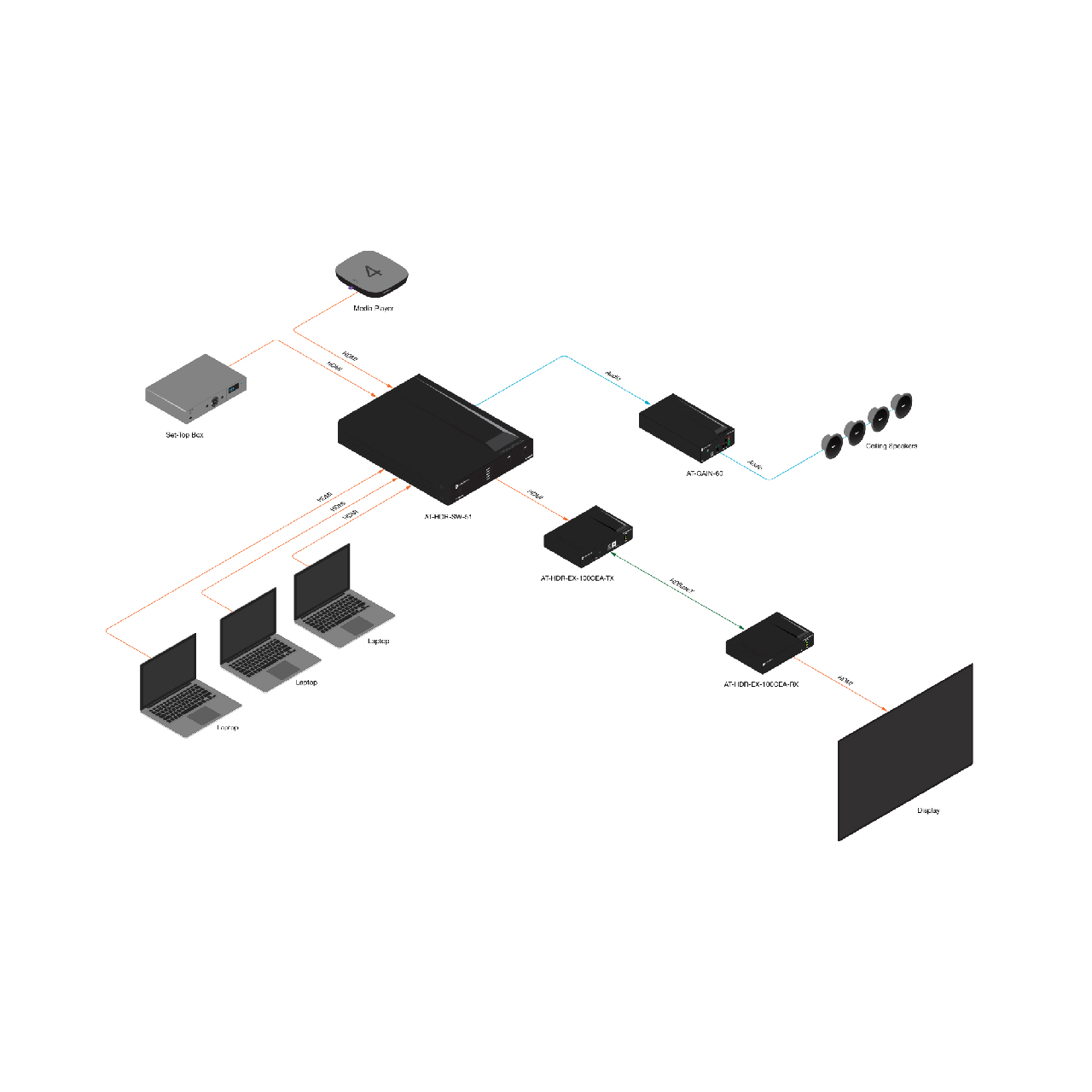

AT-HDR-EX-100CEA-TX - Overview

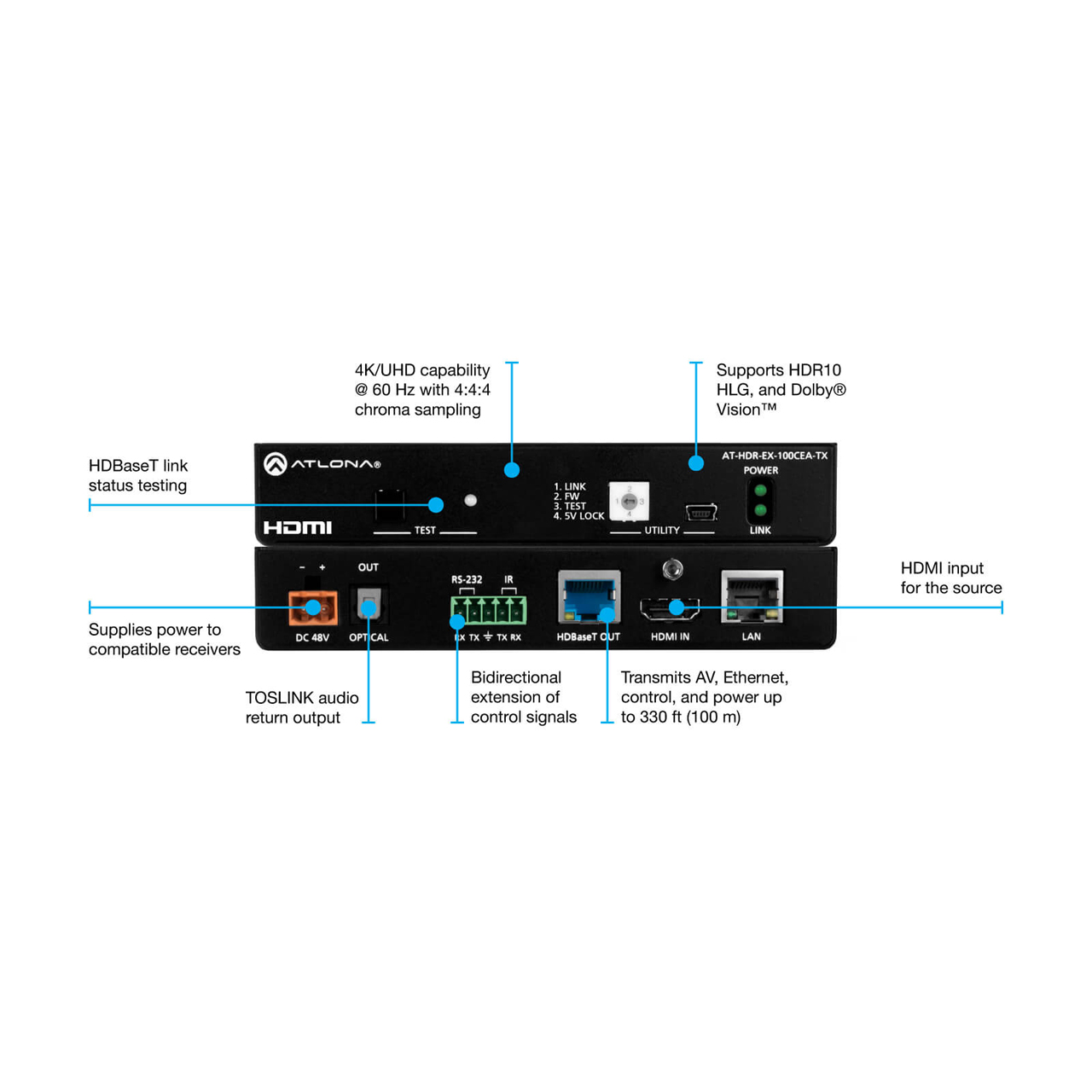

• Features:

  • 4K/UHD capability @ 60Hz with 4:4:4 chroma sampling
  • Supports HDR10, HLG, and Dolby® Vision™ HDR formats
  • Features visually lossless compression with no latency to enable HDR and 4K/60 4:4:4 video signal extension over HDBaseT
  • HDBaseT output transmits AV, Ethernet, control signals, and power up to 330ft (100m) for both 4K HDR and 1080p with Category 6/6A
  • Extends bidirectional RS-232 and IR control signals over HDBaseT
  • Provides remote power over HDBaseT to compatible receivers such as the AT-HDR-EX-100CEA-RX
  • Compliant with HDCP 2.2, the latest specification for passing protected content between devices
  • HDBaseT link status testing allows verification of cable, termination, and link quality for more reliable installations
  • Provides a TOSLINK return audio pathway from a display over HDBaseT when used with a compatible receiver such as the AT-HDR-EX-100CEA-RX
  • Front panel Power and Link status LEDs
  • Front panel USB port for firmware updates
  • Rear panel connections simplify wire management and save installation time
  • Compact enclosure can be mounted in furniture, a lectern, or an equipment rack
  • Compatible with AT-UHD-CLSO-824 and AT-UHD-SW-5000ED switchers for transmission of 4K/UHD @ 60Hz 4:2:0 signals


• Specifications:

  Video
  • Signal:
    - Input: HDMI
    - Output: HDBaseT
  • Copy Protection: HDCP 2.2
  • Pixel Clock: 600MHz
  • UHD/HD/SD:
    - 4096x2160 @ 24/25/30/50/60Hz
    - 3840x2160 @ 24/25/30/50/60Hz
    - 2048x1080p
    - 1920x1080p @ 23.98/24/25/29.97/30/50/59.94/60Hz
    - 1920x1080i @ 50/59.94/60Hz
    - 720p @ 50/59.94/60Hz
    - 720x576p
    - 720x576i
    - 720x480p
    - 720x480i
  • VESA: All resolutions are 60Hz
    - 2560x2048
    - 2560x1600
    - 2048x1536
    - 1920x1200
    - 1680x1050
    - 1600x1200
    - 1600x900
    - 1440x900
    - 1400x1050
    - 1366x768
    - 1360x768
    - 1280x1024
    - 1280x800
    - 1280x768
    - 1152x768
    - 1024x768
    - 800x600
    - 640x480
  • VESA 21:9:
    - 2560x1080 @ 30Hz 4:4:4
    - 2560x1080 @ 60Hz 4:4:4
    - 3440x1440 @ 30Hz 4:4:4
    - 3440x1440 @ 50Hz 4:4:4
    - 3840x1600 @ 30Hz 4:4:4
  • Color Space: YUV, RGB
  • Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0
  • Color Depth: 8-bit, 10-bit, 12-bit
  • HDR: Up to 4K HDR10 @ 60Hz, 4K Hybrid-Log Gamma (HLG) @ 60Hz, and 4K Dolby Vision @ 60Hz

    Audio
  • HDMI Pass-Through Formats:
    - PCM 2.0
    - LPCM 5.1
    - LPCM 7.1
    - Dolby Digital
    - Dolby Digital Plus
    - Dolby TrueHD
    - Dolby Atmos
    - DTSr Digital Surround
    - DTS-HD Master Audio
    - DTS:X
  • Bit Depth: Up to 24 bits
  • Sample Rate: 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz

    Control
  • RS-232: Pass through, up to 115200 baud
  • IR: Pass through, 30kHz to 60kHz

    Resolution/Distance
  • HDMI IN/OUT:
    - 4K/UHD: 15ft (5m)
    - 1080p: 30ft (10m)
  • CAT5e:
    - 4K/UHD: 295ft (90m)
    - 1080p: 330ft (100m)
  • CAT6/6a/7:
    - 4K/UHD: 330ft (100m)
    - 1080p: 330ft (100m)

    Buttons & Indicators
  • Buttons:
    - TEST: 1x momentary, tact-type
  • Indicators:
    - TEST: 1x LED, blue
    - POWER, LINK: 2x LED, green

    Connectors
  • HDMI IN: 1x Type A, 19-pin female
  • HDBaseT OUT: 1x RJ45
  • OPTICAL OUT: 1x TOSLINK
  • RS-232/IR: 1x 5-pin captive screw
  • UTILITY: 1x Mini-USB
  • LAN: 1x RJ45
  • DC 48V: 1x 2-pin captive screw

    Power
  • Consumption: 6.9W
  • BTU/h: 23.6
  • External Power Supply: 100V - 240V AC, 50/60Hz
  • Output: 48V/0.83A DC

    Temperature
  • Operating Temperature: 32°F - 122°F (0°C - 50°C)
  • Storage Temperature: -4°F - 140°F (-20°C - 60°C)
  • Operating Humidity (RH): 20% - 90%, non-condensing

    Physical
  • Dimensions (HxWxD): 1.02" x 5.74" x 3.74" (26mm x 146mm x 95mm)
  • Power Supply (AT-PS-48083-C): 1.42" x 1.81" x 4.41" (36mm x 46mm x 112mm)
  • Weight: 0.89lbs (0.40kg)


• Warranty:

  • 3 Year Warranty
