Atomos NINJAVCONBUN Ninja V 5-Inch 4Kp60 10bit HDR Portable Monitor/Recorder Bundle with CONNECT Network Accessory

Name: Atomos NINJAVCONBUN Ninja V 5-Inch 4Kp60 10bit HDR Portable Monitor/Recorder Bundle with CONNECT Network Accessory
Brand: Atomos
SKU: ATO-NINJAVCONBUN

ITEM #: ATO-NINJAVCONBUN MFG #: NINJAVCONBUN

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the ATO-NINJAVCONBUN

Blackmagic Design HYPERD/ST/DAHM HyperDeck Studio HD Mini 1080p60 Recorder with USB-C & Time Code GeneratorOur Price: $495.00
Blackmagic Design HYPERD/ST/DG4P HyperDeck Studio 4K Pro - Full UHD - Dual Link 12G SDI - 10G USB-C/Ethernet PortsOur Price: $1,595.00
Blackmagic Design BDLKULSDMINI4K UltraStudio 4K Mini - Portable Thunderbolt 3 Capture and Playback SolutionOur Price: $1,055.00
Blackmagic Design HYPERD/ST/DFHP HyperDeck Studio HD Pro with SD Card Support and Res/Frame RatesOur Price: $995.00

Overview

Recommended Accessories

Reviews

Attachments

Required Accessories

Recommended Accessories

NINJAVCONBUN - Overview

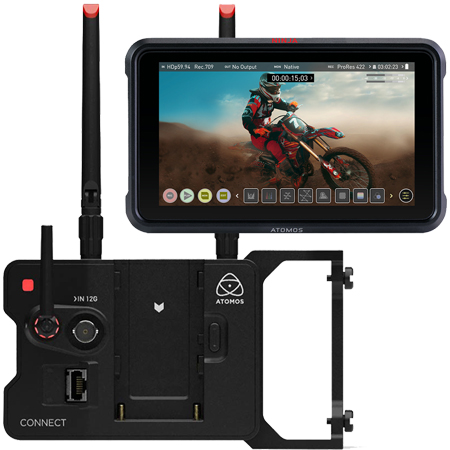

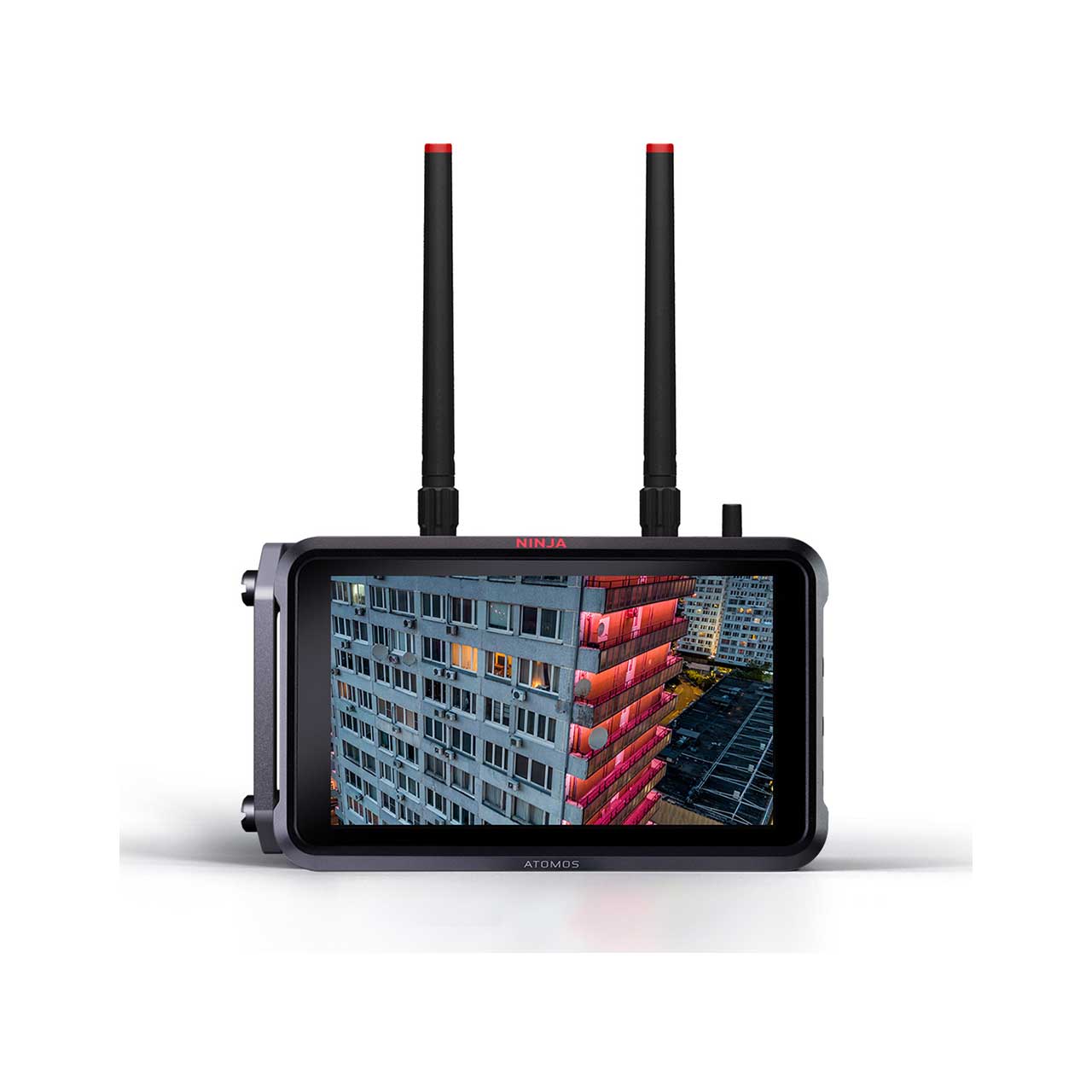

Atomos Ninja V and Atomos CONNECT Bundle - Need to Connect Your Ninja to Cloud Based Workflows?

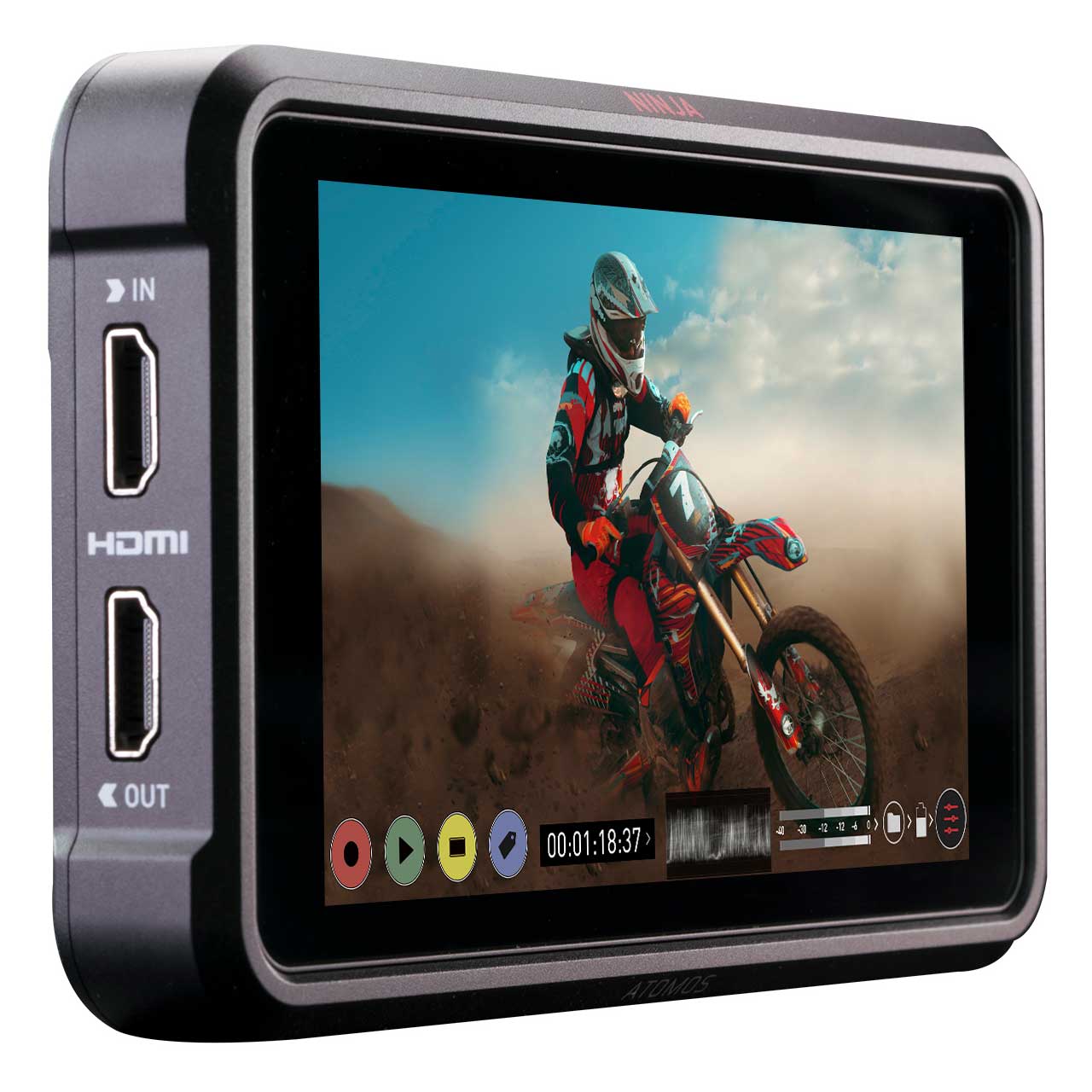

Ninja V is a small form factor, 1 in. thick 5 in. monitor recorder that offers amazing features to DSLR/Cinema users. Record up to 4Kp60 10-bit HDR video direct from your camera's sensor, over HDMI 2.0. Store edit-ready ProRes or DNxHR on affordable SSD drives and bypass your cameras internal compression and record time limits. 1TB will give you 2.5hrs 4K on tiny AtomX SSDmini

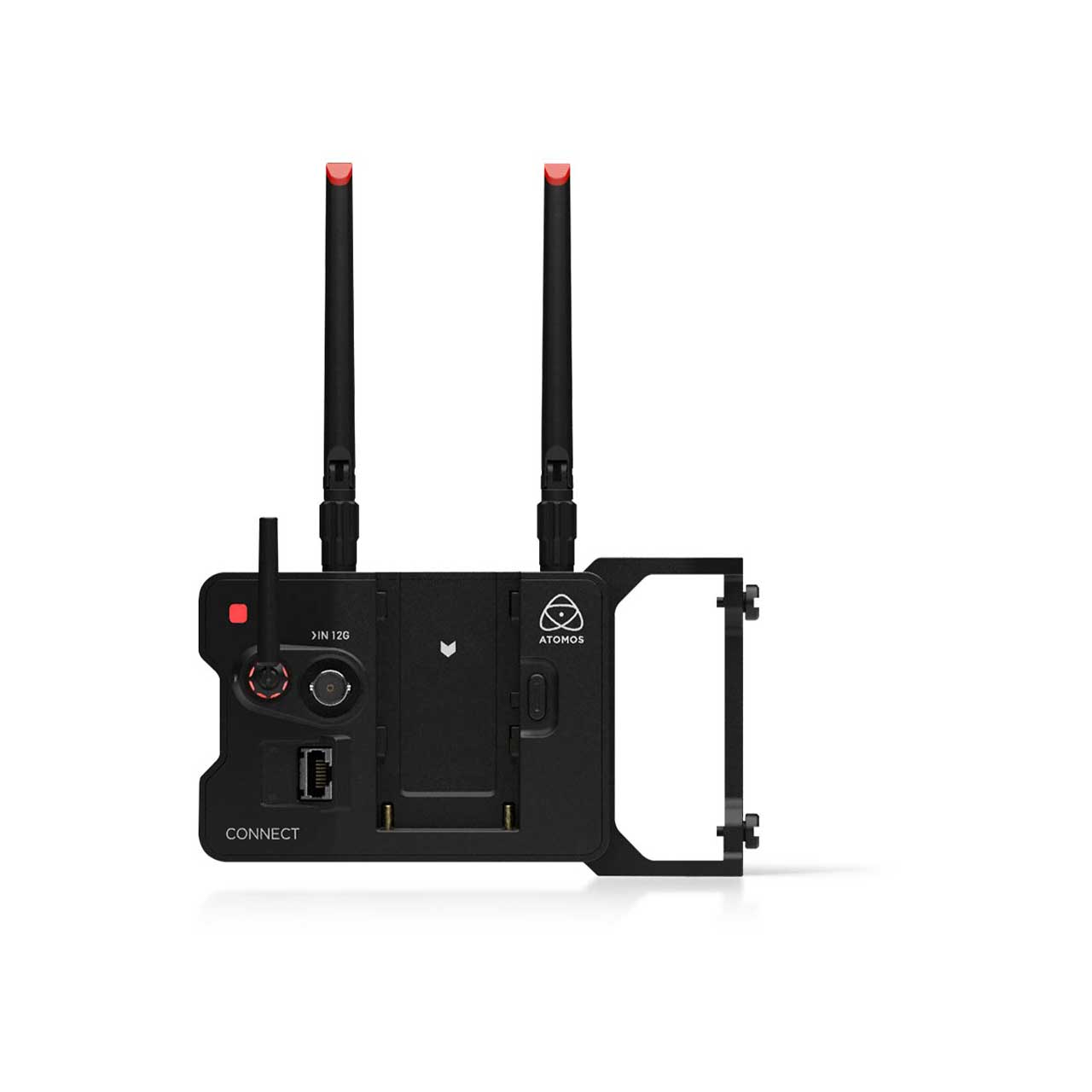

Atomos CONNECT is the ultimate accessory for the NINJA V and NINJA V+ and represents a ground-breaking innovation for the NINJA product line. The Atomos CONNECT fits to the back on the NINJA V/V+ and features a 12G SDI interface, Atomos AirGlu™ wireless timecode for seamlessly synchronizing all cameras, multiple power options to accommodate a variety of on-set scenarios, plus Wi-Fi 6, network Gigabit Ethernet, and Bluetooth LE capabilities for flexible connections. When attached to the NINJA V/ V+, the Atomos CONNECT transforms professional cinema, mirrorless, and DSLR cameras into fully integrated devices that support a range of advanced cloud-based workflows.

Features:
- Ninja V
- Compact, versatile production device for SDR/HDR monitoring and recording
- Compatible with a wide range of digital cinema, mirrorless, and DSLR cameras
- Professional video connectivity with HDMI 2.0 In/Out
- Monitor HDR and SDR sources up to 6K
- Use AtomOS software tools to perfect every shot
- Record professional formats including Apple ProRes RAW, Apple ProRes, Avid DNxHD/HR, and HEVC (H.265)
- Add ATOMOS CONNECT or AtomX CAST to introduce new functionality

  Atomos CONNECT
- Support for more camera models with 12G-SDI
- SDI input to HDMI output conversion
- WI-FI 6 and 1GbE Ethernet
- Stream to Facebook, Twitch, YouTube, and custom RTMP/S services
- Share media with Camera to Cloud
- Synchronize cameras, audio recorders, and applications with AirGlu™
- Support for AtomRemote app
- Add major features without adding significantly to the overall footprint
Specifications:
- Ninja V
- Weight: 11.28oz
- Dimensions: 6" x 3.5" x 1"
- Construction: Aluminium alloy chassis with ABS polycarbonate back plate
- Mounting Points: 1/4-20 UNC screw mount; 1x top, 1x bottom
- Operating Power: 10 - 19W
- Compatible Batteries: NP-F series and supporting accessories
- Input Voltage (Battery): 6.2V to 16.8V
- Battery Time (based on 2 x 7.4V): 5200mAh - up to 2hrs; 7800mAh - up to 3hrs
- Video Input/Loop Out: 1x HDMI (2.0); Signal - Uncompressed true 10-bit or 8-bit 422
- Video Output (Play Out): 1x HDMI (2.0); Signal - Uncompressed true 10-bit or 8-bit 422
- Audio In/Out: HDMI - 2 or 8ch 24-bit; Audio - Line in/Mic in/Headphone out 2ch 48kHz 24-bit
- Headphone Out: 3.5mm

  Touchscreen
- Size: 5 inches
- Resolution: 1920x1080
- PPI: 427
- Aspect Ratio: 16:9 native
- Color Gamut: REC709 HDTV
- LUT Support: 3D LUT
- Anamorphic De-squeeze: 2x, 1.5x, 1.33x, Panasonic 8:3
- Technology: SuperAtom IPS touch panel, calibration to Rec.709 with optional calibration unit

  Remote Start/Stop
- HDMI: Auto HDMI Trigger; Supported Protocols - Canon/Sony/Atomos Open Standard
- Other: LANC control - Slave

  HDR
- Supported Log Formats: Sony SLog2/SLog3, Canon CLog/CLog 2, Arri Log C, Panasonic Vlog, JVC JLog, Red LogFilm
- HDR Recording (Gamut): Sony SLog/SLog2/SLog3, Canon CLog/CLog2/CLog3/Arri Log CEI160/LogCEI200/LogCEI250/LogCEI320/LogCEI400/LogCEI500/LogCEI640/LogCEI800/LogCEI1000/LogCEI1280/LogCEI1600, Panasonic Vlog, JVC JLog1, Red LogFilm/Log3G10/Log3G12, FujiFilm Flog, PQ10k, HLG
- HDR Monitoring (Gamma): Sony SGamut/SGamut3/SGamut3.cine/BT2020/Canon Cinema/ DCI P3/DCI P3+/BT2020/Panasonic V Gamut/Arri Alexa Wide Gamut/Rec709/JVC LS300/Red DragonColor/DragonColor2/RedColor2/RedColor3/RedColor4/RedWideGamut
- HDR Monitoring (Gamut): Wide Color Gamut mapping to Rec709 on screen Wide Color Gamut mapping to Rec709/BT2020 / DCI P3 on loop out
- Bit Depth: 10-bit
- Brightness: 1000nit

  Recording
- Pre-roll Record: Yes
- Supported Media: 2.5" SSD/HDD compatibility depends on recording format, resolution and frame rate
- Master Caddy Case: Master Caddy II 3" x 4" x 0.5"
- Master Caddy Dock: 2.5" SATA to USB 2.0/3.0
- Supported applications: Supported Applications FCPX/FCP7+/Media Composer 5.0+/Premiere 5.5+ EDIUS 6.0+/Vegas Pro 10+/Lightworks/Autodesk Smoke 2015
- XML Support: FCPX XML native, FCPX/Adobe limited supported with 3rd party conversion tools

  CONNECT Network Accessory
  Construction & Control
- Body: ABS Polycarbonate
- Tally light: Yes

  Power
- Input voltage range: 6.2 - 16.8v
- Compatible batteries: NP-F/L-Series
- DC in connector: via locking DC Jack on Battery Eliminator
- D-Tap: Via optional D-Tap to DC cable

  Video Input
- SDI in
- 1 x 12G SDI
- SDI RAW
- Optional Upgrade Activation - Resolutions & Frame rate Support is NINJA Dependant

  Network
- Ethernet: 1GbE RJ45
- WI-FI: WI-FI 6
- Wireless RF: AirGlu SYNC Time code Network
- Cellular: Connect to Hot Spot via Wi-Fi

  Web Streaming
- RTMP: Yes
- RTMP / S: Yes

  Video Signal Conversion
- HDMI to SDI: No
- SDI to HDMI: Yes

  Timecode / Sync
- SDI Embedded: Embedded
- Wireless SYNC: AirGlu SYNC Time code Network
- RF Network range: 300m
- RF Frequency: Region dependant
- Number of Channels: 12 RF Channels per Region
- Number of RF clients: 100 clients
- Bluetooth Network Range: 10-15m
- Number of BT clients: 6 clients
- LTC: No

  Remote control
- Bluetooth LE
- via AtomControl App for Monitor Assist Tools
Item Includes:
- 1x Ninja V
- 1x Battery eliminator
- 1x International DC power supply
- 1x Master Caddy II
- 1x ATOMOS CONNECT
- 1x AtomX SSDmini Handle
- 1x MasterCaddy III with screws
- 1x Wifi Antenna with Black caps
- 1x RF antenna, Antenna storage Pouch
- 1x 3.5mm audio jack to jack cable
- 1x Antenna colored caps
- 1x Antenna mount covers
