Live Multi-Camera Monitoring, Quad-Channel Switching & Routing

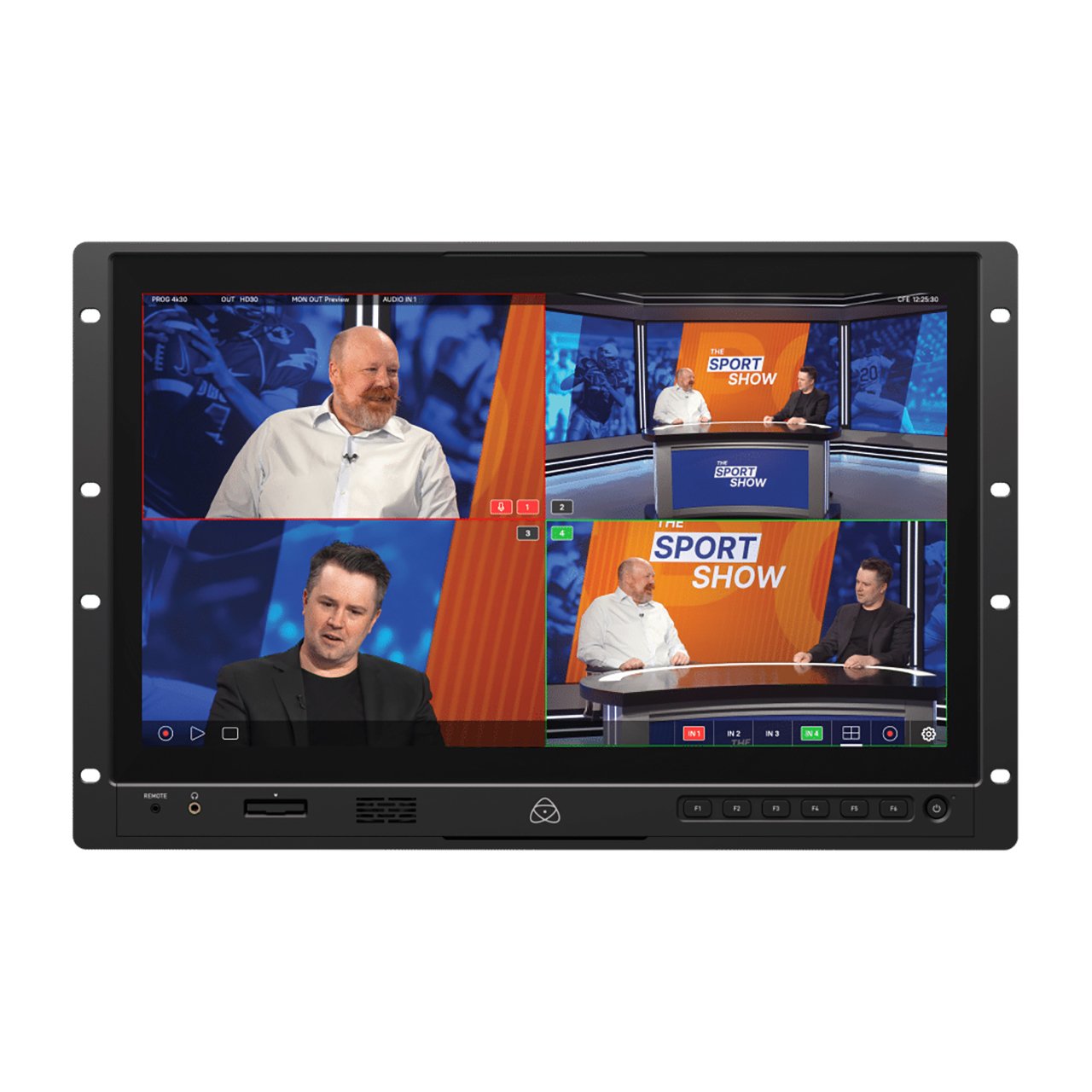

Atomos Shogun AV-19 confidently manages complex productions with a large, color-accurate 4K HDR DCI-P3 display that's ideal for directors, technical directors, and camera operators. It's also a live switcher, capable of playing and recording up to four ISO camera feeds, plus a fifth program channel, all while cueing and switching in real-time.
Reliable 4K Confidence Monitoring

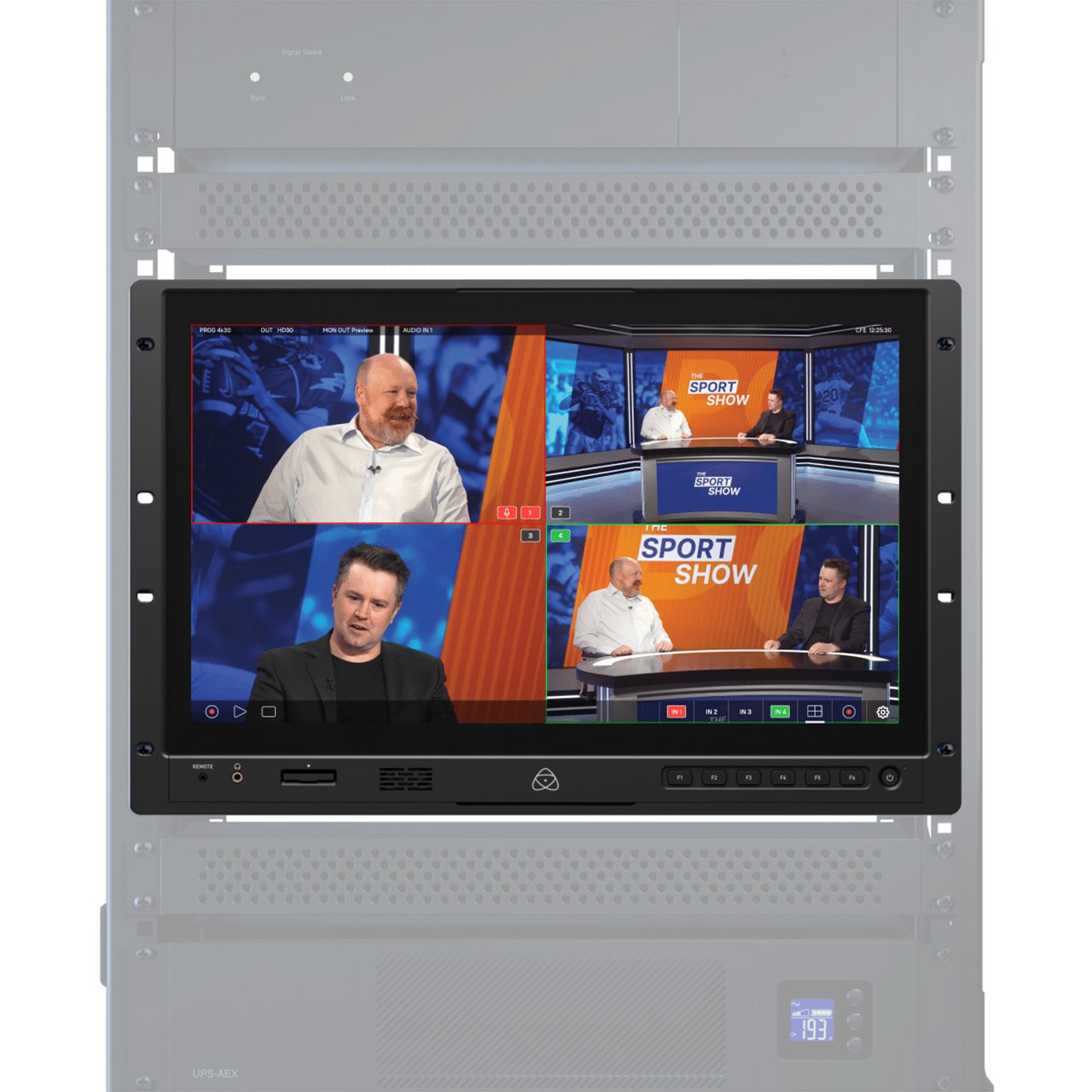

Bright, 19-inch display with comprehensive monitoring tools including EL Zone™ false color, focus peaking, waveform & more. Rugged build and 19-inch rack-ready form factor make Shogun AV-19 the ideal production monitor for both studio and outside broadcasts. Provides directors, clients, and talent with an on-set viewing station for rapid decision-making.
10-bit Industry-Standard Codecs, CFexpress and More!
Record Apple ProRes, ProRes RAW or Avid DNx from SDI or HDMI sources, for immediate post-event turnaround. Record up to 10-bit, 4:2:2 in Apple ProRes, ProRes RAW or Avid DNx codecs. Choose to record to either CFexpress* card internally or to external USB-C media*.
*Storage media purchased separately. Minimum performance / certification requirements apply.

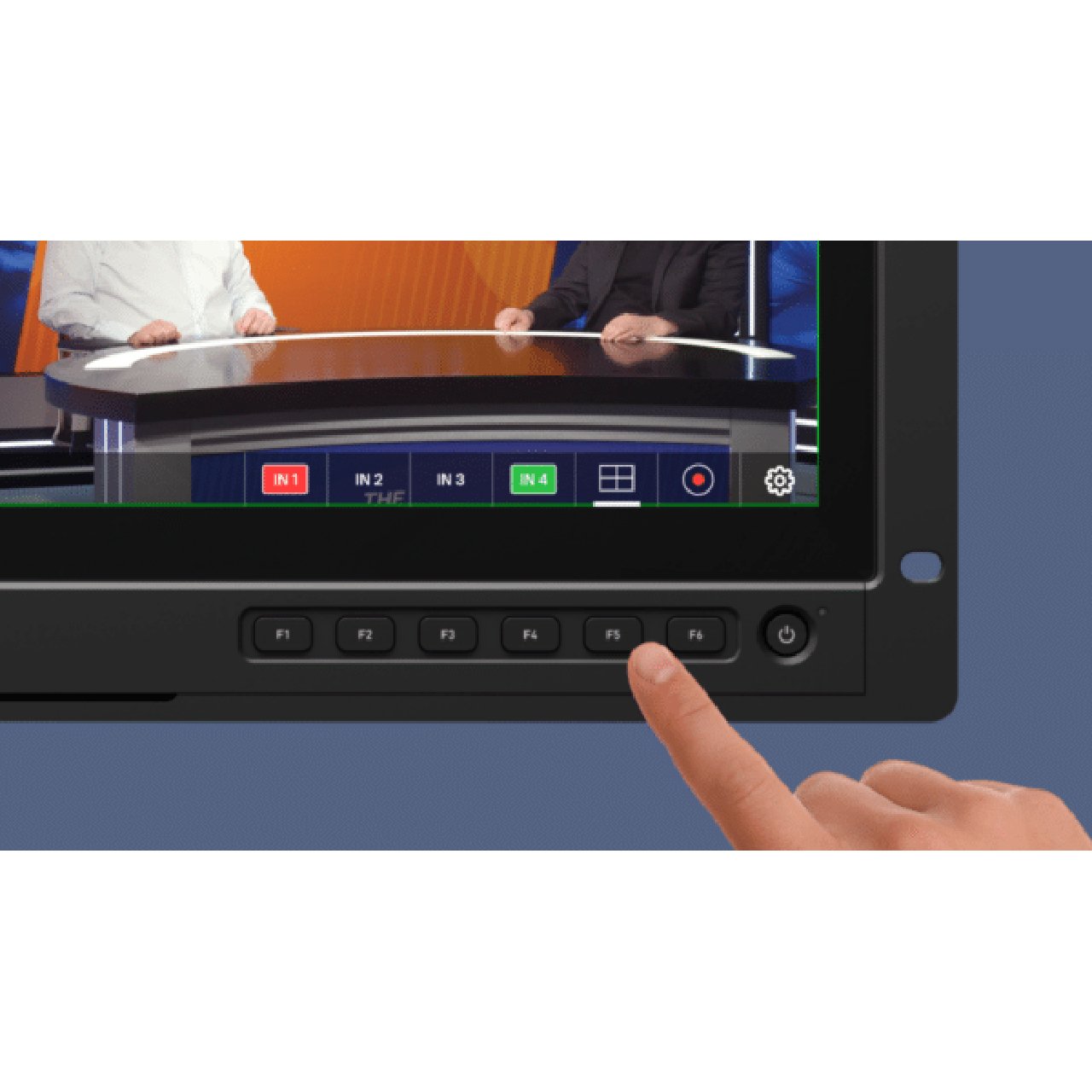

User-Definable Function Buttons
Get instant access to up to six frequently-used features - for example monitoring tools, playback modes, LUTs, anamorphic desqueeze - at the touch of a button. Turns the Shogun AV-19 into a professional control surface, optimized for speed, reliability, and personalized workflows in real production conditions.
Professional Monitoring Tools
Shogun AV-19 offers a comprehensive suite of simple, one-touch monitoring tools for focus, framing, and exposure, including focus peaking, zoom (2:1, 1:1), zebras, false color (including ARRI and EL Zone™), frame guides, SMPTE safe areas, grid markers, waveforms, an RGB parade, vectorscope, and flexible 3D/1D LUT support with profile and preset options.
Shogun AV-19 receives LOG signals from the camera and offers real-time LUT (Look-Up Table) preview to approximate what the final graded image will look like in Rec.709 - all while recording in high-quality ProRes, DNxHR, or ProRes RAW. Custom LUTs (.cube files) can be loaded from the CFexpress card or SSD and used in conjunction with the Shogun's built-in monitoring tools for precise exposure control.

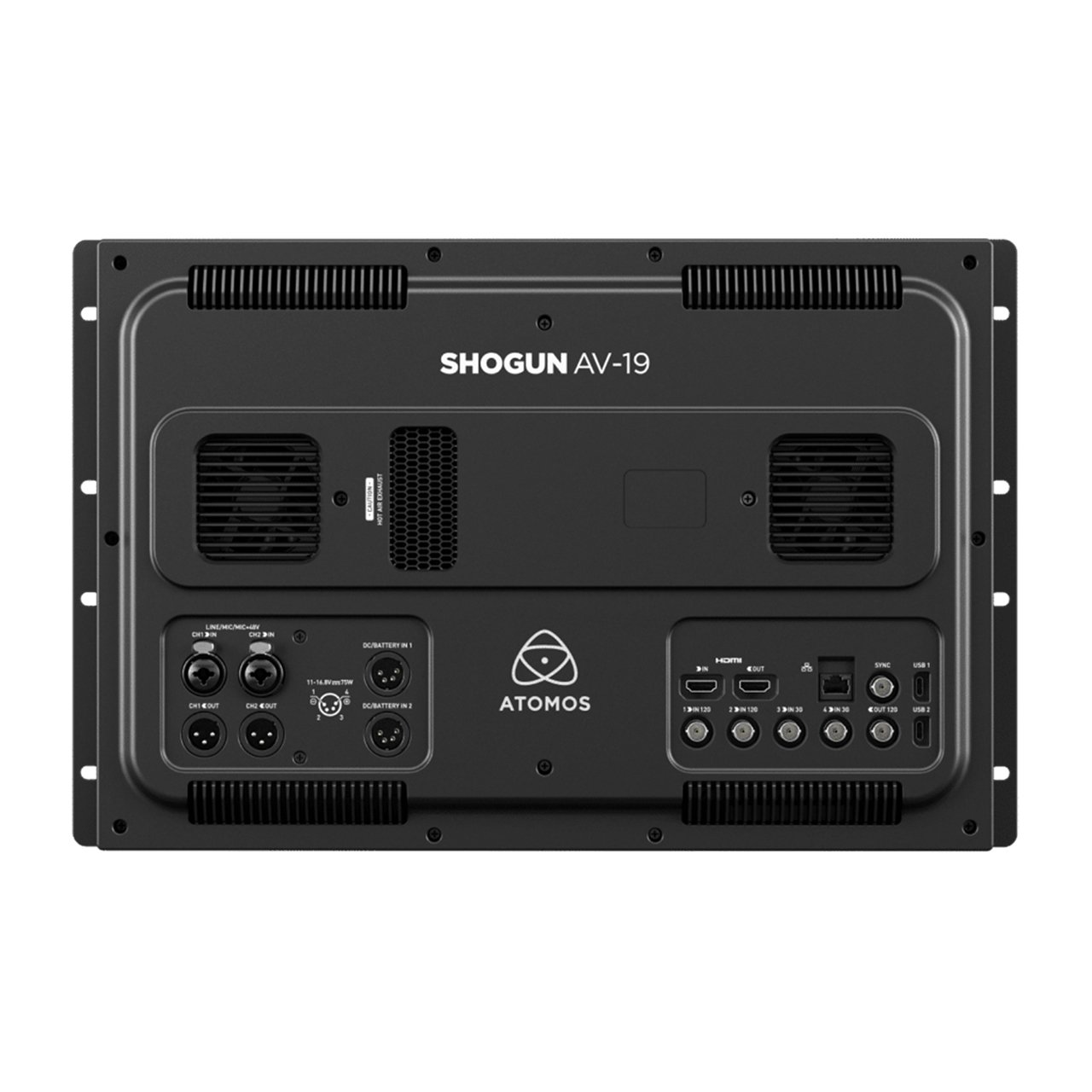

Ultimate Connectivity
Shogun AV-19 supports demanding production workflows with comprehensive SDI and HDMI I/O, audio connectivity, timecode, and power options.

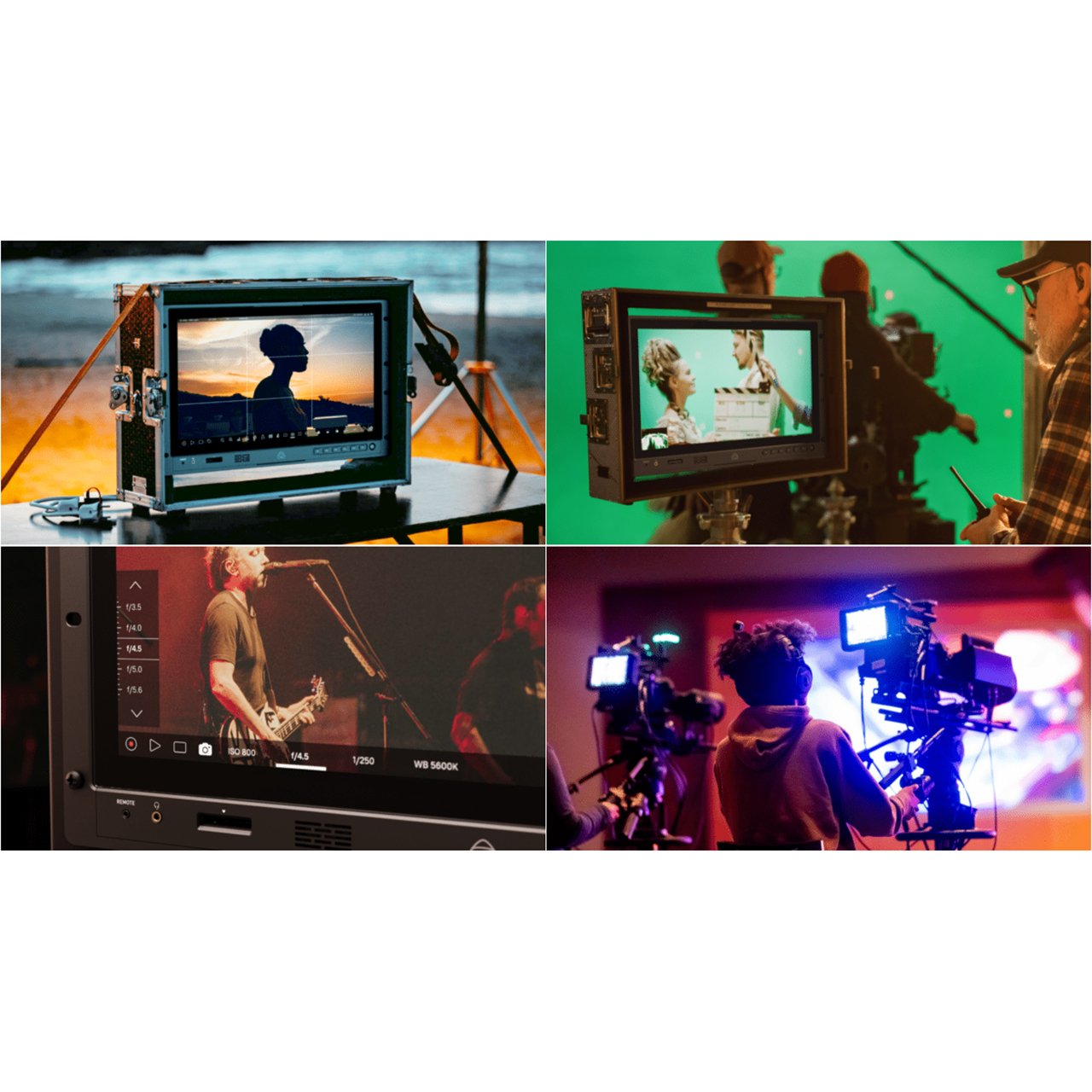

Applications:
•Events
•On Set
•Control Rooms
