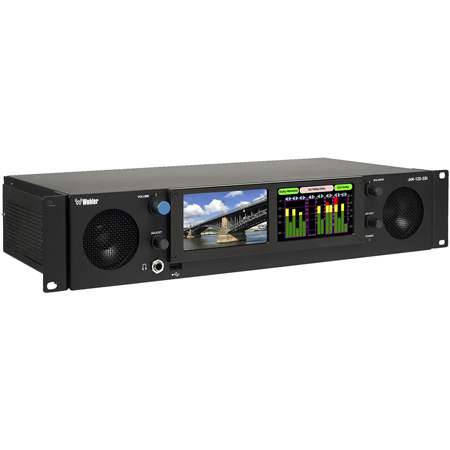

Wohler iAM-12G-SDI 2 RU Audio/Video Monitoring and Metering with 2x 12G SDI on BNC and Loudness/Phase Monitoring


Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Our Price:


Availability: Extended Lead Time. Email, Chat or Call Us for more details.
iAvailability Description Popup

    IAM-12G-SDI - Overview

    Wohler Technologies is extending its ground breaking iAM Series of products with a multi-channel audio and 12G video monitor that accepts 2 x 12G/3G/HD/SD-SDI signals over BNC. 4 SFP cages allow for a variety of additional monitoring options, including 2110, 2022-6, as well as additional SDI inputs in a variety of combinations. Their Dolby® ATMOS option allows decoding of Dolby® Atmos content, along with the familiar Dolby® D, Dolby® D+, and Dolby® E content.

    Flexible. Adaptable. Future Proof.
    The iAM-12G-SDI is designed to be easy to operate, yet powerful enough to provide high quality, accessible and easy to use monitoring of the newest signals (12G, 2110, 2022-6) within a compact form factor. Incorporating the latest technology,

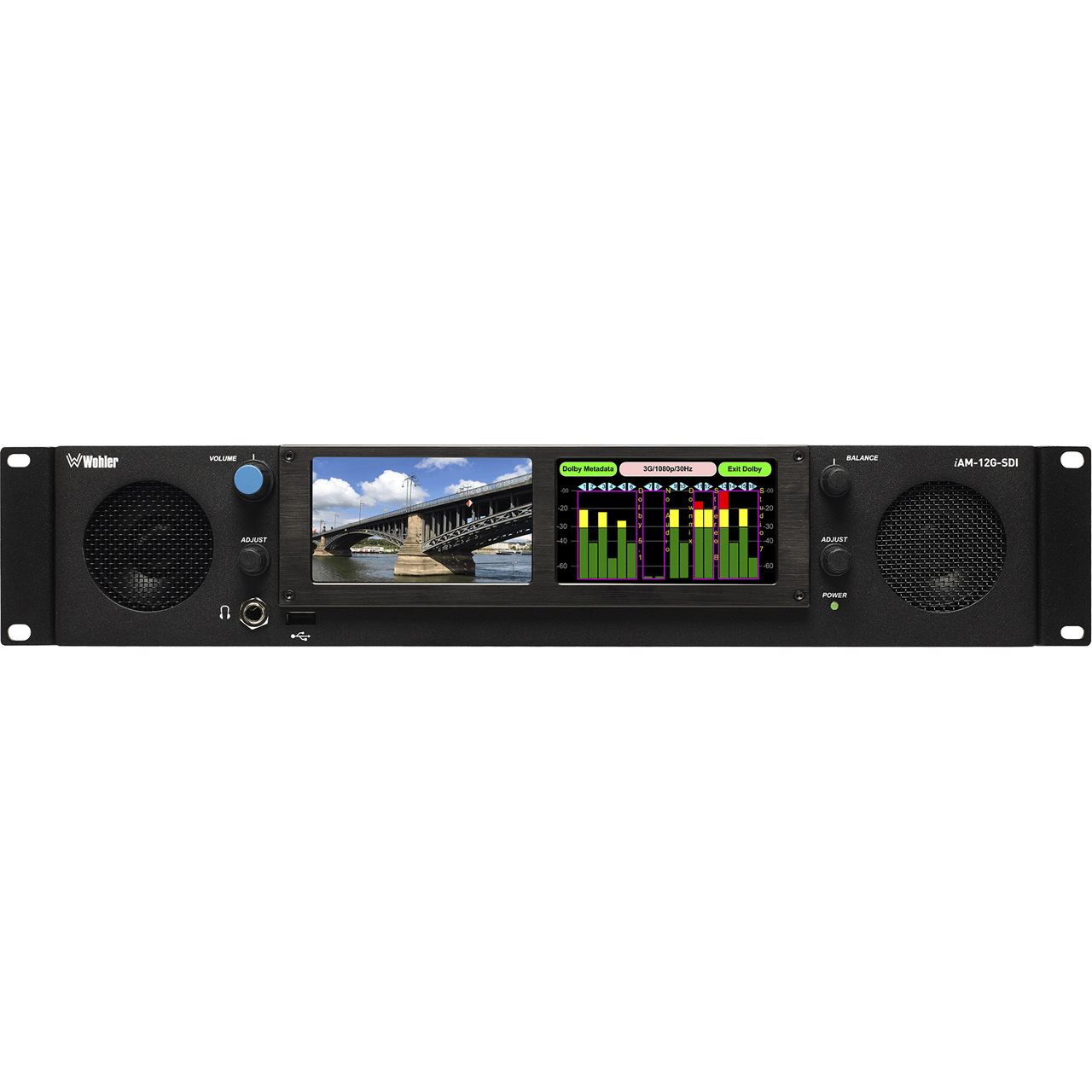

    Physical and touch screen front panel controls duplicate previous mature design philosophies of shipping iAM Series units. With both front mounting speakers and sub-woofers, the iAM-12G-SDI provides the powerful sound output and audio reproduction that Wohler is well known for.

    A front mounting USB port is available for simple software updates. Multiple units on the same network can be updated, monitored and controlled via a browser-based user interface that supports fast configuration with authentication that protects critical configurations from unauthorized alteration.

    The iAM-12G-SDI has options for VoIP formats including SMPTE 2022-6, 3G/HD/SD-SDI, and a growing range of additional I/O options via SFP interfaces. Refer to the Specifications section of this manual or contact Wohler Sales for more information.

    The iAM-12G-SDI is compact and simple to operate. It has touch screen LCD displays providing high resolution meters, menus and basic monitoring controls. Any channel (or group of up to 16 channels that are clustered together) from any source stream may be audibly monitored and summed with the other selected channels to provide flexible monitoring capabilities. Setups are created and configured using a web browser over a network connection to the integral web server of the iAM-12G-SDI.

    Each iAM-12G-SDI can be configured with Presets, which are complete monitoring configurations. Very little about the configurations of those predefined setups can be changed from the front panel. This prevents less experienced or hurried operators from making accidental setup changes that could compromise their usage of the unit. It also reduces operator training to a minimum.

    • Features:

      • 2 x 12G (4K) SDI inputs on BNC that also monitor 3G/HD/SD-SDI signals as well
      • 4 x SFP cages allowing a range of optional connectors and signal processing options fully listed in the table below
      • Optional Dolbyr Atmos that also decodes Dolby D, D+ and E streams for playback, metering and metadata.
      • Touch screen front panel for easy, intuitive control
      • Video monitoring and audio monitoring of up to 16 channels of audio from multiple sources
      • Built-in speakers, headphone jack, USB and Ethernet ports
      • Store and retrieve presets via USB or remote software control
      • Software upgradeable via USB or network, upgrade multiple units at once
      • APIs for remote control.
    • Specifications:

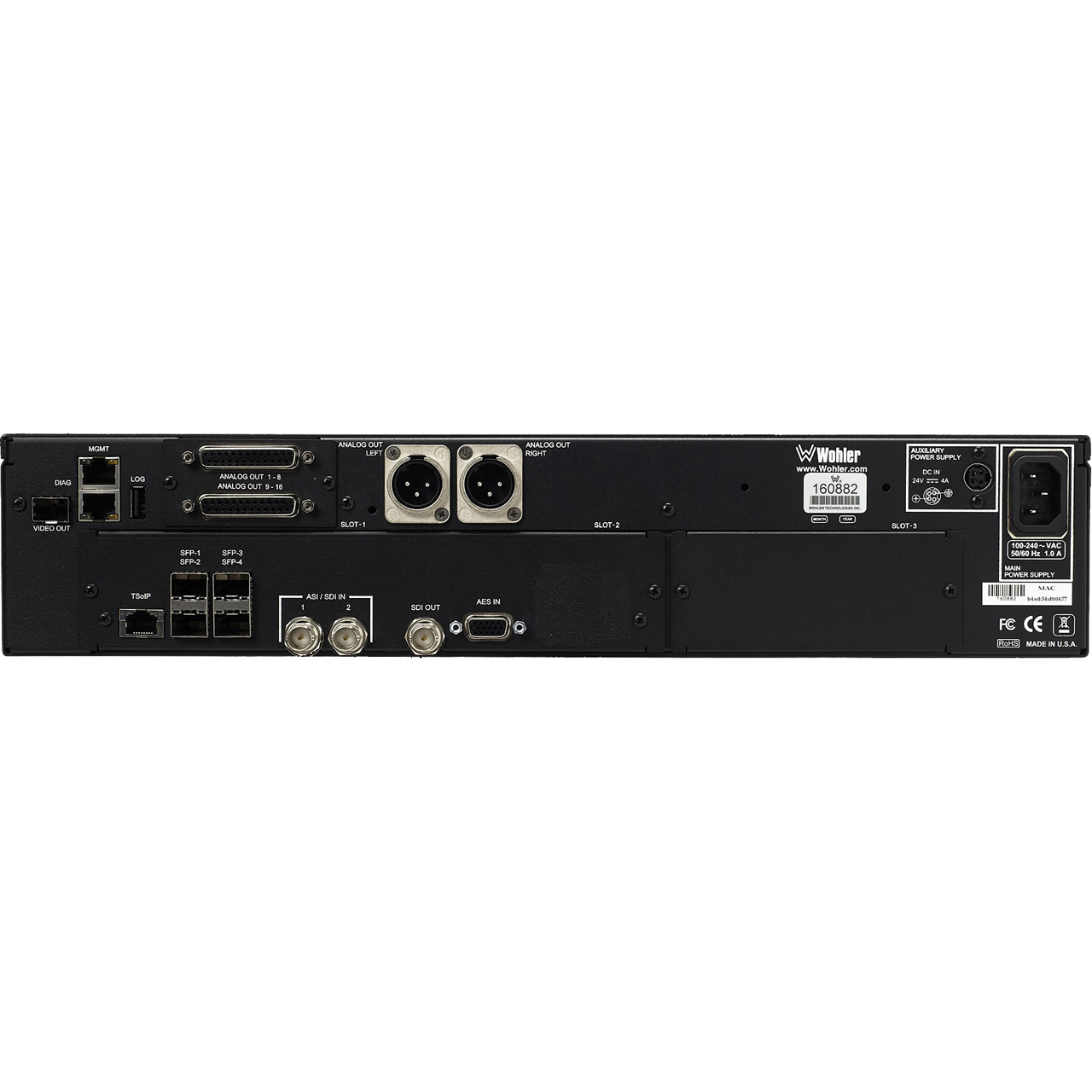

      • Signal I/O
      • 12G-SDI Input - 2 x 12G SDI Inputs (3G/HD/SD-SDI also supported); Option: SFP-SDI (829089): 3G/HD/SD-SDI single video receiver w/ active loopback, HD-BNC
      • 12G-SDI Output - 1 x 12 SDI Output of Selected Source (3G/HD/SD-SDI also supported); Option: SFP-SDI (829089): 3G/HD/SD-SDI single video receiver w/ active loopback, HD-BNC
      • AES3 Input - 8 Channels on HD-15
      • Analog Output - 2 Channels of monitored output on XLR; 16 Channels on 2 x DB-25
      • HDMI Output - Options: SFP-HDMI-Output (829155): SDI to HDMI/DVI Converter
      • Dolby AC-3 Input - OPT-DOLBY (829077): Enables decoding and monitoring of Dolby D, DD+, and E Streams
      • Dolby D Input - OPT-DOLBY (829077): Enables decoding and monitoring of Dolby D, DD+, and E Streams
      • Dolby DD+ Input - OPT-DOLBY (829077): Enables decoding and monitoring of Dolby D, DD+, and E Streams
      • Dolby E Input - OPT-DOLBY (829077): Enables decoding and monitoring of Dolby D, DD+, and E Streams
      • Fiber Input - Option: SFP-SDI-Fiber (829084): 3G/HD/SD-SDI video SFP optical input: LC (fiber) connectors; Single-Mode receiver, Medium Haul, non-MSA, no output; with software activation key
      • SMPTE 2022 Input - Option: SFP-2022 (829088): SMPTE 2022-6 receiver, Multi-Mode 850NM, LC (fiber) Connectors; SFP module with software activation key
      • Data Ports - 1 Ethernet port for configuration/control of unit via remote GUI

      • Frequency Response: 60 Hz - 16 kHz (+/-5 dB); (-10 dB @ 50 Hz, 20 kHz)
      • Hum and Noise: Better than -75 dB below full output
      • Meter Dynamics: Simultaneous VU & PPM
      • Meter Scale: Simultaneous VU & PPM
      • Peak Acoustic Output @ 2 feet: 104 dB SPL @ 2 ft
      • Power Output: RMS Each Side: 15W Continuous/30W Peak

      • Diagonal Display Size: 4.3" (109 mm)
      • Display Resolution (HxV): 480H x 272V
      • Display Type: LCD Touchscreen
      • Number of screens: 1 Video; 1 Graphics

      • Front Panel Controls: Volume Encoder; Balance Encoder; On Screen Touch Display; Channel Solo Select
      • SFP Cages: 4
      • Rack Height: 2RU
      • Dimension (W x H x D): 19.0" x 3.5" x 8.75" (483 mm x 89 mm x 222 mm)
      • Speakers: Yes
      • Net Weight: 8.0 lbs (3.6 kg)
      • Shipping Weight: 10.0 lbs (4.5 kg)
      • Power Consumption: 40 Watts typical
      • Power Supply: External 18VDC to 100-240 VAC ± 10%, 50/60 Hz,CE & UL approved.
    • Item Includes:

      • 1x Wohler iAM-12G-SDI 2 RU Audio/Video Monitoring & Metering with 2x 12G SDI on BNC & Loudness/Phase Monitoring
