Atomos Shogun Ultra 7-Inch HDR Monitor-Recorder 8K RAW for Mirrorless and SDI Cinematic Cameras

ITEM #: ATO-SHOGUNULTRA MFG #: SHOGUNULTRA

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$1,199.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    SHOGUNULTRA - Overview

    Shogun Ultra is everything you'd expect from a Shogun: perfect for larger HDMI mirrorless and SDI cinematic cameras and with network connectivity built-in. It's also your gateway to amazingly fast and productive cloud workflows. Shogun Ultra is Peak Shogun. Opening up a host of ultra-efficient cloud workflows, including dual record ProRes RAW/H.265 for Camera to Cloud, automated matching filenames with popular cinematic cameras and 4K H.265 for instant publishing from the cloud. Atomos' close partnerships with major camera manufacturers ensure that Shogun Ultra works flawlessly with an increasing range of DSLR, mirrorless and cinematic cameras. Shogun Ultra is a leap forward in filmaking technology that captures your vision in ProRes RAW up to 8K 30P, 6K 60P & 4K 120P with full codec flexibility choice between ProRes RAW, ProRes, DNxHD & H.265 (HEVC).

    Shogun Ultra has two faces: Local and Cloud. Use it conventionally, and you have an incredible HDR screen, new monitoring tools and both HDMI and 12G SDI. Turn on its wireless and network capabilities, and you have the best-of-breed Wi-Fi, Ethernet and AirGlu wireless sync technology - and you have access to new and productive cloud workflows like camera to cloud and Atomos Edit. You can even edit your project in the cloud and publish directly to social media within minutes of shooting the action.

    Shogun Ultra has been built with a new operating system AtomOS 11 that host new and exclusive monitoring and recording features that bring creativity to live in every project, from cinematic to social media. RecordAssist and PlayBackAssist cover pre-arranged or remote shots , while improved false color tools like Arri False Color or EL Zone system fit with today's creators needs. It opens up ultra-efficient cloud workflows, including dual record ProRes RAW/H.265 for Camera to Cloud and 4K H.265 for instant publishing from the cloud, and the SDI Cine feature for automated matching filenames, timecode and record trigger from ARRI, Canon, RED and Sony SDI cameras.

    Share what's on your Atomos screen with other Atomos OS11 users, iPads, Macs and Apple TVs wirelessly in the same premises or anywhere in the world with full audio communication between devices in the included feature Atomos RemoteView. These new features bring even more versatility to the Shogun Ultra, providing professional I/O options for a multitude of cameras 12G-SDI, AirGlu wireless timecode and control and up to 4K NDI- from entry level mirrorless cameras through to the latest compact cinema and high-end professional cameras. Shogun Ultra supports WiFi 6E that boosts cloud video workflows offering more a stable conection.

    • Features:

      • 7-inch 2000nit monitor-recorder
      • Capture in ProRes RAW up to 8K 30P, 6K 60P & 4K 120P
      • Flexible codec choice - ProRes RAW, ProRes, DNxHD & H.265 (HEVC)
      • New AtomOS 11 improves memory management, boosts responsiveness, and unleashes new features

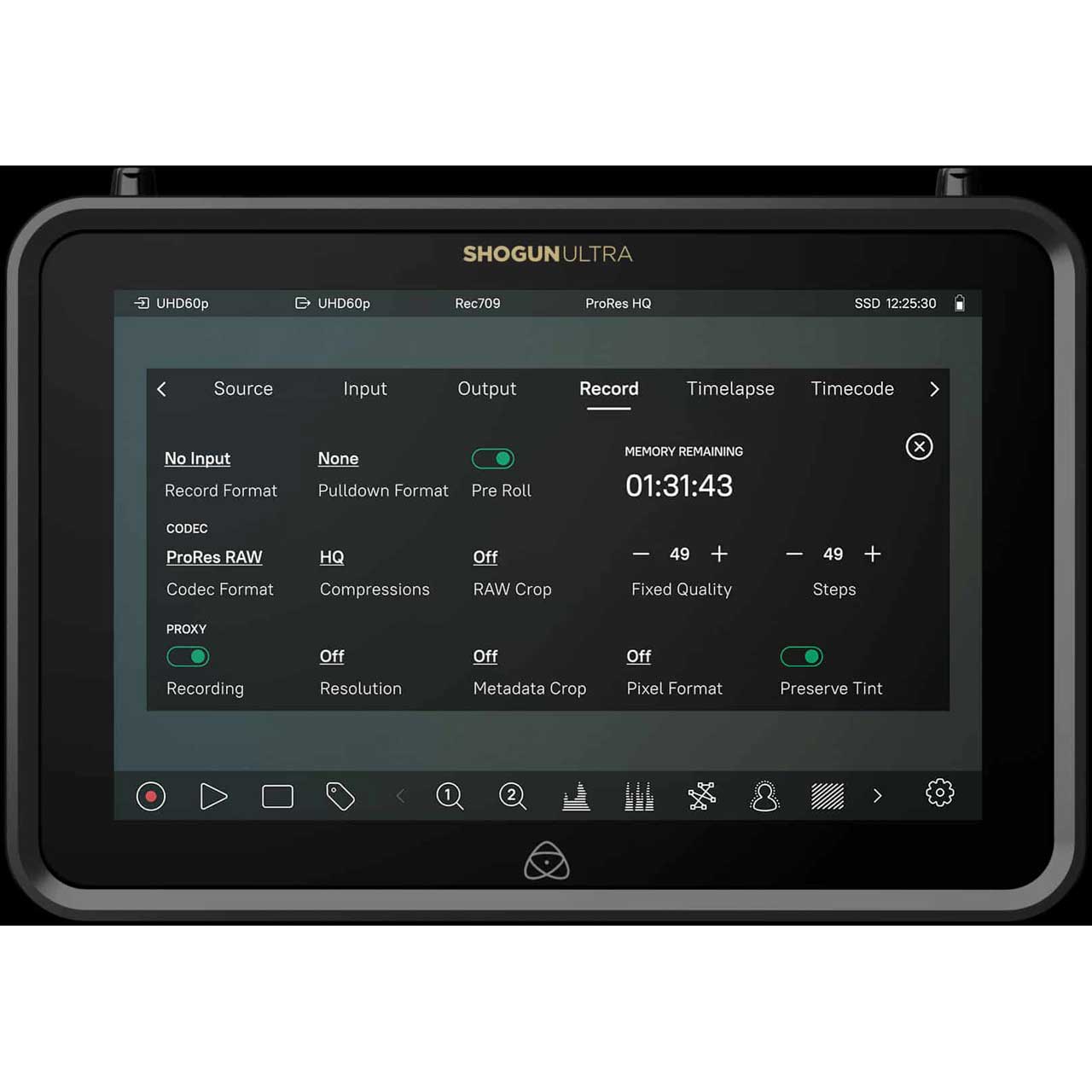

      • New monitoring tools to arrange in advance recording and playback with RecordAssist and PlayBackAssist.
      • Additional advanced industry leading suite of monitoring tools with one-touch operation like SegmentPro, EL Zone System, ARRI False color added in combination with other monitoring tools like Vectorscopes, Zebra, Atomos False Color, Onion Skin, etc.
      • 12G SDI INÿand OUT and HDMI IN and OUT
      • Bi-directional HDMI<=>SDI input conversion with simultaneous SDI & HDMI outputs
      • Long range ATOMOS AirGlu™ sync technology for wireless timecode via RF and Bluetooth LE
      • Connectivity to Atomos Cloud Studio gateway of services
      • Dual RAW record for Camera to Cloud workflows - capture up to 4Kp60 ProRes RAW & HDp60 H.265 simultaneously
      • SDI Cine new feature for automated matching filenames, timecode and record trigger from ARRI, Canon, RED and Sony SDI cameras
      • Publish directly from the cloud with 4K H.265 Camera to Cloud mode
      • 1GbE Ethernet for high-speed robust hardwired network connection
      • Faster and stronger connectivity with Wi-Fi 6E
      • Share what's on your Atomos screen with other AtomOS11 users, as well as, iPads, Macs and Apple TVs wirelessly in the same premises or anywhere in the world with Atomos RemoteView.
      • *Atomos RemoteView requires a subscription to Atomos Cloud Services. It uses Atomos Credits for a simple "pay as you go" service.

    • Specifications:

      • Mount points: Top: 1 x 1/4"20 or 3/8" with anti rotational points, Bottom: 1 x 1/4"20 or 3/8" with anti rotational points, Right: 1 x 1/4"20 or 3/8" with anti rotational points

        Environmental
      • Ambient operating temperature: Up to 104°F

        Construction & Control:
      • Body: Aluminium alloy chassis with ABS Polycarbonate back plate
      • Cooling: Actively controlled fan and heat sink
      • Multi-function button: Power / lock Screen
      • Tally light: Yes

        Power
      • Input voltage: 6.2V to 16.8V
      • Compatible batteries: 1 x NP-F / L-Series
      • Battery voltage: 7.2V
      • DC in connector: Locking DC Jack (5.5mm OD & 2.1mm ID)
      • D-Tap: Via optional D-Tap to DC cable

        Display
      • Touchscreen: SuperAtom IPS panel (capacitive touch)
      • Size: 7"
      • Resolution: 1920 x 1200
      • PPI: 325
      • Bit depth: 10-Bit (8+2 FRC)
      • Backlight Type: Edge lit
      • Brightness (cdm2 / Nits): 2000nit +/-10%
      • Aspect ratio: 16:9
      • Color Gamut: Rec.709
      • Calibration support: ATOMOS Calibrator with Calibrite ColorChecker Display Pro or Plus

        Video Input
      • HDMI: 1 x HDMI 2.0
      • SDI: 1 x 12G SDI
      • Bit Depth: 8 / 10 bit
      • Video Chroma Subsampling: YCbCr 420 & 422
      • HDR: Yes with HDMI Auto detection

        File Naming
      • Standard: S/S/T & Rolling
      • Via SDI: RED, ARRI, Canon and Sony

        Video Output
      • HDMI: 1 x HDMI 2.0
      • SDI loop out: 1 x 12G SDI
      • HDR: Yes with Auto detection

        Audio In/Out
      • Audio Quality: 24-Bit / 48kHz
      • Audio Codec: PCM
      • HDMI: 8ch 24Bit, input dependent
      • SDI: 12ch 24Bit, input dependent
      • Analogue Audio in: 3.5mm Jack - 5v power
      • Analogue Audio Out: 3.5mm Jack
      • Headphone out: 3.5mm Jack

        Network
      • Ethernet: 1GbE RJ45
      • Wi-fi: WI-FI 6E
      • Wireless RF: AirGlu™ SYNC Time code Network
      • Cellular: Connect to Hot Spot via Wi-Fi

        Web Streaming
      • RTMP: Yes
      • RTMP / S: Yes

        Video Signal Conversion
      • HDMI to SDI: Yes
      • SDI to HDMI: Yes

    • Item Includes:

      • Shogun Ultra
      • 1x USB C PD to 2.1mm DC power lead
      • Master Caddy III
      • 2x Wi-Fi antennas
      • 1x AirGlu antenna
      • Antenna tips
      • 3.5mm to 3.5mm audio sync cable
      • QuickStart Guide

    • Warranty:

      • 1 year standard
      • 2 years with Atomos Care360 Enhanced

    • GTIN:

      0814164022835
