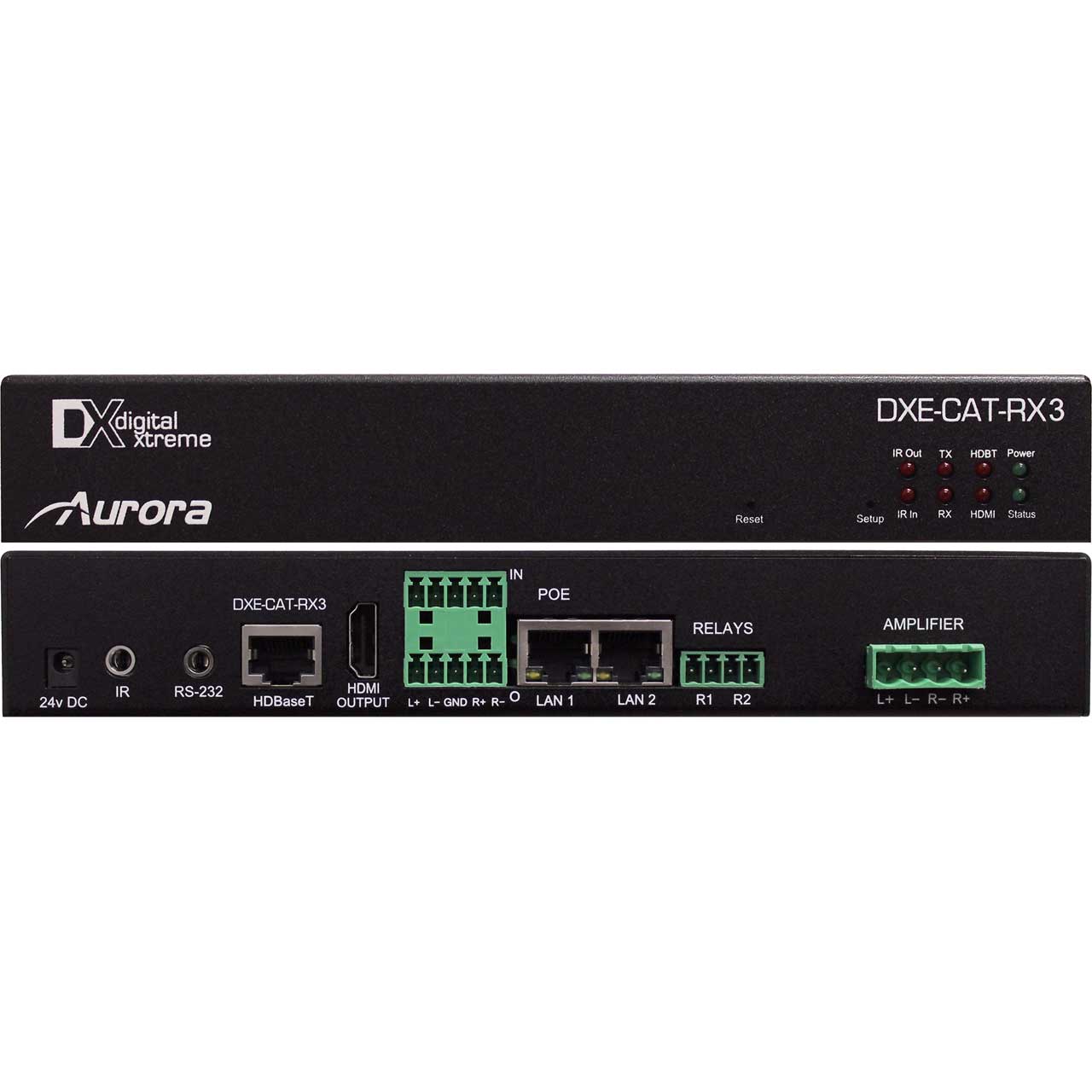

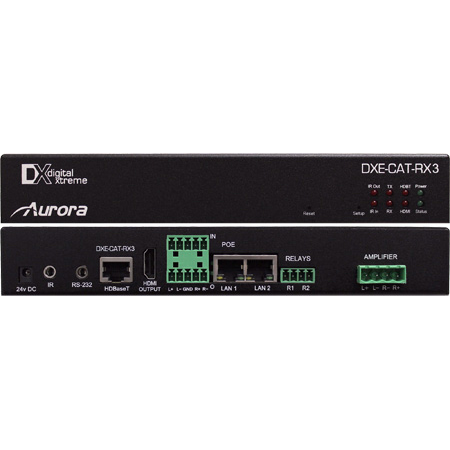

Aurora DXE-CAT-RX3-A HDBaseT Receiver 330/600 Ft. with Dual Relay & Audio Line In/Out & 2x35W Amp

ITEM #: AURA-DXECATRX3A MFG #: DXE-CAT-RX3-A

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$898.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


DXE-CAT-RX3-A - Overview

The DXE-CAT-RX3, DXE-CAT-RX3-A, DXE-CAT-RX3C & DXE-CAT-RX3C-A are a part of the growing Digital Xtreme Series. This product is different than the typical CAT extender found on the market today as it not only breaks the price barrier but the feature and usability aspects as well. Rear mounted connectors provide for a clean professional installation. The DXE-CAT-RX3 Series is designed to complement the Digital Xtreme Series of HDBaseT transmitters such as the DXW-2 Series HDBaseT wall plates, DXE-CAT-TX1, DXE-CAT-TX2, DXM Matrixes, etc. The built in relays are perfect for screen control and the audio amplifier versions (2x35 Watt) will fill the room with sound when used with the Aurora SKR-22T 360° sound field ceiling tile speaker. A low cost, highly integrated solution for rolling carts, podiums, and credenzas is possible with the DXE-CAT family. Going the distance: HDBaseT technology, with a single CAT cable, allows the DXE-CAT to operate up to 330ft 1080p 60Hz 48bit color depth, 500ft 1080p 60Hz 24bit (CAT 6), or 600ft 1080p 60Hz 24bit (CAT 6A Shielded) depending on transmitter model. In addition, the RS-232, IR, & LAN can be sent over the same cable bi-directionally.

  • Features:

    • Receives HDMI up to 600ft (183m)
    • 2x35 Watt Amplifier ("-A" Version)
    • Differential Line Input / Output for Audio Mixing & HDMI Audio De-Embedding
    • Volume Control
    • Audio Functions Remotely Controlled via Transmitter Unit or Optional IP
    • IP Control Engine (C Version)
    • Bi-directional RS-232, & IR & LAN
    • Two Relays for Screen Control
    • Rear Mounted Connectors for Clean Installation
    • Status LED for All Connections on Front

  • Specifications:

    • Max Distance: 600ft
    • Max Resolution: 1080p 60Hz
    • Color Depth: 48bit 330ft (CAT5e)24bit 600ft(CAT6A)
    • HDMI: 1.4 3D
    • Dimensions: 215mm x 97mm x 33mm [8.46"L x 3.82"W x 1.3"H]
    • Weight: 2 lbs
    • Power Supply: 24V 24 Watt or 24V 90 Watt DC (Required on amplifier models)
    • Mounting: Wall Mount
    • Operation Temperature: 0~40°C [32~104°F]
