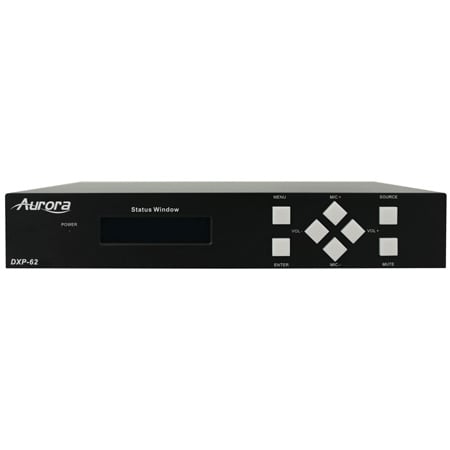

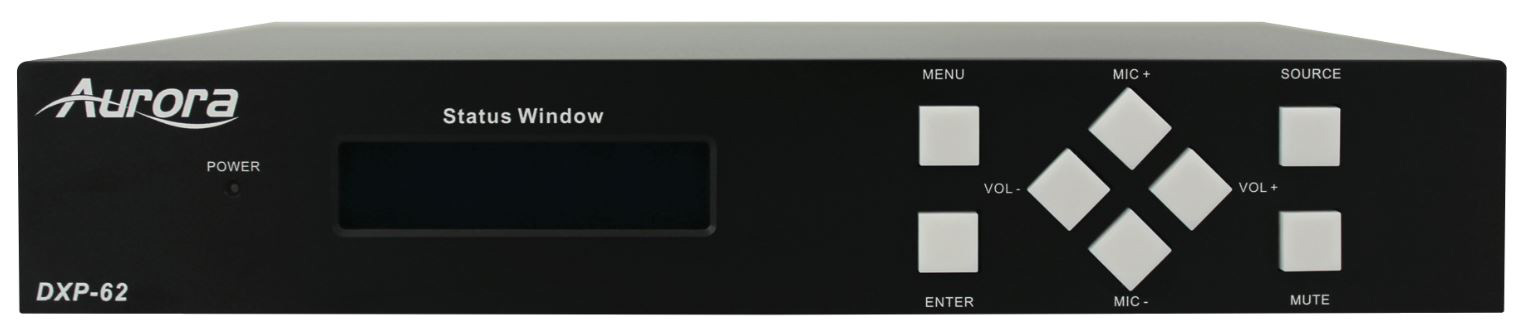

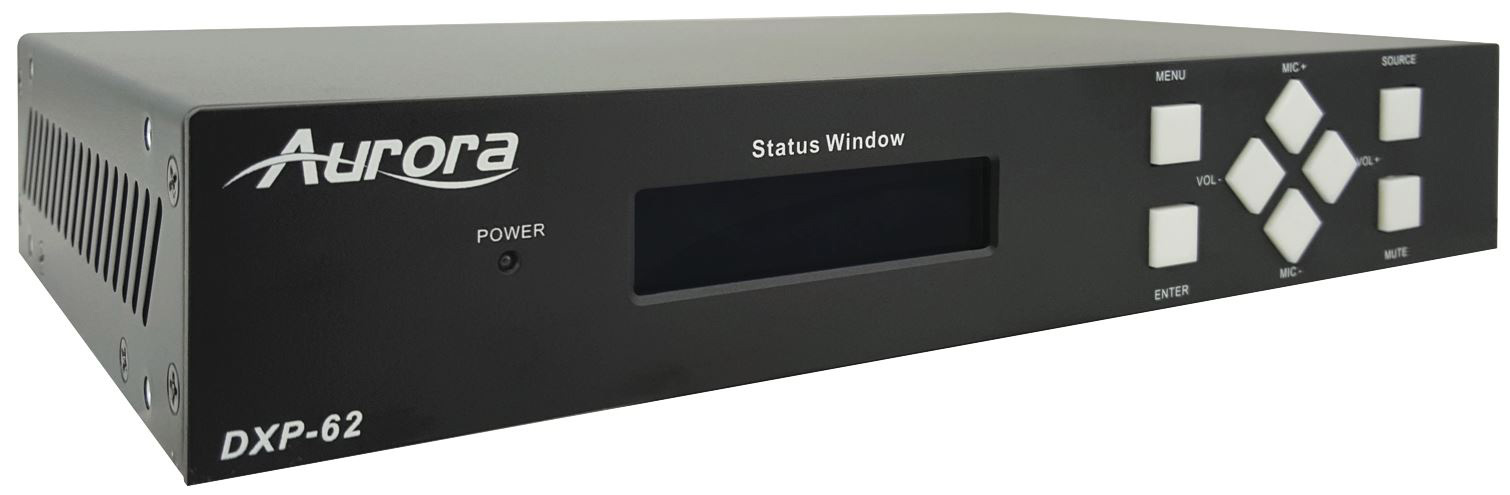

Aurora DXP-62 Presentation Scaler/Switcher with HDBaseT

Manufacturer: Aurora Multimedia

Item #: AURA-DXP-62   •   MFG #: DXP-62




Our Price:$1,898.00

free ship


Availability: Direct Ship From Manufacturer
i
Item ships directly from the manufacturer and is subject to manufacturer availability. We will contact you with expected availability. You can also email [email protected], chat or call customer service (800)-522-2025 for expedited delivery options.


  • Special Order Item: non-cancelable, non-returnable, non-refundable.


Share!

California Residents:
8pt-triangleWARNING:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov





Required Accessories

    Show More

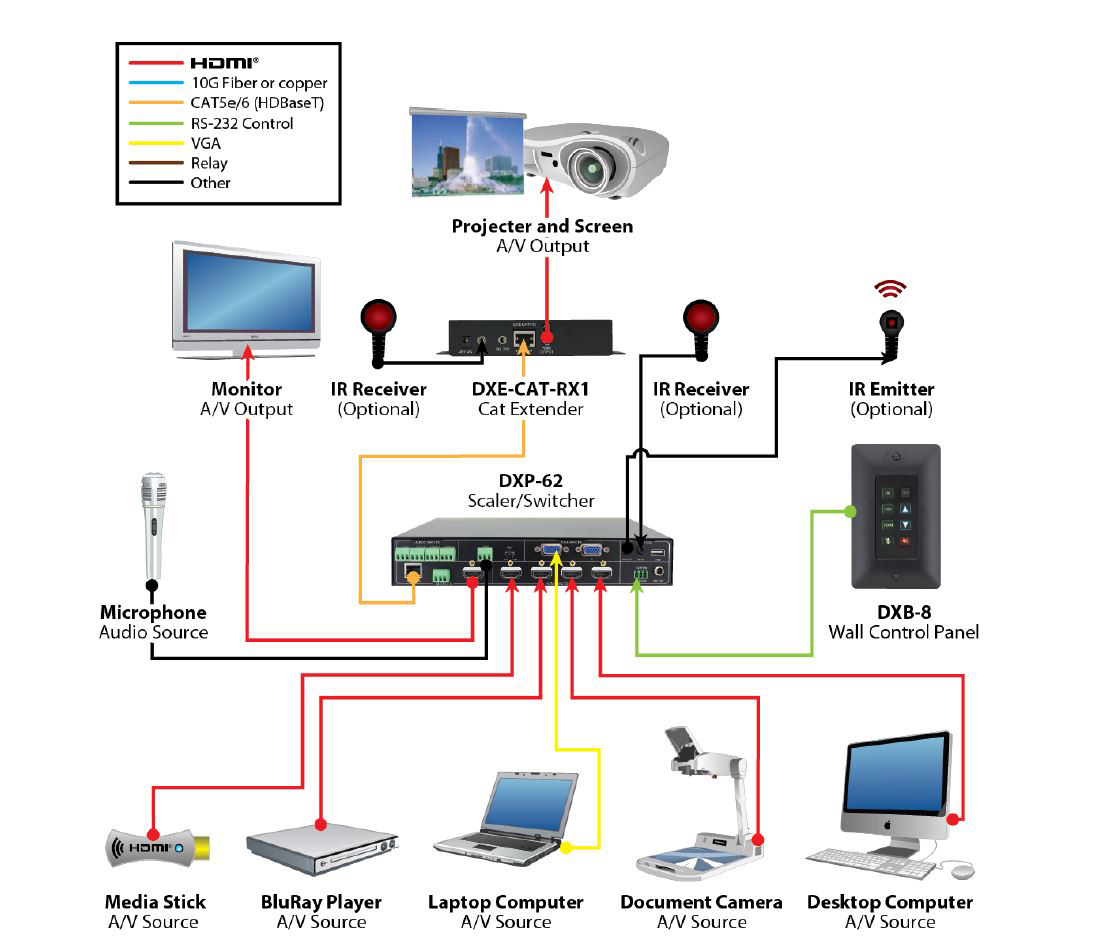

The DXP-62 is a presentation scaler/switcher designed for multi-signal processing of HDMI, VGA, Component (YPbPr) and Composite inputs scaling all up to 1900x1200 HD resolution output. It accepts up to four (4) HDMI inputs and two (2) VGA/YPbPr/Composite inputs and scales all to the on-board HDMI and HDBaseT simultaneous outputs. Leveraging One Room - One CableTM features, the HDBaseT output will pass PoH power to an HDBaseT Receiver (sold separately) as well as RS232 and IR control for the display. With the addition of four (4) external audio inputs, additional MIC input with independent volume control, de-embedding line level stereo output and auto sensing/switching video inputs, the DXP-62 is perfect for Classrooms, Conference Rooms and AV Cart applications. 1RU rack-mount hardware included.


  • Features

    • 4 HDMI® Inputs
    • 2 VGA/YPbPr/Composite Inputs
    • 4 Analog Audio Stereo Inputs
    • 1 Microphone Input
    • 1 HDMI® Output
    • 1 HDBaseT Output 230ft (70m) CAT 5e/6
    • Power over HDBaseT (PoH)
    • IR, and RS-232 over HDBaseT
    • Scales input up to 1080p
    • Auto Switching Feature
    • Front Panel Button Control
    • Front Panel LCD Display
    • OSD (On Screen Display)
    • RS-232 and IR Control (LAN/WEB control when ordered as DXP-62K-3)
    • USB for Firmware Updating

  • Specifications

    • Video
    • Max HDBT Distance 230ft (70m)
    • Max Resolution 1920x1200 @60Hz
    • Color Depth 36bit
    • Bandwidth HDMI: 1.65Gbps per color C-Video:150MHz YPbPr: 170MHz VGA: 375MHz

    • Audio
    • Audio Bandwidth 20Hz - 20KHz

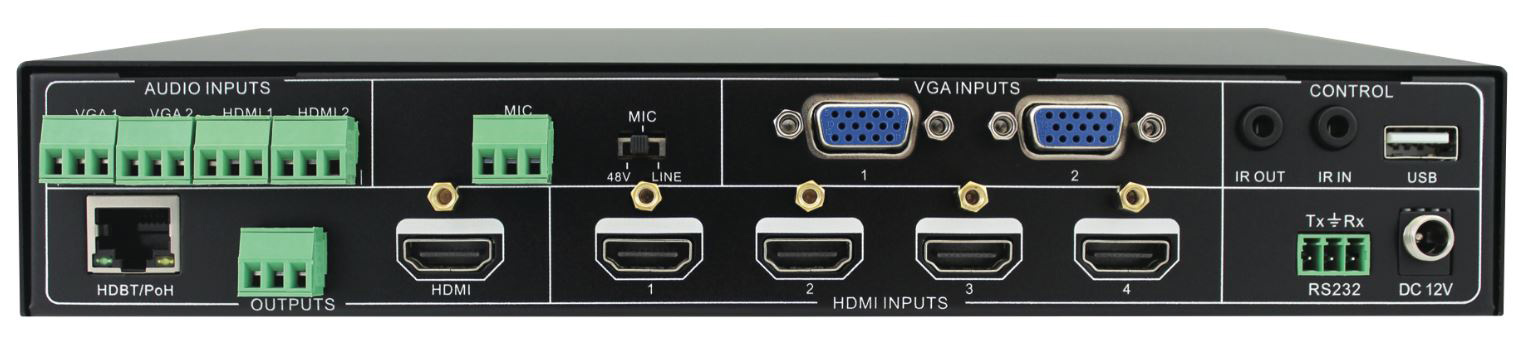

    • Connectors
    • RS-232 Max 115kbps
    • HDMI Inputs 4
    • VGA/YPbPr/Video Inputs 2
    • HDMI Outputs 1
    • HDBaseT Outputs 1 PoH (Video, RS-232, IR)
    • Audio Inputs 4 Stereo 3 pin 3.81mm Euro / 1 Mic 3 pin 3.81mm Euro
    • Audio Outputs 1 Stereo 3 pin 3.81mm Euro / 0db Gain.
    • RS-232 Ports 1
    • IR Input Ports 1
    • IR Output Ports 1
    • IR Frequency Range 20KHz - 60KHz
    • HDBaseT Connector RJ-45 WE/SS 8P8C
    • RS-232 Connector Euro Style 3.81mm
    • IR Connector 3.5mm TRS
    • HDMI Connector Type A 19 pin
    • Power Connector IEC Male

    • Mechanical
    • Housing Black Aluminum Enclosure
    • Dimensions [L x D x H] 8.66" x 5.83" x 1.75" (220 x 148 x 44mm)
    • Weight 1.477lbs (.67kg)
    • Mounting 1 RU Rack Mounting (Hardware Included)
    • Power supply 12v 16Watt
    • Operation temperature 0~40C [32~104F]

  • Warranty

    • 3 Year
