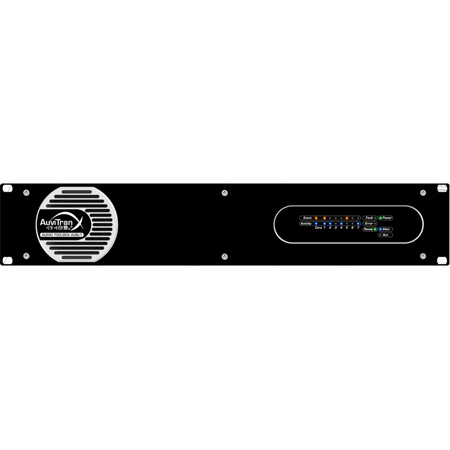

AuviTran AVBx7/IS 2RU Fixed Installation Modular Audio Platform
  • AuviTran AVBx7/IS 2RU Fixed Installation Modular Audio Platform
  • AuviTran AVBx7/IS 2RU Fixed Installation Modular Audio Platform


AuviTran AVBx7/IS 2RU Fixed Installation Modular Audio Platform

Manufacturer: AuviTran

Item #: AUT-AVBX7-IS   •   MFG #: AVBX7/IS



This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

800-522-2025Email





Item unavailable. Please select another option.

Items similar to the AUT-AVBX7-IS

California Residents:
8pt-triangleWARNING:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov





Required Accessories

    Show More

AuviTran Audio ToolBox is a brand new modular audio platform giving access to a large variety of professional audio networked configurations. With a seven slots 2U-19inch rack unit and several audio interface cards, feel free to build the configuration you need.

With options for EtherSound interface and ASIO interface, DANTE interface, MADI interface, High quality analog input or output XLR connectors, Analog inputs/outputs Euroblock connectors, High quality mic preamp inputs, AES/EBU inputs/outputs, and GPI/GPO interface, configure the AVBx7 as needed.

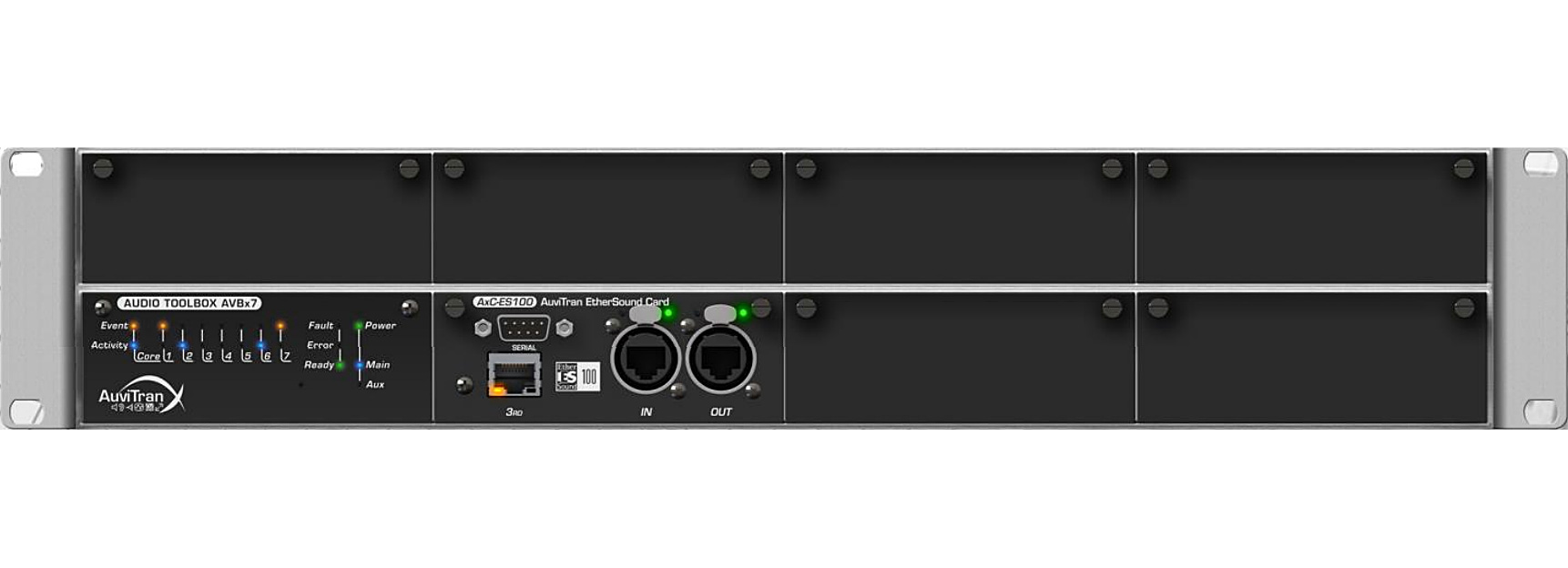

AuviTran Audio ToolBox is available in installation mode (Display in front and all connectors in the back) and can be configured as stage-box for live applications (Display, Network and Audio connectors in front, Power supply and GPIO on the back).

Please note! Modules are not included. Image is for reference only!


  • Specifications

    • AVBx7: 7 slots AuviTran Audio ToolBox 2Ux19" rack
    • Size: 483 x 253x 88 mm
    • Main Power Supply: 100-240 VAC - Maximum 50 W
    • Auxiliary Power Supply: Available in option
    • Storage: Temp/Humidity (non-condensing): -5°C to 70°C / Max 95% (non-condensing)
    • Operating: Temp/Humidity (non-condensing): 0°C to 50°C / 5% to 90% (non-condensing)
    • Front Panel: Power Main/ Aux - Fault / Error / Ready - Networks and links Rx and Tx Activities - Events
    • Rear panel: 1xIEC power inlet for main AC power supply / 7 slots with backplane bus for interface cards / 2x BNC for Word clock / 1x6 pole Euroblock connector for GPIO
    • GPIO: 4 configurable GPIO. Can be set as 4xADC 8 bits 0-12V level input for fader control or level trigger detections

      AxC-ES100: EtherSound card for the AuviTran Audio ToolBox platform
    • Size: 200 mm x 100 mm x 40 mm - Format AuviTran Audio ToolBox platform cards
    • Power Supply: +12V / +3.3V - Through AuviTran Audio ToolBox backplane
    • Storage: Temp/Humidity: - 5°C to 70°C / 0% to 95% (non-condensing)
    • Operating: Temp/Humidity: 0°C to 50°C / 5% to 90% (non-condensing)
    • Connectors: 2 x Neutrik EtherCon RJ45-XLR female connectors (EtherSound ES100 from/to links); 1 x RJ45 connector for third port (PC control and ASIO Streamer interface); 1 x Sub-D9 (RS232) serial interface
    • Audio Outputs: 64 channels extracted from any of the 64 EtherSound downstream channels or from any of the 64 EtherSound upstream channels in bidirectional mode @ 44.1 kHz or 48kHz
    • Audio inputs: 64 channels inserted from any of the 64 EtherSound dchannels in bidirectional mode @ 44.1 kHz or 48kHz
    • Sample format: 24 bit
    • Sample rate: 44.1 kHz, 48kHz, 88,2 kHz, and 96 kHz
    • Synchronization: Automatic from EtherSound network

      AxC-Dante: Dante card for the AuviTran Audio ToolBox platform
    • Size: 200 mm x 100 mm x 40 mm - Format AuviTran Audio ToolBox platform cards
    • Power Supply: +12V / +3.3V - Through AuviTran Audio ToolBox backplane
    • Storage: Temp/Humidity: - 5°C to 70°C / 0% to 95% (non-condensing)
    • Operating: Temp/Humidity: 0°C to 50°C / 5% to 90% (non-condensing)
    • Connectors: 2 x Neutrik EtherCon RJ45-XLR female connectors 2 x RJ45 connectors
    • Dante Operation modes: Switch - Integrated Gigabit switch Redundant with Primary and Secondary ports, replicated on ports 3 and 4
    • Audio Outputs: Up to 64 channels
    • Audio inputs: Up to 64 channels
    • Sample format: 24 bit
    • Sample rate: 44.1 kHz, 48kHz, 88,2 kHz, and 96 kHz
    • Synchronization: Automatic from Dante network

      Other
    • I/O count: Up to 64 ASIO inputs and 64 ASIO outputs from/to EtherSound
    • Sample format: 24 bit
    • Sample rate: 44.1 kHz, 48kHz, 88,2 kHz, and 96 kHz
    • OS Supported: Windows 8/Seven/Vista/XP for 32 or 64 bit versions (XP not recommended for ASIO due to its poor NDIS priority management)
    • Processor: Dual core CPU, clock speed > 2GHz
    • Memory: At least 2 GB for Windows Vista and Seven
    • Network: 100Mbits full duplex Ethernet adapter with latest NDIS driver (Performances of the ASIO driver are directly related to NIC driver)
    • Storage: 7200rpm disk or better for ASIO
