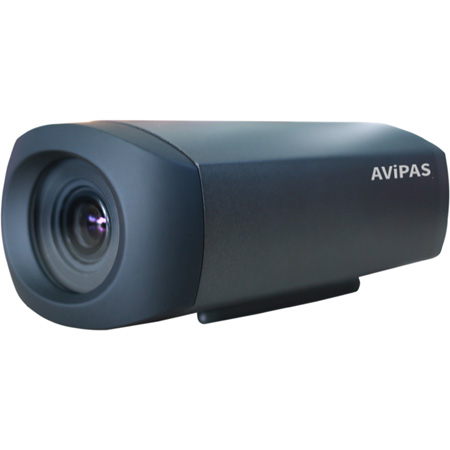

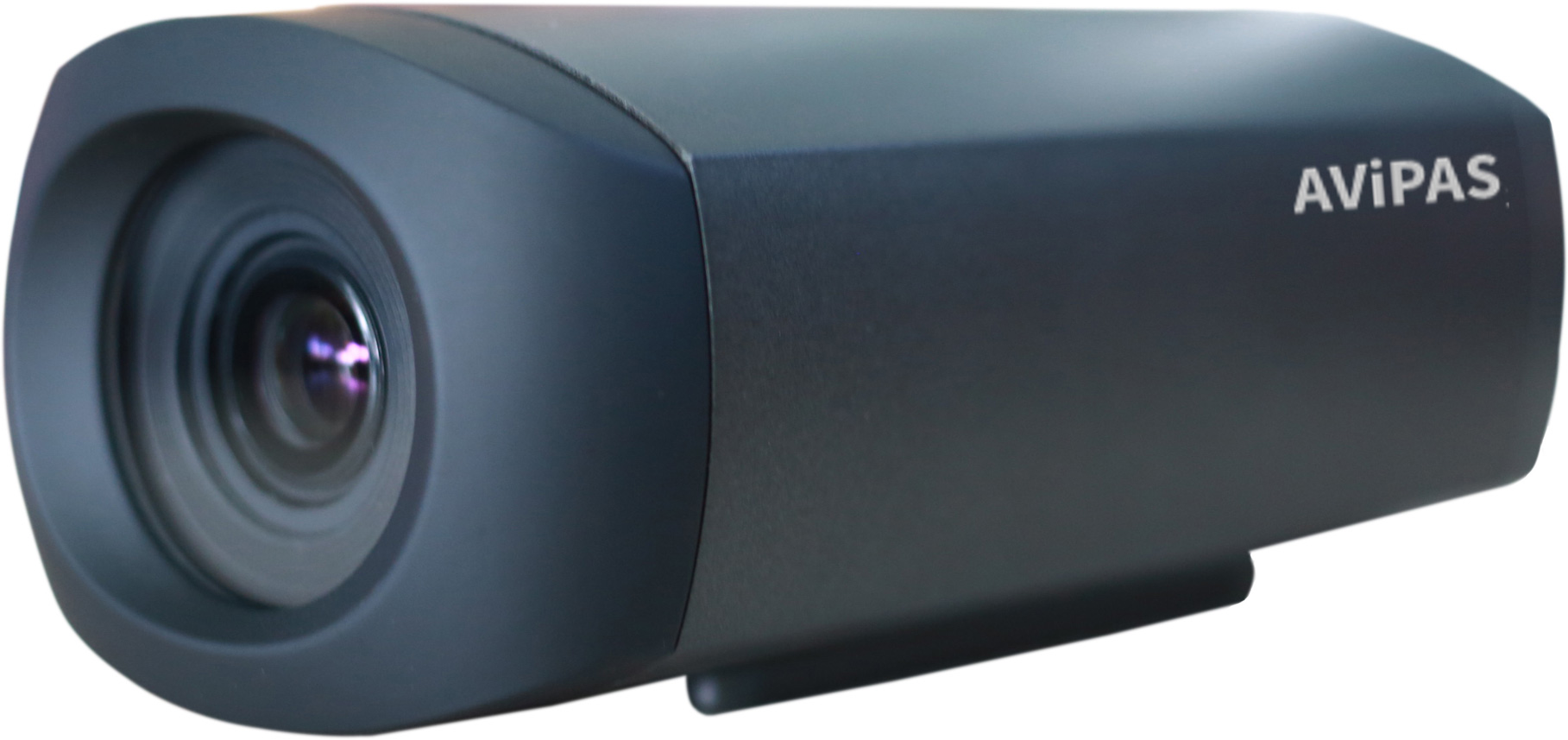

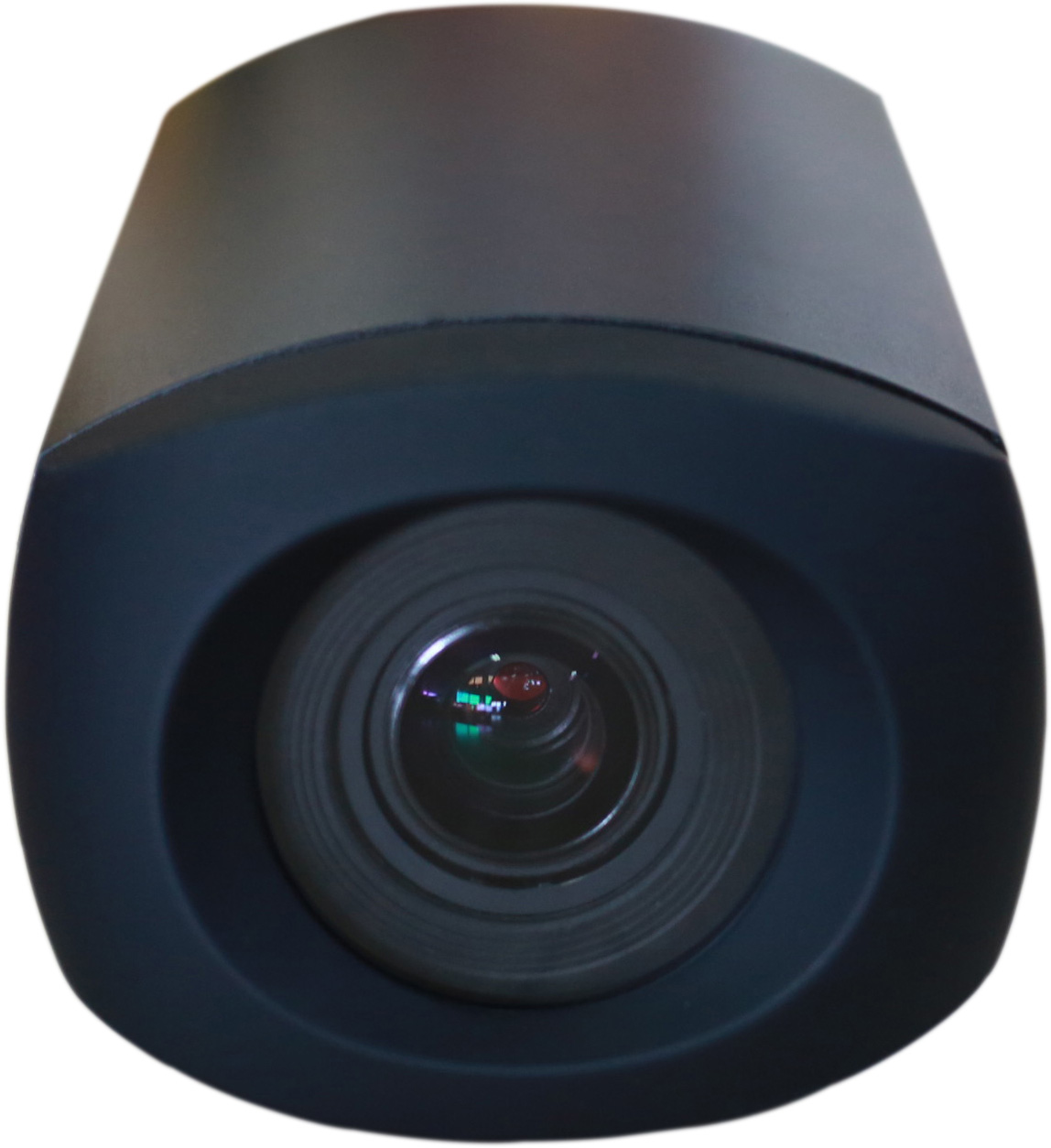

AViPAS AV-1161 5x Full-HD HD-SDI Box IP Camera w/ PoE

ITEM #: AV-1161 MFG #: AV-1161

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the AV-1161

AV-1161 - Overview

The AViPAS AV-1161 HD-SDI Box IP Camera features a 2.14MP, 1/ 3" high-quality CMOS sensor to provide vivid images with a strong sense of depth, high resolution and color rendition. It supports H.264 dual-streaming at a resolution of up to 1080p30 with low network delay. The AV-1161 supports 2-channel audio input, AAC compression and utilizes RS232, RS485 and RJ45for serial communication and IP control.

  • Features:

    • 1/3" CMOS sensor, 2.14 megapixel
    • 5x optical zoom, 84° wide-angle lens
    • SDI and LAN interface, simultaneous 1080P video output
    • PoE supported
    • It supports H.264 video compression, up to 1080P30 streaming, low delay
    • 3.5mm audio input, AAC compression
    • Compatible with HTTP /RTSP/ RTMP / ONVIF protocols
    • RS-232 /RS-485 / RJ45/ rear-panel buttons for communication control
    • It is suitable and can be widely used for tele-education, lecture capture, webcasting, video conferencing, telemedicine, interrogation, and emergency command system.


  • Specifications:

    • Video Format: 1080P30/ 1080P25/ 720P60/ 720P50
    • Sensor: 1/3" CMOS, 2.14 megapixel
    • Lens: f=2.8mm~14mm
    • Optical Zoom: 5x
    • Field of View: 32°~84°
    • Exposure Control: Auto
    • Minimal Illumination: 0.5Lux (F1.8, AGC ON)
    • Electronic Shutter/ Focus/ Aperture: Manual
    • White Balance: Auto/Manual/One Push
    • BLC: on/ off
    • Video Adjustment: MODE1, MODE2, MODE3
    • Ceiling Installation: Support
    • Video Compression: H.264
    • Video Stream: Dual-stream output
    • Baud Rate: 2400/ 4800/ 9600/ 38400 bps
    • Audio Compression: AAC
    • Support protocols: HTTP/ RTSP/ RTMP/ ONVIF
    • HD Output: 1xHD-SDI: BNC type
    • Network Interface: 1xRJ45
    • Control Interface: 1x RS485, 1x RS232: VISCA/ Pelco-D/ Pelco-P
    • Audio Interface: 1-ch: 3.5mm Audio Interface, Line In/Lind Out
    • Input Voltage: DC 9~12V
    • Storage Temperature: -10 °C ~ 60°C (14°F ~ 140°F)
    • Power Consumption: <5W
    • Size: 5.9x3x2.3inch (149x76x58mm)
    • Net Weight: 420g (0.9lb)


  • GTIN:

    0858738005503
