PACIFIC MS-1 PLUS 12 SOURCE MULTIVIWER - Overview

The Avitech Pacific MS-1 Plus 12 UHD Source Multiviewer is a modular uncompressed HDMI video matrix switcher with integrated multiview of up to 12 computer and video signals in a 1RU chassis. With a mouse or a touch screen, the Pacific MS-1 Plus multiview output can be easily configured, moving the windows to a new location, changing the size of the windows, and saving and loading multiview layout presets. Cascading multiple Pacific MS-1 Plus units can support multiview for up to 48 computer and video sources on a 4K UHD display.

  • Features:

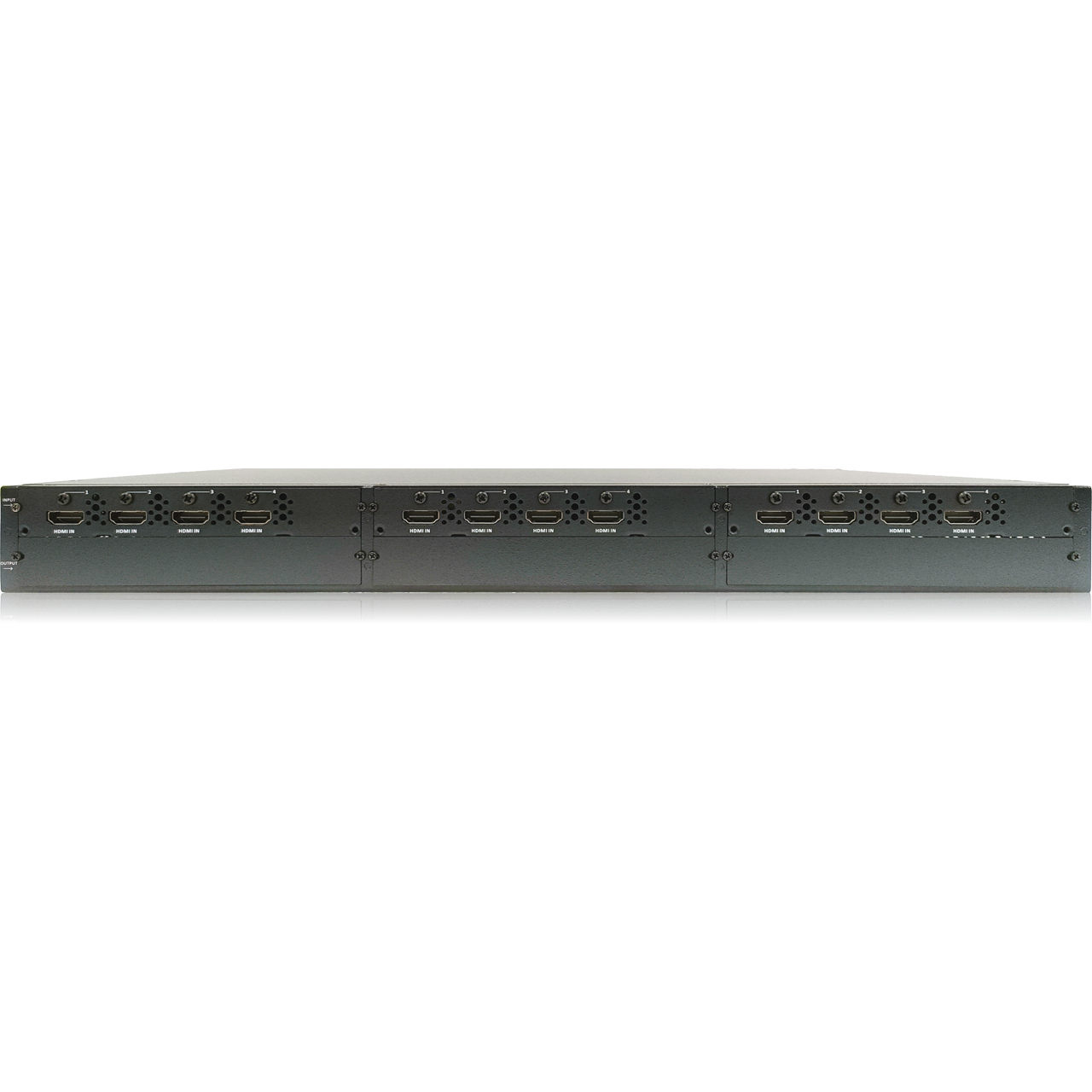

    • 3x input slots for hot-swappable 4K60 video processing cards, each with 4x HDMI input ports

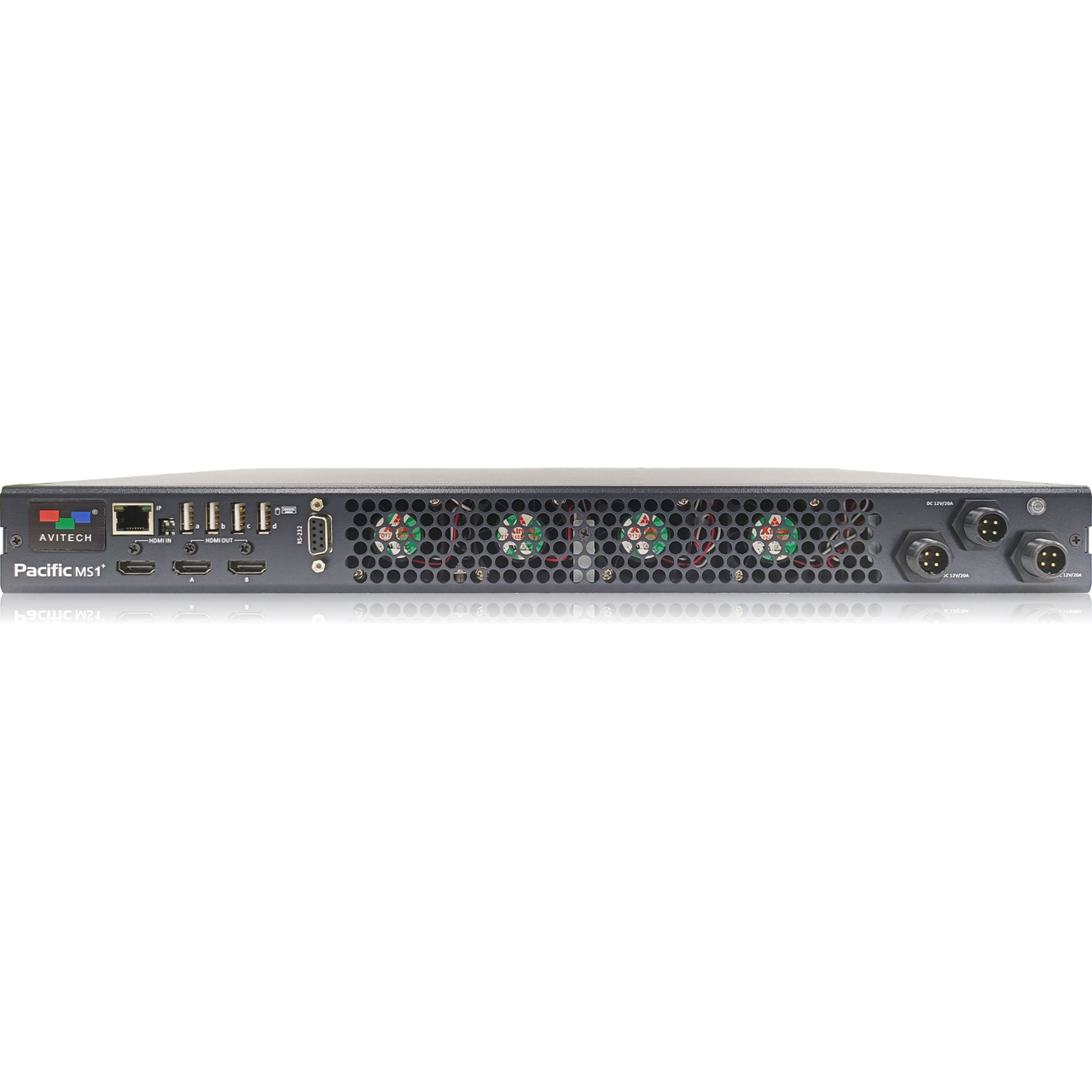

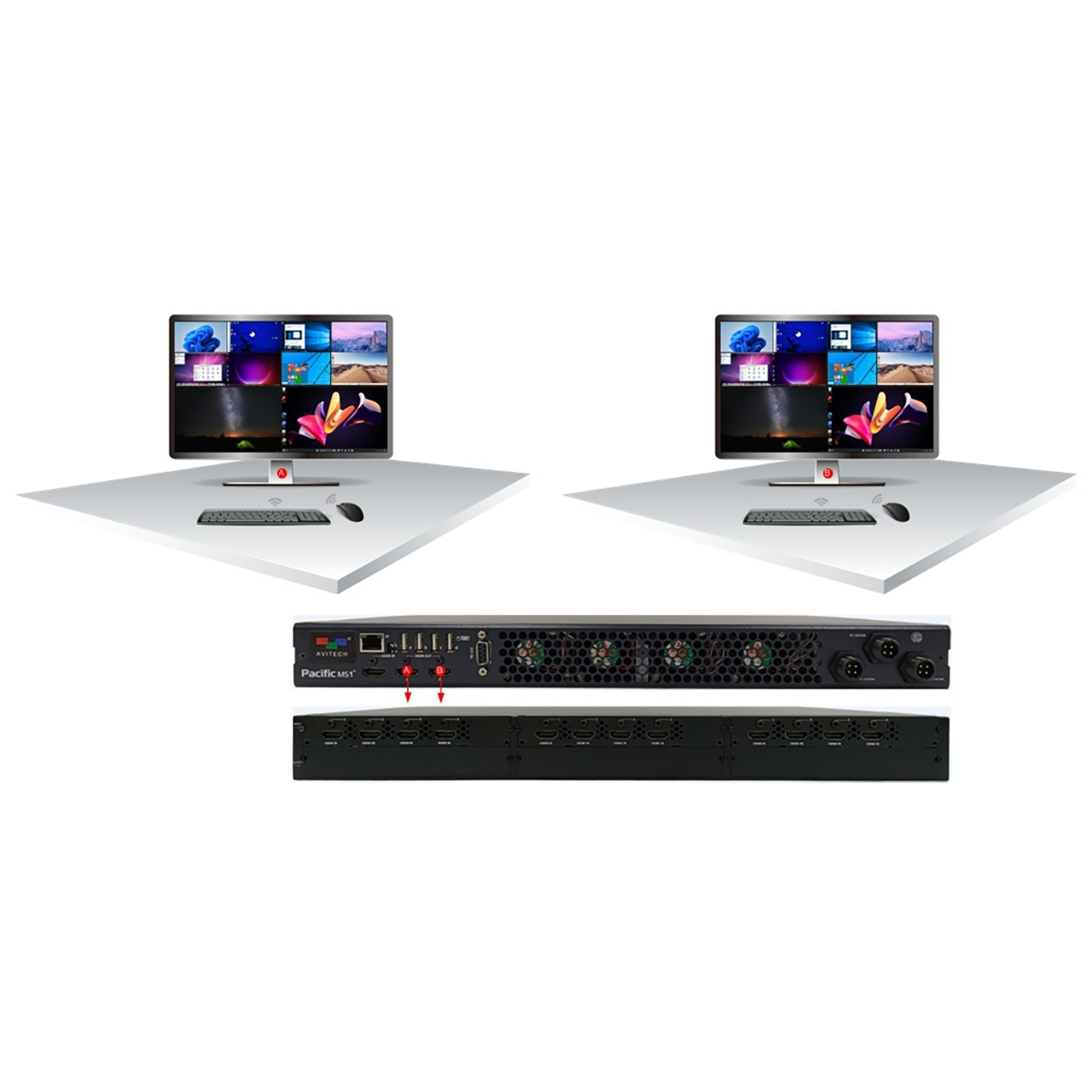

    • 1x dedicated HDMI output port that can support 12 image multiview on a 4K UHD display, with KVM, multi-touch operation, and a duplicated HDMI output port
    • Plug and play with automatic detection of source and display resolutions, can upscale or downscale, manual EDID configuration available
    • A cascade input port for connecting multiple Pacific MS-1 Plus units to provide up to 48 source multiview
    • All HDMI ports capable of up to 4K60 video resolution at 4:4:4
    • Plug and play with automatic detection of source and display resolutions, can upscale or downscale, manual EDID configuration available
    • Flexible positioning on multiview outputs with window overlay/PiP and the ability to quickly fullscreen any window, activate preset window layouts, and move and resize windows to create and save custom layouts
    • User authorizations available, to lock the mouse and keyboard with a user password for view-only access
    • Control via mouse and keyboard, web GUI, or third-party control devices via API
    • TAA and NDAA Compliant


  • Specifications:

      Input/Output
    • HDMI Video Inputs: 12x HDMI 2.0 (with one additional port for local video source/system cascade)
    • HDMI Video Outputs: 2x HDMI 2.0 (duplicated system multiview of up to 12 sources)
    • USB: 4x USB-A (1.2; HID connection)
    • Max. Resolution: 4096x2160 (4K DCI) @ 50/60Hz, 8 bit, 4:4:4

      Control Interface
    • 1x RJ-45 (Ethernet)
    • 1x DB-9 (RS-232/RS-485/RS-422 for serial control prorocol, only one protocol in a time)
    • System Control: Keyboard/Mouse, HTTP Commands, UDP, Web-browser GUI

      Hardware
    • Dimensions (LxWxH): 12.36" x 17.28" x 1.75" (31.4cm x 43.9cm x 4.4cm)
    • Weight: 10.5lbs (4.8kg)

      Power Requirements
    • Power Supply: DC 12V 20A adapter
    • Power Consumption: Max. 245W


  • Item Includes:

    • 1x Avitech Pacific MS-1 Plus 12 Source UHD Uncompressed HDMI Video Matrix Switcher and Multiviewer with HDMI and USB
    • 1x AC Power Cord
    • 1x Power Adapter


  • Warranty:

    • 2-Year Limited Warranty
