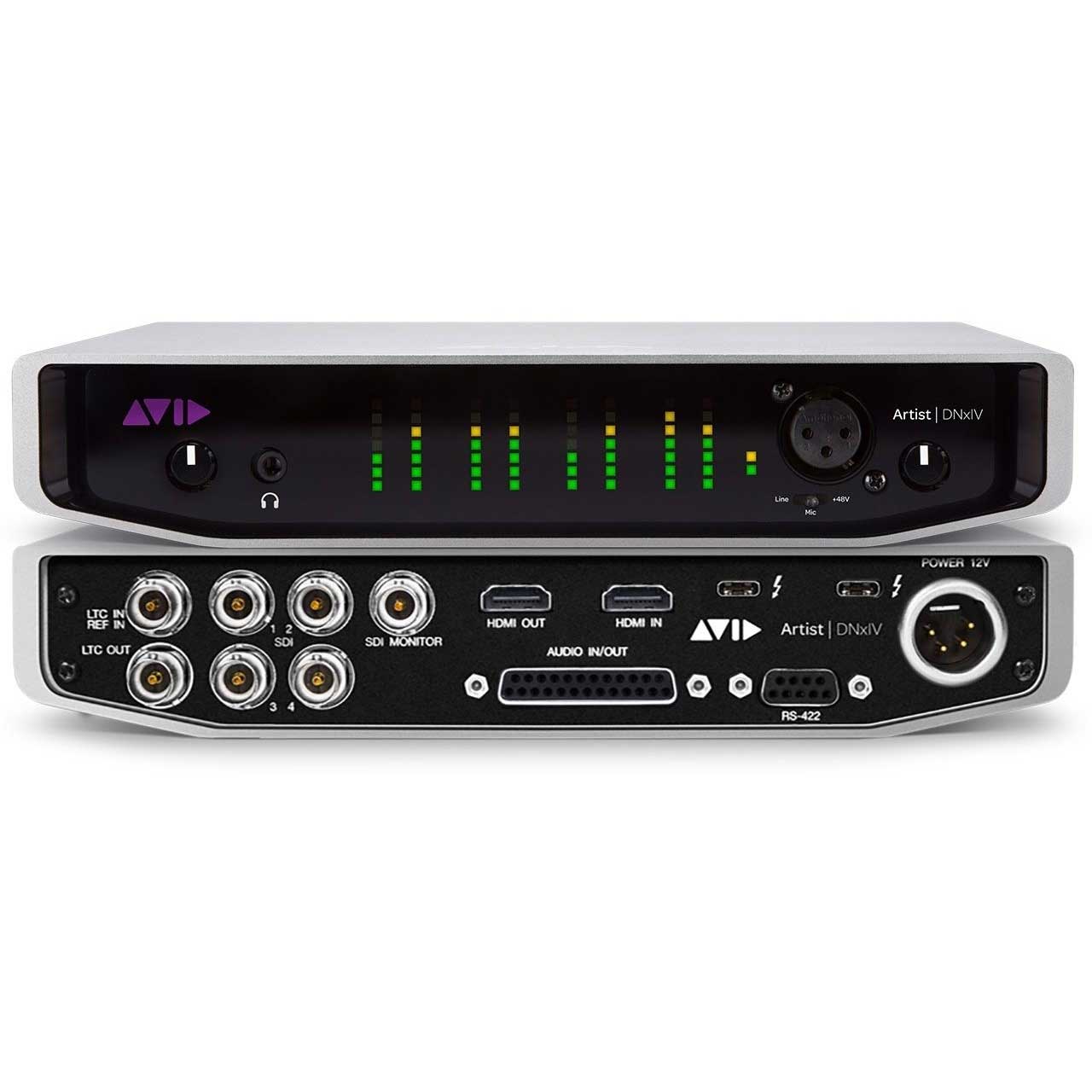

Avid Artist DNXIV Professional Analog and Digital I/O Hardware with 12G/6G/3G-SDI

ITEM #: AVID-ARTISTDNXIV MFG #: AVID ARTIST DNXIV

  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
free ship

Our Price:

$2,999.00

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup


    AVID ARTIST DNXIV - Overview

    Avid Artist | DNxIV is the newest member of the Artist I/O Family, joining the Artist | DNxIQ. It's small form factor and extensive format support make it the perfect option for users looking for an affordable, portable, 4K desktop I/O.

    Get the connections you need
    Avid Artist | DNxIV provides all the professional analog and digital I/O you need to plug into today's diverse media productions. From quad 12G/6G/3G-SDI, HDMI 2, and DB-25, to XLR, LTC, RS-422, and a headphone jack, you have a variety of connections available to integrate your gear together for in-studio video and post production-or wherever inspiration takes you.

    Expand your possibilities
    Small in size, but vast in versatility, Avid Artist | DNxIV boosts your media production capabilities beyond the standard capture, monitor, and output workflow. Leverage its portability to work on projects out in the field. Record voiceovers with easy audio punch-in. Monitor HDR content. Sync to an external reference. Control tape decks for frame-accurate captures and layoffs. Coming soon, you can even use the interface as an 8-channel audio surround sound monitoring solution.

    • Features:

      • Avid Artist | DNxIV is developed using Open I/O technology - which means it works with the tools customers prefer to use
      • Quickly and easily ingest, monitor, and output SD, HD, 2K, UHD, and 4K media
      • Connect to the latest Mac and Windows computers with Thunderbolt 3
      • Monitor surround-sound with 8 analog outs (via DB25 cable, sold separately)
      • Record voiceovers and narration directly to the timeline using the Mic input on the front of the box - an Avid exclusive!
      • Audio Pass-Through Mixing
      • Clock Source (selectable/detectable)
      • Ancillary Data Support

    • Specifications:

      • Supoorted Media
      • Video Formats
      • SD: PAL 25i, NTSC 30i
      • HD: 720p (50, 59.94, 60*), 1080i (50, 59.94, 60), 1080PsF (23.98, 24, 25, 29.97, 30), 1080p (23.98, 24, 25, 29.97, 30, 47.96*, 48*, 50, 59.94, 60)
      • 2K: 23.98PsF, 24PsF, 25PsF, 29.97PsF, 30PsF, 23.98p, 24p, 25p, 29.97p, 30p, 47.96p*, 48p*, 50p, 59.94p, 60p
      • Ultra HD: 23.98p, 24p, 25p, 29.97p, 30p, 47.952p*, 48p*, 50p, 59.94p, 60p
      • 4K: 23.98p, 24p, 25p, 29.97p, 30p, 47.952p*, 48p*, 50p, 59.94p, 60p
      • Audio Sample Rate: 16-bit, 24-bit, 48 kHz (television standard)
      • Color Spaces: YUV 4:2:2, RGB 444*, REC 709, BT 2020, DCI-P3; 8-bit and 10-bit; 1D LUT support

        Video and Audio Connections
      • SDI I/O:
      • Four bidirectional SDI ports and one 3G-SDI monitor output:
      • 12G, 6G, 3G, 1.5G input and output
      • 12G simultaneous input and output
      • Dual 3G input
      • Quad 3G input and output, software-controllable division/interleave
      • HDMI I/O: HDMI 2.0
      • Audio I/O:
      • Eight channels of analog audio (coming soon), which can be configured as eight inputs, four inputs and four outputs, or eight outputs
      • DB25: Ch 1-8 inputs, Ch 1-8 outputs, or Ch 1-4 input with Ch 5-8 output (audio breakout cable sold separately)
      • Eight channels of HDMI I/O embedded in SD, HD, UHD, 2K, and 4K
      • One front-panel XLR mic/line input with 48V phantom power and gain control
      • One stereo headphone jack with volume control

        Host and Sync Connections
      • Computer: Two Thunderbolt 3 ports (cable sold separately)
      • LTC I/O: Switchable LTC or video reference input on BNC, LTC output on BNC
      • Device Control: One RS-422 machine control port

        Hardware Scaling/Proccessing
      • Down-Scaling/Conversion: 4K to 2K, UHD to HD, HD to SD
      • Up-Scaling/Conversion: SD to HD
      • Cross-Conversion: 720p to 1080i HD, 1080i to 1080p, 1080i to 720p
      • Other Conversion: Color space conversion*, hardware deinterlacing
      • Real-Time Keyer: Alpha channel over video, matte, or frame buffer over incoming video or matte
      • 3D Processing: Frame Compatible/Frame Packed

        Additional Specifications
      • Power (device only): 10-20V, 30W typical, 33W max, 70W max with USB-C power delivery to external devices
      • Power Supply: One built-in international AC power supply (120-240V, 50-60 Hz)
      • Operating Temperature: 32°-104° F (0°-40° C) Storage temperature -40°-140° F (-40°-60° C)
      • Relative Humidity: 10-90% non-condensing Operating altitude <10,000 feet (<3,000 meters)
      • Dimensions: (H x W x D) 1.7 x 8.7 x 8.1 inches (42 x 222 x 206 mm)
      • Weight: 3.4 lbs (1.5 kg)

        *Currently not supported in Media Composer
