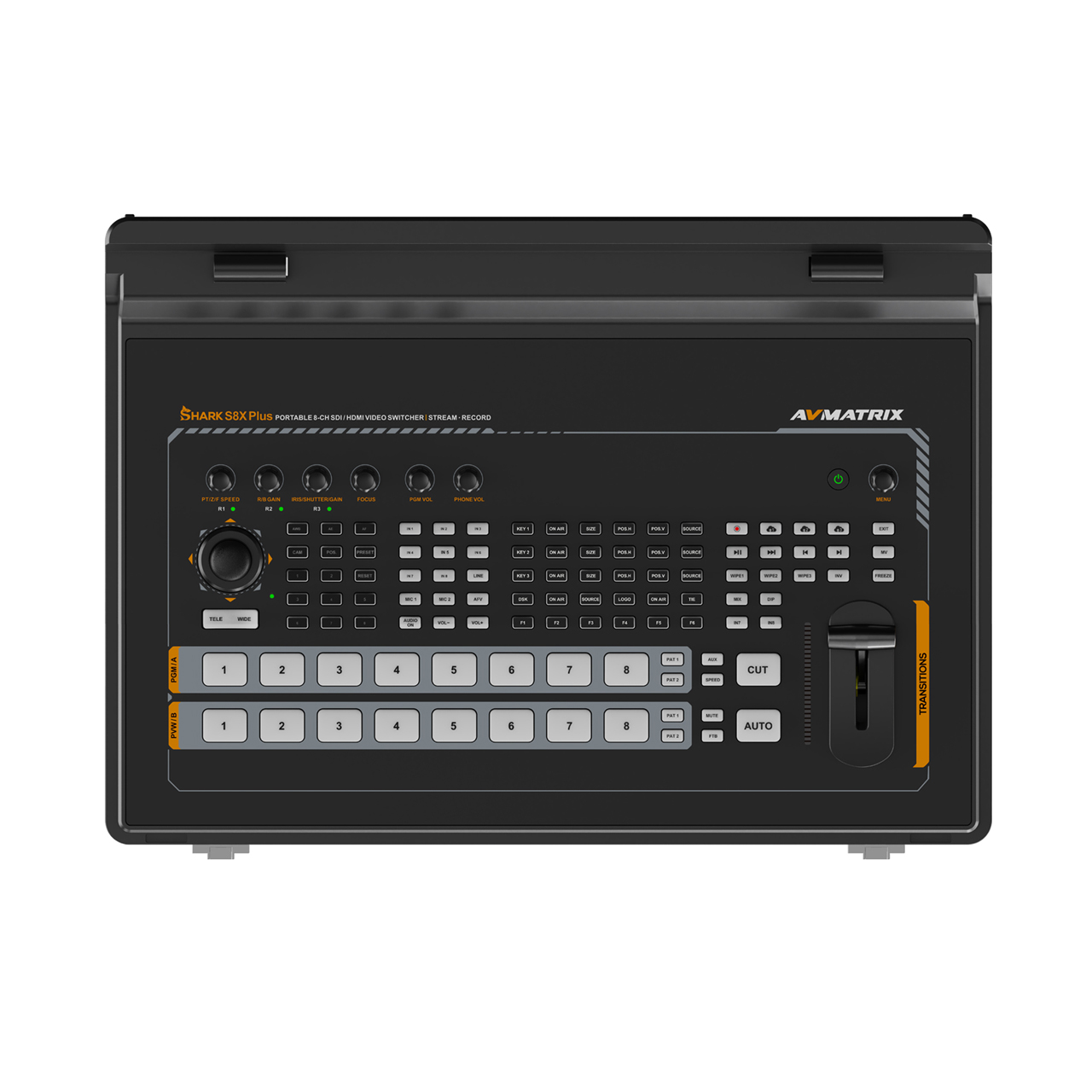

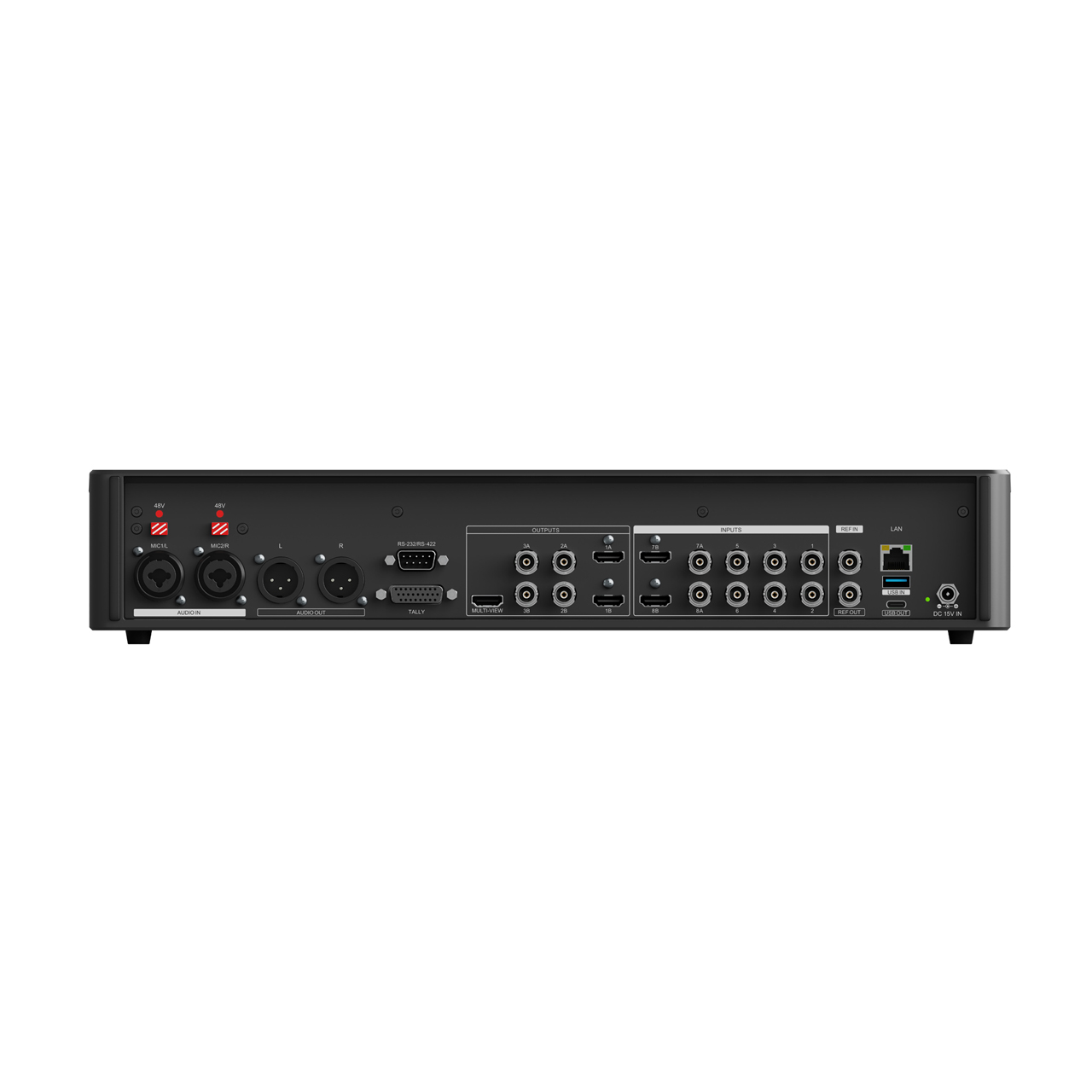

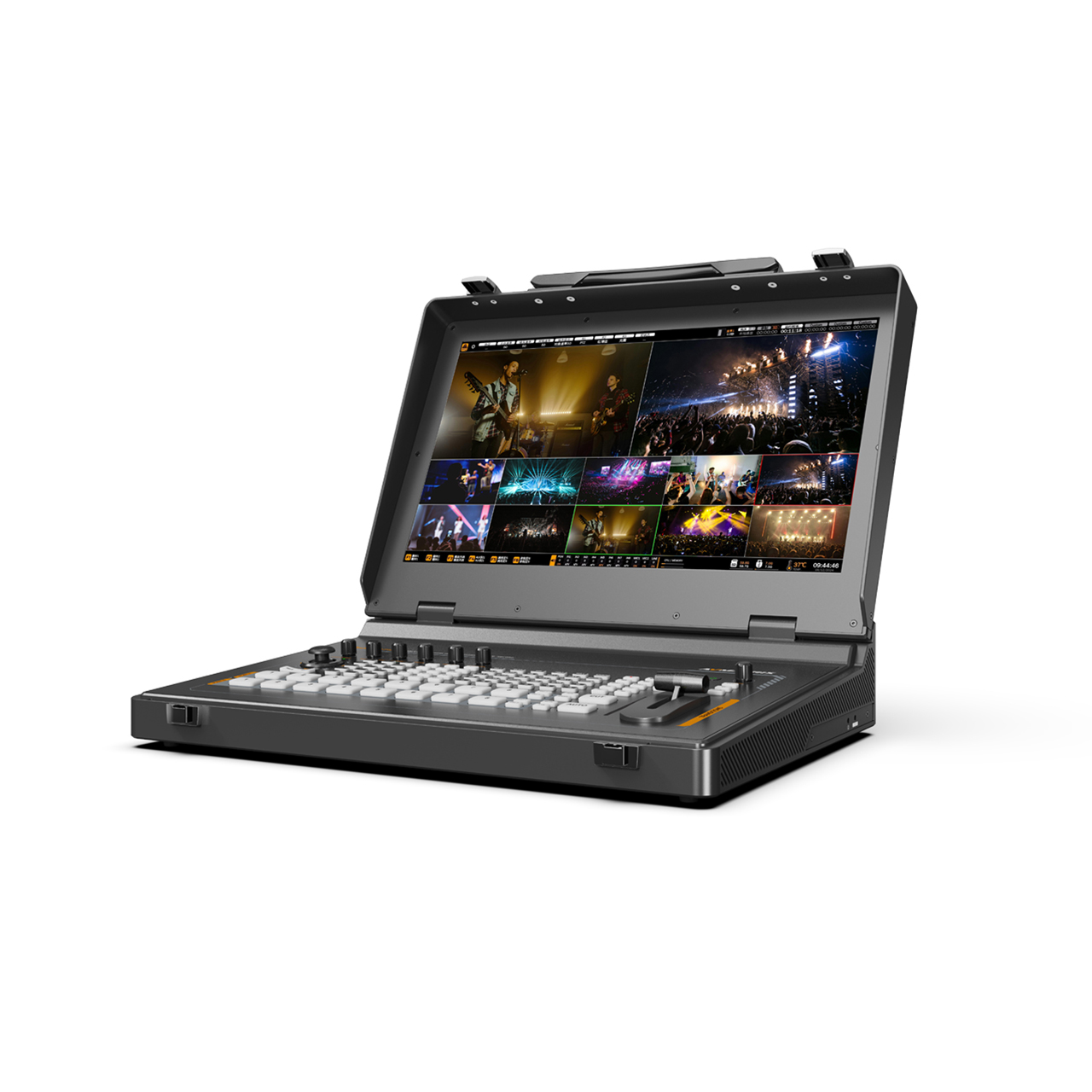

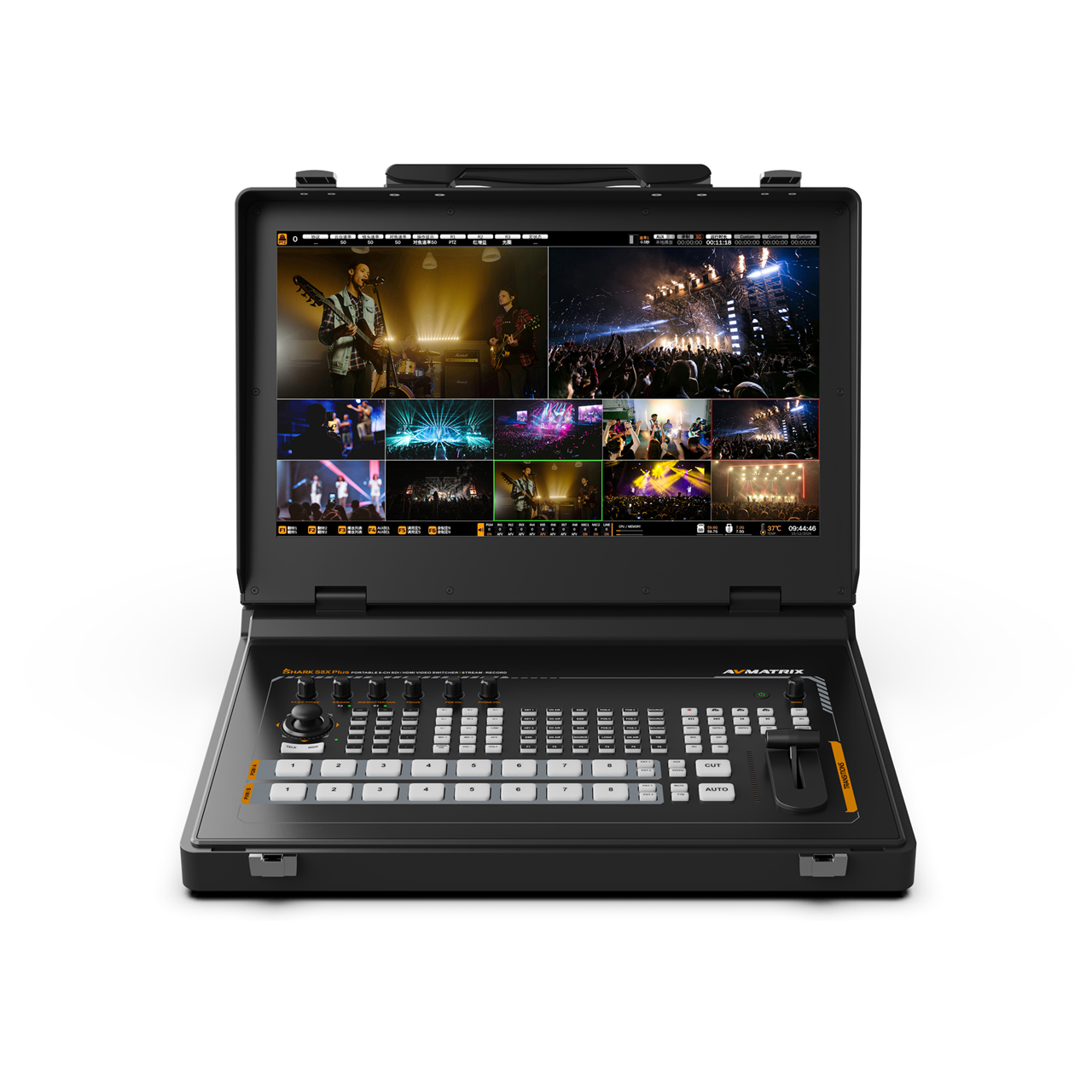

The AVMatrix SHARK S8X PLUS featuring a 17.3-inch FHD IPS switcher, supports 8-ch 3G-SDI and 2-ch 4K HDMI input, with frame synchronization output and an AUX input (supporting video player, UVC, streaming). Outputs include 2x HDMI, 4x SDI, and 1x HDMI multiview with customizable output source and format option. It supports RTMP(S)/SRT/RTSP streaming, recording, and playback via USB/SD card/2.5-inch SATA, and UVC lossless capture. The switcher offers chroma key, luma key, customizable PIP×3, POP, DSK, and LOGO overlay. The Audio function provides two XLR/TRS balanced inputs with 48V phantom power and a 3.5mm stereo input, supporting mixing of 8 embedded video audio channels and two external audio inputs. It also features 8-channel PTZ control with rate, preset, focus control, manual/auto exposure, and color control. The switcher supports macro script functionality for effortless automation of operations, meeting professional live streaming and production needs.
Ideal for hybrid workflows, the SHARK S8X PLUS supports direct recording to USB drives, SD cards, or SATA SSDs, making it easy to archive or edit footage post-event. Built-in RTMP, SRT, and RTSP streaming ensures reliable live broadcasts to online platforms without external encoders. The switcher features up to six adjustable key layers for complex compositions, including Chroma and LUMA keying, three customizable picture-in-picture windows, and logo overlays. With 10-channel audio mixing and two XLR-1/4" combo inputs with phantom power, the S8X ensures professional-grade sound. PTZ control over Visca, Onvif, or Pelco P/D protocols further streamlines single-operator setups, making the SHARK S8X PLUS a complete solution for events, churches, sports, or streaming studios.
