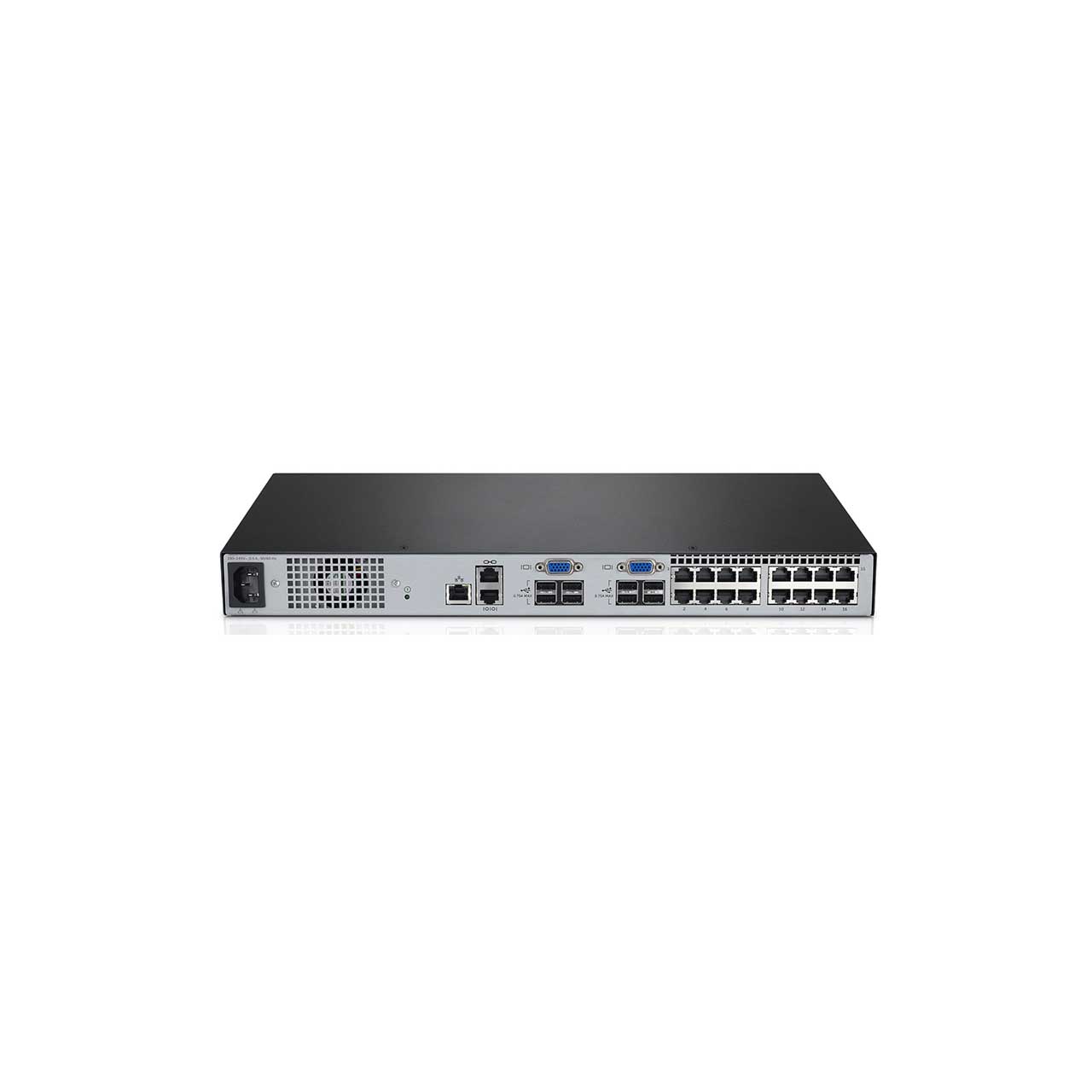

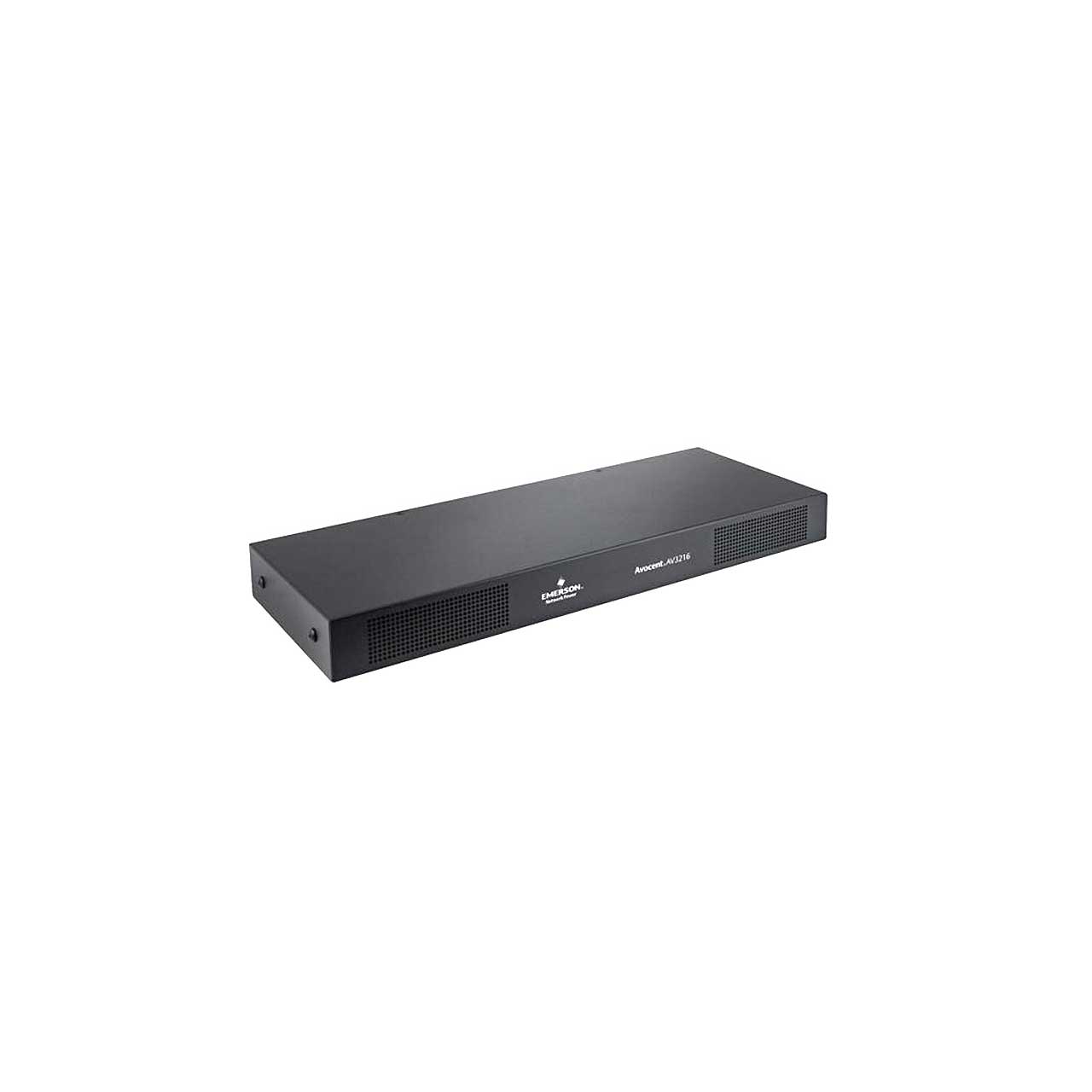

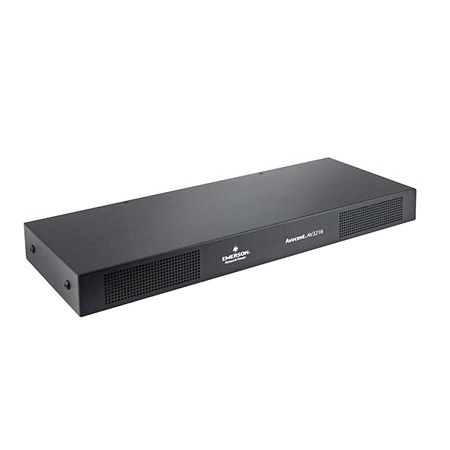

Avocent AV3216-400 KVM Over IP Switch

ITEM #: AVOC-AV3216 MFG #: 6G0024

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:


Our Price:


Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup

    6G0024 - Overview

    Server Management for Small Data Centers and Remote/Branch Offices
    Unplanned interruptions in service can have damaging effects on business no matter the scope or size of the data center. Whether the data center is in a closet, next to a desk or across the globe in a remote office, IT professionals need tools that provide consolidated, streamlined access to server resources. The Avocent AV3000 series of KVM over IP switching solutions provides streamlined management and control of server resources all from a single console.

    Flexible and Scalable
    The Avocent AV3000 KVM over IP portfolio is available in two options to support different needs. The AV3108 switch supports one local and one remote user and up to eight server or serial devices. The AV3216 supports up to two local and one remote user and 16 server or serial devices.

    When in share mode, additional, authenticated users can share remote sessions for a total of up to 4 remote, concurrent users. Each AutoView switch supports VGA, Display Port, DVI and HDMI video targets and four USB 2.0 ports for USB enabled devices. When additional systems are added, AutoView switches can be tiered to provide consolidated management of up to 256 server or serial devices.

    Streamlined Management
    The Avocent AV3000 series KVM over IP switch ships with two intuitive, integrated management interfaces. The OSCARTM on-screen display for local access and the Web User Interface for remote management. Additionally, AV3000 series KVM over IP switches are compatible with Avocent DSViewTM management software for consolidated management across the infrastructure.

    In high security environments, CAC support with encryption for smart cards and password protection for local users, provides security you can depend on for your virtual media sessions. Encryption options include 128-bit SSL, AES, DES and 3DES and they can be selected for keyboard, mouse and video signals and virtual media sessions

    • Features:

      • Grant access to specified users or implement LDAP directory authentication.
      • Limit KVM access to specific targets on the switch.
      • Enable smart card or CAC readers to support two factor authentication.
      • Support for virtual media, USB keyboards and mice.
      • Support for USB, PS/2, Sun and serial target devices in a single solution.
      • Advanced, graphical On-Screen Display eases system configuration and server selection
      • CAT-5, thin cabling saves space in the rack and allows up to a 30 meter distance between the server and the switch.
      • Server interface modules and integrated access cables automatically assign and retain unique server names for each attached server.
    • Specifications:

      • Form Factor: 1U rack mount
      • Dimensions: 1.72(H) x 17" (W) x 6.5" (D)
      • Weight: 4.4 lbs.
      • Device Connectors: 16 ports for servers or serial devices / 4 USB 2.0 ports
      • Remote Access: 1 remote KVM over IP user / 10/100 Mbps Ethernet port
      • Local Access: 2 local ports, 1 ACI port for tiering to another AutoView switch
      • VM/CAC Support: Virtual Media support over USB / Common Access Card (CAC) capability for smart cards / 128-bit SSL, AES, DES and 3DES encryption
      • Video Support: Local VGA connection. Supports VGA, DisplayPort, HDMI, or DVI targets / 16:9 widescreen, up to 1680 x 1050 / 4:3 standard, up to 1600 x 1200
      • Management Software: OSCAR On-Screen Display for local access / Web User Interface / Compatible with Avocent DSViewTM management software

        Power Supply Specifications
      • Connector: IEC C14
      • Type: Internal
      • Power: 18W
      • Heat dissipation: 47 BTU/hr
      • AC input range: 100 - 240 VAC
      • AC frequency: 50/60 Hz auto-sensing
      • AC input current rating: 5 A
      • AC input power (maximum): 20W

      • Operating: 32°F to 122°F
      • Non-operating: -4°F to 158°F
      • Airflow is from non-port side (Front) to port side (Back)
      • Supported Server Interface Adapters: Multi-platform support: PS/2 and USB. Also support for Avocent PS/2, PS2M, USB, Sun, USB2, VMC modules; Dell PS/2, USB, USB2-VM, USB2-VM+CAC SIPs
    • Warranty:

      • 2 Years
