    HBT-C6POE-EX - Overview

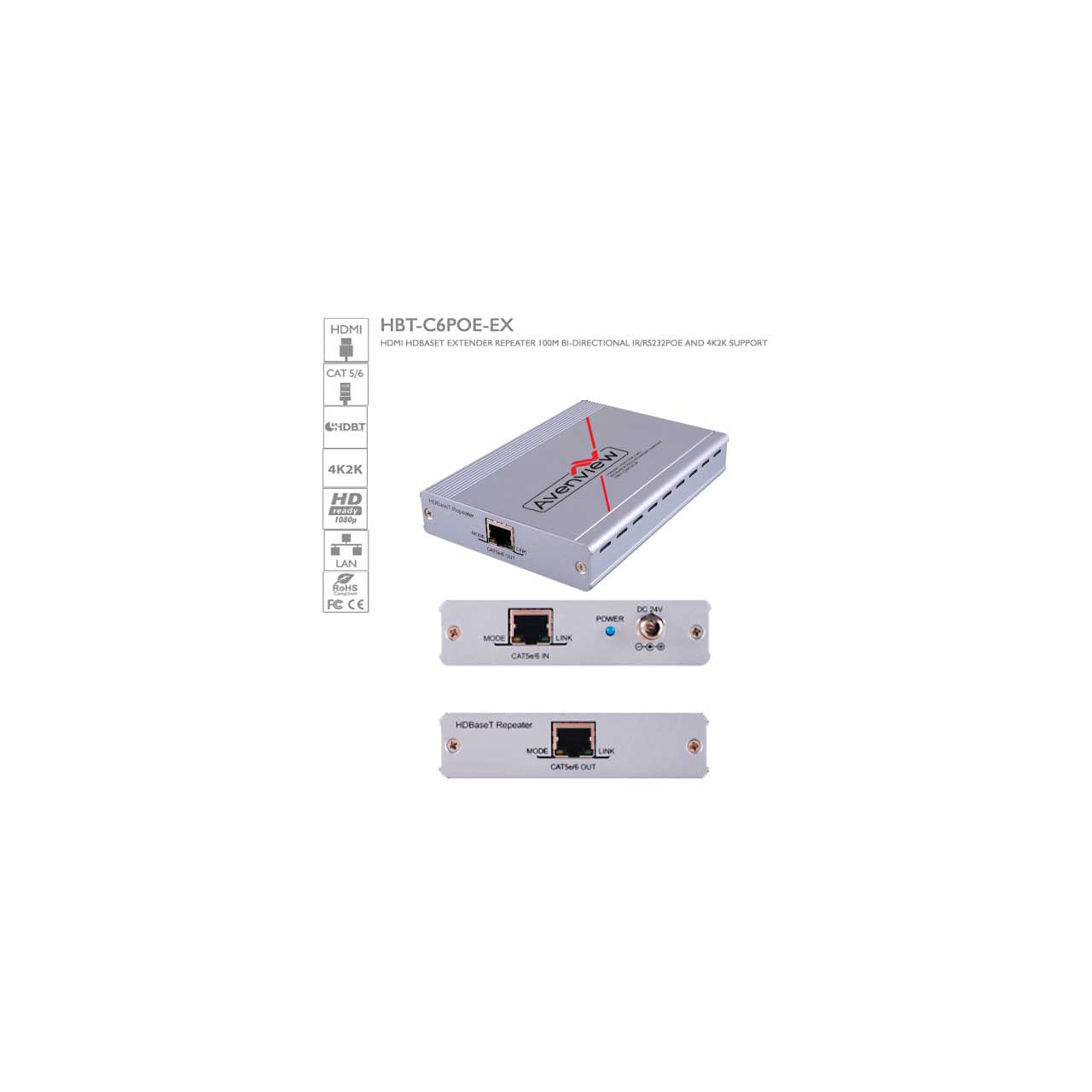

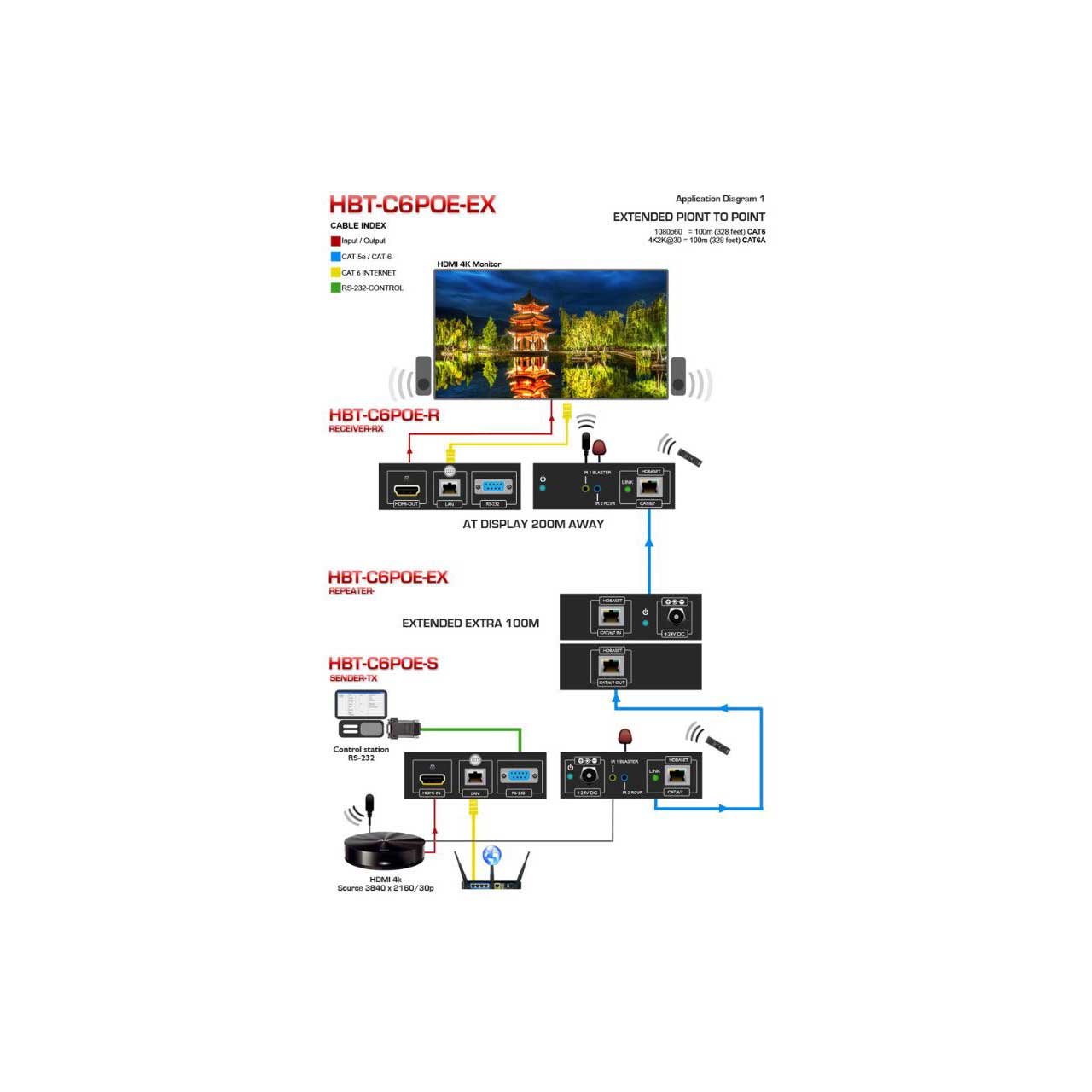

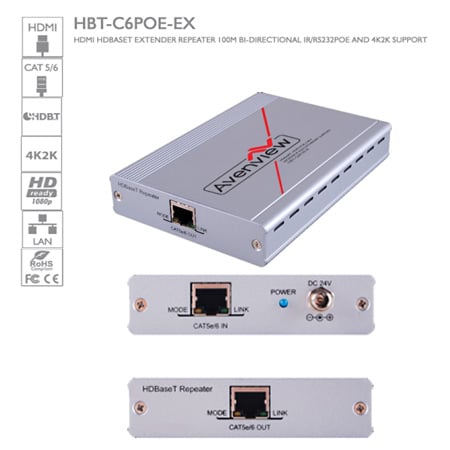

    Avenview HBT-C6POE-EX HDBaseT™ Repeater simply allows HDBaseT systems to be both extended and cascaded. Supports the highest quality of uncompressed HD video up to 4K×2K (Ultra HD) also 8 channels of uncompressed multi-channel audio. Built in data functions - RS-232 and IR control systems, this unit also supports PoE and Ethernet. HDBaseT 5Play™ convergence over a single CAT5e/6/7 cable.

    Note: The PoE function is designed for powering compatible Receiver units only. The non-PoE Receivers has to be powered with a power supply. Receivers (Rx) from different manufactures would not be compatible. Displaying HDMI 4Kx2K resolution would require the standard 4Kx2K HDMI cable and display for accurate results.

    • Features:

      • Input: HDMI with 3D & 4Kx2K, 1080p,HDCP and DVI compliant
      • Video bandwidth: From 300MHz / 9 Gbps
      • PC resolutions: Up to VGA to WUXGA
      • HD resolutions: Up to 4Kx2K ([email protected] and [email protected])1080p ([email protected])
      • Audio supported: LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio
      • Audio transmission: (32-192kHz sample rate)
      • Supports: CEC bypass
      • Distance: Up to 100 meters through CAT6e/6a/7 cables
      • Ethernet transmission: Rate up to 100Mbps
      • Uncompressed video: 1080p, 60 Hz, 36-bit
      • Service: USB for Manufacturer USE ONLY
      • 3D support: Follow by Display / TV's EDID
      • 5Play™ convergence: HDMI, LAN, PoE & Bi Directional Control (IR & RS-232)

    • Specifications:

      • Physical Characteristics
      • ETHERNET SPEED: 100Mbps
      • VIDEO BANDWIDTH: Single-link 300MHz [9Gbps]
      • SUPPORTED RESOLUTIONS: [email protected]/60, [email protected], 3D; [email protected] Up to Ultra HD ([email protected]/25/30Hz)
      • CEC SUPPORT: ALLOWS CEC BYPASS
      • CAT5/6/7 CABLE: 4K2K: ([email protected]) ~ 70meter (229feet) (CAT6e); FULL HD: (1080p) ~ 100meter (330feet) (CAT6e/6A)
      • HDMI IN CABLE: M/M 15m/[email protected] or 6m/[email protected]
      • HDMI OUT CABLE: M/M 15m/[email protected] or 10m/[email protected]
      • ESD PROTECTION: Human body model - ±8kV (air-gap discharge) & ±4kV (contact discharge)
      • INPUT: 1x CAT5e/6/7
      • OUTPUT: 1x CAT5e/6/7
      • HDMI CONNECTOR: Type A (19 pin female)
      • DIMENSIONS (L X W X H): 4" x 4.4" x 1" 102 mm (L)×113 mm (W)×25 mm (H)
      • WEIGHT: 324g /0.7lbs
      • POWER SUPPLY: 24V /1.25A DC (US/EU standards, CE/FCC/UL certified)

    • Item Includes:

      • HBT-C6POE-EX
      • Power Adapter 24V 1.25A DC
      • User Guide
