Axis S1232 1RU Camera Station Rack Recording Server - 32 TB HDD - TAA Compliant

ITEM #: AXIS-S1232 MFG #: S1232

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$14,299.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


S1232 - Overview

The Axis S1232 is an out-of-the-box, ready-to-use recording server that features powerful components for top-class performance. And it's easy to scale and expand your system as your needs grow. Featuring powerful components, this high-performance recording server offers support for powerful applications and features. Thanks to a RAID controller with high cache memory, it minimizes the risk of recording gaps, downtime, and data loss. This secure device complies with government policies and uses a Trusted Platform Module (TPM) that is FIPS 140-2 level 2, which increases the security of the product and ensures recorded video is stored encrypted on the hard drive. And, if the system crashes, built-in operating system recovery stored on the device ensures data can be quickly recovered.

AXIS S1232 Rack is Ideal for Demanding Applications
With great scalability, it's easy to expand your system as it grows without the need for additional hardware. It includes 32 AXIS Camera Station Pro licenses and provides 10 AXIS Audio Manager Pro licenses when installing the software to the server. You can expand your system up to a recording bitrate of 512 Mbit/s (approximately 64 channels) . Plus, with multiple RAID configurations (levels 0/1/5/6/10), it provides flexible system storage and redundancy based on your specific requirements. AXIS S1232 Rack is available in two variants with a choice of storage: either 16TB or 32TB. This reliable recording server comes preloaded with AXIS Camera Station Pro licenses and pre-configured software, so there's no need to spend time selecting, configuring, and testing hardware. Plus, with services such as Keep Your Hard Drive and Next Business Day Onsite Support, as well as a 5-year warranty, you can depend on Axis for first-class quality, reliability, and support. Part of an Axis end-to-end solution, all supported products are available in one price list for a one-stop-shop experience. Furthermore, with an intuitive installation wizard and AXIS Recorder Toolbox, AXIS S1232 eliminates problems to help ensure every customer installation is trouble-free.

  • Features:

    • Scalable and powerful solution
    • Flexible storage options including RAID
    • Available in 2 variants: 16TB and 32TB
    • 32 AXIS Camera Station Pro licenses included
    • Extensive support and 5 year warranty

  • Specifications:

    • Processor: Intel Xeon E processor
    • Memory: 2x 16GB
    • Storage: Hot swappable Enterprise Class SATA HDD
    • Total HDD Slot: 4
    • Free HDD Slot: 0
    • Out-of-the-Box Capacity without RAID: 32TB (4x 8TB)
    • Property Description: Property value
    • Form Factor: Rack 1U
    • AXIS Camera Station Pro Licenses Included: 32
    • AXIS Audio Manager Pro Licenses Included: 10
    • System Storage: 32TB
    • HDDs Included: 4
    • Supported RAID Level: 0, 1, 5, 6, 10
    • Default RAID Level: 5
    • Operating System: Microsoft Windows 11 IoT Enterprise LTSC 2024
    • Power: 2x 600W hot-plug redundant power supplies (included)(100V - 240V AC, 7.1A - 3.6A, 50/60Hz
    • Power Consumption:
      - Typical: 127W (433 BTU/h)
      - Maximum: 158W (539 BTU/h)
    • Connectors - Front Side:
      - 1x USB 2.0
      - 1x iDRAC direct port

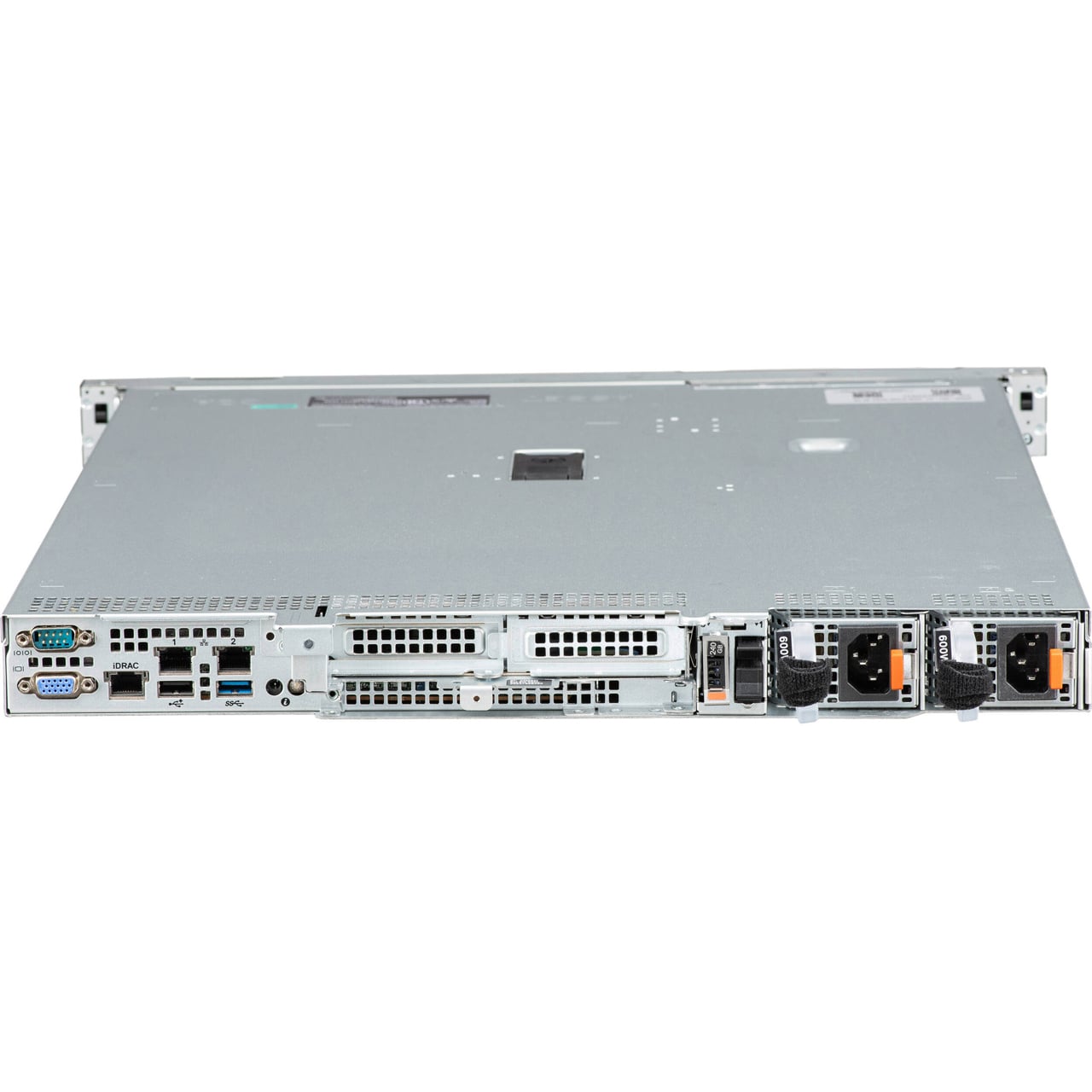

    • Connectors - Rear Side:
      - 1x USB 2.0
      - 1x USB 3.2
      - 1x VGA
      - 1x Serial port
      - 1x iDRAC dedicated Ethernet port
      - 2x RJ45 1Gbps

  • Warranty:

    • 5 Year Warranty
