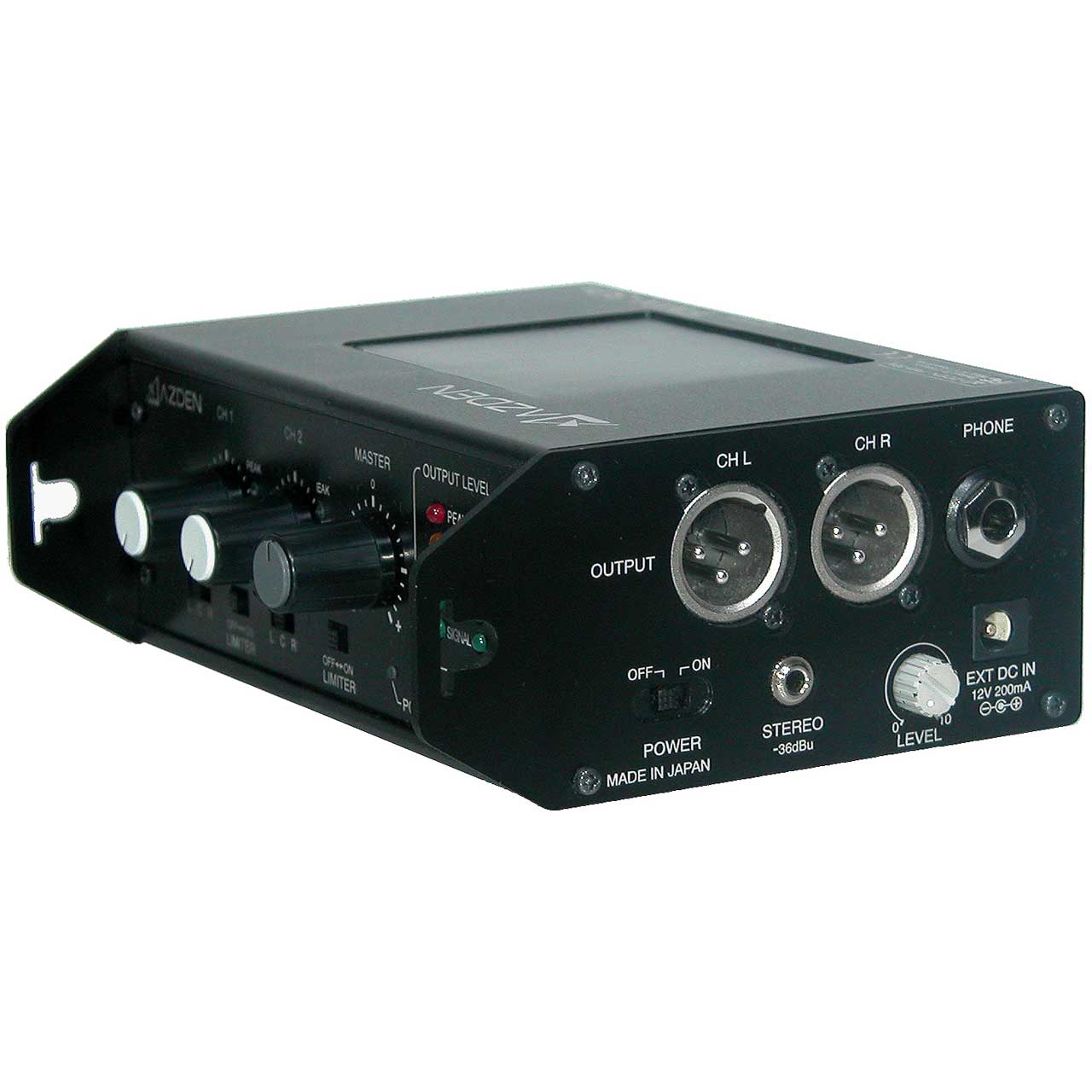

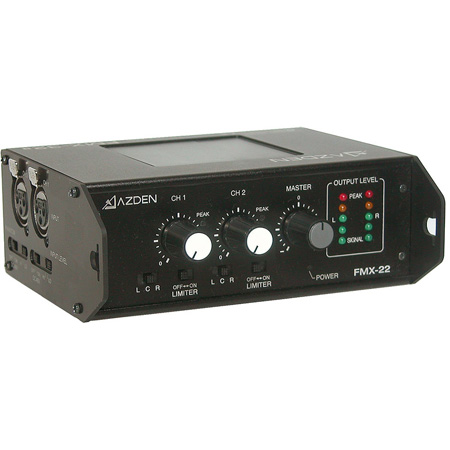

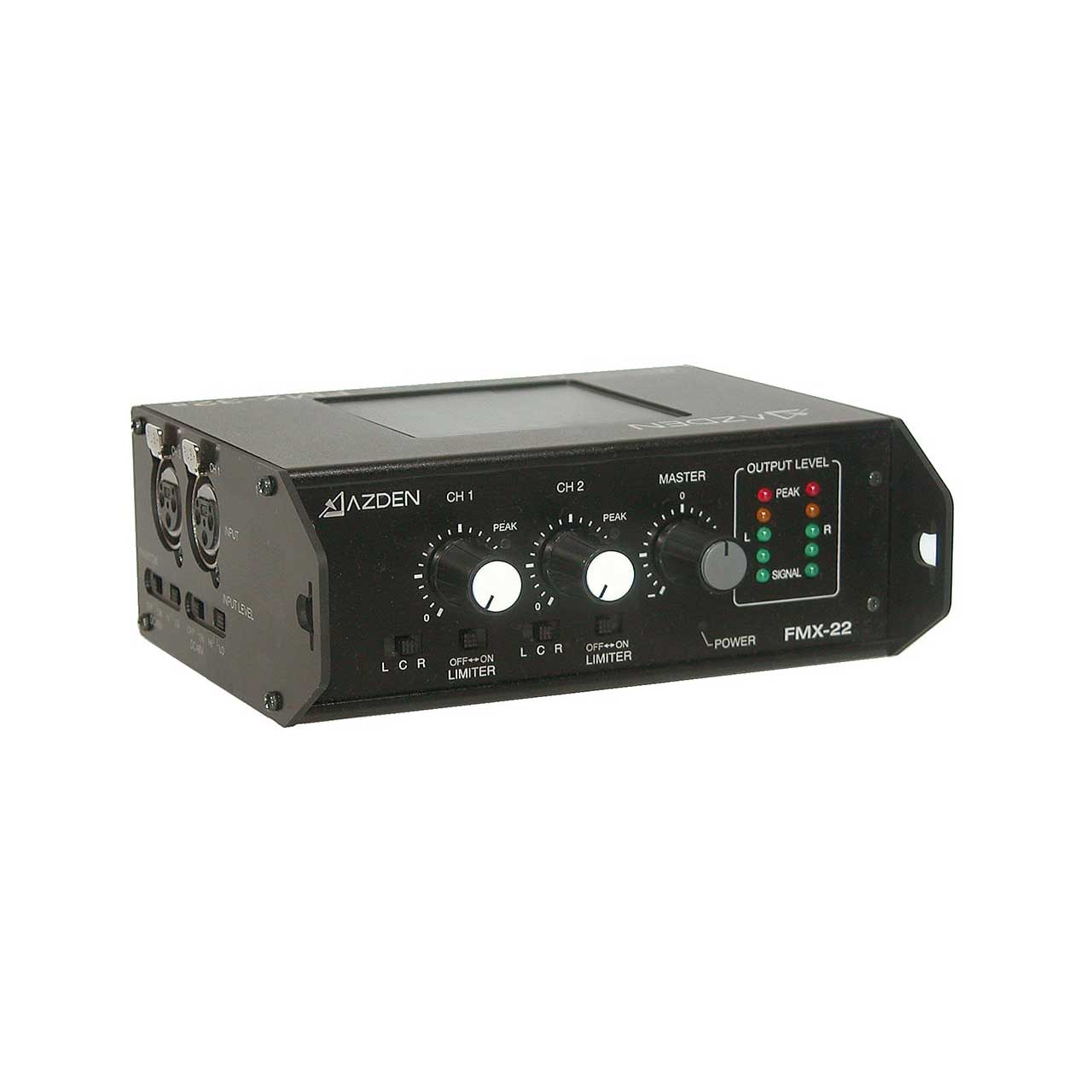

Azden FMX-22 Professional Portable Mixer with 2 XLR Inputs/2 XLR Outputs & Mini-Plug Output/Adjustable Input Level

ITEM #: AZ-FMX-22 MFG #: FMX-22

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the AZ-FMX-22

FMX-22 - Overview

The now improved Azden FMX-22 uses the same circuit topology as the more expensive Azden mixers. With improved signal to noise ratio and wider frequency response the new FMX-22 is designed for the demanding needs of Professional Videographers. The small, all metal, battery operated (4-"AA") mixer can be attached directly to any flat surface with supplied hook-and-loop fastener. The FMX-22 has the following features: 2 XLR microphone inputs each with 2 input settings, 2 input level controls, master level control, switchable phantom power and limiters for each input, channel-addressable (L-C-R) Stereo XLR and mini outputs, 5-step LED meters easy signal monitoring, 12V DC input for external power (optional BC-27 power supply), and a 1/4" monitor headphone jack with level control.

  • Features:

    • 2 balanced XLR mic inputs and pan controls
    • Switchable 48V phantom power and limiting
    • 5-step LED master bus meters
    • 2 balanced XLR outputs
    • Stereo mini-jack output for DSLR cameras
    • Headphone out with level control
    • 4x AA battery powered
    • Optional A/C adapter

  • Specifications:

    • Frequency Response
    • Main and Unbalanced Output: 20-20,000Hz (+0/-.5dB)
    • Monitor Output: 50-17,000Hz (-3dB)

      Noise Level
    • Left & Right Channel: -119dBu (A weighted, Input Equivalent Level)
    • T.H.D.: less than 0.005% @ 1KHz (+10dBu output)

      Mic Input Level
    • Lo: -21 dBu Gain +58dB max gain
    • Hi: -5dBu Gain +42dB max gain

      Monitor Output
    • 3.5mm Stereo: -4dBu (32 ohm load) (Recommended load 16-100 ohms)

      Maximum Output Level
    • Balanced Output: +15dBu (5K ohms)
    • Unbalanced Output (3.5mm): -20dBu (2K ohms)

      Battery Type/Duration
    • 4 - AA Alkaline - 15 hours

      Current Drain
    • 77mA nominal (Phantom Power Off)
    • 118mA maximum (Phantom Power On)

      Phantom Power
    • Voltage: 48VDC (+/- 1.5VDC)

      Dimensions
    • Size: 53.5H x 145W x 120D mm (2.19 x 5.70 x 4.75 inches)
    • Weight w/o Battery: 23.58 ounces (670 grams)

  • Item Includes:

    • 1x Azden FMX-22 Professional Portable Mixer with 2 XLR Inputs/2 XLR Outputs & Mini-Plug Output/Adjustable Input Level

  • Warranty:

    • 2 year warranty

  • GTIN:

    0095528070093
