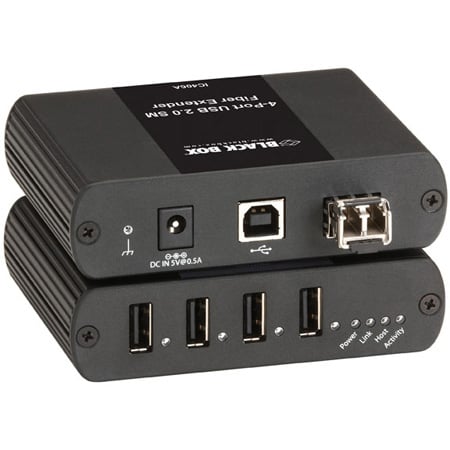

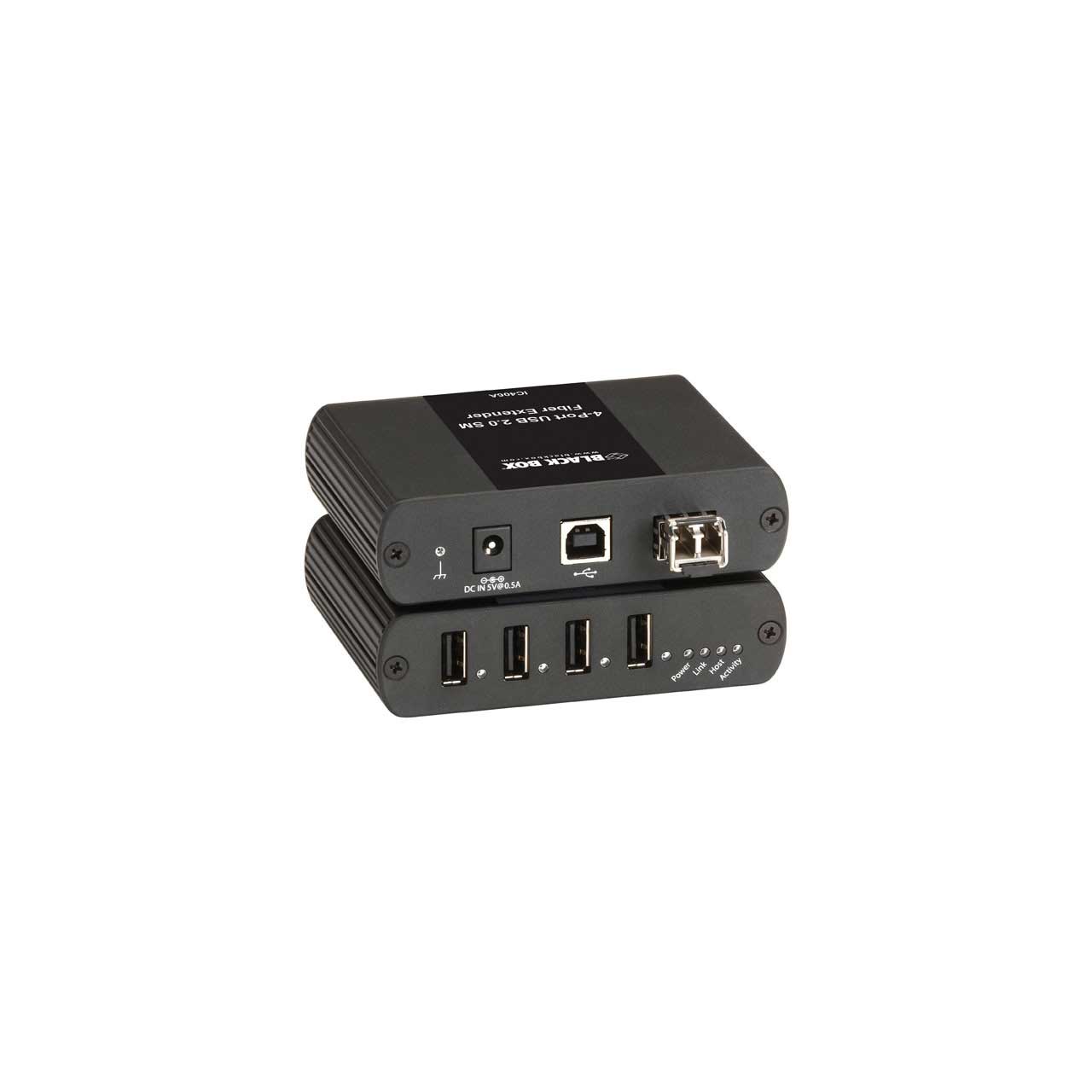

Black Box IC406A USB Ultimate Extender Over Single-Mode Fiber - 4-Port

ITEM #: BBX-IC406A MFG #: IC406A

Primary Image
Free Shipping with $49 Minimum Order

List Price:


Our Price:


Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup

    IC406A - Overview

    Get USB connectivity anywhere.
    Install your USB devices anywhere! Combine the Black Box IC406A 4-port singlemode fiber USB extenderwith additional USB hubs to power up to 30 USB devices.

    It supports all major operating systems including Windows, Mac OS, and Linux. It's truly plug-and-play, ready to operate right out of the box. No new driver installation is required.

    The USB Ultimate Extender works with all USB device types: control, interrupt, bulk, and isochronous at up to 480 Mbps. It's ideal for a wide variety of USB devices, including printers, scanners, hard drives, audio devices, touch screens, and Web cams.

    An AC power adapter at the remote unit provides standard 1AS max to USB port.

    Use it for any or all of the following applications:

  • Industrial control
  • KVM extension
  • Digital signage
  • Remote desktop USB connections
  • Security: Web camera, access control
  • Medical device connectivity
  • USB device sharing: printing, scanning, storage
    • Features:

      • Extends both USB 2.0 and USB 1.1 up to 10 kilometers (6.2 mi.) over single-mode fiber.
      • Provides true plug-and-play capabilities, ready to operate right out of the box.
      • Works with Windows, MacOS, and Linux operating systems. No new driver installation is required.
      • It's ideal for a wide variety of USB devices, from printers, scanners, hard drives, and audio devices, touch screens, Web cams, and more!
    • Specifications:

      • Connectivity: 30 USB devices
      • Connectors: Local unit: (1) USB Type B, (1) pair of LC;
      • Remote unit: (4) USB Type A, (1) pair of LC
      • Dimensions (Each Extender): 1"H x 3.9"W x 3"D (2.5 x 10 x 7.6 cm)
      • Operating Humidity: 20 to 80%, noncondensing
      • Operating Temperature: 32 to 122° F (0 to 50°C)
      • Power: Local unit: not required for normal operation
      • Available at remote unit: 24 VDC at 1A provides 4 x 600mA for devices
      • Range: 6.2 miles (10 kilometers) over single-mode fiber
      • RoHS2: Yes
      • Standards: FCC (Class B), IC (Class B), CE (Class B);
      • ESD Rating: EMC EN-61000-4-2:2001 8kV Contact, 16kV Air
      • Storage Humidity: 10 to 90%, noncondensing
      • Weight (Each Extender): 3.1 lb (1.4 kg)
    • Item Includes:

      • Local extender module
      • Remote extender module
      • USB Cable (2-meter)
      • Power adapter
      • US power cord
    • GTIN:
