Black Box KV9804A Wizard DP 4-Port USB DisplayPort Desktop KVM Switch

KV9804A - Overview

Support for high-resolution video over DisplayPort connections in a desktop KVM switch.

• Features:

  • High resolution video up to UXGA (1600x1200), full HD (1920x1080), and WUXA (1920x1200), and WQXGA (2560x1600, dual-link)
  • KVM, audio, and USB switching independently
  • Supports DisplayPort 1.1 compliant, four lanes at 2.7gB/s
  • Compatible with USB keyboards, mice, and USB peripherals
  • Four computers share up to four different USB peripherals
  • Activate autoscan by pressing front buttons
  • Front-panel push buttons and hotkey functions for easy computer selection
  • No software required


• Specifications:

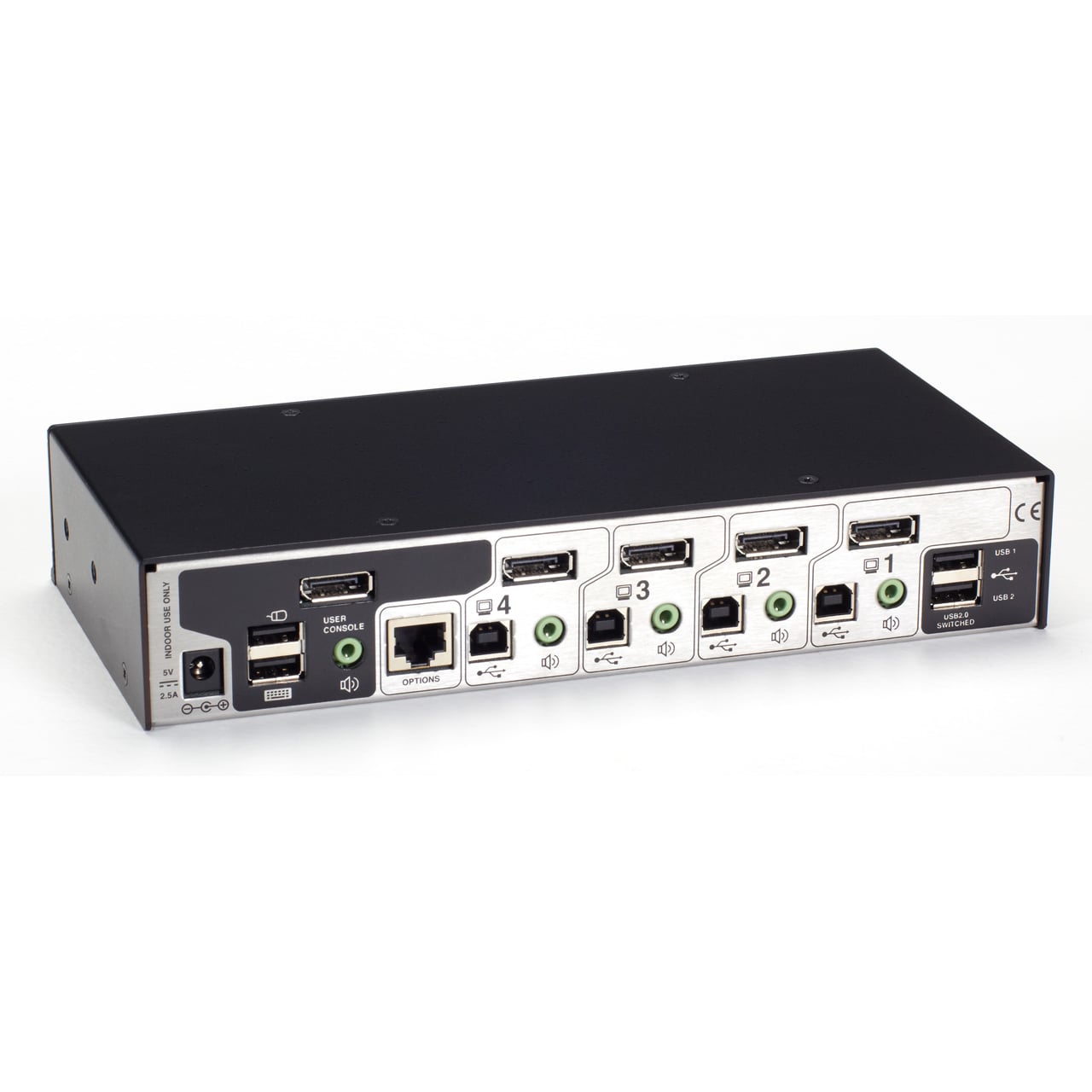

  Connectors
  • Console:
    - 1x DisplayPort (Female)
    - 2x USB Type-A (Female) for HID
    - 2x USB Type-A (Female) for USB 2.0 devices
    - 1x 3.5-mm Audio Jacks
  • CPU:
    - 4x DisplayPort (Female)
    - 4x USB Type-B (Female)
    - 4x 3.5mm (Female) for Audio and mic
  • Power: 1x 2.5mm Barrel Connector for Input


  • Country of Origin: United Kingdom
  • Dimensions (HxWxD): 1.7" x 9.2" x 4.7" (4.3cm x 23.4cm x 12cm)
  • Weight: 1.9lbs (0.86kg)


• Item Includes:

  • ServSwitch Wizard DP USB Unit
  • Power Adapter and Power Cord
  • (4) Self-Adhesive Feet
  • CD-ROM containing User Manual in PDF format
