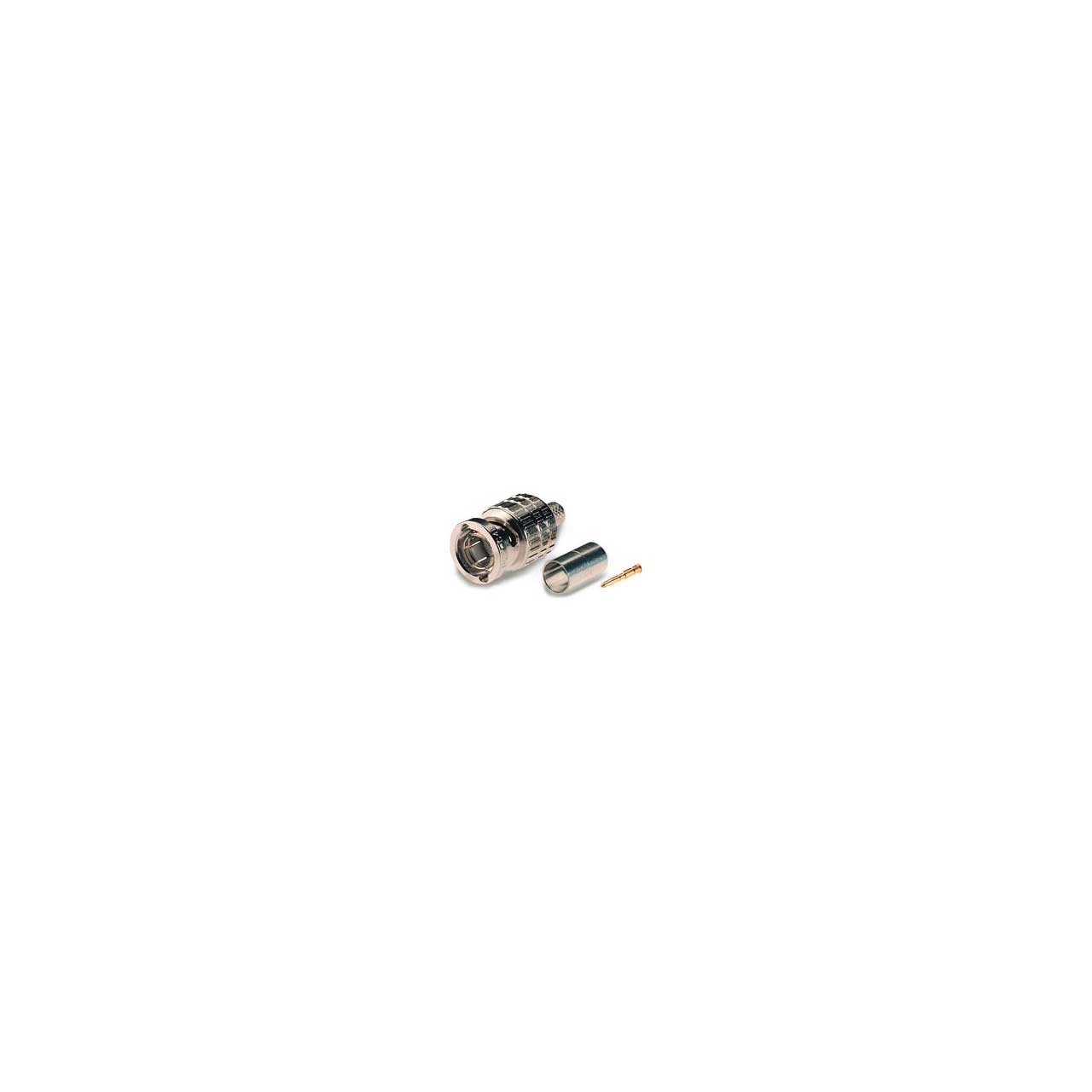

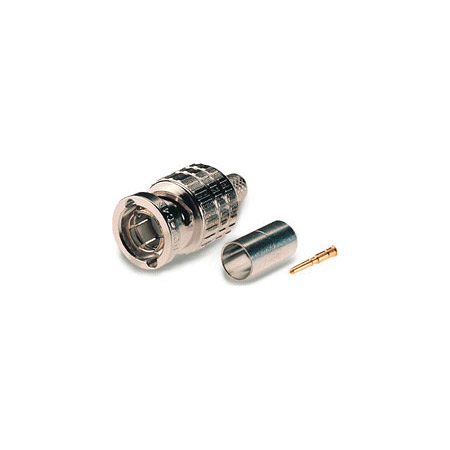

Canare BCP-A32 3-Piece Crimp BNC Connector for Belden 1506A & Belden 1824A

ITEM #: BCP-A32 MFG #: BCP-A32

Primary Image

This item is no longer available.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the BCP-A32

BCP-A32 - Overview

Canare's premium 3G-SDI SMPTE 424M compatible BNC connectors for coaxial cables used on video camera feeds, jackfields and similar signal transmission in the studio and field. Connectors exceed the required SMPTE 424M television standard 3 Gbps signal/data serial interface. 75 ohm 3-piece BNC crimp plugs deliver high performance with 'snap lock' in place gold plated center pins and superior cable pull strength.

The BCP-A32 is designed for use with Belden 1506A and 1824A coax cable as well as 1825A, 1826A & 643948

  • Features:

    • Three Piece Crimp Type Connectors for use with Standard and Canare Type Coaxial
    • MIL-C-39012 Spec with 75 Ohm Performance To Address The Latest Generation of High Bandwidth Video Equipment
    • Offers High Return Loss (>26dB) and Low VSWR (+/-1.1), DC to 2GHz
    • Features Special Elongated Body Handle for Firm Grip and Extra Finger Comfort
    • Gold Plated Center Crimp Pins
