Belden 1506A 6G-SDI CMP/Plenum RG-59 Coaxial Cable Solid BC 20 AWG - Black - 1000 Foot

ITEM #: BL-1506A-1000 MFG #: 1506A 0101000

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$3,474.20

Our Price:

$2,869.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    1506A 0101000 - Overview

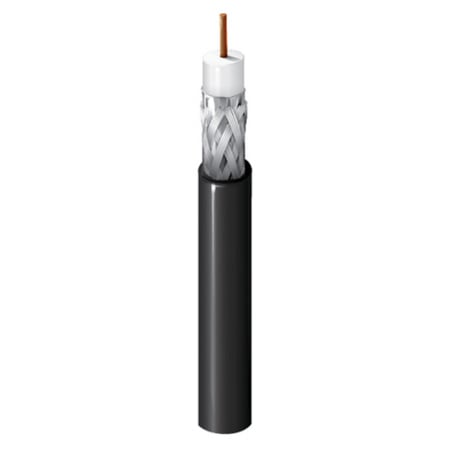

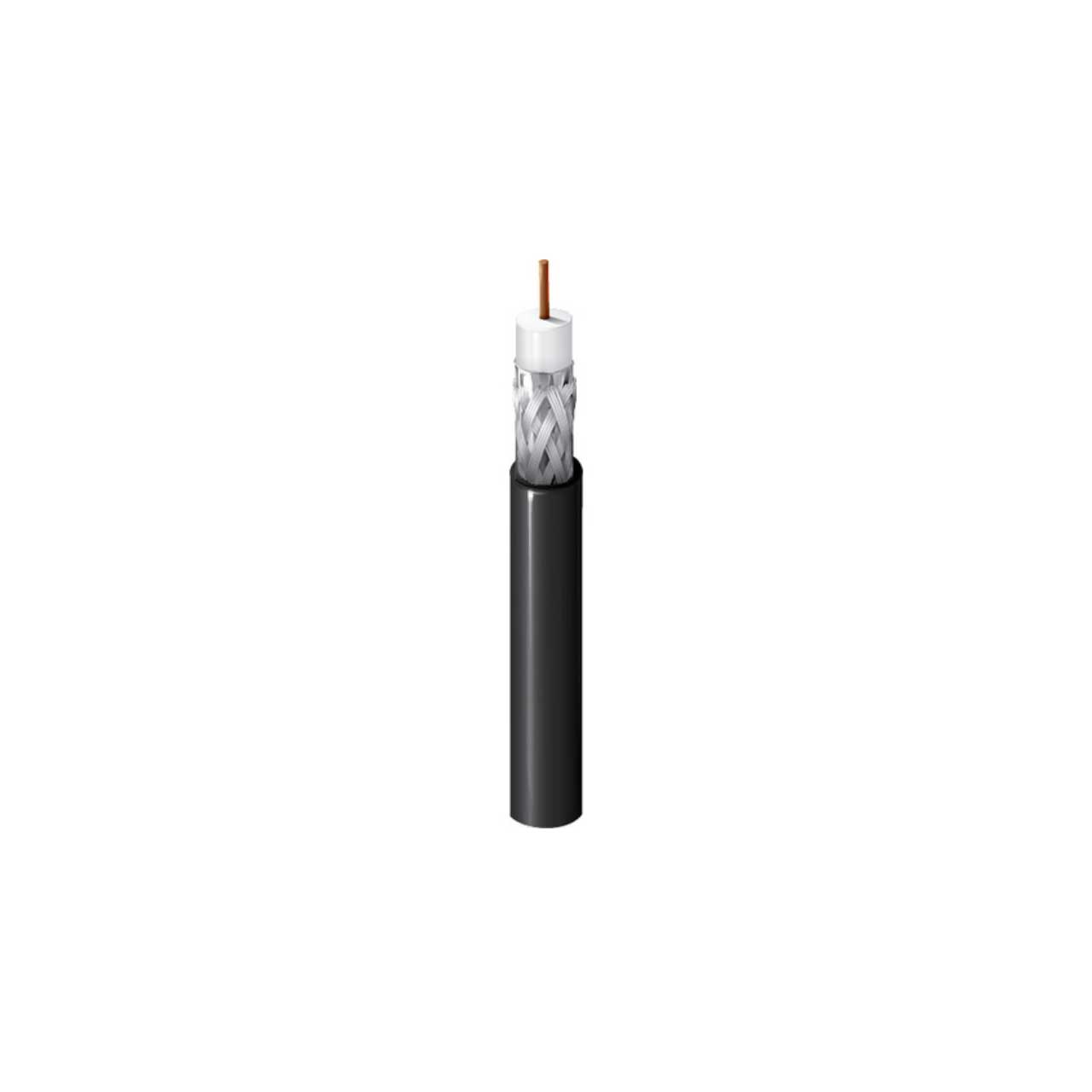

    Belden 1506A is a 6G-SDI, CMP/Plenum, RG-59 75 Ohm Video Coax cable. It's 20 AWG with a Solid Bare Copper Conductor, FEP Insulation, Foil + 95% Tinned Copper Braid Shield, in a CMP/Plenum PVC Jacket.

    Belden’s premium multi-channel 6D-SDI coax cable meets the SMPTE ST-2081 6G-SDI Standards to support 6 Gbps and maximum resolutions for 4K video & audio applications up to 30Hz. This cable supports: 1080P (All formats to YUV 4:4:4), 10/12-bit 4Kx2K RAW, 10-bit 4Kx2K YUV 4:2:2.

    Applications
    Digital Video
    6 Gb/s UHDTV
    HD-SDI 1080p

    • Features:

      • Convenient Installation: Only one cable can be installed to send 10 Bit 4:2:2 4K at 30p or 24p & support 6 Gb/s of bandwidth for 6G-SDI
      • Durable Materials: The flexible cable sleeve provides abrasion resistance & its high quality connectors provide strain relief
      • High Quality Signal Transmission: Professional quality 4K, 75 ohm BNC connectors for proper 6G performance

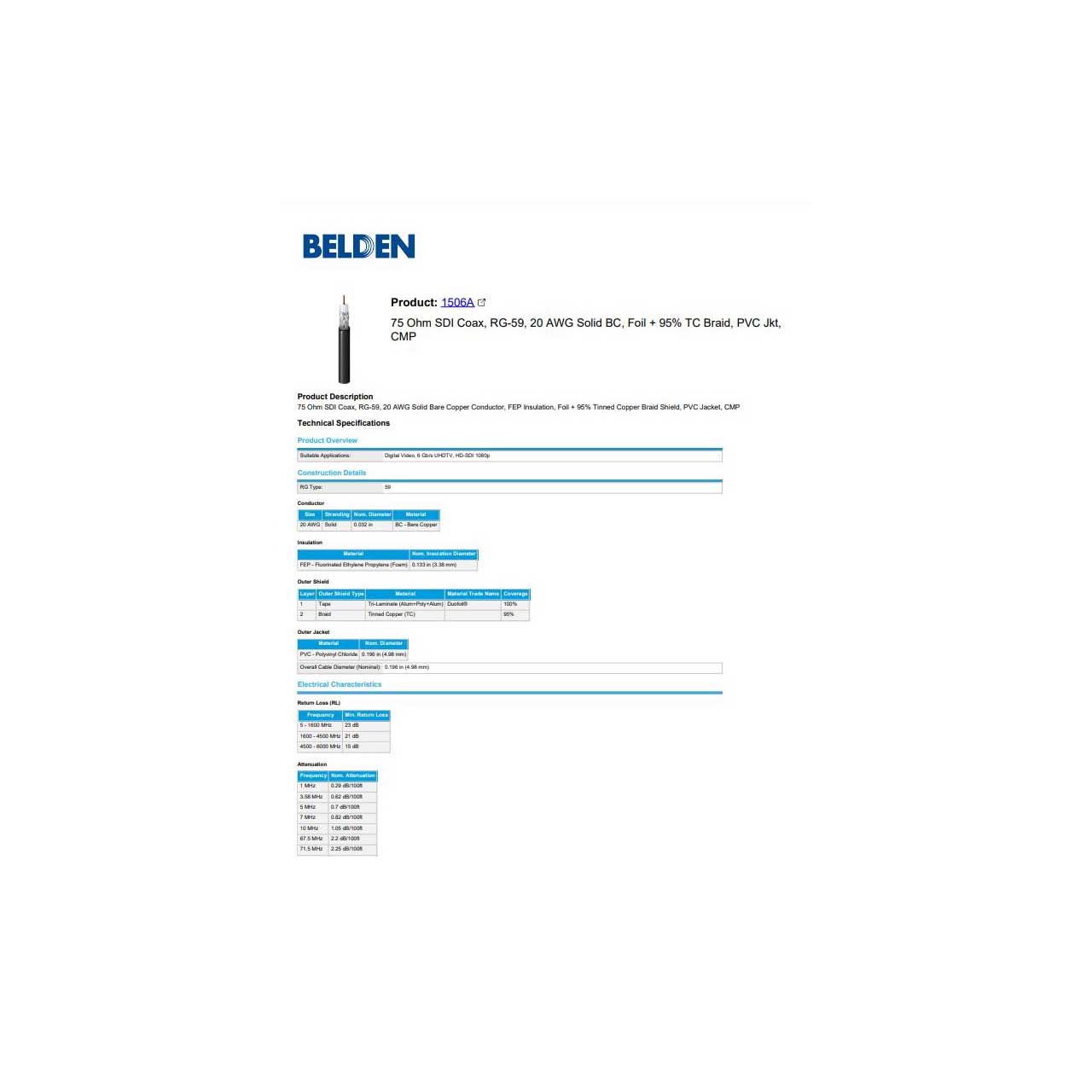

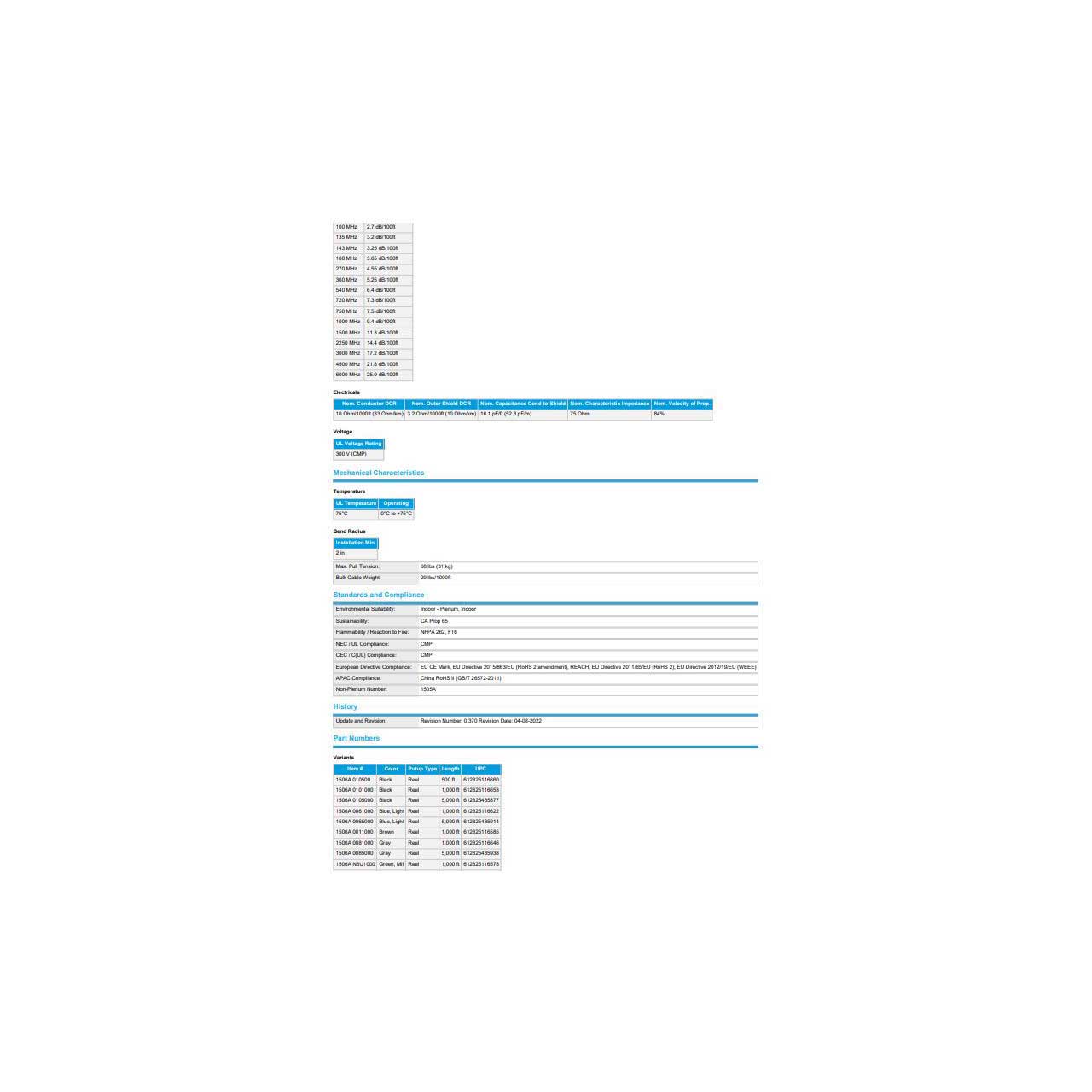

    • Specifications:

      • Number of Coax: 1
      • RG Type: 59
      • Conductor AWG: 20
      • Conductor Stranding: Solid
      • Conductor Material: BC - Bare Copper
      • Conductor Stranding: Solid
      • Conductor Nom. Diameter: 0.032 in
      • Insulation Material: FEP - Fluorinated Ethylene Propylene (Foam)
      • Insulation Nom. Insulation Diameter: 0.133 in (3.38 mm)
      • Outer Shield Layer 1: Tape/Tri-Laminate (Alum+Poly+Alum)/Duofoil®/100%
      • Outer Shield Layer 2: Braid/Tinned Copper (TC)/95%
      • Outer Shield Material Trade Name: Duofoil®
      • Outer Jacket Material: PVC - Polyvinyl Chloride
      • Outer Jacket Nom. Diameter: 0.196 in (4.98 mm)
      • Overall Cable Diameter (Nominal): 0.196 in (4.98 mm)
      • UL Voltage Rating: 300 V (CMP)
      • Plenum (Y/N): Y
      • Environmental Suitability: Indoor - Plenum, Indoor
      • Sustainability: CA Prop 65
      • Flammability / Reaction to Fire: NFPA 262, FT6
      • NEC / UL Compliance: CMP
      • CEC / C(UL) Compliance: CMP
      • Nominal Characteristic Impedance: 75 +/- 3Ω
      • Non-Plenum Number: BL-1505A

    • Item Includes:

      • 1506A 6G-SDI CMP/Plenum RG-59 Coaxial Cable - Black - 1000 Foot

    • Warranty:

      • Limited 10 Year Warranty

    • GTIN:

      0612825116653
