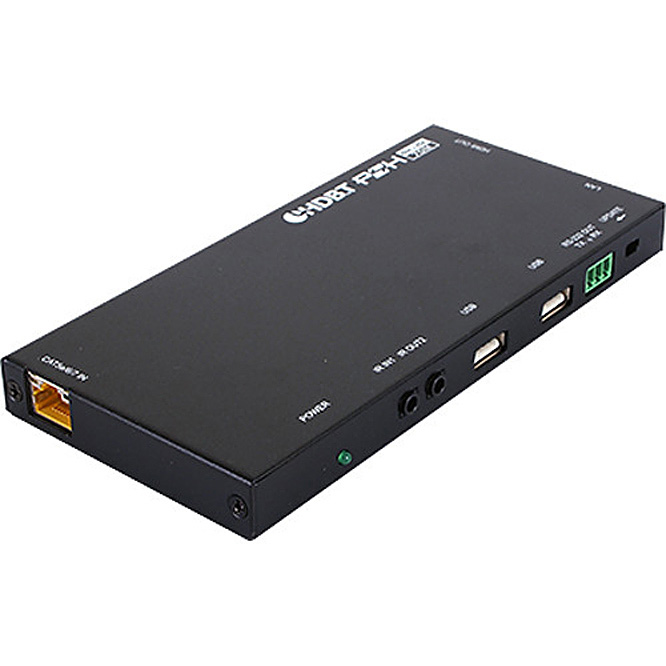

Link Bridge LBC-HDBT-R-KM-48 HDBaseT HDMI Transmission with HID USB

Item #: BD-LBCHDBTRKM48   •   MFG #: LBC-HDBT-R-KM-48



List Price:$444.40
Our Price:$309.95

free ship


Availability:
Direct Ship from manufacturer, contact us for availability
i
Item ships directly from the manufacturer and is subject to manufacturer availability. We will contact you with expected availability. You can also email [email protected], chat or call customer service (800)-522-2025 for expedited delivery options.



    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov

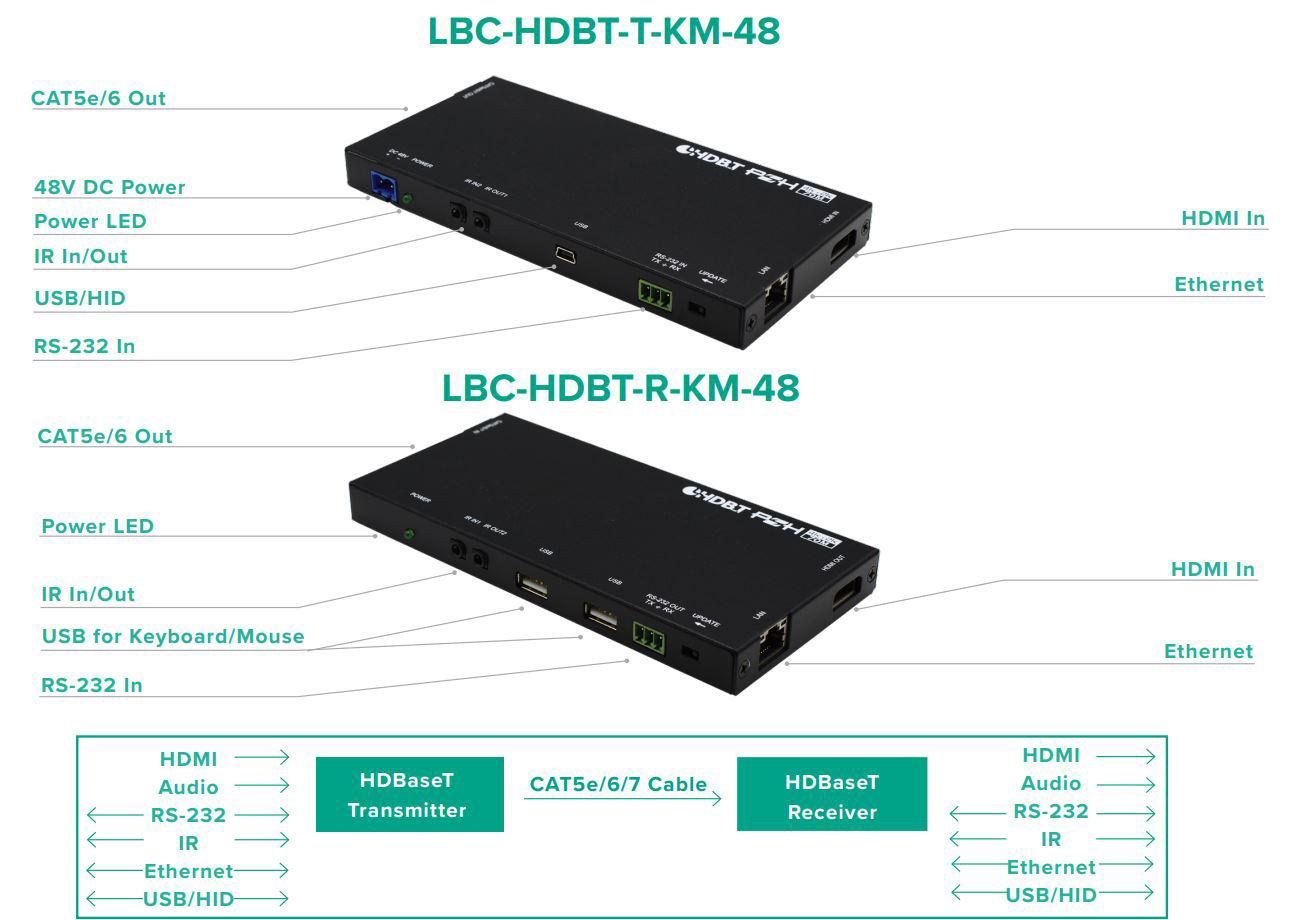

    This Link Bridge LBC-HDBT-R-KM-48 HDBaseT HDMI 5-Play Transmission System is capable of extending UHD video and audio and control over a single run of CAT5e/6/7 cable over distances up to 100 meters*. This extender complies with HDCP 2.2 and 9G HDMI Standards and supports legacy HDCP 1.x and HDMI 1.x standards. It also supports 4K UHD HDMI video sources up to [email protected] Multiple data and control interfaces are also able to be extended with IR and RS-232 connections. This unit supports bi-directional 48V PoH (Power over HDBaseT) allowing systems to be completely powered by, or provide power to, a compatible connected Receiver, allowing for greater flexibility within different installation scenarios.

    * CAT6a/7 cable recommended to ensure maximum distance.


    • Features

      • Extend HDMI signals up to 70 meters over one CAT 5e/6 cable
      • Supports full HDTV video resolutions up to 4K2K @30Hz
      • Fully uncompressed video and audio provides zero loss of quality
      • Supports true DDC/EDID/HDCP transmission
      • Video/Audio+IR+Data+Ethernet, over 1 CAT 5e/6 cable
      • Supports 48V from transmitter (PSE) to receiver (PD)
      • 9G HDMI and HDCP 2.2 compliant
      • Supports both RS-232 and IR control data
      • Supports USB Keyboard and Mouse

    • Specifications

      • Video/Audio
      • HDMI Version: 1.4 with 3D, 4K*2K support
      • Video Resolution: Up to 4K2K @ 30Hz
      • Protocol: DDC/EDID Capable, HDCP 2:2
      • Video Bandwidth: 300MHz/10.2Gbps
      • Audio Formats: Supports up to 7.1 CH & Dolby, TrueHD, DTS-HD Master Audio
      • Audio Sampling Rate: 32KHzto 192KHz
      • HDMI/Audio Connector: HDMI Female plug

        DATA
      • Serial Control: RS232
      • Data Rate: Up to 115.2 Kbaud
      • Connector: Terminal Block

        IR
      • Data Rate: 30 -50KHz
      • In/Out Connectors: 3.5mm Stereo

        Ethernet
      • Ethernet Speed: 100 Mbps
      • LAN Connector: RJ45

        USB
      • Function For USB: 2.0 Keyboard/Mouse
      • Connector: USB Type A
      • Channel Count: Tx(1), Rx(2)

        HDBT Transmission
      • Cable Type: CAT 5e/6 or higher
      • Number of Cables: 1
      • Connector/ Distance: RJ-45/Up to 100m

        Physical
      • Dimensions: 6.42'(W) x 3.07'(D) x 0.63'(H)
      • Power Consumption: +48 VDC @ 0.9 Amps (Max.)
      • Operating Temperature: 0 to +40°C
      • Humidity: 20 to 90% RH, Non-Condensing
