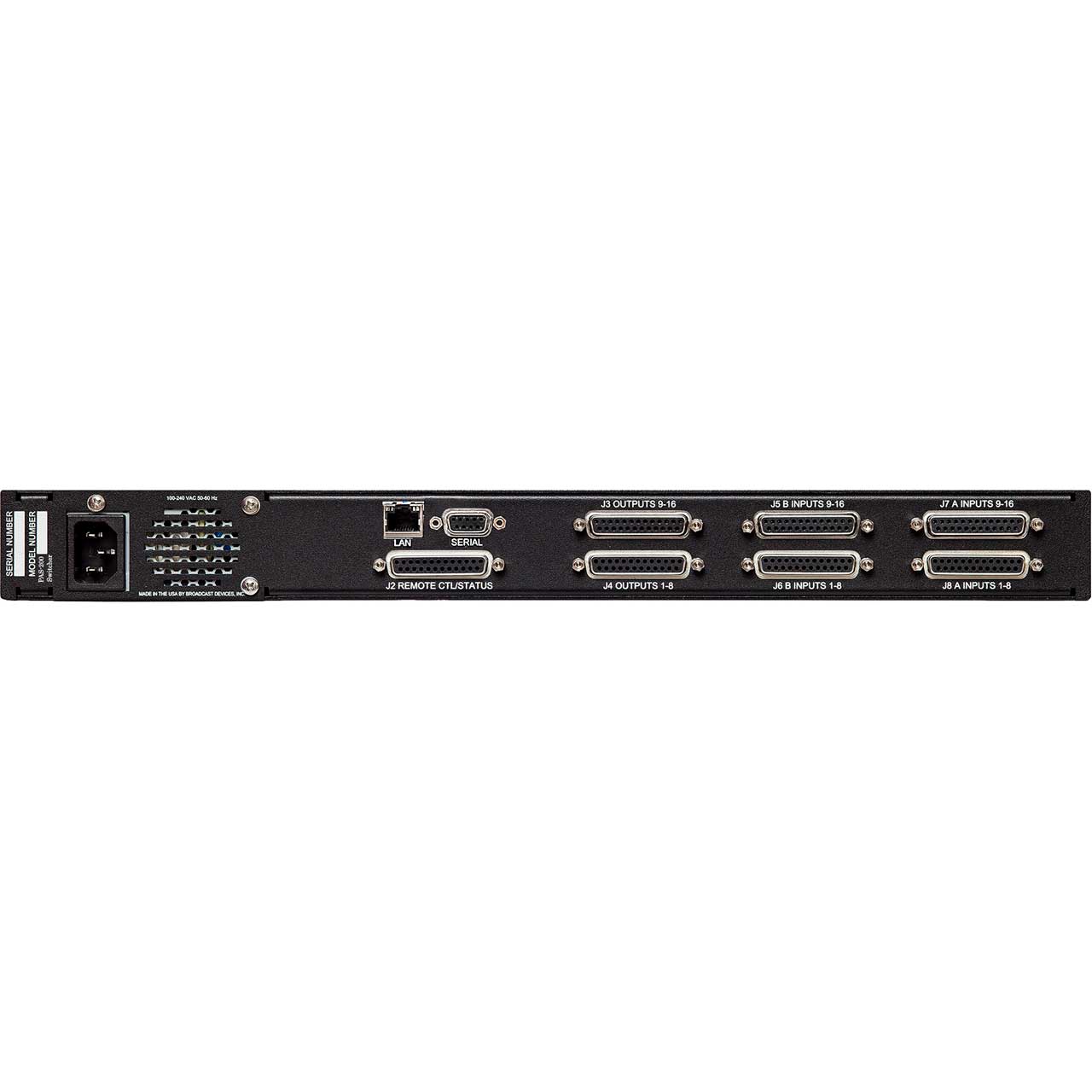

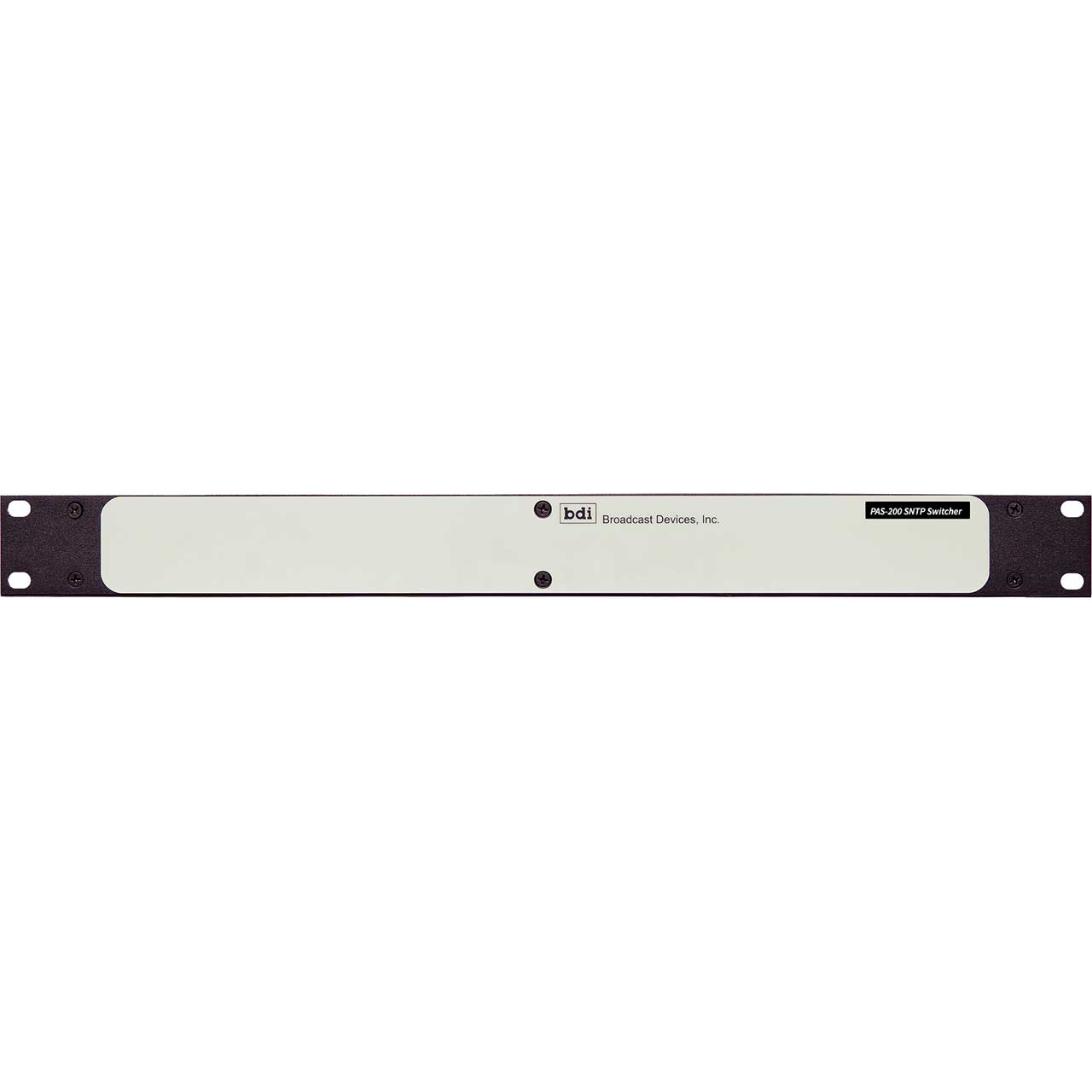

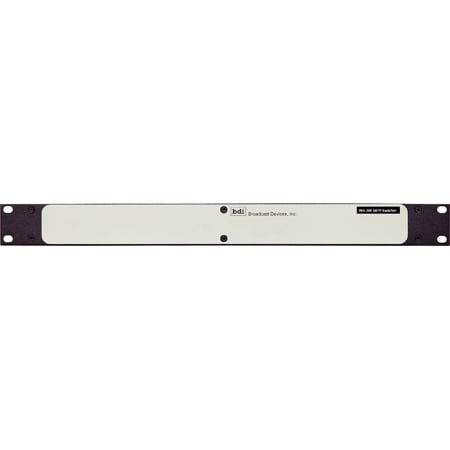

BDI PAS-200 SNMP Programmable Relay Passive 16-Channel A/B Audio Switcher

ITEM #: BDI-PAS-200 MFG #: PAS-200

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Our Price:

$1,895.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    PAS-200 - Overview

    The PAS-200 Passive Audio Switcher - With SNMP Network Interface

    The BDI PAS-200 Passive Audio Switcher provides A/B switching of up to 16 individual balanced pairs of digital or analog audio. The PAS-200 is designed to meet the rigors of live sound, production, recording or broadcast environments. Feed up to 16 A and B inputs and the PAS-200 can be programmed to switch one at a time or any grouping of the 16 channels to 16 outputs. Audio I/O is Tascam™ standard. Easy setup and command using the BDI Stack GUI interface. What makes the PAS-200 even more powerful is the ability to use Simple Network Management Protocol (SNMP) for control and status of the switcher. SNMP is a powerful protocol for control and setup of devices on a network and the PAS-200 is equipped to handle SNMP setup and command protocols.

    • Features:

      • 16 individual A/B Balanced Audio Pairs
      • Tascam DB25 Connector I/O Standard
      • Up to 16 Pair Groups Possible from Parallel GPIO for up to 16 Group Command/Status
      • SNMP Based for TCP/IP Control and Status Redundant Power Model Available For Ultimate Reliability

    • Specifications:

      • Number of Inputs: 2-Sets of 16 Individual Balanced Pair - Relay Switched
      • Number of Outputs: 16 Balanced Pairs
      • Connector Style: DB25 Female - Tascam Pin Configuration Standard
      • Remote Control: GPIO for 16 Presets, TCP/IP SNMP v2, RS-485 Serial
      • Status: GPIO Open Collector Output for Local Status, TCP SNMP v2 and Serial Status
      • Programmability: Windows/Android Based BDI Stack Software Supplied for Configuration and Operation
      • Power Requirements: 100-240 VAC 50-60 Hertz @ 0.25 A.
      • Mechanical Specifications: 19" W X 10"D X 1.75" H - Standard EIA Steel Rack Unit Enclosure
      • Environmental: 0-60 Degrees Celsius Non Condensing Atmosphere
      • Shipping Weight: 15 lbs. Including Carton. Carton Size 22" W X 14" D X 7" H
      • Accessories Available: AIP-100 DB25 to XLR Breakout 19" Rack Panel DIP-100-75 DB25 5o 75 Ohm BNC Connector Rack Panel

    • Item Includes:

      • 1x BDI PAS-200 SNMP Programmable Relay Passive 16-Channel A/B Audio Switcher
